Rice Carbohydrate-Binding Malectin-Like Protein, OsCBM1, Contributes to Drought-Stress Tolerance by Participating in NADPH Oxidase-Mediated ROS Production
Rice volume 14, Article number: 100 (2021)
Carbohydrate-binding malectin/malectin-like domain-containing proteins (CBMs) are a recently identified protein subfamily of lectins that participates various functional bioprocesses in the animal, bacterial, and plant kingdoms. However, little is known the roles of CBMs in rice development and stress response. In this study, OsCBM1, which encodes a protein containing only one malectin-like domain, was cloned and characterized. OsCBM1 is localized in both the endoplasmic reticulum and plasma membrane. Its transcripts are dominantly expressed in leaves and could be significantly stimulated by a number of phytohormone applications and abiotic stress treatments. Overexpression of OsCBM1 increased drought tolerance and reactive oxygen species production in rice, whereas the knockdown of the gene decreased them. OsCBM1 physically interacts with OsRbohA, a NADPH oxidase, and the expression of OsCBM1 in osrbohA, an OsRbohA-knockout mutant, is significantly downregulated under both normal growth and drought stress conditions. Meanwhile, OsCBM1 can also physically interacts with OsRacGEF1, a specific guanine nucleotide exchange factor for the Rop/Rac GTPase OsRac1, and transient coexpression of OsCBM1 with OaRacGEF1 significantly enhanced ROS production. Further transcriptome analysis showed that multiple signaling regulatory mechanisms are involved in the OsCBM1-mediated processes. All these results suggest that OsCBM1 participates in NADPH oxidase-mediated ROS production by interacting with OsRbohA and OsRacGEF1, contributing to drought stress tolerance of rice. Multiple signaling pathways are likely involved in the OsCBM1-mediated stress tolerance in rice.
Carbohydrate-binding malectin domain or malectin-like domain-containing proteins (CBMs) are a recently identified protein subfamily of lectins that occur across the animal, bacterial, and plant kingdoms (Schallus et al. 2008; Bellande et al. 2017). CBMs, initially found in bacteria and fungi, are non-catalytic domains frequently appended to glycoside hydrolases that degrade plant cell wall polysaccharides (Cantrarel et al. 2009). Thereafter, they were identified in all taxonomic kingdoms. Malectin (PF11721) binds with a di-glucose within the endoplasmic reticulum (ER) and NMR-based ligand-screening studies have shown binding of the protein to maltose and related oligosaccharides. Accordingly, the protein has been designated “malectin”, and its endogenous ligand was determined to be Glc2-high-mannose N-glycan in animal cells (Schallus et al. 2008). Malectin-like (PF12819) is a carbohydrate-binding protein of the ER and this domain has been found existing in a number of plant receptor kinases (Zhang et al. 2007; Boisson-Dernier et al. 2011).
The well-described CBMs in plants are malectin-like receptor kinases, also known as Catharanthus roseus receptor-like kinase-like proteins (CrRLK1Ls), which belong to a new receptor-like kinase (RLK) subfamily and are involved in many different plant functional processes ranging from cell-wall integrity to immunity (Franck et al. 2018). All members of the CrRLK1L protein family in plants share a similar domain structure with a malectin-like domain, a transmembrane domain, and an intracellular Ser and Thr kinase domain (Boisson-Dernier et al. 2011; Lindner et al. 2012; Galindo-Trigo et al. 2016). In Arabidopsis, the CrRLK1L family contains 17 members and 10 are characterized as having important roles in cell growth, plant morphogenesis, reproduction, immunity, hormone signaling, and stress responses (Boisson-Dernier et al. 2011; Kessler et al. 2015; Yeh et al. 2016; Feng et al. 2018; Franck et al. 2018). FERONIA (FER) is the best characterized CrRLK1L family protein. It is a key positive regulator for polar growth and cell-wall integrity. The fer mutant, loss-of-function plants for FER, are semi-dwarf and the tip-growing cells, such as trichomes and root hairs, in fer plants are affected (Guo et al. 2009; Duan et al. 2010). The fer mutant plants also display box-shaped epidermal cells (Li et al. 2015). FER is also essential for pollen tube reception and in mechanical signaling transduction in Arabidopsis by interacting with reactive oxygen species (ROS) and Ca2+ (Kessler et al. 2015; Shih et al. 2014; Nissen et al. 2016). Although FER is required for pollen tube reception in the female gametophyte, its closest homologs, ANXUR1 (ANX1) and ANXUR2 (ANX2), function in the maintenance of pollen tube integrity during polarized tip growth and the premature bursting of pollen tubes in anx1 or anx2 mutants leads to male sterility (Boisson-Dernier et al. 2009; Miyazaki et al. 2009). FER also acts as a negative regulator of abscisic acid (ABA) signaling by activating ABI2 phosphatase (Yu et al. 2012). More recently, it was reported that FER acts as a damage sensor to maintain cell-wall integrity during salt stress through Ca2+ signaling (Feng et al. 2018). Additionally, FER positively influences pathogen-associated molecular pattern (PAMP)-triggered immunity (PTI) in association with BRASSINOSTEROID INSENSITIVE 1-ASSOCIATED RECEPTOR KINASE 1 (BAK1) (Stegmann et al. 2017; Franck et al. 2018). Another malectin-like receptor kinase IOS1 also positively regulates plant immunity by association with BAK1 (Yeh et al. 2016). ANX1 and ANX2 also negatively regulate both the cell surface-resident pattern recognition receptor (PRR)- and intracellular nucleotide-binding domain leucine-rich repeat protein (NLR)-mediated immunity in association with FLAGELLIN-SENSING2 (FLS2) and BAK1 (Mang et al. 2017). In rice, two CrRLK1L homolog genes, OsCrRLK1L2 and OsCrRLK1L3, were found to be antagonistically upregulated in a diurnal and nocturnal manner, respectively (Nguyen et al. 2015). Another rice CrRLK1L homolog gene, OsCrRLK1L15, may participate in the salt stress response (Udomchalothorn et al. 2014). In strawberries, a genome-wide analysis indicated that malectin-like receptor kinases in this species are associated with fruit ripening and abiotic stress responses (Zhang et al. 2016).
However, CBMs are diverse in structure according to the domain composition, and not only CrRLK1L-type proteins exist in plants. In a recent study, a total of 69 members of CBMs were identified in Arabidopsis and among them, 59 members contained a cytoplasmic kinase domain (Bellande et al. 2017), which is greater than the 17 Arabidopsis CrRLK1L genes previously identified (Boisson-Dernier et al. 2011). Among these Arabidopsis CBMs, nine members do not have a kinase domain but have leucine-rich repeat (LRR) motifs in amino acid sequences, whereas one member only contains one malectin-like domain in the N-terminal (Bellande et al. 2017). In strawberries, 62 CBM members were identified and some members contain only one malectin domain (Zhang et al. 2016). In the rice genome, 16 genes were identified as CrRLK1L homologs in an early study (Nguyen et al. 2015). However, according to our recent study, a total of 84 CBMs genes were identified in the rice genome, with 67 encoding malectin/malectin-like receptor-like kinases (MRLKs) and 17 encoding malectin/malectin-like receptor-like proteins (MRLPs) (Jing et al. 2020). These MRLPs do not have a kinase domain but have one malectin or malectin-like domain in their protein structure.
In the present study, a CBM gene (LOC_09g19380), named OsCBM1, was cloned and characterized in rice. OsCBM1 only contains a malectin-like domain in its structure and was denoted as OsMRLP15 in our previous study (Jing et al. 2020). OsCBM1 is located at both the ER and PM. Its transcripts are dominantly expressed in leaves of rice and can be greatly stimulated by a number of phytohormonal application and abiotic stresses. Overexpression of OsCBM1 enhanced plant tolerance to drought, whereas its downexpression reduced the tolerance. OsCBM1 participates in ROS production by interacting with OsRbohA and OsRacGEF1, therefore contributing to drought tolerance of rice. The results obtained here proposed a novel signaling mode for CBM proteins functioning in stress tolerance of plants.
OsCBM1 is Only a Malectin-Like Domain Containing Protein Located Both at the ER and PM and Functions in the Stress Response of Rice
In our previous study, a total of 84 CBMs genes were identified in the rice genome, with 67 encoding malectin/malectin-like receptor-like kinases (MRLKs) and 17 encoding malectin/malectin-like receptor-like proteins (MRLPs) (Jing et al. 2020). Among them, OsMRLP15 (LOC_09g19380) was found to only contain a carbohydrate-binding malectin-like domain in the protein structure (Fig. 1A), and thus, was renamed herein as OsCBM1. As shown in Fig. 1B, OsCBM1 is expressed in the entire rice plant and the most dominant transcripts occur in leaves rather than in roots or panicles during the whole development stages examined. The subcellular localization analysis using a Nicotiana benthamiana leaf transient transformation system showed that OsCBM1 is located at both the ER and PM in cells (Fig. 1C). The OsCBM1-GFP construct was expressed both with the ER marker AtCHS (Saslowsky and Winkel-Shirley 2001, 2006) and the PM marker AtCBL1n (Batistic et al. 2010), which were fused to the mCherry reporter gene, respectively (Fig. 1C).
Additionally, OsCBM1 was highly sensitive to a number of hormonal treatments and environmental abiotic stresses. As shown in Fig. 1D, the transcriptional expression of the gene was stimulated by exogenous abscisic acid (100 μM ABA), salicylic acid (500 μM SA), gibberellic acid (50 μM GA), and methyl jasmonic acid (100 μM MeJA) applications (Fig. 1D). The expression of the gene was also induced by dehydration (20% PEG6000), salt (200 mM NaCl), oxidative stress (15 μM methyl viologen, MV), cold (4 °C), and heat (40 °C) stress treatments (Fig. 1D), particularly by MV and heat stresses, suggesting that OsCBM1 is a stress-responsive gene and might play crucial roles in abiotic stress tolerance of rice.

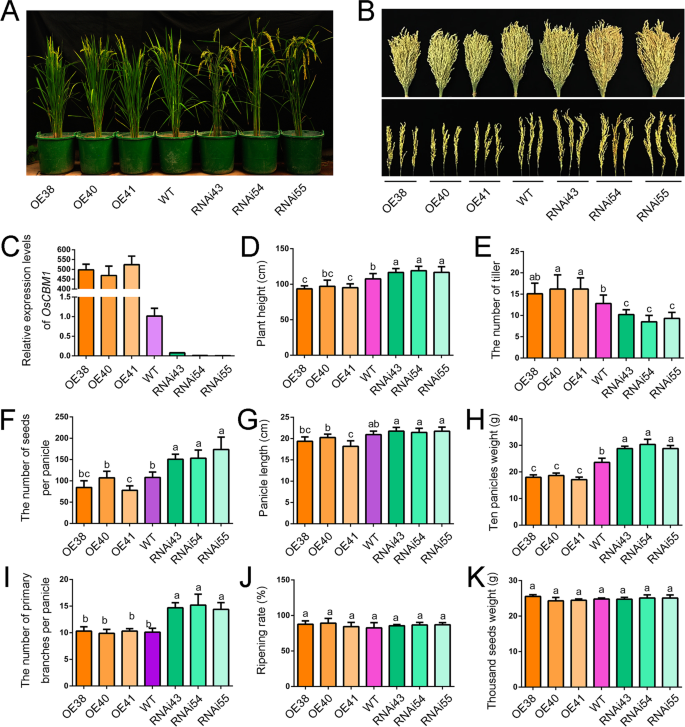

Differential Expression of OsCBM1 Affected the Agronomic Traits of Rice Plants
To obtain further insights into the OsCBM1 function, we generated transgenic plants, including the gene overexpressing (OE) and RNA interference (RNAi) lines by Agrobacterium-mediated transformation with rice calli from Oryza sativa L. subsp. japonica Nipponbare. Three independent lines with different transcription levels of OsCBM1 for both the OE and RNAi plants (T2 generation) were selected for further study (Fig. 2A, C, and Additional file 1: Fig. S1). As compared to the wild-type (WT), the OE plants showed little alteration in plant height (Fig. 2D), number of tillers (Fig. 2E), number of seeds per panicles and panicle length (Fig. 2B, F, G). Only the ten-panicle weight exhibited a marked decrease in the OE plants compared with that of the WT (Fig. 2H). In contrast, the knockdown of OsCBM1 increased plant height (Fig. 2D), numbers of seeds per panicle (Fig. 2F), primary branches per panicle (Fig. 2I), and the ten-panicle weight (Fig. 2H) but decreased the number of tillers (Fig. 2E) as compared to that of the WT. However, the seed ripening rate and thousand seed weight were not affected in either the OE plants or the RNAi plants (Fig. 2J, K).
OsCBM1 Participates in Drought Tolerance and ROS Production of Plants by Physically Interacts with OsRbohA
Because the OsCBM1 gene exhibited markedly stress-inducible characteristics in transcriptional expression, as described above, we next examined the tolerance of the gene transgenic plants to drought. The results showed that the OE plants of OsCBM1 exhibited greater tolerance to drought, whereas the RNAi plants were more sensitive to the stress (Fig. 3A). The survival rates of the plants under drought were higher in the OE lines but lower in the RNAi lines compared with that of the WT (Fig. 3B). Further study on the characteristics of the stomatal apparatus of the leaves between the different types of plants showed that, the OsCBM1-RNAi lines possessed greater numbers of stomata per leaf area (Fig. 3C) and a higher percentage of opening stomata (Fig. 3D), whereas, most of the stomata in the leaves of the OE lines stayed partially opening (Fig. 3D), implying that water will be more easily lost in the RNAi plants and therefore, decreased the tolerance of the plants to drought. However, the water use efficiency (WUE) of the plants retained no changes between the WT, OE, and RNAi lines plants both under normal growth and drought stress conditions and even drought stress seemed to decreased the WUE in all types of plants (Additional file 2: Fig. S2). Under normal growth conditions, there were no significant differences in the rates of photosynthesis, transpiration, and the conductance of stomata among the WT, OE, and RNAi plants. However, under drought conditions, these three indexes were highest in RNAi plants, followed by WT plants, with the lowest values in OE plants, although no significant differences were observed between some plant lines (Additional file 2: Fig. S2).
Meanwhile, we examined the ROS production of the genetically transgenic plants and found that ROS (H2O2 and O2−) production was much more highly exhibited in both protoplasts and leaves of the OE plants but was markedly lower in those of the RNAi plants compared with that of the WT, even under normal growth condition. As shown in Fig. 3E, more protoplasts isolated from the OE line plants exhibited bright fluorescence of 2,7-dichlorodihydrofluorescein dilacerate acetyl ester (H2DCF-DA) as compared to those from the RNAi plants, indicating that the intracellular ROS levels were higher in the OE plants than in the RNAi plants. The results from the leaves of both the nitro blue tetrazolium (NBT) and 3,3′-diaminobenzidine tetrachloride (DAB) staining, which represented the release levels of H2O2 and O2− in apoplastic spaces, respectively, demonstrated greater ROS production in the OE plants than in the RNAi plants because the OE leaves stained darker than did the RNAi ones (Fig. 3F). The stoichiometric analysis further revealed that the OE plants possessed higher leaf H2O2 content and O2− production rate than did the RNAi plants both under normal growth and drought-stress conditions, although drought stress enhanced ROS production in both the OE and RNAi plants (Fig. 3G). These results suggested that the functions of OsCBM1 in drought tolerance of rice might be involved in the regulation of the protein in ROS production.
Since the plasma membrane NADPH oxidase, also known as respiratory burst oxidase homologs (Rbohs), play vital roles in plant stress tolerance (Hu et al. 2020a, b; Shi et al. 2020) and OsRbohA, a key NADPH oxidase for ROS production, functions in the developmental regulation and drought-stress tolerance of rice (Wang et al. 2016), we then tested whether the functions of OsCBM1 in drought tolerance and ROS production are related to OsRbohA. As shown in Fig. 4, the transcriptional expression levels of OsCBM1 were greatly downregulated in osrbohA, an OsRbohA-knockout mutant, as compared to the WT, under both normal growth and drought stress conditions (Fig. 4A, B), implying a close relationship between OsCBM1 and OsRbohA in biological functions. We further examined the interaction between OsCBM1 and OsRbohA at the molecular level. Firefly luciferase complementation imaging (LCI) assay were firstly used to examine the interaction and a fluorescent signal was detected in Nicotiana benthamiana leaves when cLuc-OsRbohA was coexpressed with nLuc-OsCBM1 (Fig. 4C), indicating the interactive relationship between OsCBM1 and OsRbohA in vivo. Moreover, bimolecular fluorescence complementation (BiFC) assay was performed to verify the interaction between OsCBM1 and OsRbohA and the existence of eYFP fluorescence signal strongly suggests the interaction between OsCBM1 and OsRbohA in vivo (Fig. 4D). Then MBP-pull down assay was performed to clarify the interaction of OsCBM1 and OsRbohA-ND (coding 360 amino acid residues at the N-terminal) in vitro. The His-tagged OsCBM1 could be pulled down by MBP-tagged OsRbohA, clearly showing that OsRbohA-ND was directly associated with OsCBM1 in vitro (Fig. 4E). All these results suggest that OsCBM1 physically interacts with OsRbohA and therefore, positively mediates ROS production and drought tolerance in rice.
OsCBM1 Physically Interacts with OsRacGEF1
Because OsRacGEF1 functions in the binding of OsRac1 to OsRbohs to regulate ROS production in rice (Wong et al. 2007; Akamatsu et al. 2013; Kawasaki et al. 2017), we next tested whether OsRacGEF1 participated in the OsCBM1-mediated ROS production. At first, we used the split-ubiquitin yeast two-hybrid assays to test the interaction between OsCBM1 and OsRacGEF1 and the results showed that OsCBM1 could interact with OsRacGEF1 in yeast cells (Fig. 5A). Next, LCI assay were conducted to examine the interaction again and a strong fluorescent signal was detected in N. benthamiana leaves when cLuc-OsRacGEF1 was coexpressed with nLuc-OsCBM1 (Fig. 5B), thereby further indicating the interactive relationship between OsCBM1 and OsRacGEF1 in vivo. Thereafter, an MBP-pull down assay was performed to clarify the interaction of OsCBM1 and OsRacGEF1 in vitro. The His-tagged OsCBM1 could be pulled down by MBP-tagged OsRacGEF1, clearly showing that OsRacGEF1 was directly associated with OsCBM1 in vitro (Fig. 5C). The Co-IP experiment further showed that OsCBM1 physically interacts with OsRacGEF1 because a clear band of OsCBM1-eGFP was observed in the OsRacGEF1-6 × cMyc immunoprecipitates when the eGFP-tagged OsCBM1 was co-expressed with OsRacGEF1-6 × cMyc in N. benthamiana leaves (Fig. 5D). Additionally, OsCBM1 and OsRacGEF1 were co-located in subcellular compartments because the fluorescent signals overlapped in both the N. benthamiana epidermal cells and protoplasts (Additional file 3: Fig. S3). Interestingly, a lack of OsCBM1 appeared to affect the subcellular localization of OsRacGEF1 to PM because the fluorescent signals of OsRacGEF1 in PM was weakened in the OsCBM1-RNAi54 transgenic plants compared with that of the WT (Additional file 4: Fig. S4).
Transient Coexpression of OsCBM1 with OsRacGEF1 Enhanced ROS Production
Furthermore, we determined whether the interaction of OsCBM1 with OsRacGEF1 and OsRbohA contributes ROS production by using a transient co-expression system. As expected, transient co-expression of OsCBM1 and OsRacGEF1 greatly enhanced ROS production in N. benthamiana leaves (Fig. 5E). Deeply stainings were observed in the areas of both OsCBM1 and OsRacGEF1 expression and the co-expression of the two genes exhibited higher staining intensity, as compared to their expression alone. These results strongly suggested that OsCBM1 positively contributes ROS production by interacting with OsRacGEF1. The co-expression of OsCBM1 with OsRbohA in N. benthamiana can also enhance ROS production in N. benthamiana leaves (Fig. 5F), further suggesting that the OsCBM1-mediated ROS production might be also closely related to OsRbohA.
Downregulation of OsCBM1 Affected the Expression of Global Genes Related to Plant Stress Tolerance
To further elucidate the functions of OsCBM1 in plant development and stress tolerance, we performed an RNA-seq experiment to identify the differentially expressed genes (DEG) when OsCBM1 was knocked down in rice. A total of 7463 genes were differentially expressed in the OsCBM1-downexpressing RNAi54 plants (Additional file 5: Table S3). Among these genes, 3293 were upregulated and 4170 were downregulated in the RNAi54 plants compared with that of the WT (Fig. 6A). GO analysis indicated that most enriched GO terms of DEG were associated with catalytic activity, cell part, and metabolic process (Fig. 6B). As shown in Additional file 6: Table S2, 40 genes, which were assigned to ATPases or GTPases, were differentially expressed in the RNAi54 plants as compared that of the WT. And 56 genes assigned to a pentatricopeptide repeat (PPR) domain-containing proteins and 15 genes encoding a set of ankyrin repeat (ANK) domain-containing proteins were also highly differentially expressed in the transgenic plants. Furthermore, a set of genes (13) encoding the Rapid ALkalinization Factors (RALFs) was also highly differentially expressed in the RNAi54 plants compared to that of the WT (Additional file 6: Table S2). Additionally, more than 170 differentially expressed genes were assigned to “Protein Kinases”, including 24 lectin-like protein kinases, 12 wall-associated receptor kinases, six stress-activated protein kinases, and 129 receptor-like protein kinases (Additional file 6: Table S2).
More interestingly, several sets of genes that encode respiratory burst oxidase homologs (Rbohs), Rop/Rac associated proteins (Racs), GEFs, mitogen-activated protein kinase (MAPK) cascade-related proteins, and drought-stress associated proteins were highly downregulated in the RNAi54 plants compared with that of the WT (Table 1). To further elucidate this issue, we analyzed the transcriptional expression profiles of OsRbohs, OsRacGEFs, OsRacs, and OsMAPK cascade family genes in both the OsCBM1-overexpressing, OsCBM1-RNAi transgenic and WT plants by qRT-PCR. As shown in Additional file 7: Fig. S5, almost all of the OsRboh genes are upregulated in the OE plants but downregulated in the RNAi plants, this was especially true for OsRbohA, C, F, and I, which showed very high coexpressions with OsCBM1. Similar results were observed for the OsRacGEF family genes. Among them, OsRacGEF1, 3, 4, 6, 8, and 11 exhibited strong coordination in expression with OsCBM1 in the transgenic plants. In the OsRac family genes, OsRac1, 3, 6, and 7 somewhat showed coexpression with OsCBM1 because they were all significantly downregulated in the RNAi plant lines. Interestingly, a set of MAPK cascade-related protein genes were also highly exhibited in coexpression profiles with OsCBM1. Several MAPKKKs, namely OsMAPKKK1, 2, 4, potentially 24, two MAPKKs, OsMAPKK1 and 4, and one MAPK, OsMAPK4, showed very strong coordination with the expression of OsCBM1 (Additional file 7: Fig. S5).
Next, we selected some members of these gene families to verify their coexpression relationship with OsCBM1 when the plants were subjected to drought stress conditions. As seen in Fig. 6C, all the selected genes from OsRboh, OsRac, OsRacGEF, and OsMAPK cascade families showed strong coexpression patterns with OsCBM1 when it was differentially expressed in transgenic plants both under normal growth and drought stress conditions. Almost all of the selected genes from these protein families were substantially upregulated in the OE plants but significantly downregulated in the RNAi plants as compared to that of the WT. Additionally, the transcripts of most of the selected genes, including OsRbohA/C/D/G, OsRac3, OsRacGEF1/7, OsMAPKKK1/2/4/24, and OsMAPK4, were markedly increased by drought stress in the OE plants (Fig. 6C).
Malectin and malectin-like domain-containing proteins belong to a large protein family that plays important roles in plant growth regulation, cell-wall integrity, signaling transduction, immunity, and abiotic stress response (Nissen et al. 2016; Franck et al. 2018; Jing et al. 2020). The first malectin protein identified was located in the ER and functioned in protein N-glycosylation in animal cells (Schallus et al. 2008). In plants, a small plant-specific putative glycosylphosphatidylinositol (GPI)-anchored protein LORELEI (LRE) was localized to the filiform apparatus together with the malectin-like receptor kinase FER and chaperones FER on the transport way from ER to the filiform apparatus (Liu et al. 2016). LRE, and its closest relative LORELEI-like-GPI-AP1 (LLG1), also acted as coreceptors of FER in its shuttling from the ER to the cell surface (Li et al. 2015). Moreover, it was found that both RHO-GTPASE OF PLANTS 2 (ROP2) and RALF1 directly interacted with FER, LRE, and LLG1, implying that LRE and LLG1 acted as chaperones and possibly coreceptors for FER during plant immunity (Franck et al. 2018). LLG1 was also required for flg22-induced BOTRYTIS-INDUCED KINASE 1 (BIK1) phosphorylation and ROS production (Stegmann et al. 2017). However, whether FER and other malectin and malectin-like domain-containing proteins directly interact with the NADPH oxidases (Rbohs) to regulate ROS production is still under investigation. In an our recent study, a total of 84 malectin/malectin-like domain-containing protein genes, including 67 MRLKs and 17 MRLPs were identified in the rice genome (Jing et al. 2020), but their roles and functional properties in the plant development and stress tolerance were largely unknown. In the present study, we found that one carbohydrate-binding malectin-like domain-containing protein OsCBM1 played an important role in drought tolerance of rice. It can interact with OsRbohA and OsRacGEF1 contributing to ROS production. The results provided herein demonstrate a new functional mechanism for the malectin-like domain-containing proteins in rice stress tolerance.
OsCBM1 is Both an ER and PM Located Malectin-Like Domain-Containing Protein Functioning in Development and Drought Stress Tolerance of Rice
As described above, CBMs in plants are usually assigned to the CrRLK1L family proteins because the most well-characterized CrRLK1L contains a malectin-like domain and a kinase domain in structure (Boisson-Dernier et al. 2011; Hok et al. 2011; Lindner et al. 2012; Galindo-Trigo et al. 2016; Yeh et al. 2016; Bellande et al. 2017; Hu et al. 2018). These malectin-like receptor kinases participate in many important biological processes from cell-wall integrity to respond to numerous biotic and abiotic stresses, as reviewed by Franck et al. (2018). However, studies have shown that some CBMs have only malectin and/or malectin-like domains in structure and no kinase domain was identified (Zhang et al. 2016; Bellande et al. 2017; Jing et al. 2020). The biological roles of this kind of CBMs in plants have not been examined. Herein, we showed that OsCBM1, which has only a malectin-like domain-containing protein, is located at both the ER and PM (Fig. 1A, C). Its transcripts were dominantly expressed in leaves of rice and could be greatly stimulated by many hormonal treatments and environmental stresses (Fig. 1B, D), demonstrating that OsCBM1 is a stress-responsive CBM protein.
Additionally, knockdown of OsCBM1 significantly reduced plant tillering and drought tolerance but increased the plant height, panicle weight, and seed setting, whereas overexpression of the protein enhanced the plant tolerance to drought (Figs. 2, 3A, B), suggesting that this protein positively contributes drought tolerance but negatively influences seed yield in rice. The stomatal aperture differed in the different types of transgenic plants and this might be a major reason for the drought tolerance and yield differential between the transgenic plant lines and that of the WT (Fig. 3C, D). The fact that the OsCBM1-RNAi transgenic lines possess greater numbers of stomata and a higher percentage of opening ones implied a higher water loss rate for this kind of plant during development, which would benefit nutrient and substrate transport, and therefore, providing an advantage for growth and yield production of the plants under well-watered growth conditions. On the other hand, the OsCBM1-RNAi possessed greater numbers of stomata with a higher percentage of openings and conductance of stomata, which would reinforce water loss such that drought tolerance was reduced for these plants under water deficit conditions (Fig. 3C, D, Additional file 2: Fig. S2). Together, these results suggest that OsCBM1 is a novel malectin-like domain-containing protein that functions in plant development and stress tolerance, particularly drought.
A GEF/RAC-Dependent Activation of OsRbohA Could Participates in the OsCBM1-Mediated ROS Production for Drought Tolerance
ROS production plays a pivotal role in the induction of robust immune responses and stress tolerance of plants. Previous studies have shown that many RLKs, including the malectin-like domain-containing CrRLK1L family proteins FER and ANX1/2, may trigger ROS production by regulating the PM NADPH oxidases (Rbohs) during plant immunity and normal growth regulation (Kawasaki et al. 2017; Franck et al. 2018). It was suggested that FER interacts with the GPI-anchored proteins EARLY NODULIN 14 (EN14) and LRE; the latter putatively promotes the function of a yet unknown downstream NADPH oxidase protein triggering ROS accumulation in the female gametophytes of plants (Franck et al. 2018). The two other CrRLK1L proteins, ANX1 and ANX2, act upstream of the ROS-producing NADPH oxidases RbohH and RbohJ to regulate pollen cell-wall integrity (Boisson-Dernier et al. 2013). Additionally, all the FER and ANX1/2 function in plant immunity. FER positively influenced PAMP-triggered immunity (Stegmann et al. 2017); whereas ANX1/2 appeared to negatively regulate both PAMP-triggered immunity and effector-triggered immunity (Mang et al. 2017). To date, among the 10 ROS-producing NADPH oxidases in Arabidopsis thaliana (Baxter et al. 2014), RbohC, RbohD, RbohF, RbohH, and RbohJ have been implicated in CrRLK1L-mediated pathways. In the present study, OsCBM1 positively mediates ROS production, and OsRbohA is involved in the process (Figs. 3, 4). OsRbohA is a key ROS producer in rice and participates in drought tolerance (Wang et al. 2016). Additionally, besides OsRbohA, other OsRbohs, including OsRbohC, D, F, and G, might also participate in OsCBM1-mediated ROS production because their transcriptional expression profiles exhibited strong coordination with OsCBM1 and their transcripts could be greatly stimulated by drought in the OsCBM1-overexpressing plants (Additional file 7: Fig. S5 and Fig. 6C). In addition, LCI, BiFC and pull-down assay showed that OsCBM1 directly interacted with OsRbohA (Fig. 4C–E). These results indicated that OsCBM1 positively contributes ROS production most likely by activating OsRbohA, or other OsRbohs in rice.
The function of OsCBM1 in activation of the rice NADPH oxidases for ROS production might be involved in its interaction with OsRacGEF1. OsRacGEF1 belongs to a plant-specific ROP nucleotide exchanger (PRONE)-type GDP/GTP exchange factor (GEF) family and it was identified as the specific GEF for OsRac1. As a rice Rac/Rop GTPase, OsRac1 plays important roles in plant immune responses (Ono et al. 2001; Kawasaki et al. 2006; Wong et al. 2007; Akamatsu et al. 2013) and positively regulates ROS production via interaction with the N-terminal region of OsRbohs (Wong et al. 2007; Nagano et al. 2016). OsRacGEF1 is an ER-located protein but it may interact with the cytoplasmic domain of the PM RLK protein and OsCERK1 may be transported from the ER to PM through a vesicle trafficking pathway and be phosphorylated by OsCERK1 to activate OsRac1 during chitin-induced immunity (Akamatsu et al. 2013). In Arabidopsis, it was reported that RopGEF1, RopGEF7, RopGEF10, RopGEF14, and Rop2 directly interact with the malectin-like receptor kinase FER kinase domain (Duan et al. 2010). Rop2 further interacts with the N-terminal part of RbohD (Li et al. 2015). Additionally, FER also interacts with Rop11/ARac10 and negatively regulates ABA signaling via ABI2 (Yu et al. 2012). Lastly, the activated Rac/Rops target the ROS-producing plant NADPH oxidases (Carol et al. 2005; Wong et al. 2007), to regulate ROS production. Herein, OsCBM1 directly interacted with OsRacGEF1 (Fig. 5), and both proteins strongly co-localized in subcellular compartments, including ER and PM (Additional file 3: Fig. S3). OsRacGEF1 could be transported from the ER to PM to activate OsRac1 (Akamatsu et al. 2013). In this study, the PM localization of OsRacGEF1 seemed to be diminished in the OsCBM1-RNAi54 plants (Additional file 4: Fig. S4), implying that the lack of OsCBM1 might affect the transport of OsRacGEF1 from ER to PM. These results suggested that OsCBM1 might undergo a similar transport mechanism as OsRacGEF1 does in OsCERK1-mediated signaling (Akamatsu et al. 2013) during rice drought stress response. OsCBM1 may act as a chaperone of OsRacGEF1 for the protein translocation from ER to PM.
It should be noticed that besides OsRacGEF1 directly interacting with OsCBM1 and exhibiting strong coordination in transcriptional expression with OsCBM1 in the transgenic plants (Figs. 5, 6; Additional file 7: Fig. S5), three other RacGEF genes, including OsRacGEF3, 4, and 7, also showed strong coexpression with OsCBM1 both under normal growth and drought stress conditions (Fig. 6C), implying these OsRacGEFs might also play a role in OsCBM1-mediated ROS production even though the molecular interactions between OsCBM1 and these OsRacGEFs have not been fully verified yet. Besides OsRac1, other OsRac genes including OsRac2/3, and possibly OsRac5/6, also exhibited strong coordination with the expression of OsCBM1, further suggesting that the role of OsCBM1 in ROS production might be involved in GEF/RAC-dependent activation of NADPH oxidases. The interaction between OsRac GTPases and OsRbohs is ubiquitous and besides OsRac1, other Racs, including OsRac2 and OsRac7, interact with OsRbohA, B, C, and D (Wong et al. 2007). These results demonstrated that a GEF/RAC-dependent activation of Rbohs might be involved in OsCBM1-mediated drought tolerance by positively regulating ROS production in rice. Furthermore, the expression levels of OsRbohA and several other members, such as OsRbohC/D/F/G, were substantially upregulated in the OsCBM1-OE plants but downregulated in the RNAi plants under both normal growth and drought stress conditions (Fig. 6). Considering that OsRbohA and OsCBM1 exhibited a very strong coexpression relationship, in which the expression levels of OsCBM1 were significantly downregulated in the osrbohA mutant (Fig. 4A, B), the results obtained herein suggest that a GEF/RAC-dependent activation of OsRbohA and/or other OsRbohs might participate in the OsCBM1-triggered ROS production for drought tolerance.
The Change of CBM1 Transcriptional Level Might Affect Multiple Signaling Pathways
Based on the results from the RNA-seq assay, a huge number of genes were found to be differentially expressed when OsCBM1 was downregulated in rice (Fig. 6A, B; Additional file 5: Table S3). Among those genes, 40 genes were assigned to ATPases or GTPases with some members substantially downregulated in the RNAi54 plants, such as the genes encoding ATPase 2 and ATPase 3, and upregulated in the transgenic plants, such as the gene encoding a Rho-GTPase activating protein (Os04g47330). ATPases and GTPases are central actors in bioenergetics, signaling, and many other cellular processes (Leipe et al. 2002; Wendler et al. 2012), implying a crucial role of OsCBM1 in plant basic metabolic processes, such as bioenergetics and signaling although we do not know much about the details at this stage. RALFs are small cysteine-rich peptides known to be involved in various aspects of plant development and growth (Campbell and Turner 2017). They may act as ligands for the malectin-like receptor kinases and many of them have been identified as participating in the malectin-like receptor kinases, such as FER and ANX1/2, associated with signaling during immunity, pollen tube growth, root and hypocotyl elongation, and salt stress tolerance (Ge et al. 2017; Mecchia et al. 2017; Franck et al. 2018; Zhao et al. 2018). A set of RALFs genes (13) were differentially expressed in the OsCBM1-RNAi54 plants with most of them (11) substantially downregulated in the transgenic plants (Additional file 6: Table S2), suggesting that these RALFs could participate in the OsCBM1-mediated processes.
Additionally, OsCBM1 might also be involved in modular RNA and protein activity in plants. PPR repeat domain proteins are a large family of modular RNA-binding proteins mediating several aspects of gene expression primarily in organelles but also the nucleus (Manna 2015). In Arabidopsis, a PPR protein THA8L was found to be required for the splicing of specific genes involved in the biogenesis of chloroplast thylakoid membranes (Ban et al. 2013). In the present study, a total of 56 genes encoding PPR repeat domain-containing proteins were differentially expressed in the OsCBM1-RNAi54 plants, where 55 were upregulated (Additional file 2: Table S2), indicating that OsCBM1 was an ER-located malectin-like domain-containing protein, which might also function in the RNA splicing or editing process in rice. Another large protein family is the ANK repeat domain-containing proteins, which function in protein–protein interactions and have been found in numerous proteins with diverse functions (Michaely and Bennett 1992; Bork 1993; Mosavi et al. 2004). In animals, some ANK proteins, for example, Ankrd27, participate in membrane fusion events, such as functioning as a guanine exchange factor (GEF) for Rab proteins (https://www.uniprot.org/uniprot/Q3UMR0). In plants, some ANK genes are tissue-specifically expressed and their transcripts could be stimulated by a number of phytohormonal and abiotic stress treatments, suggesting their roles in plant growth and development, as well as in stress responses (Yuan et al. 2013). Herein, 15 ANK genes were altered in expression in the RNAi54 plants compared with that of the WT, suggesting that these ANKs could also be involved in the OsCBM1-mediated process in rice. Because OsCBM1 directly interacts with OsRacGEF1, whether these ANKs function in the interactions of OsCBM1 with RacGEF proteins requires further study. More interestingly, more than 170 RLK genes were differentially expressed with a substantial number being downregulated when the expression of OsCBM1 was knocked down (Additional file 2: Table S2). Although we do not know the exact meaning at this stage, the transcriptional expression levels of many RLK genes were altered by the OsCBM1-knocked down, demonstrating the vital role of OsCBM1 in plant signaling because most of RLKs function in signaling reception and transduction in plants (Tena et al. 2011; Couto and Zipfel 2016; Zhou and Yang 2016; Yu et al. 2017).
Interestingly, a set of genes encoding MAPK cascade-related proteins and drought-stress associated proteins also exhibited strong coexpression with OsCBM1 in the transgenic plants (Table 1; Fig. 6; Additional file 7: Fig. S5), suggesting that a complicated regulatory module might be involved in OsCBM1-mediated ROS production and drought stress response. In plant immunity, many studies have shown that the MAPK cascade plays key roles in RLK signaling transduction and multiple defense responses (Kishi-Kaboshi et al. 2010; Meng and Zhang, 2013; Kawasaki et al. 2017; Yamada et al. 2017). The Rbohs-dependent ROS production usually acts as an upstream regulator for MAPK cascade signaling (Kawasaki et al. 2017; Yamada et al. 2017; Zhang et al. 2018). Herein, both the RNA-seq results (Table 1) and qRT-PCR analysis (Fig. 6C; Additional file 7: Fig. S5) indicated that many MAPK cascade signaling proteins, as well as a set of genes related to drought stress tolerance function in OsCBM1-mediated ROS production and stress tolerance. Previous studies have shown that MAPK activation is independent of ROS production in Arabidopsis (Xu et al. 2014). A chemical genetic approach demonstrated that MPK3/MPK6 activation and NADPH oxidase-mediated oxidative burst are two independent signaling events in plant immunity (Xu et al. 2014). However, the results obtained here showed that an OsMAPKKK1/2/4/24-OsMAPKK1/4-OsMAPK4 signaling cascade might be involved in the OsCBM1-mediated process. Apparently, this process is related to Rbohs-mediated ROS production since OsCBM1 directly interacts with OsRbohA. Whether or not the MAPK cascade activation and Rbohs-mediated ROS production are two dependent signaling in drought tolerance, requires further study.
Taken together, this study demonstrated that an only malectin-like domain-containing protein, OsCBM1, which is localized both in ER and PM, can be greatly stimulated by a number of environmental factors. OsCBM1 interacts with OsRacGEF1 and might be transported to the PM together with OsRacGEF1, where they formed a defensome complex with OsRbohA and OsRac1 when the plants suffered from drought stress, and then, OsRbohA was activated. Activated OsRbohA mediates ROS production and contributes to drought-stress tolerance (Fig. 7). The OsCBM1-mediated drought tolerance of rice might involve multiple signaling pathways, but the details require further study.
Materials and Methods
Plant Materials and Growth Conditions
Oryza sativa subsp. japonica Nipponbare was used as the WT plant in all the experiments. The experiments were performed in the State Key Laboratory of Crops Stress Biology for Arid Areas, Northwest A&F University, Yangling, China. Rice seeds were sterilized with 0.5% (w/v) sodium hypochlorite (NaClO) for 4 h and then germinated on humid cheesecloth in darkness. The well-germinated seeds were selected and grown in a growth chamber with the application of Hoagland solution (Hoagland and Arnon 1950). Healthy and uniform seedlings were selected for further analysis or treatments, or transferred to plastic pots (soil) in a greenhouse with each pot filled by same weight soil from paddy fields.
Nicotiana benthamiana was also used in this experiment. Seeds of N. benthamiana were germinated on sterile 1/2 MS solid medium at 28 °C for 7 d and then grown in plastic pots filled with a substrate (Growing Media Europe AISBL, Belgium) in a growth chamber. Four-week-old seedlings were used for the following experiments, including the analysis of protein subcellular localization, visualization of ROS production, assays of the firefly LCI, and immunoprecipitation (Co-IP). The details for plant materials and growth conditions are presented in Additional file 9: Supporting experimental procedures Methods S1.
Expression Profile Analysis
The expression profiles of OsCBM1 in different plant organs or tissues and under different environmental conditions were analyzed as previously described (Wang et al. 2016). For the tissue-specific expression analysis, the WT of rice plants were allowed to grow in paddy fields and the different plant organs or tissues were collected at various developmental stages. After harvest, the samples were immediately frozen in liquid nitrogen and stored at − 80 °C until further analyses. To identify the inducible expression profiles of OsCBM1, the young seedlings (2-week-old) of WT plants grown in the growth chamber, as described above, were exposed to various abiotic stresses and phytohormones. The treatments were conducted as previously described (Muhammad et al. 2018). The expression levels of the genes were detected by qRT-PCR with OsActin1 (Gene ID: KC140126) used as an internal control. All the RT-PCR and qRT-PCR primers used in this study are listed in Additional file 8: Table S1 and the details for the experiments are presented in Additional file 9: Supporting experimental procedures Methods S1.
Subcellular Location Analysis
Subcellular localization of OsCBM1 and the co-localization of OsCBM1 with OsRacGEF1 in subcellular compartments were determined using an N. benthamiana transient transformation system (Chen et al. 2009). AtCBL1n-mCherry served as a marker for PM protein localization (Batistic et al. 2010) and AtCHS-mCherry was used as a marker for ER protein localization (Dana et al. 2006). For the analysis of OsRacGEF1 localization in the OsCBM1-RNAi transgenic plants, the OsRacGEF1-mCherry containing vector was transformed into rice protoplasts from 7–10 d old WT and OsCBM1-RNAi54 seedlings. The fluorescence was observed under a confocal microscope (A1R, Nikon, Tokyo, Japan). The primers used for the generation of the plasmids are listed in Additional file 8: Table S1 and the experimental details are presented in Additional file 9: Supporting experimental procedures Methods S1.
Generation of Transgenic Plants and Their Phenotypes
To construct the OsCBM1-OE transgenic lines, the ORF sequence of OsCBM1 was amplified and then inserted into the binary vector pCAMBIA1301 to generate an overexpressing plasmid under the control of the CaMV 35S promoter. To construct the OsCBM1-RNA interference (RNAi) transgenic lines, the partial ORF sequence of OsCBM1 was amplified and then connected by both the forward and reverse sequences to the two ends of the intron on the vector pTCK303. The constructs were then introduced into A. tumefaciens strain EHA105 and used to infect the callus of WT Nipponbare rice. Transgenic rice plants were generated as previously described (Toki et al. 2006). The expression levels of OsCBM1 in the transgenic lines were detected by real-time qRT-PCR with the WT as the control. The primers used for the generation of the plasmids for transgenic plants are listed in Additional file 8: Table S1. Agronomic traits of the OE, RNAi, and WT were measured using 30 plants grown in the field at the ripening stage for each type of plant.
Analysis of Stomata Aperture
At least 1000 stomata taken from six different leaves were photographed with a scanning electron microscope (SU8010, Hitachi, Japan) to study the stomata aperture in the OE, RNAi, and WT plants. Strips of abaxial epidermis of the rice leaves were used for the analysis. The status of 100 stomata was analyzed in ImageJ software by measuring the width and length of stomata in the leaves for each type of plant (Zhang et al. 2011). The details for the experiment are presented in Additional file 9: Supporting experimental procedures Methods S1.
Drought Treatment and Determination of Related Parameters
The well-germinated seeds of the OE, RNAi, and WT plants, as described above, were sown in plastic pots filled with Sunshine MVP potting soil (Yangling, China). Six-week-old plants were used for drought treatment by withholding water. The last fully expanded leaves under both normal growth and drought stress conditions were collected for the determination of ROS production, photosynthetic characteristics, and gene expression profiles. A Li-6400 portable photosynthesis system (Li-COR Biosciences, Lincoln, NE, USA) was used to measure the photosynthetic characteristics as described by Wu et al. (2011). The transcription profiles of differentially expressed genes between the OsCBM1-transgenic plants and WT under drought were analyzed with qRT-PCR, as described above. For the assay of drought tolerance between the OE, RNAi, and WT plants, the 4-week-old seedlings grown in Sunshine MVP potting soils were directly treated by withholding water and the survival rates of the plants were recorded after watering. The details for the experiments are presented in Additional file 9: Supporting experimental procedures Methods S1.
Detection of ROS Production
Histochemical analysis of ROS (H2O2 and O2–) production in leaves of the OE, RNAi, and WT plants were conducted as previously described (Wang et al. 2016). The detached leaves from 6-week-old plants grown under normal growth conditions were used for the histochemistry assay. Contents of H2O2 in leaves of different types of rice plants were determined with a Hydrogen Peroxide Assay Kit (Solarbio Institute of Biotechnology, Beijing, China) by following the manufacturer’s instructions. The O2– production rate was measured as described by Jiang and Zhang (2003) by monitoring the reduction of sodium 3′-[1-[phenylamino-carbonyl]-3, 4-tetrazolium]-bis (4-methoxy-6-nitro) benzenesulfonic acid hydrate (XTT) in the presence of O2–. ROS production in protoplasts was visualized via fluorescence of 2, 7-dichlorodihydrofluorescein dilacerate acetyl ester (H2DCFDA) as previously described (Wang et al. 2016). The fluorescence visualization and intensity in root tips were detected using a scanning confocal microscope (Leica TCS-SP2, excitation 488 nm, emission 525 nm). Visualization of ROS in situ in N. benthamiana leaves was performed as described by Wong et al. (2007) with A. tumefaciens strain GV3101 harboring the plasmid pCAMBIA1300-221-cMyc vector carrying the ORF of OsCBM1, OsRacGEF1. These together with an empty vector were used to infiltrate N. benthamiana leaves. The DAB-stained leaves were scanned and pixel intensity of agroinfiltrated regions was quantified by the ImageJ (National Institutes of Health) software. The details for these experiments are presented in Additional file 9: Supporting experimental procedures Methods S1.
The protein expression in vitro and purification were conducted as described by Chen et al. (2009). In the interaction analysis of OsRacGEF1 and OsCBM1, the full-length coding sequence of OsRacGEF1 was amplified and ligated into the pMAL-c2X vector for the preparation of the recombinant MBP-OsRacGEF1 protein and the coding sequence of OsCBM1 was amplified and ligated into the pET-32a vector for the preparation of the recombinant His-OsCBM1 protein (Finkelstein and Lynch 2000; Nakamura et al. 2001). The pull-down assay of OsCBM1 with OsRacGEF1 was performed according to the method described by Zhang et al. (2010). In the interaction analysis of OsRbohA and OsCBM1, the NADPH-Ox domain at the N-terminal of OsRbohA (coding 360 amino acid residues at the N-terminal) was amplified and ligated into the pMAL-c2X vector for the preparation of the recombinant MBP-OsRbohA-ND protein, and the coding sequence of OsCBM1 was amplified and ligated into the pET-32a vector for the preparation of the recombinant His-OsCBM1 protein. The primers used for the generation of the recombinant proteins are listed in Additional file 8: Table S1 and the details for the experiment are presented in Additional file 9: Supporting experimental procedures Methods S1.
Split-Ubiquitin Yeast Two-Hybrid Assays
The full-length coding sequences of OsRacGEF1 and OsCBM1 were amplified and cloned into vectors pBT-STE and pPR-SUC, respectively. The plasmids were co-transformed into Saccharomyces cerevisiae NMY51 yeast cells and the performance of protein interaction analysis was conducted according to the Yeast Protocols Handbook (Clontech, Mountain View, CA, USA). The primers used for generating the various vectors are listed in Additional file 8: Table S1 and the details for the experiment are presented in Additional file 9: Supporting experimental procedures Methods S1.
Firefly LCI Assay
The LCI assays for the protein interaction detection were performed in N. benthamiana leaves. In the interaction analysis of OsRacGEF1 and OsCBM1, the full-length of coding regions of OsRacGEF1 and OsCBM1 were fused with the C- and N-terminal parts of the luciferase reporter gene LUC, respectively. In the interaction analysis of OsRbohA and OsCBM1, the full-length of coding regions of OsRbohA and OsCBM1 were fused with the C- and N-terminal parts of the luciferase reporter gene LUC, respectively. LUC activity was detected with a living plant molecular marker imaging system (Lumazone Pylon 2048B, Princeton, American). The list of primer sets used for the generation of the constructs are listed in Additional file 8: Table S1 and the details for the experiment are presented in Additional file 9: Supporting experimental procedures Methods S1.
The full-length coding sequence of OsRacGEF1 was amplified and ligated into the pCAMBIA 1300-221-cMyc vector for the preparation of recombinant cMyc-OsRacGEF1 protein. The full-length coding sequence of OsCBM1 was fused upstream of the green fluorescent protein (GFP) gene and inserted into the binary vector pCAMBIA1301-eGFP for the preparation of recombinant OsCBM1-eGFP proteins. The transformation vectors were introduced into A. tumefaciens strain GV3101 and then used to transform the leaves of N. benthamiana. The do-immunoprecipitation (Co-IP) assay was conducted with previously described (Zhang et al. 2018). The primer sets used for the generation of the constructs are listed in Additional file 8: Table S1 and the details for the experiment are presented in Additional file 9: Supporting experimental procedures Methods S1.
Bimolecular Fluorescence Complementation (BiFC) Assay
Coding sequences of OsCBM1 and OsRbohA were amplified by PCR and cloned into the pSPYCE(MR) and pSPYNE(R)173 vectors, respectively (Hu et al. 2013). All of the cloning plasmids were introduced into Agrobacterium strain GV3101 and then coexpressed in N. benthamiana leaves as described previously (Hu et al. 2013). At 48 h after infiltration, the fluorescence signal of enhanced yellow fluorescent protein (eYFP) was observed.
For transcriptional analysis, the leaves of 6-week-old plants of OaCBM1-RNAi54 and WT (Nipponbare) plants grown in plastic pots filled with paddy soil were harvested and stored immediately in liquid nitrogen. The sequences were processed and analyzed by GENEWIZ, Inc., Suzhou, China. Only genes with associated transcript levels that had increased or decreased more than twofold and had an associated p-value of < 0.05 were used for further analysis. The details for the experiment are presented in Additional file 9: Supporting experimental procedures Methods S1.
Student’s t-tests were performed using SPSS 11.5 software (SPSS, Inc., Chicago, IL). Differences were considered significant at p ≤ 0.05 based on a one-way analysis of variance (ANOVA).
Availability of Data and Materials
All data supporting the findings of this study are available within the paper and within its supplementary materials published online.
Carbohydrate-binding malectin/malectin-like domain-containing protein
3,3′-Diaminobenzidine tetrahydrochloride hydrate
Green fluorescent protein
mCherry fluorescent protein
Methyl viologen dichloride
Respiratory burst oxidase homolog
Receptor-like protein kinase
Receptor-like cytoplasmic kinase
Reactive oxygen species
Receptor protein kinases
Akamatsu A, Wong HL, Fujiwara M, Okuda J, Nishide K, Uno K, Imai K, Umemura K, Kawasaki T, Kawano Y, Shimamoto K (2013) An OsCEBiP/OsCERK1-OsRacGEF1-OsRac1 module is an essential early component of chitin-induced rice immunity. Cell Host Microbe 13:465–476
Ban T, Ke J, Chen R, Gu X, Tan MHE, Zhou XE, Kang Y, Melcher K, Zhu J-K, Xu HE (2013) Structure of a PLS-class Pentatricopeptide repeat protein provides insights into mechanism of RNA recognition. J Biol Chem 288:31540–31548
Batistic O, Waadt R, Steinhorst L, Held K, Kudla J (2010) CBL-mediated targeting of CIPKs facilitates the decoding of calcium signals emanating from distinct cellular stores. Plant J 61:211–222
Baxter A, Mittler R, Suzuki N (2014) ROS as key players in plant stress signalling. J Exp Bot 65:1229–1240
Bellande K, Bono J-J, Savelli B, Jamet E, Canut H (2017) Plant lectins and lectin receptor-like kinases: how do they sense the outside? Int J Mol Sci 18(6):1164
Boisson-Dernier A, Kessler SA, Grossniklaus U (2011) The walls have ears: the role of plant CrRLK1Ls in sensing and transducing extracellular signals. J Exp Bot 62(5):1581–1591. https://doi.org/10.1093/jxb/erq445
Boisson-Dernier A, Lituiev DS, Nestorova A, Franck CM, Thirugnanarajah S, Grossniklaus U (2013) ANXUR receptor-like kinases coordinate cell wall integrity with growth at the pollen tube tip via NADPH oxidases. PLoS Biol 11(11):e1001719. https://doi.org/10.1371/journal.pbio.1001719
Boisson-Dernier A, Roy S, Kritsas K, Grobei MA, Jaciubek M, Schroeder JI, Grossniklaus U (2009) Disruption of the pollen expressed FERONIA homologs ANXUR1 and ANXUR2 triggers pollen tube discharge. Development 136:3279–3288
Bork P (1993) Hundreds of ankyrin-like repeats in functionally diverse proteins: mobile modules that cross phyla horizontally? Proteins 17:363–374
Campbell L, Turner S (2017) A comprehensive analysis of RALF proteins in green plants suggests there are two distinct functional groups. Front Plant Sci 8:37. https://doi.org/10.3389/fpls.2017.00037
Cantrarel BL, Coutinho PM, Bernard T, Lombard V, Henrissat B (2009) The carbohydrate-active EnZmes database CAZy: an expert resource for glycogenomics. Nucleic Acids Res 37(Database issue):D233–D238. https://doi.org/10.1093/nar/gkn663
Carol RJ, Takeda S, Linstead P, Durrant MC, Kakesova H, Derbyshire P, Drea S, Zarsky V, Dolan L (2005) A RhoGDP dissociation inhibitor spatially regulates growth in root hair cells. Nature 438:1013–1016
Chen YF, Li LQ, Xu Q, Kong YH, Wang H, Wu WH (2009) The WRKY6 transcription factor modulates PHOSPHATE1 expression in response to low Pi stress in Arabidopsis. Plant Cell 21:3554–3566
Couto D, Zipfel C (2016) Regulation of pattern recognition receptor signalling in plants. Nat Rev Immunol 16:537–552
Couto D, Zipfel C (2016) Regulation of pattern recognition receptor signalling in plants. Nat Rev Immunol 16:537–552
Duan Q, Kita D, Li C, Cheung AY, Wu HM (2010) FERONIA receptor-like kinase regulates RHO GTPase signaling of root hair development. PNAS 107:17821–17826
Feng W, Kita D, Peaucelle A, Cartwright HN, Doan V, Duan Q, Liu M-C, Maman J, Steinhorst L, Schmitz-Thom I, Yvon R, Kudla J, Wu H-M, Cheung AY, Dinneny JR (2018) The FERONIA receptor kinase maintains cell-wall integrity during salt stress through Ca2+ signaling. Curr Biol 28:666–675
Finkelstein RR, Lynch TJ (2000) The Arabidopsis abscisic acid response gene ABI5 encodes a basic leucine zipper transcription factor. Plant Cell 12:599–609
Franck CM, Westermann J, Boisson-Dernier A (2018) Plant malectin-like receptor kinases: from cell wall integrity to immunity and beyond. Annu Rev Plant Biol 69:301–328
Galindo-Trigo S, Gray JE, Smith LM (2016) Conserved roles of CrRLK1L receptor-like kinases in cell expansion and reproduction from algae to angiosperms. Front Plant Sci 7:1269. https://doi.org/10.3389/fpls.2016.01269
Ge Z, Bergonci T, Zhao Y, Zou Y, Du S, Liu MC, Luo X, Ruan H, García-Valencia LE, Zhong S, Hou S, Huang Q, Lai L, Moura DS, Gu H, Dong J, Wu H-M, Dresselhaus T, Xiao J, Cheung AY, Qu LJ (2017) Arabidopsis pollen tube integrity and sperm release are regulated by RALF-mediated signaling. Science 358:1596–1600
Guo H, Li L, Ye H, Yu X, Algreen A, Yin Y (2009) Three related receptor-like kinases are required for optimal cell elongation in Arabidopsis thaliana. PNAS 106:7648–7653
Hoagland DR, Arnon DI (1950) The water culture method for growing plants without soil. California Agricultural Experiment Station Circular
Hok S, Danchin EGJ, Allasia V, Panabières F, Attard A, Keller H (2011) An Arabidopsis malectin-like leucine-rich repeat receptor-like kinase contributes to downy mildew disease. Plant Cell Environ 34:1944–1957
Hu CH, Wang PQ, Zhang PP, Nie XM, Li BB, Tai L, Liu WT, Li WQ, Chen KM (2020a) NADPH oxidases: the vital performers and center hubs during plant growth and signaling. Cells 9:437. https://doi.org/10.3390/cells9020437
Hu CH, Zeng QD, Tai L, Zhang PP, Nie XM, Wang PQ, Liu WT, Li WQ, Kang ZS, Han DJ, Chen KM (2020b) The interaction between TaNOX7 and TaCDPK13 contributes to plant fertility and drought tolerance by regulating ROS production. J Agri Food Chem 68:7333–7347
Hu P, Liu J, Xu J, Zhou C, Cao S, Zhou W, Huang Z, Yuan S, Wang X, Xiao J, Zhang R, Wang H, Zhang S, Xing L, Cao A (2018) A malectin-like/leucine-rich repeat receptor protein kinase gene, RLK-V, regulates powdery mildew resistance in wheat. Mol Plant Pathol 19:2561–2574
Hu Y, Jiang L, Wang F, Yu D (2013) Jasmonate regulates the inducer of cbf expression-C-repeat binding factor/DRE binding factor1 cascade and freezing tolerance in Arabidopsis. Plant Cell 25:2907–2924
Jiang M, Zhang J (2003) Cross-talk between calcium and reactive oxygen species originated from NADPH oxidase in abscisic acid-induced antioxidant defence in leaves of maize seedlings. Plant Cell Environ 26:929–939
Jing XQ, Shalmani A, Zhou MR, Shi PT, Muhammad I, Shi Y, Sharif R, Li WQ, Liu WT, Chen KM (2020) Genome-wide identification of malectin/malectin-like domain containing protein family genes in rice and their expression regulation under various hormones, abiotic stresses, and heavy metal treatments. J Plant Growth Regul 39:492–506
Kawasaki T, Koita H, Nakatsubo T, Hasegawa K, Wakabayashi K, Takahashi H, Umemura K, Umezawa T, Shimamoto K (2006) Cinnamoyl-CoA reductase, a key enzyme in lignin biosynthesis, is an effector of small GTPase Rac in defense signaling in rice. PNAS 103:230–235
Kawasaki T, Yamada K, Yoshimura S, Yamaguchi K (2017) Chitin receptor-mediated activation of MAP kinases and ROS production in rice and Arabidopsis. Plant Signal Behav 12:e1361076. https://doi.org/10.1080/15592324.2017.1361076
Kessler SA, Lindner H, Jones DS, Grossniklaus U (2015) Functional analysis of related CrRLK1L receptor-like kinases in pollen tube reception. EMBO Rep 16:107–115
Kishi-Kaboshi M, Okada K, Kurimoto L, Murakami S, Umezawa T, Shibuya N, Yamane H, Miyao A, Takatsuji H, Takahashi A, Hirochika H (2010) A rice fungal MAMP-responsive MAPK cascade regulates metabolic flow to antimicrobial metabolite synthesis. Plant J 63:599–612
Leipe DD, Wolf YI, Koonin EV, Aravind L (2002) Classification and evolution of P-loop GTPases and related ATPases. J Mol Biol 317:41–72
Li C, Yeh F-L, Cheung AY, Duan Q, Kita D, Liu M-C, Maman J, Luu EJ, Wu BW, Gages L, Jalal M, Kwong A, Carpenter H, Wu H-M (2015) Glycosylphosphatidylinositol-anchored proteins as chaperones and co-receptors for FERONIA receptor kinase signaling in Arabidopsis. Elife 4:e06587. https://doi.org/10.7554/eLife.06587
Lindner H, Müller LM, Boisson-Dernier A, Grossniklaus U (2012) CrRLK1L receptor-like kinases: not just another brick in the wall. Curr Opin Plant Biol 15:659–669
Liu X, Castro C, Wang Y, Noble J, Ponvert N, Bundy M, Hoel C, Shpak E, Palanivelu R (2016) The role of LORELEI in pollen tube reception at the interface of the synergid cell and pollen tube requires the modified eight-cysteine motif and the receptor-like kinase FERONIA. Plant Cell 28:1035–1052
Mang H, Feng B, Hu Z, Boisson-Dernier A, Franck CM, Meng X, Huang Y, Zhou J, Xu G, Wang T, Shan L, He P (2017) Differential regulation of two-tiered plant immunity and sexual reproduction by ANXUR receptor-like kinases. Plant Cell 29:3140–3156
Manna S (2015) An overview of pentatricopeptide repeat proteins and their applications. Biochimie 113:93–95
Mecchia MA, Santos-Fernandez G, Duss NN, Somoza SC, Boisson-Dernier A, Gagliardini V, Martínez-Bernardini A, Fabrice TN, Ringli C, Muschietti JP, Grossniklaus U (2017) RALF4/19 peptides interact with LRX proteins to control pollen tube growth in Arabidopsis. Science 358:1600–1603
Meng X, Zhang S (2013) MAPK cascades in plant disease resistance signaling. Annu Rev Phytopathol 51:245–266
Michaely P, Bennett V (1992) The ANK repeat: a ubiquitous motif involved in macromolecular recognition. Trends Cell Biol 2:127–129
Miyazaki S, Murata T, Sakurai-Ozato N, Kubo M, Demura T, Fukuda H, Hasebe M (2009) ANXUR1 and 2, sister genes to FERONIA/SIRENE, are male factors for coordinated fertilization. Curr Biol 19:1327–1331
Mosavi LK, Cammett TJ, Desrosiers DC, Peng ZY (2004) The ankyrin repeat as molecular architecture for protein recognition. Protein Sci 13:1435–1448
Muhammad I, Jing XQ, Shalmani A, Muhammad A, Shi Y, Gan PF, Li WQ, Liu WT, Chen KM (2018) Comparative in silico analysis of ferric reduction oxidase FRO genes expression patterns in response to abiotic stresses, metal and hormone applications. Molecules 23:1163
Nagano M, Ishikawa T, Fujiwara M, Fukao Y, Kawano Y, Kawai-Yamada M, Shimamoto K (2016) Plasma membrane microdomains are essential for Rac1-RbohB/H-mediated immunity in rice. Plant Cell 28:1966–1983
Nakamura S, Lynch TJ, Finkelstein RR (2001) Physical interactions between ABA response loci of Arabidopsis. Plant J 26:627–635
Nissen KS, Willats WGT, Malinovsky FG (2016) Understanding CrRLK1L function: cell walls and growth control. Trends Plant Sci 21:516–527
Nguyen QN, Lee YS, Cho LH, Jeong HJ, An G, Jung KH (2015) Genome-wide identification and analysis of Catharanthus roseus RLK1-like kinases in rice. Planta 241:603–613
Ono E, Wong HL, Kawasaki T, Hasegawa M, Kodama O, Shimamoto K (2001) Essential role of the small GTPase Rac in disease resistance of rice. PNAS 98:759–764
Saslowsky D, Winkel-Shirley B (2001) Localization of flavonoid enzymes in Arabidopsis roots. Plant J 27(1):37–48. https://doi.org/10.1046/j.1365-313x.2001.01073.x
Schallus T, Jaeckh C, Fehér K, Palma AS, Liu Y, Simpson JC, Mackeen M, Stier G, Gibson TJ, Feizi T, Pieler T, Muhle-Goll C (2008) Malectin: a novel carbohydrate-binding protein of the Endoplasmic reticulum and a candidate player in the early steps of protein N-glycosylation. Mol Biol Cell 19:3404–3414
Shi Y, Chang YL, Wu HT, Shalmani A, Liu WT, Li WQ, Xu JW, Chen KM (2020) OsRbohB-mediated ROS production plays a crucial role in drought stress tolerance of rice. Plant Cell Rep 39:1767–1784
Shih H-W, Miller ND, Dai C, Spalding EP, Monshausen GB (2014) The receptor-like kinase FERONIA is required for mechanical signal transduction in Arabidopsis seedlings. Curr Biol 24:1887–1892
Stegmann M, Monaghan J, Smakowska-Luzan E, Rovenich H, Lehner A, Holton N, Belkhadir Y, Zipfel C (2017) The receptor kinase FER is a RALF-regulated scaffold controlling plant immune signaling. Science 355:287–289
Tena G, Boudsocq M, Sheen J (2011) Protein kinase signaling networks in plants innate immunity. Curr Opin Plant Biol 14:519–529
Toki S, Hara N, Ono K, Onodera H, Tagiri A, Oka S, Tanaka H (2006) Early infection of scutellum tissue with Agrobacterium allows high-speed transformation of rice. Plant J 47:969–976
Udomchalothorn T, Plaimas K, Comai L, Buaboocha T, Chadchawan S (2014) Molecular karyotyping and exome analysis of salt-tolerant rice mutant from somaclonal variation. Plant Genome. https://doi.org/10.3835/plantgenome2014.04.0016
Wang X, Zhang MM, Wang YJ, Gao YT, Li R, Wang GF, Li WQ, Liu WT, Chen KM (2016) The plasma membrane NADPH oxidase OsRbohA plays a crucial role in developmental regulation and drought-stress response in rice. Physiol Plant 156:421–443
Wendler P, Ciniawsky S, Kock M, Kube S (2012) Structure and function of the AAA+ nucleotide binding pocket. Biochim Biophys Acta Mol Cell Res 183(1):2–14
Wong HL, Pinontoan R, Hayashi K, Tabata R, Yaeno T, Hasegawa K, Kojim C, Yoshioka H, Iba K, Kawasaki T, Shimamoto K (2007) Regulation of rice NADPH oxidase by binding of Rac GTPase to its N-terminal extension. Plant Cell 19:4022–4035
Wu LL, Liu ZL, Wang JM, Zhou CY, Chen KM (2011) Morphological, anatomical, and physiological characteristics involved in development of the large culm trait in rice. Aust J Crop Sci. https://doi.org/10.1016/j.fcr.2011.04.016
Xu J, Jie X, Yan CF, Zou XQ, Ren DT, Zhang, SQ (2014) A chemical genetic approach demonstrates that MPK3/MPK6 activation and NADPH oxidase-mediated oxidative burst are two independent signaling events in plant immunity. Plant J 77(2):222–234. https://doi.org/10.1111/tpj.12382
Yamada K, Yamaguchi K, Yoshimura S, Terauchi A, Kawasaki T (2017) Conservation of chitin-induced MAPK signaling pathways in rice and Arabidopsis. Plant Cell Physiol 58:993–1002
Yeh Y-H, Panzeri D, Kadota Y, Huang YC, Huang PY, Tao CN, Roux M, Chien HC, Chin TC, Chu PW, Zipfel C, Zimmerli L (2016) The Arabidopsis malectin-like/LRR-RLK IOS1 is critical for BAK1-dependent and BAK1-independent pattern-triggered immunity. Plant Cell 28:1701–1721
Yu F, Qian L, Nibau C, Duan Q, Kita D, Levasseur K, Li X, Lu C, Li H, Hou C, Li L, Buchanan BB, Chen L, Cheung AY, Li D, Luan S (2012) FERONIA receptor kinase pathway suppresses abscisic acid signaling in Arabidopsis by activating ABI2 phosphatase. PNAS 109:14693–14698
Yu X, Feng B, He P, Shan L (2017) From chaos to harmony: Responses and signaling upon microbial pattern recognition. Annu Rev Phytopathol 55(1):109–137. https://doi.org/10.1146/annurev-phyto-080516-035649
Yuan X, Zhang S, Liu S, Yu M, Su H, Shu H, Li X (2013) Global analysis of Ankyrin repeat domain C3HC4-type RING finger gene family in plants. PLoS ONE 8(3):e58003. https://doi.org/10.1371/journal.pone.0058003
Zhang M, Chiang YH, Toruño TY, Lee DH, Ma M, Liang X, Lal NK, Lemos M, Lu YJ, Ma S, Liu J, Day B, Dineshi-Kumar SP, Dehesh K, Dou D, Zhou JM, Coaker G (2018) The MAK4 kinase SIK1 ensures robust extracellular ROS burst and antibacterial immunity in plants. Cell Host Microbe 24:1–13
Zhang Q, Jia M, Xing Y, Qin L, Li B, Jia W (2016) Genome-wide identification and expression analysis of MRLK family genes associated with strawberry Fragaria vesca fruit ripening and abiotic stress responses. PLoS ONE 11(9):e0163647. https://doi.org/10.1371/journal.pone.0163647
Zhang X, Wu X, Findley S, Wan J, Libault M, Nguyen H, Cannon S, Stacey G (2007) Molecular evolution of Lysin motif-type receptor-like kinases in plants. Plant Physiol 144:623–636
Zhang Y, Su J, Duan S, Ao Y, Dai J, Liu J, Wang P, Li Y, Liu B, Feng D, Wang J, Wang H (2011) A highly efficient rice green tissue protoplast system for transient gene expression and studying light/chloroplast-related processes. Plant Meth 7(1):30. https://doi.org/10.1186/1746-4811-7-30
Zhang J, Li W, Xiang T, Liu Z, Laluk K, Ding X, Zou Y, Gao M, Zhang X, Chen S (2010) Receptor-like cytoplasmic kinases integrate signaling from multiple plant immune receptors and sre targeted by a Pseudomonas syringae effector. Cell Host Microbe 7:290–301
Zhao C, Zayed O, Yu Z, Jiang W, Zhu P, Hsu CC, Zhang L, Tao WA, Lozano-Durán R, Zhu JK (2018) Leucine-rich repeat extensin proteins regulate plant salt tolerance in Arabidopsis. PNAS 115:13123–13128
Zhou JM, Yang WC (2016) Receptor-like kinases take center stage in plant biology. Science China Life Science 59:863–866
This work was supported by the National Natural Science Foundation of China (Grant Nos. 31770204 and 31270299).
The National Natural Science Foundation of China, Grant Nos. 31770204 and 31270299.
Ethics Approval and Consent to Participate
Consent for Publication
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
The original online version of this article was revised: The figure 5D was published incorrectly in the original version and it has been corrected.
. Expression levels of OsCBM1 in the wild-type (WT), OsCBM1-overexpressing (OE), and RNA interference (RNAi) plants at tillering stages detected by semi-quantitative RT-PCR, using OsActin1 as the internal control.
. Photosynthetic rate, stomatal conductance, transpiration rate, and water use efficiency in wild-type (WT), OsCBM1-overexpressing (OE), and RNA interference (RNAi) transgenic plants under both normal growth and drought stress conditions. Six-week-old plants grown in pots filled with equal amounts of paddy soil were subjected to drought stress treatment by withholding water. After 10 d, the last fully expanded leaves were used for the analysis. Data are means of three biological replicates (n = 12). Bars annotated with different letters represent values that are significantly different (p ≤ 0.05) according to a one-way ANOVA analysis.
. Co-localization analysis of OsCBM1 and OsRacGEF1. Subcellular localization of OsCBM1 and OsRacGEF1 were detected using the Agrobacterium-mediated transformation with both N. benthamiana epidermal cells and protoplasts, respectively. The plasmids containing eGFP, mCherry, OsCBM1-eGFP, or OsRacGEF1-mCherry genes were under the control of the CaMV 35S promoter. Bars = 10 μm. DIC, bright field.
. Subcellular localization of OsRacGEF1 in protoplasts of the OsCBM1-RNAi54 transgenic plants and wild type (WT). Subcellular localization of OsRacGEF1 was analyzed with a rice protoplast transient transformation system (Bars = 10 μm). The plasmid containing mCherry and OsRacGEF1-mCherry genes were under the control of the CaMV 35S promoter. DIC, bright field.
. The original data of RNA-seq experiments.
. Several gene groups that are differentially expressed in the OsCBM1-downexpressing RNAi54 plants as compared to WT.
. Transcriptional expression profiles of several protein family genes. Expression levels were detected by qRT-PCR with OsActin1 used as the internal control. Error bars indicate SD from three biological replicates and the bars annotated with different letters represent values that are significantly different (p ≤ 0.05) according to a one-way ANOVA analysis.
. The primer sequences used in the study.
. Supporting experimental procedures Methods S1.
