Rice miR1432 Fine-Tunes the Balance of Yield and Blast Disease Resistance via Different Modules
Rice volume 14, Article number: 87 (2021)
microRNAs act as fine-tuners in the regulation of plant growth and resistance against biotic and abiotic stress. Here we demonstrate that rice miR1432 fine-tunes yield and blast disease resistance via different modules. Overexpression of miR1432 leads to compromised resistance and decreased yield, whereas blocking miR1432 using a target mimic of miR1432 results in enhanced resistance and yield. miR1432 suppresses the expression of LOC_Os03g59790, which encodes an EF-hand family protein 1 (OsEFH1). Overexpression of OsEFH1 leads to enhanced rice resistance but decreased grain yield. Further study revealed that miR1432 and OsEFH1 are differentially responsive to chitin, a fungus-derived pathogen/microbe-associated molecular pattern (PAMP/MAMP). Consistently, blocking miR1432 or overexpression of OsEFH1 improves chitin-triggered immunity responses. In contrast, overexpression of ACOT, another target gene regulating rice yield traits, has no significant effects on rice blast disease resistance. Altogether, these results indicate that miR1432 balances yield and resistance via different target genes, and blocking miR1432 can simultaneously improve yield and resistance.
In plant-pathogen co-evolution, plants employ two-layered immunity to counterattack the invasion of pathogens, namely PAMP/MAMP-triggered immunity (PTI) and effector-triggered immunity (ETI) (Jones and Dangl 2006). PTI is the first layer of plant immunity activated by the recognition of the PAMPs/MAMPs and pattern recognition receptors (PRRs), such as bacterium-derived flg22 and fungus-derived chitin, to effectively protect plants from the invasion of potential pathogens (Boller and Felix 2009). The typical PTI responses include the activities of MAPK cascades, the influx of [Ca2+]cyt, the burst of reactive oxygen species (ROS), the induction of basal defense-related genes, the callose deposition at the infected sites, and so on (Boller and Felix 2009). However, adapted pathogens can subvert PTI by delivering effectors in host cells (Dou and Zhou 2012). In turn, plants have involved resistance (R) proteins to recognize these specific effectors resulting in ETI, which offers strong resistance and is often associated with the hypersensitive response (HR) (Cui et al. 2015).
microRNAs (miRNAs) are a category of 20–24-nucleotide (nt) non-coding RNAs expressed from MIR genes and regulate target gene expression by sequence-complementary DNA methylation or mRNA cleavage, or translational inhibition (Yu et al. 2017). Based on their roles in the regulation of gene expression, miRNAs act as fine-tuners of various biological processes controlling growth and stress-induced responses (Tang and Chu 2017). Growing evidence shows that miRNAs are involved in plant immunity (Padmanabhan et al. 2009; Katiyar-Agarwal and Jin 2010; Baldrich and San Segundo 2016; Huang et al. 2016; Tang and Chu 2017). In Arabidopsis, the PAMP molecule flg22 induces the expression of miR160a and miR393, whereas suppresses the accumulation of other nine miRNAs following the inoculation of the virulent Pseudomonas syringae pv. tomato DC3000 (Pst DC3000) (Navarro et al. 2006; Li et al. 2010). miRNAs are also involved in plant ETI. In Arabidopsis, the amounts of miR863-3p are increased during ETI triggered by Pseudomonas syringae carrying effector avrRpt2 (Pst DC3000(avrRpt2)). miR863-3p fine-tunes the amplitude and timing of defense responses by suppressing the target genes that play reverse functions in rice immunity. At the earlier infection stage, miR863-3p promotes immunity by suppressing the expression of typical receptor-like pseudokinase1 (ARLPK1) and ARLPK2, which negatively regulate plant defense (Niu et al. 2016). At a later infection stage, miR863-3p limits immunity amplitude by silencing SERRATE, which is required for miRNA accumulation and positively regulates plant defense (Niu et al. 2016).
Rice blast disease caused by Magnaporthe oryzae (M. oryzae) ranks the first fungal disease threatening food production worldwide. The utilization of disease resistance genes in cultivars generates an economically and environment-friendly strategy for disease control. Intriguingly, miRNAs play important roles in rice resistance against M. oryzae (Li et al. 2014, 2016). Nowadays, more than 15 miRNAs have been characterized as the regulators of rice blast disease resistance. miR159 (Chen et al. 2021), miR160 (Li et al. 2014), miR162 (Salvador-Guirao et al. 2019; Li et al. 2020), miR166 (Salvador-Guirao et al. 2018), miR398 (Li et al. 2019), miR7695 (Campo et al. 2013), and miR812w (Campo et al. 2021) positively regulate rice resistance against M. oryzae, whereas miR156 (Zhang et al. 2020), miR164 (Wang et al. 2018b), miR167 (Zhao et al. 2019b), miR169 (Li et al. 2017), miR319 (Zhang et al. 2018), miR396 (Chandran et al. 2019), miR439 (Lu et al. 2021), miR444b.2 (Xiao et al. 2017), and miR1873 (Zhou et al. 2020) negatively regulate rice disease resistance. Among these miRNAs, some and their target genes are involved in both rice immunity and growth. For example, miR162 balances rice resistance and grain yield via Dicer-like 1 (OsDCL1). Overexpression of miR162 enhances rice blast resistance whereas compromises yield accompanied by the suppressed expression of OsDCL1; in contrast, blocking miR162a improves yield whereas penalizes immunity associated with enhanced expression of OsDCL1 (Salvador-Guirao et al. 2019; Li et al. 2020).
miR1432 is a conserved miRNA family in plants involving in development and defense responses against biotic or abiotic stresses. In barley, the amounts of miR1432-5p are increased during barley development (Pacak et al. 2016). In maize, miR1432 is down-regulated in meristem under chilling stress (Aydinoglu 2020). In wheat, miR1432 in leaves is down-regulated by water deficit in presence of mycorrhizal treatment (Fileccia et al. 2019). In wild emmer wheat (Triticum turgidum ssp. dicoccoides), the expression of miR1432 is induced in roots under drought stress (Kantar et al. 2011). In rice, miR1432 is predicted as a key regulator to regulates rice grain-filling and targets Acyl-CoA thioesterase (OsACOT) (Hu et al. 2018). Blocking miR1432 significantly enhances grain weight resulting in overall grain yield up more than 17% via expressing a Short Tandem Target Mimic of miR1432 (STTM1432), and overexpression of OsACOT resembled the yield traits of STTM1432 plants (Zhao et al. 2019a), indicating miR1432 is involved in grain-filling via OsACOT. Except for the regulation of grain yield, miR1432 is also responsive to the infection of M. oryzae (Li et al. 2014), indicating the involvement of rice blast disease resistance. However, it remains largely unknown whether miR1432 controls rice resistance and coordinates resistance and yield traits.
In this study, we constructed the transgenic lines overexpressing miR1432, the lines blocking miR1432 by expressing a target mimic of miR1432, and the lines overexpressing the target genes of miR1432, OsACOT, and OsEFH1 (EF-hand family protein 1), respectively. We explored the blast disease resistance and yield traits of these lines. We found that blocking miR1432 leads to enhanced blast disease resistance and increased yield. We revealed that OsEFH1 was targeted by miR1432 and acted as a positive regulator of rice blast disease resistance but a negative regulator of rice yield. Further study revealed that the miR1432-OsEFH1 module regulated rice PTI responses, whereas OsACOT had no obvious effect on rice resistance. Our results revealed that a miRNA coordinates rice yield and immunity via different target genes that play differential roles, and indicated the capacity of the miR1432-targets module in the improvement of both immunity and yield in rice.

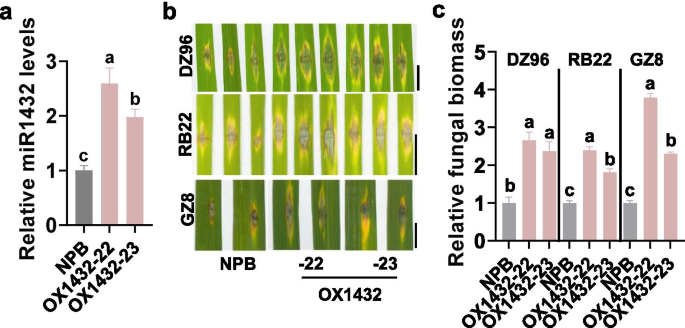

Overexpression of miR1432 Compromises Rice Blast Disease Resistance
In rice, one MIR1432 gene was identified locating on chromosome 7. We examined the expression pattern of miR1432 upon M. oryzae treatment in a susceptible rice accession Lijiangxin Tuan Heigu (LTH) and a resistant accession International Rice Blast Line Pyricularia-Kanto51-m-Tsuyuake (IRBLkm-Ts). LTH is a japonica accession highly sensitive to over 1300 isolates of M. oryzae worldwide, and no major R genes are ever identified in it (Lin et al. 2001). IRBLkm-Ts contains an R gene locus Pikm that mediates ETI against M. oryzae strains expressing the avirulence gene alleles AVR-PikA/D/E (Tsumematsu et al. 2000; Kanzaki et al. 2012). LTH exhibited serious disease lesions following the spray-inoculation of Guy11 (Additional file 1: Figure S1a). In contrast, IRBLkm-Ts only showed a few and small resistance lesions (Additional file 1: Figure S1a). The amounts of miR1432 in LTH were unchanged at 12 h post-inoculation (hpi) of M. oryzae but decreased at 24 hpi, then significantly increased at 48 hpi. Different from that in LTH, miR1432 slightly fluctuated in IRBLkm-Ts (Additional file 1: Figure S1b). These results indicated that miR1432 is responsive to M. oryzae.
To investigate the roles of miR1432 in rice immunity, we constructed the transgenic lines overexpressing MIR1432 (OX1432). We got more than 25 transgenic lines and selected two lines, namely OX1432-22 and OX1432-23, for further study. The two OX1432 lines showed significantly higher miR1432 accumulation than the Nipponbare (NPB) control (Fig. 1a). We selected three M. oryzae strains for disease assays. DZ96 is a strain derived from a paddy yard in the Sichuan Basin, Southwest China. RB22 is derived from a paddy yard in North China. GZ8 is a GFP-tagged strain Zhong8-10-14 derived from North China. OX1432 lines were more susceptible to these strains with significantly larger disease lesions and supported more fungal biomass by punch-inoculation (Fig. 1b–d). These results indicate that miR1432 compromises rice resistance against M. oryzae.
Blocking miR1432 Results in Enhanced Rice Blast Disease Resistance
To further investigate the roles of miR1432 in rice immunity, we made transgenic lines expressing a target mimic of miR1432 (MIM1432). MIM1432 blocks miR1432 from suppressing its target genes by forming a double-strand complex with miR1432 (Additional file 1: Figure S2). MIM1432 lines showed significantly lower miR1432 accumulation than the Nipponbare control (Fig. 2a). We also selected three M. oryzae strains for disease assays. 97-27-2 is a virulence strain derived from a paddy yard in North China. MIM1432 exhibited enhanced resistance against the three strains with smaller disease lesions and supported less fungal biomass than that of the Nipponbare control (Fig. 2b, c). Moreover, when inoculated with GZ8, MIM1432 displayed delayed infection progress. At 36 hpi, the invasive hyphae filled the whole primary cells in the Nipponbare control whereas just invaded into the primary cells in MIM1432 (Fig. 2d). At 48 hpi, the invasive hyphae were vigorously grown in the Nipponbare control, whereas only fewer hyphae grew into the second cell in MIM1432 (Fig. 2d). Quantification analysis revealed that GZ8 became less aggressive in MIM1432 than in the Nipponbare control (Fig. 2e). We also conducted disease assays on MIM1432 by spray-inoculation of the virulence strain RB22. MIM1432 exhibited fewer and smaller disease lesions than the Nipponbare control (Additional file 1: Figure S3a). Consistent with the disease phenotype, MIM1432 supported less fungal growth than the Nipponbare control (Additional file 1: Figure S3b). In a summary, blocking miR1432 enhances rice blast resistance and delays the colonization of M. oryzae.
Then, we examined the expression of defense-related genes in OX1432 and MIM1432 following inoculation of RB22. RB22 induced the expression of the defense-related genes, namely NAC DOMAIN-CONTAINING PROTEIN 4 (NAC4), ENT-KAURENE SYNTHASE 4 (KS4), and PATHOGENESIS-RELATED GENE 1a (PR1a) (Li et al. 2020). The expression of these genes was constitutively higher in MIM1432 than that in the Nipponbare control, whereas was unchanged in OX1432 (Additional file 1: Figure S3c), indicating that blocking miR1432 enhanced rice defense responses to fight against M. oryzae.
OsEFH1 is Targeted by miR1432
We next explored how blocking miR1432 improved rice immunity. miRNAs regulate plant development and defense responses via their target genes. LOC_Os03g59790 is predicted as a target gene of miR1432 in rice (https://www.zhaolab.org/psRNATarget/) and encodes an EF-hand family protein (http://rice.plantbiology.msu.edu). We named it OsEFH1 (Additional file 1: Figure S2). The mRNA levels of OsEFH1 were decreased in OX1432 whereas increased in MIM1432 in comparison with that in the Nipponbare control (Fig. 3a), and were inversely correlated with the expression of miR1432 in these lines (Figs. 1a, 2a), suggesting the suppression by miR1432. To confirm the suppression of miR1432 on OsEFH1, we made constructs expressing yellow fluorescence protein (YFP)-fused OsEFH1 (35S: OsEFH1-YFP). The YFP intensity and protein level expressed from 35S: OsEFH1-YFP were decreased following the co-expression of miR1432 in N. benthamiana, but recovered when MIM1432 was co-expressed (Fig. 3b, c). These results indicate that miR1432 represses the expression of OsEFH1.
OsEFH1 Positively Regulates Rice Resistance Against M. oryzae
We first examined the expression pattern of OsEFH1 following M. oryzae inoculation. The treatment of M. oryzae enhanced the expression of OsEFH1 in both LTH and IRBLkm-Ts (Additional file 1: Figure S4a), suggesting the participation in rice blast disease resistance. To further explore the role of OsEFH1 in rice immunity, we constructed the transgenic lines overexpressing OsEFH1 (OXEFH1). We selected two transgenic lines displaying a significantly higher expression of OsEFH1 for disease assay (Fig. 4a). OXEFH1 showed enhanced resistance with smaller disease lesions and supported less fungal growth than the Nipponbare control by punch-inoculation or spray-inoculation of M. oryzae strains (Fig. 4b, c; Additional file 1: Figure S4b, c). When infected by the virulence strain GZ8, OXEFH1 displayed the delayed infection progress of GZ8 in comparison with that of the Nipponbare control (Fig. 4d; Additional file 1: Figure S4d). Moreover, GZ8 induced more H2O2 accumulation in OXEFH1 than that in the Nipponbare control at 48 hpi (Additional file 1: Figure S4d). These results indicate that OsEFH1 improves rice blast disease resistance and defense responses.
miR1432-OsEFH1 Module Regulates Rice PTI Responses
EFH proteins are a sort of proteins binding [Ca2+]cyt, the influx of which is an important PTI response in cells (Dodd et al. 2010; Boudsocq et al. 2010) and required for a series of responses downstream such as ROS burst (Ranf et al. 2011). We next tested whether miR1432 and OsEFH1 were responsive to chitin, a well-known fungus-derived PAMP that could induce PTI responses in rice. The expression of miR1432 and OsEFH1 was enhanced or suppressed in the chitin-treated samples in comparison with the mock sample, demonstrating the regulation by chitin. The amounts of miR1432 in LTH and IRBLkm-Ts were decreased at one hpi of chitin, whereas the expression of OsEFH1 was increased (Fig. 5a, b), indicating that chitin could trigger the expression of OsEFH1 via suppressing miR1432, and the miR1432-OsEFH1 module was possibly involved in PTI. However, the expression pattern of miR1432 was not consistent in LTH and IRBLkm-Ts, suggesting the existence of other regulation pathway in the two accessions. Different form LTH, IRBLkm-Ts contains the R gens, namely Pikm1-Ts and Pikm2-Ts, which cooperatively conferred Pikm-specific resistance (Ashikawa et al. 2008). Further study revealed that chitin regulated the expression of the two R genes in IRBLkm-Ts (Additional file 1: Figure S5). Whether the R genes affected the accumulation of miR1432 is unknown and need further study.
We then examined PAMP-triggered defense responses in the transgenic lines, including ROS burst and callose deposition. MIM1432 and OXEFH1 exhibited higher, whereas OX1432 displayed a lower burst of ROS than the Nipponbare control following the treatment of flg22, a well-known bacteria-derived PAMP (Fig. 5c, d). However, we were failed in the detection of chitin-induced ROS in rice. We examined flg22- and chitin-induced ROS by transient expressing MIR1432 with or without MIM1432 or OsEFH1 in N. benthamiana (Additional file 1: Figure S6a–c). The miR1432 was accumulated in the leaves transiently expressing MIR1432 whereas decreased following the co-expression of MIM1432 (Additional file 1: Figure S6a). The ROS levels were decreased in the leaves transiently expressing MIR1432 alone in comparison with that in the control leaves transiently expressing YFP, whereas were recovered in the leaves co-expressing MIM1432 or OsEFH1, respectively (Additional file 1: Figure S6d–e). Moreover, the MIM1432 and OXEFH1 transgenic lines exhibited more, whereas OX1432 displayed fewer callose deposits triggered by flg22 and chitin than the Nipponbare control (Fig. 5e, f). Altogether, these results demonstrated that the miR1432 negatively regulated PTI responses via suppressing the expression of OsEFH1. While overexpression of miR1432 compromises PTI responses, blocking miR1432 or overexpression of OsEFH1 improves PTI responses.
OsACOT is Not Involved in miR1432-Regulated Rice Blast Disease Resistance
Except for OsEFH1, LOC_Os04g35590 was identified as another target of miR1432 and encoded an Acyl-CoA thioesterase (OsACOT) in rice (Zhao et al. 2019a). Overexpression of OsACOT enhanced rice yield by improving grain size (Zhao et al. 2019a). The expression of OsACOT was suppressed in OX1432 whereas enhanced in MIM1432 in comparison with that in the Nipponbare control (Fig. 6a). We then constructed the transgenic lines overexpressing OsACOT (OXACOT), which exhibited significantly higher mRNA levels of OsACOT (Fig. 6b). We explored the resistance of OXACOT and found that OXACOT lines displayed the unchanged resistance with similar disease lesions and relative fungal biomass in comparison with the Nipponbare control (Fig. 6c, d). These results indicate that OsACOT is not involved in miR1432-regulated blast disease resistance.
miR1432-Target Modules Regulate Rice Yield Traits
Except for the regulation of immunity, miR1432 and its target genes also control rice agronomical traits. Blocking miR1432 or overexpressing miR1432-insensitive OsACOT significantly boosted grain weight leading to increased grain yield (Zhao et al. 2019a). In this study, we examined the yield traits of OX1432, MIM1432, OXEFH1, and OXACOT. We observed pleiotropic phenotypes in OX1432 and MIM1432 planted in a paddy field during the normal growing season from 2018 to 2020, and OXEFH1 and OXACOT lines in 2020. Rice grain yield was determined by three components, including panicle number, panicle size (relying on grain number per panicle and seed setting rate (SSR)), and grain size. All the transgenic lines exhibited a normal plant architecture except that OX1432 showed significantly shorter plants than the Nipponbare control (Fig. 7a, Additional file 2: Table S1). The yield traits of OX1432, MIM1432, and OXACOT in our study were consistent with the phenotype of the transgenic lines in a previous report (Zhao et al. 2019a). OX1432 displayed slightly decreased panicle number, grain number per panicle, and grain weight resulting in decreased yield per plant with a 2.1 to 23.5% reduction in normal rice-growing season from 2018 to 2020 than the Nipponbare control (Fig. 7b–f; Additional file 2: Table S1). Conversely, MIM1432 showed more panicles and grains per panicle, as well as heaver grains resulting in a 2.1% to 31.5% increased yield in three years (Fig. 7b–f; Additional file 2: Table S1). OXEFH1 displayed decreased grain number leading to a 8.0 to 10.6% reduction, whereas OXACOT showed increased grain number and grain weight leading to a 8.7 to 9.2% increase (Fig. 7b–f; Additional file 2: Table S1). These results indicate that miR1432 controls rice yield by suppressing the expression of different target genes that play negative and positive roles in the regulation of rice yield traits. Altogether, miR1432 coordinates blast disease resistance and yield via different target genes that playing different roles in rice immunity and yield traits.
Altogether, our results reveal that miR1432 fine-tunes rice resistance and yield via different target genes. Overexpression of miR1432 results in decreased rice blast disease resistance accompanied by compromised PTI responses and reduced yield, whereas blocking miR1432 leads to enhanced resistance associated with enhanced PTI responses and increased yield. Further study reveals that OsEFH1 positively regulates resistance and PTI responses, whereas negatively regulates yield; in contrast, OsACOT has no significant effect on rice resistance but positively regulates yield traits. Thus, miR1432 regulates rice yield and resistance via different target genes, and the miR1432-target modules can be used to coordinate resistance and yield in rice production.
In this study, the chitin-induced expression patterns of miR1432 and OsEFH1 are different in LTH and IRBLkm-Ts. miR1432 accumulation was suppressed by chitin at one hpi and recovered subsequently in the susceptible accession LTH, whereas was suppressed at all the three timepoints in the resistance accession IRBLkm-Ts (Fig. 5a, b), indicating that chitin triggered unknown mechanism to suppress the accumulation of miR1432 thus improved the chitin-triggered resistance in IRBLkm-Ts (Fig. 5c–f). In IRBLkm-Ts, the Pikm genes were responsive to chitin, the treatment of which enhanced the transcription of Pikm2-Ts at one and three hpi (Additional file 1: Figure S5), indicating that chitin possibly could trigger Pikm-mediated resistance. These results were consistent with the recent reports showing that PTI and ETI was united and the PTI receptors were required for NLR-mediated resistance (Yuan et al. 2021; Ngou et al. 2021). In turn, the product of Pikm genes possibly affected the chitin-triggered transcriptional reprogramming in IRBLkm-Ts, including the transcription of miR1432 and OsEFH1. Thus, chitin triggered different expression pattern in LTH and IRBLkm-Ts, and the lasting-reduced miR1432 in IRBLkm-Ts is helpful to enhance PTI-related defense responses in IRBLkm-Ts.
In this study, the expression of OsEFH1 was not correlated with that of miR1432 in LTH and IRBLkm-Ts. miR1432 was significantly down-regulated after chitin treatment (3-6hpi), but OsEFH1 was not up-regulated In IRBLkm-Ts (Fig. 5a, b). It is well known that the expression of genes is regulated at transcriptional level, post-transcriptional level, and translational level. The transcriptional regulation is the major and key regulation, whereas the miRNAs-mediated post-transcriptional and translational regulation play minor roles and fine-tune gene expression (Tang and Chu 2017). Consistently, OsEFH1 should be regulated at transcriptional level first, then fine-tuned by miR1432. As a result, the expression pattern of OsEFH1 was inconsistent with the expression pattern of miR1432 (Fig. 5a, b).
Plant immunity often restricts yield in crops (Nelson et al. 2018). In a review of disease resistance studies, 56% of the studies reported the trade-offs between resistance and biomass or fecundity (Bergelson and Purrington 1996). However, increasing evidence reveals that resistance and yield can be simultaneously achieved. For example, fitness costless broad-spectrum disease resistance can be engineered via expression of the Arabidopsis Non-expressor of Pathogenesis-Related genes1 (NPR1) in rice controlled by pathogen-inducible upstream open reading frame (uORF) (Xu et al. 2017). The Pigm/Pi50 locus mediates fitness costless rice blast resistance via an epigenetic regulation (Deng et al. 2017; Su et al. 2015). The transcription factor Ideal Plant Architecture 1 (IPA1) promotes both yield and immunity via phosphorylation-mediated switching of binding specificity to the promoter of Dense and Erect Panicle 1(DEP1) and WRKY45 with or without infection of M. oryzae (Wang et al. 2018a). Here we showed that miR1432 coordinated rice yield and immunity via different target genes. Blocking miR1432 enhanced both yield and resistance accompanied by enhanced expression of two target genes playing different roles in the regulation of rice yield traits and resistance. OsACOT was high-expressed in the whole plant, whereas OsEFH1 was only expressed in seedlings and almost not expressed in panicles (http://rice.plantbiology.msu.edu). Consistent with the spatial expression pattern, OsEFH1 enhances resistance with a slight penalty in yield, whereas OsACOT improves rice yield. Therefore, the alteration of miR1432 can be exploited to improve rice yield and immunity simultaneously.
In mice, ACOT7 plays an important role in long-chain fatty acid elongation and counter-regulates fatty acid metabolism in neurons (Ellis et al. 2013). In rice, acyl-CoA thioesterases participate in the biosynthesis of medium-chain fatty acids and the regulation of lipid metabolism by hydrolyzing Acyl-CoA into free fatty acids and CoA. OsACOT was characterized as the 13th member of the acyl-CoA thioesterase superfamily (Zhao et al. 2019a; Ying et al. 2012). Overexpression of a miR1432-insensitive OsACOT leads to altered compositions of fatty acids, especially C:16 to C:18 in rice seeds, suggesting the role of OsACOT in the regulation of lipid and fatty acid metabolism (Zhao et al. 2019a). The metabolism of lipid and fatty acids is essential for endomembrane system organization, which played a key role in plant growth and development. For example, the Golgi, which belonged to the endomembrane system, was responsible for storage protein trafficking to the protein storage vacuole in rice endosperm cells (Liu et al. 2013). Conversely, the defects of endomembrane resulted in abnormal starch structure in rice endosperm cells and decreased grain filling (Wang et al. 2010). As a result, miR1432 manipulated rice grain filling by controlling the expression of OsACOT. However, the increase of grain weight of MIM1432 and OXACOT lines in our study was not as significant as that in the previous report (Zhao et al. 2019a). The possible reason was that the suppression on miR1432 offered by MIM1432 in our study was not as effective as that offered by STTM1432, and the ACOT overexpressed in OXACOT lines was not a mutant that could avoid the suppression by miR1432. As a result, although the MIM1432 and OXACOT lines showed increased yield, the increased levels in OXACOT lines were not as remarkable as those in the previous report. Moreover, MIM1432 exhibited significantly increased yield than OXACOT, suggesting that some other target genes of miR1432 also participated in the regulation of yield.
In this study, we showed that the miR1432-OsEFH1 module regulates rice blast disease resistance and PTI responses. EFH family members contain the specific Ca2+-binding motif (helix–loop–helix structure, called EF-hand motifs), and act as Ca2+-sensor proteins to regulate the concentration of Ca2+ in plant cells (Zielinski 1998; Gifford et al. 2007). The Ca2+ influx in cells is a core event for PTI (Dodd et al. 2010; Boudsocq et al. 2010) and rice blast disease resistance (Wang et al. 2019). The recognition between PAMPs and plant receptors triggers a series of defense responses, including an increase of cytoplasmic calcium ([Ca2+]cyt), a burst of reactive oxygen species (ROS), and the expression of defense-related genes (Boller and He 2009). The elevation of [Ca2+]cyt is implemented by Ca2+ influx from apoplast and intracellular stores (Thor and Peiter 2014). A recent study revealed that the ZAR1 resistosome is incorporated into planar lipid-bilayers and acted as a Ca2+ channel, and the activation of ZAR1 led to Glu11-dependent production of reactive oxygen species (ROS) (Bi et al. 2021). Blocking miR1432, or overexpression of OsEFH1 enhances PTI responses, indicating that miR1432 regulates rice immunity by controlling PTI responses via OsEFH1. However, it is still unclear that whether OsEFH1 directly binds Ca2+ and regulates Ca2+ influx. Moreover, overexpression of OsEFH1 results in decreased grain number leading to reduced grain yield, indicating that OsEFH1 plays a negative role in the regulation of rice yield by suppressing the development of panicles (Fig. 7c). Over 20 calcium-dependent protein kinase (CDPK) genes were up- or down-regulated in panicles during rice reproductive developmental stages (Ray et al. 2007), indicating the participation of Ca2+-binding proteins in panicle development. Growth-defense tradeoffs are thought to occur because of resource restrictions, and hormone crosstalk acted as a major player in regulating the balance of tradeoffs (Huot et al. 2014). Moreover, transcriptional reprogramming of the immunity-associated genes in plants often reduces plant growth and yield (Ha et al. 2021). Whether OsEFH1 regulated rice panicle development via these CDPK or hormone signaling, or the transcriptional reprogramming is unknown and needs further study.
Plant Materials and Growth Conditions
The rice (Oryza sativa L.) accessions Lijiangxin Tuan Heigu (LTH), International Rice Blast Line Pyricularia-Kanto51-m-Tsuyuake (IRBLkm-Ts), and Nipponbare (ssp. japonica) were used in this study. For resistance assay, the rice plants were grown in a greenhouse with a 28/23 ± 1 °C day/night temperature, 70% relative humidity, and a light/dark period of 14 h/10 h. For yield traits assay, the rice plants were grown in a paddy field in Wenjiang District, Chengdu, China (36° N, 103° E) during the normal rice-growing season from mid-April to late-September.
Plasmid Construction and Genetic Transformation
The transgenic lines were generated following a previous report (Li et al. 2017). To construct the transgenic lines overexpressing Osa-miR1432, the sequence of the MIR1432 gene containing 213 bp upstream and 247 bp downstream sequences was amplified from NPB genomic DNA with primers Osa-miR1432-F and Osa-miR1432-R (Additional file 2: Table S2). We cloned the amplified fragment in binary vector 35S-pCAMBIA1300 and got the construct p35S: MIR1432 overexpressing miR1432. To construct the target mimic of Osa-miR1432, the target mimic sequences of Osa-miR1432 (GTCGGTGTCATAGTCTCTCCTGAT) containing the cutting sites of restrictive enzymes were formed by annealing with primers MIM1432-BamHI-F and MIM1432-BglII-R (Additional file 2: Table S2). Then the annealing double-strand fragment was inserted into the Arabidopsis IPS1 gene to substitute the target site of miR399 at BamHI and BglII sites as described previously (Franco-Zorrilla et al. 2007; Li et al. 2017). We cloned the reconstructed IPS1-MIM1432 fragment into the binary vector pCAMBIA1300 and got the construct p35S: MIM1432 overexpressing a mimic of miR1432. Then the vectors p35S: MIR1432 and p35S: MIM1432 were transformed into Nipponbare via Agrobacterium strain EHA105 respectively to acquire the transgenic lines OX1432 and MIM1432. The positive transgenic lines were screened with Hygromycin B.
The agronomic traits were measured from five plants growing in the middle of three rows in the paddy yard, including rice height, panicle number per plant, grain number per panicle, seed setting rate, 1000-grain weight, and yield per plant. The seeds were harvested at the full-mature stage and dried in a 42 °C oven for 1 week. Then the dried seeds were used to detect the yield traits, including grain number per panicle, seed setting rate, and 1000-grain weight using an SC-A grain analysis system (Wanshen Ltd., Hangzhou, China). These data were analyzed by a one-way ANOVA followed by post hoc Tukey HSD analysis with significant differences (P < 0.05).
RNA Extraction and Gene Expression Analyses
Reverse-transcription-quantitative polymerase chain reaction (RT-qPCR) analyses were carried out to examine the accumulation of miR1432 and the expression of indicated genes in rice plants. Total RNAs were extracted from rice leaves using TRIzol reagent (Thermo Fisher Scientific, Chengdu, China) following the manufacturer’s instructions. To detect the expression of the indicated genes, the first-strand cDNA was synthesized from 1 μg of total RNA using Primescript RT reagent Kit with gDNA Eraser (TaKaRa Biotechnology, Dalian, China) according to the manufacturer's instruction. RT-qPCR was performed using specific primers and SYBR Green mix (QuantiNova SYBR Green PCR Kit, QIGEN, Chengdu, China) with BIO-RAD C1000TM Thermal Cycler (Bio-Rad Inc, Chengdu, China). The rice ubiquitin (UBQ) gene was used as an internal reference to normalize the relative expression levels of genes. The accumulation of miR1432 was examined in T0 plants. To determine the amounts of miR1432, total RNA was reverse-transcribed using a miRNA-specific stem-loop RT primer (Additional file 2: Table S2) with the PrimeScript™ RT reagent Kit with gDNA Eraser (Takara Biotechnology, Dalian, China), and the RT product was subsequently used as a template for RT-qPCR by using miRNA-specific forward primers and the universal reverse primer (Additional file 2: Table S2). snRNA U6 was used as an internal reference to normalize the relative amounts of miR1432. RT-qPCR analyses were performed with three technical replicates. The 2−∆∆CT method was exploited to analyze the relative expression levels of miRNAs.
Three-leaf-stage LTH and IRBLKm-Ts seedlings were sprayed with 10 µg mL−1 chitin (Sigma, Merck Life Science (Shanghai) Co., Ltd., Shanghai, China), and the leaf samples were collected at 1, 3, and 6 hpi for RT-qPCR assay.
Pathogen Infection and Microscopy Analysis
Magnaporthe oryzae strain Guy11, DZ96, RB22, 97-27-2, and the eGFP-tagged strain Zhong8-10-14 (GZ8) were used for blast-disease resistance and defense response assays. These M. oryzae strains were cultured in plates containing oat-tomato-agar (OTA) medium at 28 ℃ for 2 weeks with 12-h/12-h light/dark cycles. After getting rid of the surface mycelia with distilled water, the plates were further incubated for 3 days to promote sporulation. Then the spores were collected with distilled water and the concentration of which was diluted to 1 × 105 or 5 × 105 conidia mL−1 for inoculation.
For the invasive process assay, the diluted spores were inoculated on 5-cm-long leaf sheaths as described previously (Kankanala, 2007 #1048). Then the inoculated epidermal layer was excised and the invasive process, including conidia germination, appressorium development, and invasive hyphae growth, were recorded at 24 to 48 hpi by a Nikon A1 Laser Scanning Confocal Microscopy (Nikon Instruments, Inc., Shanghai, China). The quantitative analysis of the invasive process was conducted following the protocol described previously (Li, 2014 #1068).
For resistance assay, wound- or spray-inoculation was used following a previous report (Kong, 2012 #1469). Briefly, conidia suspension (5 × 105 conidia mL−1) of indicated strains was wound-inoculated at the wounded sites or spray-inoculated on the three- to five-leaf-stage seedlings. Lesion formation was examined at 4–6 days post-inoculation. The fungal biomass was determined by using the DNA amounts of fungal Mopot2 against rice DNA amounts of ubiquitin via RT-qPCR (Li et al. 2017).
H2O2 Accumulation Assay
To observe the H2O2 accumulation in rice plants, three-leaf-stage seedlings were inoculated with M. oryzae strain Guy11 at the concentration of 5 × 105 conidia mL−1. At 40 hpi, leaves were collected and incubated in 1 mg/mL DAB (Sigma, Merck Life Science Co., Ltd. Shanghai, China) at 22 °C for 8 h at illumination. The DAB-stained leaves were cleaned in 95% ethanol and then observed under a microscope (Zeiss imager A2, Carl Zeiss (Chengdu) Co. Ltd, China).
Agrobacterium-Mediated Transient Expression Assay in Nicotiana benthamiana
YFP detection and accumulation were conducted following a previous report (Li, 2017 #1206). To generate EFH1-YFP reporter fusions, we fused YFP with the cDNA sequence of OsEFH1 at its N-terminus. The fused fragments were inserted into KpnI-SpeI sites of binary vector 35S-pCAMBIA1300 (35S: OsEFH1-YFP). Then the vector was transformed into Agrobacterium strain GV3101 for agroinfection assay in N. benthamiana. In brief, Agrobacterium strain GV3101 harboring the respective expression constructs (35S: OsEFH1-YFP, 35S: miR1432, 35S: MIM1432) was incubated at 28 °C overnight in liquid LB media containing antibiotics kanamycin (50 mg/mL) and carbenicillin (50 mg/mL) on a table shaking at 250 rpm. The Agrobacterium were collected and resuspended in an MMA buffer (10 mM MES,10 mM MgCl2, 100 mM AS) and infiltrated into leaves of N. benthamiana for transient expression assay. Leaves were examined at 48 hpi using a Nikon A1 Confocal Laser Scanning Microscope (Nikon Instruments, Inc., China). The detection of EFH1-YFP fused protein was assayed with BioRad Image soft. The relative protein mass was calculated as the ratio of the mass of OsEFH1-YFP to the mass of HSP.
PTI-Related Defense Responses
The leaves of three to five-leaf-stage rice seedlings were selected to conduct the production of reactive oxygen species (ROS). The leaves of N. Benthamiana were used to transiently express miR1432 with or without MIM1432 and OsEFH1. The mRNA levels of miR1432, MIM1432 and OsEFH1 were analyzed as the methods in the “RNA extraction and gene expression analyses” section. For the ROS assay, the leaves were cut with a 5-mm-diameter hole punch and the punched circular leaves were cut into 1-mm-width and incubated in 200 µL water in a 96-well plate for 16 h. Then the leaves were treated with or without 1 µM flg22 or 20 µg/mL chitin in 200 µL buffer containing 20 mM L-012 (Wako, Japan), 10 µg/mL horseradish peroxidase (Sigma-Aldrich Shanghai Trading Co Ltd, Shanghai, China). The production of ROS was detected using a GLOMAX96 Microplate Luminometer (Promega Biotech Co., Ltd, Beijing, China) for 30–60 min and determined as relative luminescence units. We examine the PTI-triggered callose deposition in rice following a previous report (Liu et al. 2012). The rice was planted for 5 days and the first leaves were cut and treated with flg22 or chitin for 12 h. Then the treated leaves were fixed in ethanol: acetic acid (3:1 [v/v]) solution for 5 h and rehydrated in 70% and 50% ethanol for 2 h, respectively, and in water overnight. Then the decolored leaves were treated with 10% NaOH for 1 h to make the tissues transparent. The transparent leaves were washed three times with water and incubated in the staining buffer containing 150 mM K2HPO4, pH 9.5, 0.01% aniline blue (Sigma-Aldrich) for 4 h. We used a fluorescence microscope (Zeiss imager A2.0) to capture the images of callose deposition under a UV channel (340 to 380 nm) and calculated the callose deposits using Image J software.
Availability of Data and Materials
All the datasets are included within the article and its additional files.
Lijiangxin Tuan Heigu
International Rice Blast Line Pyricularia-Kanto51-m-Tsuyuake
Clustered regularly interspaced short palindromic repeats
Reverse transcription quantitative polymerase chain reaction
Laser scanning confocal microscopy
EF-hand family protein 1
Reactive oxygen species
Pathogen/microbe-associated molecular pattern
Pattern recognition receptors
- M. oryzae :
- DCL1 :
The transgenic lines overexpressing miR1432
The transgenic lines overexpressing a target mimic of miR1432
The transgenic lines overexpressing OsEFH1
The transgenic lines overexpressing OsACOT
NAC DOMAIN-CONTAINING PROTEIN 4
ENT-KAURENE SYNTHASE 4
PATHOGENESIS-RELATED GENE 1a
Seed setting rate
Non-expressor of Pathogenesis-Related genes1
Upstream open reading frame
Ideal Plant Architecture 1
- DEP1 :
Dense and Erect Panicle 1
Small nuclear RNA
Ashikawa I, Hayashi N, Yamane H, Kanamori H, Wu J, Matsumoto T, Ono K, Yano M (2008) Two adjacent nucleotide-binding site-leucine-rich repeat class genes are required to confer Pikm-specific rice blast resistance. Genetics 180(4):2267–2276
Aydinoglu F (2020) Elucidating the regulatory roles of microRNAs in maize (Zea mays L.) leaf growth response to chilling stress. Planta 251(2):38
Baldrich P, San Segundo B (2016) MicroRNAs in rice innate immunity. Rice (N Y) 9(1):6
Bergelson J, Purrington CB (1996) Surveying patterns in the cost of resistance in plants. Am Nat 148:536–558
Bi G, Su M, Li N, Liang Y, Dang S, Xu J, Hu M, Wang J, Zou M, Deng Y, Li Q, Huang S, Li J, Chai J, He K, Chen YH, Zhou JM (2021) The ZAR1 resistosome is a calcium-permeable channel triggering plant immune signaling. Cell 184:3528-3541.e12
Boller T, Felix G (2009) A renaissance of elicitors: perception of microbe-associated molecular patterns and danger signals by pattern-recognition receptors. Annu Rev Plant Biol 60:379–406
Boller T, He SY (2009) Innate immunity in plants: an arms race between pattern recognition receptors in plants and effectors in microbial pathogens. Science 324(5928):742–744
Boudsocq M, Willmann MR, McCormack M, Lee H, Shan L, He P, Bush J, Cheng SH, Sheen J (2010) Differential innate immune signalling via Ca(2+) sensor protein kinases. Nature 464(7287):418–422
Campo S, Peris-Peris C, Sire C, Moreno AB, Donaire L, Zytnicki M, Notredame C, Llave C, Segundo BS (2013) Identification of a novel microRNA (miRNA) from rice that targets an alternatively spliced transcript of the Nramp6 (Natural resistance-associated macrophage protein 6) gene involved in pathogen resistance. New Phytol 199:212–217
Campo S, Sanchez-Sanuy F, Camargo-Ramirez R, Gomez-Ariza J, Baldrich P, Campos-Soriano L, Soto-Suarez M, San Segundo B (2021) A novel transposable element-derived microRNA participates in plant immunity to rice blast disease. Plant Biotechnol J 19:1798–1811
Chandran V, Wang H, Gao F, Cao XL, Chen YP, Li GB, Zhu Y, Yang XM, Zhang LL, Zhao ZX, Zhao JH, Wang YG, Li S, Fan J, Li Y, Zhao JQ, Li SQ, Wang WM (2019) miR396-OsGRFs module balances growth and rice Blast disease-resistance. Front Plant Sci 9:1999
Chen JF, Zhao ZX, Li Y, Li TT, Zhu Y, Yang XM, Zhou SX, Wang H, Zhao JQ, Pu M, Feng H, Fan J, Zhang JW, Huang YY, Wang WM (2021) Fine-tuning roles of Osa-miR159a in rice immunity against Magnaporthe oryzae and development. Rice (N Y) 14(1):26
Cui H, Tsuda K, Parker JE (2015) Effector-triggered immunity: from pathogen perception to robust defense. Annu Rev Plant Biol 66:487–511
Deng Y, Zhai K, Xie Z, Yang D, Zhu X, Liu J, Wang X, Qin P, Yang Y, Zhang G, Li Q, Zhang J, Wu S, Milazzo J, Mao B, Wang E, Xie H, Tharreau D, He Z (2017) Epigenetic regulation of antagonistic receptors confers rice blast resistance with yield balance. Science 355(6328):962–965
Dodd AN, Kudla J, Sanders D (2010) The language of calcium signaling. Annu Rev Plant Biol 61:593–620
Dou D, Zhou JM (2012) Phytopathogen effectors subverting host immunity: different foes, similar battleground. Cell Host Microbe 12(4):484–495
Ellis JM, Wong GW, Wolfgang MJ (2013) Acyl coenzyme A thioesterase 7 regulates neuronal fatty acid metabolism to prevent neurotoxicity. Mol Cell Biol 33(9):1869–1882
Fileccia V, Ingraffia R, Amato G, Giambalvo D, Martinelli F (2019) Identification of microRNAS differentially regulated by water deficit in relation to mycorrhizal treatment in wheat. Mol Biol Rep 46(5):5163–5174
Franco-Zorrilla JM, Valli A, Todesco M, Mateos I, Puga MI, Rubio-Somoza I, Leyva A, Weigel D, Garcia JA, Paz-Ares J (2007) Target mimicry provides a new mechanism for regulation of microRNA activity. Nat Genet 39(8):1033–1037
Gifford JL, Walsh MP, Vogel HJ (2007) Structures and metal-ion-binding properties of the Ca2+-binding helix–loop–helix EF-hand motifs. Biochem J 405(2):199–221
Ha CM, Rao X, Saxena G, Dixon RA (2021) Growth-defense trade-offs and yield loss in plants with engineered cell walls. New Phytol 231(1):60–74
Hu J, Zeng T, Xia Q, Qian Q, Yang C, Ding Y, Chen L, Wang W (2018) Unravelling miRNA regulation in yield of rice (Oryza sativa) based on differential network model. Sci Rep 8(1):8498
Huang J, Yang M, Zhang X (2016) The function of small RNAs in plant biotic stress response. J Integr Plant Biol 58(4):312–327
Huot B, Yao J, Montgomery BL, He SY (2014) Growth-defense tradeoffs in plants: a balancing act to optimize fitness. Mol Plant 7(8):1267–1287
Jones JD, Dangl JL (2006) The plant immune system. Nature 444(7117):323–329
Kantar M, Lucas SJ, Budak H (2011) miRNA expression patterns of Triticum dicoccoides in response to shock drought stress. Planta 233(3):471–484
Kanzaki H, Yoshida K, Saitoh H, Fujisaki K, Hirabuchi A, Alaux L, Fournier E, Tharreau D, Terauchi R (2012) Arms race co-evolution of Magnaporthe oryzae AVR-Pik and rice Pik genes driven by their physical interactions. Plant J 72(6):894–907
Katiyar-Agarwal S, Jin H (2010) Role of small RNAs in host–microbe interactions. Annu Rev Phytopathol 48:225–246
Li Y, Zhang Q, Zhang J, Wu L, Qi Y, Zhou JM (2010) Identification of microRNAs involved in pathogen-associated molecular pattern-triggered plant innate immunity. Plant Physiol 152(4):2222–2231
Li Y, Lu YG, Shi Y, Wu L, Xu YJ, Huang F, Guo XY, Zhang Y, Fan J, Zhao JQ, Zhang HY, Xu PZ, Zhou JM, Wu XJ, Wang PR, Wang WM (2014) Multiple rice microRNAs are involved in immunity against the blast fungus Magnaporthe oryzae. Plant Physiol 164(2):1077–1092
Li D, Liu Z, Gao L, Wang L, Gao M, Jiao Z, Qiao H, Yang J, Chen M, Yao L, Liu R, Kan Y (2016) Genome-wide identification and characterization of microRNAs in developing grains of Zea mays L. PLoS ONE 11(4):e0153168
Li Y, Zhao SL, Li JL, Hu XH, Wang H, Cao XL, Xu YJ, Zhao ZX, Xiao ZY, Yang N, Fan J, Huang F, Wang WM (2017) Osa-miR169 negatively regulates rice immunity against the blast fungus Magnaporthe oryzae. Front Plant Sci 8:2
Li Y, Cao XL, Zhu Y, Yang XM, Zhang KN, Xiao ZY, Wang H, Zhao JH, Zhang LL, Li GB, Zheng YP, Fan J, Wang J, Chen XQ, Wu XJ, Zhao JQ, Dong OX, Chen XW, Chern M, Wang WM (2019) Osa-miR398b boosts H2O2 production and rice blast disease-resistance via multiple superoxide dismutases. New Phytol 222(3):1507–1522
Li XP, Ma XC, Wang H, Zhu Y, Liu XX, Li TT, Zheng YP, Zhao JQ, Zhang JW, Huang YY, Pu M, Feng H, Fan J, Li Y, Wang WM (2020) Osa-miR162a fine-tunes rice resistance to Magnaporthe oryzae and yield. Rice (N Y) 13(1):38
Lin ZZ, Jiang WW, Wang JL, Lei CL (2001) Research and utilization of universally susceptible property of Japonica rice variety Lijiangxintuanheigu. Sci Agric Sinjca 34:116–117
Liu B, Li JF, Ao Y, Qu J, Li Z, Su J, Zhang Y, Liu J, Feng D, Qi K, He Y, Wang J, Wang HB (2012) Lysin motif-containing proteins LYP4 and LYP6 play dual roles in peptidoglycan and chitin perception in rice innate immunity. Plant Cell 24(8):3406–3419
Liu F, Ren Y, Wang Y, Peng C, Zhou K, Lv J, Guo X, Zhang X, Zhong M, Zhao S, Jiang L, Wang H, Bao Y, Wan J (2013) OsVPS9A functions cooperatively with OsRAB5A to regulate post-Golgi dense vesicle-mediated storage protein trafficking to the protein storage vacuole in rice endosperm cells. Mol Plant 6(6):1918–1932
Lu JH, Yang X, Chen J, Li T, Hu Z, Xie Y, Li J, Zhao J, Pu M, Feng H, Fan J, Huang Y, Zhang J, Wang W, Li Y (2021) Osa-miR439 negatively regulates rice immunity against Magnaporthe oryzae. Rice Sci 28(2):156–165
Navarro L, Dunoyer P, Jay F, Arnold B, Dharmasiri N, Estelle M, Voinnet O, Jones JD (2006) A plant miRNA contributes to antibacterial resistance by repressing auxin signaling. Science 312(5772):436–439
Nelson R, Wiesner-Hanks T, Wisser R, Balint-Kurti P (2018) Navigating complexity to breed disease-resistant crops. Nat Rev Genet 19(1):21–33
Ngou BPM, Ahn HK, Ding P, Jones JDG (2021) Mutual potentiation of plant immunity by cell-surface and intracellular receptors. Nature 592(7852):110–115
Niu D, Lii YE, Chellappan P, Lei L, Peralta K, Jiang C, Guo J, Coaker G, Jin H (2016) miRNA863-3p sequentially targets negative immune regulator ARLPKs and positive regulator SERRATE upon bacterial infection. Nat Commun 7:11324
Pacak A, Kruszka K, Swida-Barteczka A, Nuc P, Karlowski W, Jarmolowski A, Szweykowska-Kulinska Z (2016) Developmental changes in barley microRNA expression profiles coupled with miRNA target analysis. Acta Biochim Pol 63(4):799–809
Padmanabhan C, Zhang X, Jin H (2009) Host small RNAs are big contributors to plant innate immunity. Curr Opin Plant Biol 12(4):465–472
Ranf S, Eschen-Lippold L, Pecher P, Lee J, Scheel D (2011) Interplay between calcium signalling and early signalling elements during defence responses to microbe- or damage-associated molecular patterns. Plant J 68(1):100–113
Ray S, Agarwal P, Arora R, Kapoor S, Tyagi AK (2007) Expression analysis of calcium-dependent protein kinase gene family during reproductive development and abiotic stress conditions in rice (Oryza sativa L. ssp. indica). Mol Genet Genomics 278(5):493–505
Salvador-Guirao R, Hsing YI, San SB (2018) The polycistronic miR166k-166h positively regulates rice immunity via post-transcriptional control of EIN2. Front Plant Sci 9:337
Salvador-Guirao R, Baldrich P, Tomiyama S, Hsing YI, Okada K, San SB (2019) OsDCL1a activation impairs phytoalexin biosynthesis and compromises disease resistance in rice. Ann Bot 123(1):79–93
Su J, Wang W, Han J, Chen S, Wang C, Zeng L, Feng A, Yang J, Zhou B, Zhu X (2015) Functional divergence of duplicated genes results in a novel blast resistance gene Pi50 at the Pi2/9 locus. Theor Appl Genet 128(11):2213–2225
Tang J, Chu C (2017) MicroRNAs in crop improvement: fine-tuners for complex traits. Nat Plants 3:1–11
Thor K, Peiter E (2014) Cytosolic calcium signals elicited by the pathogen-associated molecular pattern flg22 in stomatal guard cells are of an oscillatory nature. New Phytol 204(4):873–881
Tsumematsu H, Yanoria MJT, Ebron LA, Hayashi N, Ando I, Kato H, Imbe T, Khush GS (2000) Development of monogenic lines of rice for blast resistance. Breed Sci 50:229–234
Wang Y, Ren Y, Liu X, Jiang L, Chen L, Han X, Jin M, Liu S, Liu F, Lv J, Zhou K, Su N, Bao Y, Wan J (2010) OsRab5a regulates endomembrane organization and storage protein trafficking in rice endosperm cells. Plant J 64(5):812–824
Wang J, Zhou L, Shi H, Chern M, Yu H, Yi H, He M, Yin J, Zhu X, Li Y, Li W, Liu J, Chen X, Qing H, Wang Y, Liu G, Wang W, Li P, Wu X, Zhu L, Zhou JM, Ronald PC, Li S, Li J (2018a) A single transcription factor promotes both yield and immunity in rice. Science 361(6406):1026–1028
Wang ZY, Xia YQ, Lin SY, Wang YR, Guo BH, Song XN, Ding SC, Zheng LY, Feng RY, Chen SL, Bao YL, Sheng C, Zhang X, Wu J, Niu DD, Jin HL, Zhao HW (2018b) Osa-miR164a targets OsNAC60 and negatively regulates rice immunity against the blast fungus Magnaporthe oryzae. Plant J 95:584–597
Wang J, Liu X, Zhang A, Ren Y, Wu F, Wang G, Xu Y, Lei C, Zhu S, Pan T, Wang Y, Zhang H, Wang F, Tan YQ, Jin X, Luo S, Zhou C, Zhang X, Liu J, Wang S, Meng L, Chen X, Lin Q, Guo X, Cheng Z, Tian Y, Liu S, Jiang L, Wu C, Wang E, Zhou JM, Wang YF, Wang H, Wan J (2019) A cyclic nucleotide-gated channel mediates cytoplasmic calcium elevation and disease resistance in rice. Cell Res 29(10):820–831
Xiao ZY, Wang QX, Zhao SL, Wang H, Li JL, Fan J, Li Y, Wang WM (2017) MiR444b.2 regulates resistance to Magnaporthe oryzae and tillering in rice. Acta Phytppathol Sin 47(4):511–522
Xu G, Yuan M, Ai C, Liu L, Zhuang E, Karapetyan S, Wang S, Dong X (2017) uORF-mediated translation allows engineered plant disease resistance without fitness costs. Nature 545(7655):491–494
Ying JZ, Shan JX, Gao JP, Zhu MZ, Shi M, Lin HX (2012) Identification of quantitative trait Loci for lipid metabolism in rice seeds. Mol Plant 5(4):865–875
Yu Y, Jia TR, Chen XM (2017) The “how” and “where” of plant microRNAs. New Phytol 216(4):1002–1017
Yuan M, Jiang Z, Bi G, Nomura K, Liu M, Wang Y, Cai B, Zhou JM, He SY, Xin XF (2021) Pattern-recognition receptors are required for NLR-mediated plant immunity. Nature 592(7852):105–109
Zhang X, Bao Y, Shan D, Wang Z, Song X, Wang J, He L, Wu L, Zhang Z, Niu D, Jin H, Zhao H (2018) Magnaporthe oryzae induces the expression of a microRNA to suppress the immune response in rice. Plant Physiol 177(1):352–368
Zhang LL, Li Y, Zheng YP, Wang H, Yang X, Chen JF, Zhou SX, Wang LF, Li XP, Ma XC, Zhao JQ, Pu M, Feng H, Fan J, Zhang JW, Huang YY, Wang WM (2020) Expressing a target mimic of miR156fhl-3p enhances rice blast disease resistance without yield penalty by improving SPL14 expression. Front Genet 11:327
Zhao YF, Peng T, Sun HZ, Teotia S, Wen HL, Du YX, Zhang J, Li JZ, Tang GL, Xue HW, Zhao QZ (2019a) miR1432-OsACOT (Acyl-CoA thioesterase) module determines grain yield via enhancing grain filling rate in rice. Plant Biotechnol J 17(4):712–723
Zhao ZX, Feng Q, Cao XL, Zhu Y, Wang H, Chandran V, Fan J, Zhao JQ, Pu M, Li Y, Wang WM (2019b) Osa-miR167d facilitates infection of Magnaporthe oryzae in rice. J Integr Plant Biol 62(5):702–715
Zhou SX, Zhu Y, Wang LF, Zheng YP, Chen JF, Li TT, Yang XM, Wang H, Li XP, Ma XC, Zhao JQ, Pu M, Feng H, Li Y, Fan J, Zhang JW, Huang YY, Wang WM (2020) Osa-miR1873 fine-tunes rice immunity against Magnaporthe oryzae and yield traits. J Integr Plant Biol 62(8):1213–1226
Zielinski RE (1998) Calmodulin and calmodulin-binding proteins in plants. Annu Rev Plant Physiol Plant Mol Biol 49:697–725
We thank Dr. Min He (Sichuan Agricultural University) for providing the Magnaporthe oryzae strain GZ8.
This work was supported by the National Natural Science Foundation of China (No. U19A2033 and 31430072), the Department of Science and Technology of Sichuan Province (2020YJ0332 and 2021YJ0304), and the Open Research Fund of State Key Laboratory of Hybrid Rice (Hunan Hybrid Rice Research Center, 2021KF07).
Ethics Approval and Consent to Participate
Consent for Publication
All the authors declare no conflict of interest.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Additional file 1: Figure S1.
Rice miR1432 is responsive to blast fungus. a The disease lesions on leaves of LTH and IRBLkm-Ts with the inoculation of Magnaporthe oryzae strain Guy11. The photo was captured five days post-inoculation. b The Reverse transcription-quantitative polymerase chain reaction (RT-qPCR) data show miR1432 levels in LTH and IRBLkm-Ts with or without Guy11 treatment. Data are shown as mean ± SD (n= 3 independent samples). Different letters above the bars show significant differences (P < 0.01) as determined by the One-way Tukey-Kramer test. These experiments were repeated two times with similar results. Additional file 1: Figure S2. miR1432 is predicted to target OsEFH1 and OsACOT. The sequence alignment of miR1432, MIM1432, and the target sites of the predicted target genes. Mismatched nucleotides were highlighted in red colors. Additional file 1: Figure S3. miR1432 regulates rice resistance to Magnaporthe oryzae. a The disease phenotypes on leaves of MIM1432 and the Nipponbare control following spray-inoculation with M. oryzae strain Guy11. The phenotype was captured five days post-inoculation. Bar = 5 mm. b Quantification analysis of the fungal biomass in a. The relative fungal biomass was measured by using the ratio of DNA level of M. oryzae MoPot2 genes against the rice genomic ubiquitin DNA level. The rice ubiquitin gene was used as the internal reference gene. c The mRNA levels of the defense-related genes in OX1432, MIM1432, and the Nipponbare control 12 hours post-inoculation. For b and c, error bars indicate SD (n = 3 independent samples). Different letters above the bars indicate a significant difference (P < 0.01) as determined by a one-way Tukey-Kramer analysis. Similar results were obtained in at least two independent experiments. Additional file 1: Figure S4. Overexpression of OsEFH1 enhances rice blast disease resistance. a The reverse transcription-quantitative polymerase chain reaction (RT-qPCR) data show the mRNA levels of OsEFH1 in LTH and IRBLkm-Ts with or without Guy11 treatment. b The disease phenotypes on leaves of OXEFH1 and the Nipponbare control following spray-inoculation of M. oryzae strain GZ8 five days post-inoculation. Bars = 5 mm. c Quantification analysis of the fungal biomass in b. The relative fungal biomass was measured by using the ratio of DNA level of M. oryzae Pot2 genes against the rice genomic ubiquitin DNA levels. d The invasion process of GZ8 at 24 hours post-inoculation (hpi) and the H2O2 accumulation at 48 hpi in the invasive sheath cells of OXEFH1 and the Nipponbare control. Bars = 40 µm. For a and c, data are shown as mean ± SD (n = 3 independent samples). Different letters above the bars show significant differences (P < 0.01) as determined by the One-way Tukey-Kramer test. Similar results were obtained in at least two independent experiments. Additional file 1: Figure S5. Chitin regulates the expression of Pikm genes in IRBLkm-Ts. The reverse transcription-quantitative polymerase chain reaction (RT-qPCR) data show the mRNA levels of Pikm1-Ts and Pikm2-Ts in IRBLkm-Ts with or without chitin treatment. Data are shown as mean ± SD (n= 3 independent samples). Additional file 1: Figure S6. The miR1432-OsEFH1 module regulates PAMPs-induced burst of reactive oxidative species (ROS). a–c The relative miR1432 levels, MIM1432 levels, and mRNA levels of OsEFH1 in the leaves transiently expressing MIR1432 with or without MIM1432 or OsEFH1, respectively. d and e The burst of ROS induced by flg22 (d) and chitin (e) in the leaves of Nicotiana benthamiana transiently expressing miR1432 with or without MIM1432 or OsEFH1, respectively. The leaves transiently expressing YFP are used as the control. Data are shown as mean ± SD (n = 4 independent repeats). Similar results were obtained in at least two independent experiments.
Additional file 2: Table S1.
The agronomical traits of the indicated lines. Table S2. Primers used in this study.
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
About this article
Cite this article
Li, Y., Zheng, YP., Zhou, XH. et al. Rice miR1432 Fine-Tunes the Balance of Yield and Blast Disease Resistance via Different Modules. Rice 14, 87 (2021). https://doi.org/10.1186/s12284-021-00529-1
- Blast disease resistance
- Yield traits
