Rice Brittle Culm19 Encoding Cellulose Synthase Subunit CESA4 Causes Dominant Brittle Phenotype But has No Distinct Influence on Growth and Grain Yield
Rice volume 14, Article number: 95 (2021)
Mechanical strength is a crucial agronomic trait in rice (Oryza sativa), and brittle mutants are thought suitable materials to investigate the mechanism of cell wall formation. So far, almost all brittle mutants are recessive, and most of them are defected in multiple morphologies and/or grain yield, limiting their application in hybrid breeding and in rice straw recycling.
We identified a semi-dominant brittle mutant Brittle culm19 (Bc19) isolated from the japonica variety Nipponbare through chemical mutagenesis. The mutant showed the same apparent morphologies and grain yield to the wild type plant except for its weak mechanical strength. Its development of secondary cell wall in sclerenchyma cells was affected, along with reduced contents of cellulose, hemicellulose, lignin and sugars in culms and leaves. Positional cloning suggested that the Bc19 gene was allelic to OsCESA4, encoding one of the cellulose synthase A (CESA) catalytic subunits. In this mutant, a C-to-T substitution occurred in the coding sequence of BC19, causing the P507S missense mutation in its encoded product, which was located in the second cytoplasmic region of the OsCESA4 protein. Furthermore, introducing mutant gene Bc19 into the wild-type plant resulted in brittle plants, confirming that the P507S point mutation in OsCESA4 protein was responsible for the semi-dominant brittle phenotype of Bc19 mutant. Reverse correlation was revealed between cellulose contents and expression levels of mutant gene Bc19 among the homozygous mutant, the hybrid F1 plant, and the Bc19 overexpression transgenic plants, implying that gene Bc19 might affect cellulose synthesis in a dosage-dependent manner.
Bc19, a semi-dominant brittle mutant allele of gene OsCESA4, was identified using map-based cloning approach. The mutated protein of Bc19 possessing the P507S missense mutation behaved in a dosage-dependent semi-dominant manner. Unique brittle effect on phenotype and semi-dominant genetic quality of gene Bc19 indicated its potential application in grain-straw dual-purpose hybrid rice breeding.
Mechanical strength is one of the most important traits for cereal crops, and is determined by plant cell walls, which constitute the skeletal structures of the plant bodies. Ninety-percent components of plant cell walls are polysaccharides, which exist mainly as cellulose and hemicellulose in primary cell walls (PCW) and secondary cell walls (SCW), and as lignin only in SCW (Darley et al. 2001; Taylor et al. 2000). SCW generally determines the mechanical strength of cell walls, so defects in biosynthesis of cellulose, hemicellulose and/or lignin always result in inferior mechanical index and brittle plant bodies, which in turn make these brittle culm mutants valuable materials for understanding the mechanism of SCW formation.
Till now, a number of brittle mutants have been studied, and some responsible genes have been identified in Arabidopsis thaliana, rice (Oryza sativa) and other cereal crops, which to some extent revealed the mechanism regulating mechanical strength of the plant body and metabolic pathway of plant cell walls. Initially, the physical characteristics of crop stems were first described through three barley brittle mutants, in which the brittle phenotype was due to fewer numbers of cellulose molecules in the cell walls (Kokubo et al. 1989, 1991). Later on, three Arabidopsis irregular xylem mutants, irx1, irx3 and irx5, were identified (Turner and Somerville 1997), and the relevant corresponding genes were found to encode the three basic cellulose synthase A (CESA) catalytic subunits, AtCESA8, AtCESA7 and AtCESA4, respectively (Taylor et al. 1999, 2000, 2003). In addition, several genes involved in other different steps of cell wall formation were reported in Arabidopsis. IRX4 encoding a cinnamoyl-CoA reductase (CCR) is essential for lignin biosynthesis; FRAGILE FIBER1 (FRA1) encodes a kinesin-like protein and regulates the oriented deposition of cellulose microfibrils; and mutant of gene FRA2 is attributable to altered fiber cell elongation and expansion (Jones et al. 2001; Zhong et al. 2002; Burk et al. 2001).
Coincidentally, identification of some brittle mutants in rice caused by Tos17 also revealed three catalytic subunits essential for cellulose synthesis, OsCESA4, OsCESA7, and OsCESA9, which are homologous to AtCESA8, AtCESA4 and AtCESA7, respectively (Tanaka et al. 2003). Up to now, at least 25 mutants exhibiting brittle leaves and/or culms have been reported in rice, some of which turned out to be different mutant alleles of CESAs, such as bc7, bc11, Bc6 and fc17 (Yan et al. 2007; Zhang et al. 2009; Kotake et al. 2011; Li et al. 2018). In total, 12 genes responsible for brittle traits are cloned, which directly or indirectly participate in cellulose biosynthesis and cell wall formation (Kotake et al. 2011; Wu et al. 2012; Vega-Sánchez et al. 2012; Wang et al. 2016b). Brittle Culm1 (BC1) encoding a COBRA-like protein regulates cellulose assembly by modulating cellulose crystallite size (Li et al. 2003; Liu et al. 2013). BC3 is essential for proper SCW construction, and its encoding protein functions in membrane dynamics (Hirano et al. 2010). A dual-targeting kinesin protein encoded by BC12 is involved in cell-cycle progression and cellulose microfibril deposition (Zhang et al. 2010). Proteins encoded by BC10, BC14 and BC15 are all localized in the Golgi complex, but they function differently in regulating cellulose synthesis (Zhou et al. 2009; Zhang et al. 2016, 2011; Song et al. 2011; Wu et al. 2012). These studies have uncovered some important biochemical processes in cell wall formation and remodeling, while our understanding of cell wall biosynthesis and modification is still limited.
Almost all brittle mutants are recessive, such as bc1, bc3, bc11 and fc17, except Bc6, a semi-dominant mutant of OsCESA9 (Li et al. 2003, 2018; Hirano et al. 2010; Zhang et al. 2009; Kotake et al. 2011). Meanwhile, most brittle plant bodies were also aberrant in multiple morphologies, interfering with their application in rice breeding. For example, decreased plant height and shorter roots were often seen in these mutants, such as bc3, bc10, bc11 and bc12 (Hirano et al. 2010; Zhou et al. 2009; Zhang et al. 2009, 2010). Fertility and/or tillering were severely affected in some mutants, including NE1031, S1-24, S1-60 and bc10 (Tanaka et al. 2003; Wang et al. 2016a, 2012; Zhou et al. 2009). In the present study, we isolated a semi-dominant brittle mutant Brittle culm19 (Bc19) through chemical mutagenesis. Cellulose, hemicellulose and lignin contents were all reduced in culms and leaves of Bc19, and its SCW was much thinner than the wild type plant, while neither apparent morphologies nor grain yield was altered in the mutant. Through map-based cloning, we confirmed that the mutant gene Bc19 was allelic to OsCESA4, and the resulting P507S point mutation was responsible for the brittle phenotype. We suggest that the semi-dominant mutant gene Bc19 could be a potential genetic resource for implementing high grain yield, heavy biomass and their efficient utilization in breeding grain-straw dual-purpose hybrid rice.
Characterization of the Bc19 Mutant
Bc19 was a brittle mutant obtained from the japonica rice cv. Nipponbare by chemical mutagenesis. Its leaves and internodes could be easily broken, showing smooth breakpoints (Fig. 1a, b). The brittle phenotype was milder at the seedling stage and became more severe, especially after heading. Not only culms and leaves, but the weak mechanical strength also went through the whole plant body of Bc19, including leaf sheaths, panicle branches, glumes and roots. Strengths for breaking leaves and culms were reduced by approximately 90% and 70% in Bc19, respectively (Fig. 1j, k). However, different from most brittle mutants reported, apparent morphology and major agronomic traits were not affected in the Bc19 mutant, exhibiting comparable plant height, the number of productive panicles per plant and spikelets per panicle, seed setting rate, 1000-grain weight, and grain yield to the wild type plant (Fig. 1c–i).
Decreased mechanical strength in the Bc19 mutant may result from irregular cell arrangement, cell wall structure and thickness. Therefore, we examined cross sections of leaves and internodes of the wild-type plant and Bc19 mutant using an environmental scanning electron microscope and a transmission electron microscope (Fig. 2). Obviously, cell walls of sclerenchyma tissues were much thinner in Bc19, in both leaf veins and internodes, while cell walls of parenchyma tissues showed no obvious differences (Fig. 2a–d). Moreover, SCW of Bc19 was found to be thinner, and the layered structure of SCW was not distinct compared with the wild-type plant (Fig. 2e–h). These results suggested that the mutation traits of Bc19 were very likely associated with a decrease in cell wall thickness, especially the SCW in sclerenchyma tissues which provided the basal structural support of the plant body.
Alterations in Cell Wall Composition

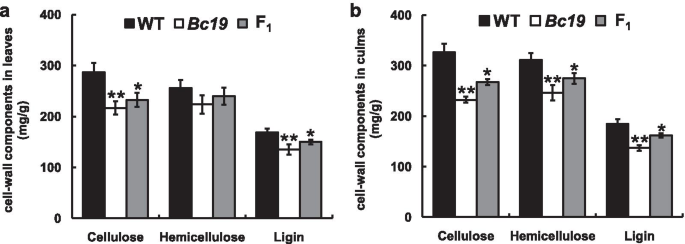

As inferior cell wall formation may result from altered cell wall compositions, we compared cellulose, hemicellulose, and lignin contents between the Bc19 mutant and the wild-type plant. As shown in Fig. 3, all of the amounts were reduced in leaves and culms of the Bc19 mutant. Cellulose reductions of 24.1% in leaves and 28.5% in culms were observed in Bc19, and lignin contents decreased 20.1% in leaves and 25.9% in culms compared to those in the wild type (Fig. 3). A relatively slight decrease of hemicellulose content occurred in the mutant, 12.5% in leaves and 20.9% in culms (Fig. 3). Subsequently we performed a quantitative analysis of monosaccharides in Bc19 and wild type plant culms through HPLC assay. As expected, glucose, which makes up the cellulose, and xylose, the main component of hemicellulose, were all decreased in the Bc19 mutant (Table 1). These results indicated that mutation in gene Bc19 affected cell wall biosynthesis through alterations of these major components.
Map-Based Cloning of the Bc19 Mutant Gene
The Bc19 mutant was crossed with three rice cultivars, including the wild-type Nipponbare, and two indica cultivars, Minghui 63 and G46B. All of the F1 plants from the three crossings tended to be brittle. Meanwhile, milder phenotypes of weak mechanical strength and decrease in breaking force were observed in F1 plants producing from crossing between Bc19 and the wild type (Fig. 1a, b, j, k). Correspondingly, the reduction of cell wall components in F1 was also milder than those in the homozygous mutant Bc19 (such as 18.9% and 18.1% of cellulose decrease in the F1 leaves and culms, respectively) (Fig. 3). Therefore, the mutant gene might act in a semi-dominant manner. Furthermore, three quarters of F2 plants derived from the three crosses between Bc19 and normal cultivars were also brittle plants (Additional file 1: Table S1). Therefore, the Bc19 mutant phenotype should be controlled by a semi-dominant nuclear gene.
To fine map the Bc19 locus, an F2 population of up to 4000 plants from a cross between Bc19 and Minghui 63 was generated. Initially, we analyzed 140 normal plants from this F2 population with more than 300 SSR markers and located the Bc19 gene on the long arm of rice chromosome 1, with 9.7 cM to RM212 (Fig. 4a). Then several InDel markers on both sides of RM212 were developed based on sequence polymorphism between japonica cv. Nipponbare and indica cv. 93–11, and the Bc19 gene was mapped between RM212 and InDel marker C1, with 5.1 cM to C1 (Fig. 4a, Additional file 1: Table S2). To narrow the Bc19 locus, we designed more InDel markers within this region and analyzed 983 normal plants in total. Finally, we narrowed the Bc19 locus down to a 145-kb interval between InDel markers C3 and C4, with the genetic distance of 0.05 cM and 0.10 cM, respectively (Fig. 4b, c, Additional file 1: Table S2).
According to the gene annotation information provided by the MSU Rice Genome Annotation Release 7 (http://rice.plantbiology.msu.edu), this region contains 23 genes (Fig. 4c), of which 8 are transposons. Based on the putative functions of the rest 15 genes, LOC_Os01g54620 encoding OsCESA4 is most likely the candidate gene, which was previously identified essential for cellulose synthesis (Tanaka et al. 2003). Therefore, we sequenced and compared this gene from the genomic DNA of Bc19 and wild-type plants, finding one base-pair C-to-T substitution at position 3439 (Fig. 4d). Through reverse transcription (RT)-PCR, the corresponding C-to-T substitution at position 1519 of the gene's cDNA sequence was revealed, turning CCA into TCA and resulting in the 507th amino acid residue, proline, replaced with serine.
Sequence analysis suggested that BC19 gene contained 13 exons and 12 introns with 5743-bp genomic DNA and 2970-bp cDNA. Multiple alignments indicated that the missense mutation from proline to serine at the 507th residue of Bc19 protein is strictly conserved among CESA family members in rice, Arabidopsis and several other species, which may affect the proper function of OsCESA4 (Additional file 2: Fig. S1 and S2). Nonetheless, the predicted three dimension structure of Bc19 was not affected by its P507S mutation, which is located between two β-pleated sheets (Additional file 2: Fig. S3).
Functional Identification of Bc19
A transgenic experiment was conducted to confirm that mutation in gene LOC_Os01g54620 is responsible for the brittle phenotype of Bc19. The plasmid pC2300-Bc19 containing the coding region of the mutant gene Bc19 right after the rice Actin1 promoter was introduced into the wild-type plant. As a result, 13 independent transgenic plants were obtained, of which 11 plants were identified as positive transgenic plants by PCR with a pair of primers extending from the plasmid to the coding sequence of Bc19 (Fig. 5a, showing 2 among 11 lines). As expected, independent transgenic lines carrying the mutant gene Bc19 showed obviously brittle phenotype. Moreover, the decrease in cell wall components of transgenic lines TG1 and TG2 were severer than those of mutant Bc19 (Fig. 5b, c), probably because of their higher transcript levels of mutant gene Bc19 guided by the strong promoter of Actin1 (Fig. 5d). These results suggested that the brittle phenotype of the Bc19 mutant was due to the P507S substitution of OsCESA4, and the mutant Bc19 gene blocked the synthesis of essential components of cell wall in a dominant way.
qRT-PCR Analysis of BC19 and the Related Genes
To analyze the function of BC19 gene and how the mutant gene impacted its cell wall synthesis, expression patterns of BC19 and other 5 related genes were assessed in both wild-type plants and the Bc19 mutant by qRT-PCR. OsCESA4, OsCESA7 and OsCESA9, encoding three catalytic subunits of CESA, are essential for β-1,4-glucan synthesis and are not redundant during SCW formation (Tanaka et al. 2003; Doblin et al. 2002). BC1 encodes a COBRA-like protein and participates in SCW formation, and its expression is closely connected with the expression of CESA genes in Arabidopsis (Li et al. 2003; Roudier et al. 2005). OsPAL was reported to regulate lignin synthesis in the phenylpropanoid pathway (Vanholme et al. 2008).
As shown in Fig. 6, three CESA genes, BC1 and OsPAL were mainly expressed in roots of seedlings, culms of plants two weeks after heading and young panicles at the beginning of heading stage. However, very low transcript levels of the five genes were detected in leaves at seedling stage and after heading. The only difference was that OsPAL was expressed much more strongly in young panicles than in culms after heading. Similar expression patterns of CESAs and BC1 in different tissues suggested that they might be co-expressed in SCW synthesis, which was consistent with the results in the study of an OsCESA9 mutant (Kotake et al. 2011). However, they only verified the relationship between OsCESA9 and BC1. Additionally, we here confirmed the co-expression pattern between three CESA genes and BC1.
To seek if there was any effect on these related genes' expression caused by the mutation in Bc19 gene, we then examined and compared them between Bc19 mutant and the wild type. In Bc19 mutant, expressions of the five genes were down-regulated in leaves and roots, while up-regulated in culms and panicles (Additional file 2: Fig. S4). However, changes in transcription levels of these genes were less than two folds in Bc19 mutant, indicating that the point mutation in Bc19 gene didn't necessarily affect Bc19 or other related genes. A similar case occurred in the bc1 mutant, where the expression levels of the three CESA genes were not affected by the mutation of gene BC1 (Liu et al. 2013).
In addition, we compared transcript levels of OsCESA4 among the homozygous mutant Bc19, the hybrid F1 plant, the wild type and two particularly brittle transgenic lines TG1 and TG2. As a result, the expression levels in Bc19 mutant and F1 plants (the according transcripts probably including both the wild type and mutant gene, BC19 and Bc19) were comparative to those in the wild type. However, sharply raised transcript levels of the Bc19 gene were detected in TG1 and TG2 (Fig. 5d), showing inverse correlation with sharply decreased contents of cellulose, hemicellulose and lignin in them (Fig. 5b, c).
Bc19 Alters Mechanical Strength and Cell Wall Composition but Has No Distinct Influence on Growth and Grain Yield
Gene mutation of most brittle mutants affected mechanical strength of plant bodies and resulted in other pleiotropic abnormalities in rice, such as bc3, bc10, bc12 (Hirano et al. 2010; Zhou et al. 2009; Zhang et al. 2010). Similarly, different mutation types and sites of CESAs also resulted in varied phenotypes in rice. NE1031, NC0259, ND8759, and ND2395 were generated by Tos17 insertion in OsCESA genes, and they were aberrant in plant height, leaf size, culm thickness, and fertility (Tanaka et al. 2003). bc7 was another brittle mutant allele of OsCESA4 obtained through 60Co-γ radiation, resulting in the premature transcription of the corresponding gene (Yan et al. 2007). Plant height of bc7 was shorter, and its cellulose content and cell number of the parenchymatous tissues were reduced. Other 7 OsCESA mutants were caused by point mutations as reported, including 2 of OsCESA4 (bc11 and fc17), 1 of OsCESA7 (S1-24), and 4 of OsCESA9 (Bc6, S1-60, bc13, and bc-s1) (Fig. 7) (Zhang et al. 2009; Li et al. 2018; Wang et al. 2016a, 2012; Kotake et al. 2011; Song et al. 2013; Jin et al. 2016). Among them, 3 mutants (bc11, S1-24, and S1-60) also showed shorter plant bodies, and/or other abnormal morphologies, such as poor fertility, fewer tillers and shorter roots. Most of those mutants had reduced cellulose contents and increased hemicellulose and lignin contents (Yan et al. 2007; Wang et al. 2016a, 2012; Kotake et al. 2011; Li et al. 2018). Here, we reported another brittle mutant Bc19, in which cellulose, hemicellulose and lignin contents were reduced by 12.5%—28.5%, but apparent morphology, growth and grain yield were not affected (Figs. 1, 3). Unlike most recessive brittle mutants such as fc17, we verified Bc19 as a new semi-dominant mutant allele of gene OsCESA4, and the mutant gene mainly influenced the SCW synthesis (Figs. 1, 2, 3, 4).
In recent years, grain yield constantly attracts breeders' increasing concern about lodging resistance in rice cultivars. Enhancing culm strength can improve the lodging resistance in rice and confrontation capacity against natural disasters such as strong wind and rain (Li et al. 2014a). On the other hand, a reduced proportion of components in cell walls could make rice straw easily degraded after harvest, improving its utilization efficiency either as animal feed or biofuels (Wang et al. 2005; Johnson et al. 2006). In addition, engineering improvement of rice straw as biofuel resources will be a sustainable solution to avoid environmental problems caused by straw burning (Himmel et al. 2007; Ragauskas et al. 2014). In this study, cellulose content was reduced while growth and yield were not affected in Bc19 mutant. Thus the mutant gene could be a potential genetic resource for rice straw recycling, which could also maintain grain yield (Figs. 1, 3). What's more, the specific semi-dominant characteristic of brittle gene Bc19 makes it more convenient to implement high grain yield, heavy biomass, and efficient utilization in breeding grain-straw dual-purpose hybrid rice (Peng et al. 2010; Li et al. 2019).
Possible Explanation for the Dominant-Negative Effect of the OsCESA4P507S Mutation in Bc19 Mutant
The P507S missense mutation, resulting in a semi-dominant effect in the Bc19 mutant, was found located in the second cytoplasmic domain between TMD2 and TMD3 of OsCESA4. It's worth noting that this residue is corresponds to the P557T point mutation of AtCESA7 in the semi-dominant mutant fra5 in Arabidopsis; and that the P507 residue was close to R509 which corresponds to the R588G mutation of OsCESA9 in the semi-dominant mutant Bc6 in rice (Additional file 2: Fig. S2; Fig. 7) (Zhong et al. 2003; Kotake et al. 2011). This second cytoplasmic domain, providing glycosyltransferase activity for CESAs, consists of a Plant-Conserved Region (P-CR), a Class-Specific Region (C-SR), and a D,D,D,QXXRW motif (Fig. 7) (Somerville 2006; Li et al. 2014b). Available crystal structures of CESAs uncovered the hexamer of trimers model of CESA complex (CSC), which is formed by the aid of N-terminal stalk, interactions of the C-terminal TMD and trimerization of the cytosolic P-CRs with neighboring CESA subunits (Nixon et al. 2016; Purushotham et al. 2020; Qiao et al. 2021; Vandavasi et al. 2016). Although located in the cytosolic domain, these three semi-dominant mutation sites (OsCESA4P507S, OsCESA9R588G and AtCESA7P557T) are situated between the P-CR domain and the C-SR domain, and distinct from the D,D,D,QXXRW motif (Fig. 7). It is possible that the highly conserved region between P-CR and C-SR has a certain function for glycosyltransferase activity other than formation of CSC. In this study, overexpression of Bc19 gene in the wild type caused a more severe brittle phenotype than the Bc19 mutant, while the mutant phenotype of F1 plants was milder than Bc19 mutant (Figs. 5b-d, 3, 1a, b, j, k). It seems that the severity of the mutant phenotype is tightly related to the level of Bc19 expression, implying that despite the dominant-negative effect, Bc19 gene might also act in a dosage way. Moreover, the predicted 3D structure of CESA4P507S was perfectly overlapped with the wild type CESA4 (Additional file 2: Fig. S3). Considering these facts, we presume that the mutated version of OsCESA4, CESA4P507S, has a defect in glycosyltransferase activity but has no effect on CSC formation, thus it can interact with other normal CESA subunits and composes into the CSC complex, resulting in the dominant-negative effect of a dose-dependent fashion. On the other hand, point mutations located in Zinc Finger domain, P-CR domain or TMDs make the corresponding mutated CESA subunits fail to interact with normal subunits, causing the recessive phenotypes of those brittle mutants, such as S1-24, fc17 and bc11 (Fig. 7) (Wang et al. 2016a; Li et al. 2018; Zhang et al. 2009). Intensive exploration of the action mechanism of P-CR of CESA subunits and activities between components within the CSC complex will help to uncover how these P-CRs participate in cellulose biosynthesis.
Bc19, a semi-dominant brittle mutant allele of gene OsCESA4, was identified using a map-based cloning approach. Breaking force and cellulose content of the Bc19 mutant were decreased, while its apparent morphology, growth and grain yield were not affected. The product encoded by Bc19 possessed a P507S missense mutation located in the second cytoplasmic region, causing a dominant-negative effect. The relationship between Bc19 expression and brittleness severity further revealed that gene Bc19 might affect cellulose synthesis in a dosage-dependent manner. Moreover, we presumed that the Bc19 gene could be a potential genetic resource in the breeding of grain-straw dual-purpose hybrid rice.
Materials and Methods
Plant Materials and Growth Conditions
The Brittle culm19 (Bc19) mutant was obtained from the japonica cv. Nipponbare through ethyl methanesulfonate (EMS) mutagenesis. Then Nipponbare, the indica cv. Minghui 63 and G46B were crossed with Bc19 to obtain three F1 hybrids, respectively. Due to the better polymorphism between Nipponbare and Minghui 63, the F2 mapping population was generated from selfing F1 plants of Bc19 and Minghui 63. Rice plants were cultivated in the local fields in Wenjiang District (Latitude 30˚42′N, Longitude 103˚50′E, and Altitude 539.3 m), Chengdu City, Sichuan, China (Wang et al. 2010).
Measurement of Major Agronomic Traits
Bc19, Nipponbare, and transgenic plants were cultivated according to a randomized complete block design with three replications. Each block contained 40 plants, and the planting density was 16.6 × 25 cm. Field management followed local rice production. Breaking force of flag leaves and the top second internodes were measured two weeks after heading with a digital force testing device (FGJ-1, SHIMPO). The force to break apart a leaf or culm segment was recorded accordingly. Other agronomic traits and yield per plant were investigated after maturation. All of the data were calculated using the software IBM SPSS Statistics 22, and the statistical significance of differences between Bc19 and the wild type plant was conducted using Student's t-test.
Analysis of Cell Wall Components
Two weeks after heading, flag leaves and the top second internodes were dried at 105 ℃ for 1 h and then at 65 ℃ for 24 h. Afterward, the materials were ground into fine powder. Contents of cellulose, hemicellulose and lignin were measured according to the methods previously described by Van Soest et al. (1991). For measurement of cell wall sugars, the powdered materials were soaked in 80% acetonitrile, and incubated in a 65 ℃ ultrasonic oscillation water bath for 30 min. The supernatants were collected through a centrifuge, followed by the analyzing monosaccharides with HPLC system (Agilent 1260A) according to the methods reported (Zhao et al. 2020).
Electron Microscopy Analysis
An environmental scanning electron microscope (ESEM, FEI-Q450) was used to observe structure of sclerenchyma and parenchyma tissues. Flag leaves and the top second internodes were cut into small pieces and then immediately placed on the object stage for observation.
For transmission electron microscope analysis, sections of leaf tissues at seedling stage were treated as previously described (Wang et al. 2010). Generally, these sections were fixed in 3% (w/v) glutaraldehyde overnight and then in 1% osmium tetroxide. After that, the samples went through a gradient of ethanol series to get dehydrated, followed by washing with the Epon812 medium. Then, the samples were cut into ultra-thin sections and stained with uranyl acetate and Reynolds' lead citrate. Finally, the slices were observed using the transmission electron microscope (H-600IV, Hitachi).
Fine Mapping and Marker Development
Nine hundred and eighty-three normal plants selected from an F2 population up to 5000 plants from the cross between Bc19 and Minghui 63 were used for gene mapping. Genetic linkage analysis was conducted using simple sequence repeat (SSR) markers (McCouch et al. 2002), taking genomic DNA as templates. Two DNA pools (normal/brittle), each mixed with 10 individuals, were constructed to screen those SSR markers. Markers showing different bands between the two pools would be further confirmed by the F2 segregation population. Insertion/deletion (InDel) markers were designed using Primer Premier 5.0 software based on genome sequence polymorphism between japonica and indica from the NCBI website (http://www.ncbi.nlm.nih.gov/BLAST).
Vector Construction and Transgenic Experiment
The cDNA sequence of the mutant Bc19 gene was amplified from the mutant with primers 5′-GGGTCTAGAATGATGGAGTCGGGGGTC-3′ and 5′-AAAGTCGACTCAGCAGTCGAAGTTGGC-3′ (containing a XbaI site and a SalI site, respectively), and then inserted into the pMD19-T vector (TaKaRa). After sequencing, the plasmid was double digested with enzymes XbaI and SalI. Subsequently the resulting Bc19 fragment was inserted into the binary vector pCAMBIA2300 behind the rice Actin1 promoter. The construct pC2300-Bc19 was introduced into the wild type plant Nipponbare by Agrobacterium tumefaciens-mediated transformation (Kumar et al. 2005). Primers for identifying the transgenic plants were 5′-GAATCCCTCAGCATTGTTC-3′ and 5′-TCAAATGTGAGCATAGCC-3′, with annealing sites on the rice Actin1 promoter and cDNA of Bc19, respectively. We chose two homozygous lines (TG1 and TG2) from eleven positive transgenic lines for the test of cell wall components and qRT-PCR.
Protein Structure Prediction and Sequence Alignment
Amino acid sequences of CESAs in rice and Arabidopsis were downloaded from GenBank (http://www.ncbi.nlm.nih.gov) through the BLAST program. Transmembrane domains of CESAs were predicted using the TMHMM program (http://www.cbs.dtu.dk/services/TMHMM). Multiple sequence alignments were conducted using DNAMAN software (Lynnon Biosoft). Three dimensional (3D) structures of OsCESA4 and Bc19 (OsCESA4P507S) were predicted by alphafold2, and the alignment of them was performed using pymol software (https://www.deepmind.com/research/case-studies/alphafold; https://pymol.org/2/).
Total RNA from leaves and roots of two-week-old seedlings, from flag leaves and top second internodes of plants two weeks after heading, and from young panicles at the beginning of heading stage was extracted with a TRIzol reagent (Invitrogen). The first-strand cDNA was produced using a Superscript III Reverse Transcription Kit (Invitrogen). We designed specific primers for each gene, and chose rice Actin1 gene as an internal control (Additional file 1: Table S3). Quantitative RT-PCR (qRT-PCR) was performed using an SYBR Premix Ex Taq2 kit (TaKaRa) according to the following program: 95 °C for 5 min, then 40 cycles of 95 °C for 10 s and 58 °C for 30 s. For each experimental group, qRT-PCR was operated with three technical replicates for each of the three biological replicates.
Availability of Data and Materials
All data generated or analyzed during this study are included in this article (and its supplementary information files).
Cellulose synthase A
Primary cell walls
Secondary cell walls
Cellulose synthase complex
Burk DH, Liu B, Zhong RQ, Morrison WH, Ye ZH (2001) A katanin-like protein regulates normal cell wall biosynthesis and cell elongation. Plant Cell 13(4):807–827
Darley CP, Forrester AM, McQueen-Mason SJ (2001) The molecular basis of plant cell wall extension. Plant Mol Biol 47(1–2):179–195
Doblin MS, Kurek I, Jacob-Wilk D, Delmer DP (2002) Cellulose biosynthesis in plants: from genes to rosettes. Plant Cell Physiol 43(12):1407–1420
Himmel ME, Ding SY, Johnson DK, Adney WS, Nimlos MR, Brady JW, Foust TD (2007) Biomass recalcitrance: engineering plants and enzymes for biofuels production. Science 315(5813):804–807
Hirano K, Kotake T, Kamihara K, Kamihara K, Tsuna K, Aohara T, Kaneko Y, Takatsuji H, Tsumuraya Y, Kawasaki S (2010) Rice BRITTLE CULM 3 (BC3) encodes a classical dynamin OsDRP2B essential for proper secondary cell wall synthesis. Planta 232(1):95–108
Jin ZM, Ping BZ, Shen HJ, Du HQ, Li RQ, Zhu L, Zhang DB, Yuan Z (2016) Characterization and gene mapping of a brittle culm mutant bc-s1 in rice. Chin Bull Bot 51(2):167–174 (in Chinese with English abstract)
Johnson SE, Angeles OR, Brar DS, Buresh RJ (2006) Faster anaerobic decomposition of a brittle straw rice mutant: implications for residue management. Soil Biol Biochem 38(7):1880–1892
Jones L, Ennos AR, Turner SR (2001) Cloning and characterization of irregular xylem4 (irx4): a severely lignin-deficient mutant of Arabidopsis. Plant J 26(2):205–216
Kokubo A, Kuraishi S, Sakurai N (1989) Culm strength of barley: correlation among maximum bending stress, cell wall dimensions, and cellulose content. Plant Physiol 91(3):876–882
Kokubo A, Sakurai N, Kuraishi S, Takeda K (1991) Culm brittleness of barley (Hordeum vulgare L.) mutants is caused by smaller number of cellulose molecules in cell wall. Plant Physiol 97(2):509–514
Kotake T, Aohara T, Hirano K, Sato A, Kaneko Y, Tsumuraya Y, Takatsuji H, Kawasaki S (2011) Rice Brittle culm 6 encodes a dominant-negative form of CesA protein that perturbs cellulose synthesis in secondary cell walls. J Exp Bot 62(6):2053–2062
Kumar KK, Maruthasalam S, Loganathan M, Sudhakar D, Balasubramanian P (2005) An improved Agrobacterium-mediated transformation protocol for recalcitrant elite indica rice cultivars. Plant Mol Biol Rep 23(1):67–73
Li FC, Liu ST, Xu H, Xu Q (2018) A novel FC17/CESA4 mutation causes increased biomass saccharification and lodging resistance by remodeling cell wall in rice. Biotechnol Biofuels 11(1):298
Li FC, Zhang ML, Guo K, Hu Z, Zhang R, Feng YQ, Yi XY, Zou WH, Wang LQ, Wu CY, Tian JS, Lu TG, Xie GS, Peng LC (2014a) High-level hemicellulosic arabinose predominately affects lignocellulose crystallinity for genetically enhancing both plant lodging resistance and biomass enzymatic digestibility in rice mutants. Plant Biotechnol 13(4):514–525
Li J, Fang ZW, Wang BX, Yang B, Chi M, Lu BG, Liu Y, Chen TM, Liu JB, Xing YG, Xu B, Sun ZG, Xu DY (2019) Comparative analysis of main characteristics of new brittle culm Japonica rice lines. China Rice 25(6):100–102 (in Chinese with English abstract)
Li SD, Bashline L, Lei L, Gu Y (2014b) Cellulose synthesis and its regulation. Arabidopsis Book 12:e0169
Li YH, Qian Q, Zhou YH, Yan MX, Sun L, Zhang M, Fu ZM, Wang YH, Han B, Pang XM, Chen MS, Li JY (2003) BRITTLE CULM1, which encodes a COBRA-like protein, affects the mechanical properties of rice plants. Plant Cell 15(9):2020–2031
Liu LF, Shang-Guan KK, Zhang BC, Liu XL, Yan MX, Zhang LJ, Shi YY, Zhang M, Qian Q, Li JY, Zhou YH (2013) Brittle Culm1, a COBRA-like protein, functions in cellulose assembly through binding cellulose microfibrils. PLoS Genet 9(8):e1003704
McCouch SR, Teytelman L, Xu YB, Lobos KB, Clare K, Walton M, Fu BY, Maghirang R, Li ZK, Xing YZ, Zhang QF, Kono I, Yano M, Fjellstrom R, Declerck G, Schneider D, Cartinhour S, Ware D, Stein L (2002) Development and mapping of 2240 new SSR markers for rice (Oryza sativa L.). DNA Res 9(6):199–207
Nixon BT, Mansouri K, Singh A, Du J, Davis JK, Lee JG, Slabaugh E, Vandavasi VG, Neill HO, Roberts EM, Roberts AW, Yingling YG, Haigler CH (2016) Comparative structural and computational analysis supports eighteen cellulose synthases in the plant cellulose synthesis complex. Sci Rep 6:28696
Peng YC, Gan CH, Wang HT, Xu ZJ (2010) Breeding of dominant brittle culm CMS line Zhongcui A in rice. Hybrid Rice 25(4):9–13 (in Chinese with English abstract)
Purushotham P, Ho R, Zimmer J (2020) Architecture of a catalytically active homotrimeric plant cellulose synthase complex. Science 369(6507):1089–1094
Qiao Z, Lampugnani ER, Yan XF, Khan GA, Saw WG, Hannah P, Qian F, Calabria J, Miao Y, Grüber G, Persson S, Gao YG (2021) Structure of Arabidopsis CESA3 catalytic domain with its substrate UDP-glucose provides insight into the mechanism of cellulose synthesis. Proc Natl Acad Sci USA 118(11):e2024015118
Ragauskas AJ, Beckham GT, Biddy MJ, Chandra R, Chen F, Davis MF, Davison BH, Dixon RA, Gilna P, Keller M, Langan P, Naskar AK, Saddler JN, Tschaplinski TJ, Tuskan GA, Wyman CE (2014) Lignin valorization: Improving lignin processing in the biorefinery. Science 344(6185):1246843
Roudier F, Fernandez AG, Fujita M, Himmelspach R, Borner GHH, Schindelman G, Song S, Baskin TI, Dupree P, Wasteneys GO (2005) COBRA, an Arabidopsis extracellular glycosyl-phosphatidyl inositol-anchored protein, specifically controls highly anisotropic expansion through its involvement in cellulose microfibril orientation. Plant Cell 17(6):1749–1763
Somerville C (2006) Cellulose synthesis in higher plants. Annu Rev Cell Dev Biol 22:53–78
Song XQ, Liu LF, Jiang YJ, Zhang BC, Gao YP, Liu XL, Lin QS, Ling HQ, Zhou YH (2013) Disruption of secondary wall cellulose biosynthesis alters cadmium translocation and tolerance in rice plants. Mol Plant 6(3):768–780
Song XQ, Zhang BC, Zhou YH (2011) Golgi-localized UDP-glucose transporter is required for cell wall integrity in rice. Plant Signal Behav 6(8):1097–1100
Tanaka K, Murata K, Yamazaki M, Onosato K, Miyao A, Hirochika H (2003) Three distinct rice cellulose synthase catalytic subunit genes required for cellulose synthesis in the secondary wall. Plant Physiol 133(1):73–83
Turner SR, Somerville CR (1997) Collapsed xylem phenotype of Arabidopsis identifies mutants deficient in cellulose deposition in the secondary cell wall. Plant Cell 9(5):689–701
Taylor NG, Howells RM, Huttly AK, Vickers K, Turner SR (2003) Interactions among three distinct CesA proteins essential for cellulose synthesis. Proc Natl Acad Sci USA 100(3):1450–1455
Taylor NG, Laurie S, Turner SR (2000) Multiple cellulose synthase catalytic subunits are required for cellulose synthesis in Arabidopsis. Plant Cell 12(12):2529–2539
Taylor NG, Scheible W, Cutler S, Somerville CR, Turner SR (1999) The irregular xylem3 locus of Arabidopsis encodes a cellulose synthase required for secondary cell wall synthesis. Plant Cell 11(5):769–779
Timmers J, Vernhettes S, Desprez T, Vincken J-P, Visser RGF, Trindade LM (2009) Interactions between membrane-bound cellulose synthases involved in the synthesis of the secondary cell wall. FEBS Lett 583(6):978–982
Van Soest PJ, Robertson JB, Lewis BA (1991) Methods for dietary fiber, neutral detergent fiber, and nonstarch polysaccharides in relation to animal nutrition. J Dairy Sci 74(10):3583–3598
Vandavasi VG, Putnam DK, Zhang Q, Petridis L, Heller WT, Nixon BT, Haigler CH, Kalluri U, Coates L, Langan P, Smith JC, Meiler J, Neill HO (2016) A structural study of CESA1 catalytic domain of Arabidopsis cellulose synthesis complex: Evidence for CESA trimers. Plant Physiol 170(1):123–135
Vanholme R, Morreel K, Ralph J, Boerjan W (2008) Lignin engineering. Curr Opin Plant Biol 11(3):278–285
Vega-Sánchez ME, Verhertbruggen Y, Christensen U, Chen XW, Sharma V, Varanasi P, Jobling SA, Talbot M, White RG, Joo M, Singh S, Auer M, Scheller HV, Ronald PC (2012) Loss of cellulose synthase-like F6 function affects mixed-linkage glucan deposition, cell wall mechanical properties, and defense responses in vegetative tissues of rice. Plant Physiol 159(1):56–69
Wang DF, Qin YL, Fang JJ, Yuan SJ, Peng LX, Zhao JF, Li XY (2016a) A missense mutation in the zinc finger domain of OsCESA7 deleteriously affects cellulose biosynthesis and plant growth in rice. PLoS ONE 11(4):e0153993
Wang DF, Yuan SJ, Yin L, Zhao JF, Guo BT, Lan JH, Li XY (2012) A missense mutation in the transmembrane domain of CESA9 affects cell wall biosynthesis and plant growth in rice. Plant Sci 196:117–124
Wang HF, Zhu JL, Liu JX, Wu YM, Qian Q, Teng S (2005) Growth performance, nutrient digestibility and carcass quality of growing-finishing pigs fed different levelsp; of whole crop rice Brittle Culm-1. Acta Veterinaria Et Zootechnica Sinica 36(11):1139–1144 ((in Chinese with English abstract))
Wang PR, Gao JX, Wan CM, Zhang FT, Xu ZJ, Huang XQ, Sun XQ, Deng XJ (2010) Divinyl chlorophyll(ide) α can be converted to monovinyl chlorophyll(ide) α by a divinyl reductase in rice. Plant Physiol 153(3):994–1003
Wang XL, Cheng ZJ, Zhao ZC, Gan L, Qin RZ, Zhou KN, Ma WW, Zhang BC, Wang JL, Zhai HQ, Wan JM (2016b) BRITTLE SHEATH1 encoding OsCYP96B4 is involved in secondary cell wall formation in rice. Plant Cell Rep 35(4):745–755
Wu B, Zhang BC, Dai Y, Zhang L, Shang-Guan KK, Peng YG, Zhou YH, Zhu Z (2012) Brittle Culm15 encodes a membrane-associated chitinase-like protein required for cellulose biosynthesis in rice. Plant Physiol 159(4):1440–1452
Yan CJ, Yan S, Zeng XH, Zhang ZQ, Gu MH (2007) Fine mapping and isolation of Bc7(t), allelic to OsCesA4. J Genet Genomics 34(11):1019–1027
Zhang BC, Deng LW, Qian Q, Xiong GY, Zeng DL, Li R, Guo LB, Li JY, Zhou YH (2009) A missense mutation in the transmembrane domain of CESA4 affects protein abundance in the plasma membrane and results in abnormal cell wall biosynthesis in rice. Plant Mol Biol 71(4–5):509–524
Zhang BC, Liu XL, Qian Q, Liu LF, Dong GJ, Xiong GY, Zeng DL, Zhou YH (2011) Golgi nucleotide sugar transporter modulates cell wall biosynthesis and plant growth in rice. Proc Natl Acad Sci USA 108(12):5110–5115
Zhang M, Zhang BC, Qian Q, Yu YC, Li R, Zhang JW, Liu XL, Zeng DL, Li JY, Zhou YH (2010) Brittle Culm 12, a dual-targeting kinesin-4 protein, controls cell-cycle progression and wall properties in rice. Plant J 63(2):312–328
Zhang ML, Wei F, Guo K, Hu Z, Li YY, Xie GS, Wang YT, Cai XW, Peng LC, Wang LQ (2016) A novel FC116/BC10 mutation distinctively causes alteration in the expression of the genes for cell wall polymer synthesis in rice. Front Plant Sci 7:1366
Zhao YT, Yue ZC, Zhong XM, Lei JL, Tao P, Li BY (2020) Distribution of primary and secondary metabolites among the leaf layers of headed cabbage (Brassica oleracea var capitata). Food Chem 312:126028
Zhong RQ, Burk DH, Morrison WH III, Ye ZH (2002) A kinesin-like protein is essential for oriented deposition of cellulose microfibrils and cell wall strength. Plant Cell 14(12):3101–3117
Zhong RQ, Morrison WH III, Freshour GD, Hahn MG, Ye ZH (2003) Expression of a mutant form of cellulose synthase AtCesA7 causes dominant negative effect on cellulose biosynthesis. Plant Physiol 132(2):786–795
Zhou YH, Li SB, Qian Q, Zeng DL, Zhang M, Guo LB, Liu XL, Zhang BC, Deng LW, Liu XF, Luo GZ, Wang XJ, Li JY (2009) BC10, a DUF266-containing and Golgi-located type II membrane protein, is required for cell-wall biosynthesis in rice (Oryza sativa L.). Plant J 57(3):446–462
We are grateful to Prof. Chengcai Chu for kindly providing pCAMBIA2300 vector (Institute of Genetics and Developmental Biology, Chinese Academy of Sciences, Beijing, China), and to Prof. Lianying Jiao for helping us to predict the 3D models (Health Science Center, Xi'an Jiaotong University, Xi'an, China).
This study was supported by the National Natural Science Foundation of China (31901531 and 31971869), the Natural Science Foundation of Guangdong Province (2017A030310290, 2019A1515110867 and 2020A1515011052), Guangdong Province Scientific and Technological Plan Project (2018B020202004 and 2020B1212060047), and the Agricultural Competitive Industry Discipline Team Building Project of Guangdong Academy of Agricultural Sciences.
Ethics Approval and Consent to Participate
Consent for Publication
The authors declare no potential competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Segregation in the F2 population from crossing of Bc19 with normal cultivars. Table S2. Insertion/deletion (InDel) markers developed for fine mapping of the Bc19 locus. Table S3. Primers used in qRT-PCR.
Part of alignments of amino acid sequences of OsCESA4 with similar sequences in other CESA family members of rice and Arabidopsis (a) and in different species (b). Fig. S2. Alignment of amino acid sequences of three main kinds of CESAs in rice and Arabidopsis. Fig. S3. Predicted three dimensional (3D) structures of OsCESA4 and Bc19 (OsCESA4P507S) proteins. Fig. S4. Comparison of OsCESAs, BC1 and OsPAL mRNAs between WT and Bc19 mutant.
