Genome-Wide Association Analysis of the Genetic Basis for Sheath Blight Resistance in Rice

Abstract

Background

Sheath blight (ShB), caused by Rhizoctonia solani Kühn, is one of the most destructive rice diseases. Developing ShB-resistant rice cultivars represents the most economical and environmentally sound strategy for managing ShB.

Results

To characterize the genetic basis for ShB resistance in rice, we conducted association studies for traits related to ShB resistance, namely culm length (CL), lesion height (LH), and relative lesion height (RLH). Combined a single locus genome-wide scan and a multi-locus method using 2,977,750 single-nucleotide polymorphisms to analyse 563 rice accessions, we detected 134, 562, and 75 suggestive associations with CL, LH, and RLH, respectively. The adjacent signals associated with RLH were merged into 27 suggestively associated loci (SALs) based on the estimated linkage disequilibrium blocks. More than 44% of detected RLH-SALs harboured multiple QTLs/genes associated with ShB resistance, while the other RLH-SALs were putative novel ShB resistance loci. A total of 261 ShB resistance putative functional genes were screened from 23 RLH-SALs according to bioinformatics and haplotype analyses. Some of the annotated genes were previously reported to encode defence-related and pathogenesis-related proteins, suggesting that quantitative resistance to ShB in rice is mediated by SA- and JA-dependent signalling pathways.

Conclusions

Our findings may improve the application of germplasm resources as well as knowledge-based ShB management and the breeding of ShB-resistant rice cultivars.

Background

Sheath blight (ShB), caused by Rhizoctonia solani Kühn (R. solani), is one of the most destructive rice diseases (Zheng et al. 2013). This disease, which is prevalent in East Asia and the southern USA (Chen et al. 2012; Prasad and Eizenga 2008), results in heavy rice yield losses when nitrogen fertilizers are extensively applied (Savary et al. 1995). R. solani is a soil-borne hemibiotrophic pathogen (Kouzai et al. 2018) that survives as sclerotia or mycelia in the debris of host plants during its necrotrophic phase. To date, no major ShB resistance genes or rice cultivars exhibiting complete resistance to R. solani have been reported, likely because of the polygenic nature of ShB resistance. The application of chemicals remains the major method for controlling rice ShB. However, the overuse of chemical fungicides contributes to increased health risks and environmental problems (Zeng et al. 2011). Therefore, developing ShB-resistant rice cultivars represents the most economical and environmentally sound strategy for managing ShB (Liu et al. 2009).

Following the detection of the first quantitative trait locus (QTL) for ShB resistance in rice (Li et al. 1995), more than 60 QTLs conferring ShB resistance have been detected among the 12 rice chromosomes based on bi-parental genetic mapping populations (Taguchi-Shiobara et al. 2013; Wen et al. 2015; Yadav et al. 2015; Zeng et al. 2011; Zeng et al. 2015). Of these, only qSBR11–1 and qSB-11LE have been fine-mapped (Channamallikarjuna et al. 2010; Zuo et al. 2013). Additionally, a rice chitinase gene (LOC_Os11g47510), which was cloned from the qSBR11–1 region of an R. solani-tolerant rice line (Tetep), was functionally validated by the genetic transformation of an ShB-susceptible japonica rice line (Taipei 309) (Richa et al. 2017). Moreover, some major QTLs associated with ShB resistance, such as qSB-9Tq, have been used in breeding programmes (Taguchi-Shiobara et al. 2013; Zuo et al. 2008). Pyramiding diverse ShB resistance alleles from QTLs differing in their level of moderate resistance by marker-assisted selection can efficiently enhance the resistance of rice to R. solani (Hossain et al. 2016; Yadav et al. 2015). However, the resistance level of a near-isogenic line containing three ShB resistance alleles was not significantly higher than that of a line containing two ShB resistance alleles (Zeng et al. 2011).

A genome-wide association study (GWAS) of natural populations involving high-density single nucleotide polymorphisms (SNPs) detected by next-generation sequencing was used to dissect the genetic architecture of blast resistance (Kang et al. 2016) and bacterial blight resistance (Zhang et al. 2017) in rice. There were only two reports about the identification of ShB resistance QTLs by GWAS (Jia et al. 2012; Chen et al. 2019). A total of 10 ShB resistance QTLs were identified by an association mapping study involving 217 sub-core entries from the United States Department of Agriculture rice core collection and 155 simple sequence repeat markers (Jia et al. 2012). Recently, at least 11 SNP loci significantly associated with SB resistance at the seedling stage under artificial inoculation were detected by GWAS using 299 diverse rice varieties from the rice diversity panel with genotyping by 44,000 SNP markers array (Chen et al. 2019). However, no association studies have evaluated the diverse rice germplasm to identify potentially novel ShB resistance loci at the tillering stage based on genome-wide high-density SNPs. As part of the 3000 Rice Genomes Project (3K RGP) (3K RGP 2014), researchers recently used Illumina next-generation technology to sequence a core collection of 3024 rice accessions from 89 countries. Consequently, sequence data with a high coverage (approximately 94%) and mapping rate (approximately 92.5%) were generated for the construction of a high-density SNP database (Alexandrov et al. 2015), thereby providing genotype data for a GWAS of rice agronomic traits. Considerable genetic diversity regarding SNPs, structural variations, and gene presence/absence variations has been revealed among these cultivated rice accessions (Wang et al. 2018).

In the present study, 563 rice accessions, mainly belonging to Xian (also known as Indica), Geng (also known as Japonica), and Aus subgroups, from 47 countries and areas with similar heading dates as those in Beijing (China) were selected from the 3024 rice genomes sequenced by 3K RGP (3K RGP 2014; Wang et al. 2018). These accessions underwent an association analysis of their resistance to a representative R. solani strain from China. We used 2,977,750 SNPs filtered from the 3K RGP 4.8 mio SNP dataset in the Rice SNP-Seek Database (Alexandrov et al. 2015). The objectives of our study were as follows: (1) identify ShB resistance resources in rice germplasm; (2) identify loci and candidate genes related to ShB resistance; and (3) elucidate the genetic mechanism underlying the quantitative resistance to ShB in rice. The data presented herein may be useful for improving ShB resistance by marker-assisted selection in rice breeding programmes.

Results

Population Structure of Rice Accessions

A total of 220,335 independent SNPs with minor allele frequency (MAF) > 5% and missing data ratio (MDR) < 0.1 were used for genetic structure analyses. A neighbour-joining tree developed using PHYLIP (version 3.6) (Felsenstein 1989), with 100 bootstrap replicates, revealed that the 563 accessions could be classified into three main clades (Fig. 1a). A population structure analysis using ADMIXTURE (Alexander et al. 2009) (optimal number of subpopulations K = 3) also indicated that the 563 accessions belonged to three distinct clusters (Fig. 1c). Similar results were observed for the principal component analysis with 67.02% of the genetic variation in the accessions explained by the first three principal components. When we plotted the first three components against each other, most accessions were clustered in three groups (Fig. 1b). Thus, the 563 rice accessions were classified into the following three well-known subgroups: Xian (224 accessions), Geng (237 accessions), and Aus (102 accessions) (Additional file 1: Table S1). These results suggested that the accessions used as a covariate within the GWAS model in this study exhibited an obvious subpopulation structure.

Fig. 1
figure 1

Population structure of 563 rice accessions. a Neighbour-joining tree constructed from LD-pruned SNPs. b Principal component analysis plots for the first three components. Left: first and second components; right: second and third components. c Distribution of the estimated subpopulation components (ancestry fraction) for each accession as determined by ADMIXTURE

Evaluation of the Resistance of Rice to R. solani

An assessment of the resistance of the 563 tested accessions to R. solani based on the relative lesion height (RLH) revealed considerable variations within and between subgroups (Fig. 2). Moreover, 39 accessions with an RLH of 0.21–0.30 were considered to exhibit moderate resistance to R. solani based on the Standard Evaluation for rice (IRRI 2002). These accessions corresponded to 22 Aus and 17 Xian accessions (Additional file 1: Table S1). A dot plot indicated the lesion height (LH) was positively correlated with culm length (CL), but the correlation in Aus was much stronger than that in Geng, suggesting a strong differentiation in the resistance to R. solani among the three rice subgroups (Fig. 2a). The results of an analysis of variance demonstrated that the mean RLH and CL were significantly lower and higher in the Aus subgroup than in the Geng and Xian subgroups, respectively. Additionally, the mean LH in the Xian subgroup was significantly lower than that in the Aus and Geng subgroups (Additional files 2 and 3: Tables S2 and S3). The average RLH values for the Aus, Xian, and Geng subgroups were 0.46, 0.52, and 0.61, respectively. Multiple comparisons revealed that the lowest RLH value was associated with the Aus subgroup (Fig. 2b), implying that the Aus accessions were more resistant to ShB than the accessions in the other two subgroups. The results of a correlation analysis among CL, LH, and RLH values across the whole panel and three subgroups are presented in Fig. 2c. There were significant positive correlations between LH and RLH in the whole panel and three subgroups, with the strongest correlation (r = 0.92, P < 0.01) detected in the Aus subgroup (Fig. 2c). Interestingly, there were significant negative correlations between CL and RLH in the whole panel as well as the Xian and Geng subgroups, but not in the Aus subgroup (Fig. 2c).

Fig. 2
figure 2

Evaluation of the traits related to ShB resistance and correlations among traits observed in different rice subgroups. a Dot plot of correlations between culm length (CL) and lesion height (LH). Orange, blue, and green dots represent Aus, Xian, and Geng accessions, respectively. Orange, blue, and green trend lines and shadowing represent linear regression lines and confidence intervals, respectively, between CL and LH within Aus, Xian, and Geng subgroups. b Relative lesion height (RLH) in different subgroups. Different characters indicate significant differences between rice subgroups (P < 0.01). c Correlations among CL, LH, and RLH from each GWAS panel. The number in the middle of the cell is the correlation coefficient and ‘**’ refers to a significant correlation (P < 0.01)

Genome-Wide Association Signals for Sheath Blight Resistance in Rice

We conducted association studies to identify genome-wide associated signals underlying the quantitative resistance to R. solani in the whole, Aus, Xian, and Geng panels to minimize the impact of rice population structure on the detection power of the GWAS. A total of 2,977,750 (whole), 1,665,543 (Aus), 1,776,496 (Xian), and 1,314,743 (Geng) SNPs with MAF > 5% and MDR < 0.1 were used for the association analyses according to the single-locus linear mixed model (LMM) by the Efficient Mixed Model Association eXpedited (EMMAX) and the multi-locus LMM by a fixed and random model with a circulating probability unification (FarmCPU) (Additional files 10, 11, 12, 13, 14: Figures S1–S5 and Fig. 3). Additionally, on the basis of a Bonferroni correction involving the effective number of independent markers at a significance level of 0.05 (Li et al. 2012), the genome-wide suggestive thresholds were P = 2.16 × 10− 6, 3.28 × 10− 6, 6.57 × 10− 6, and 5.34 × 10− 6 for the whole, Xian, Geng, and Aus panels, respectively (Additional file 4: Table S4). A total of 562 and 209 suggestive association signals were detected in one or more of the panel populations by EMMAX and FarmCPU, respectively (Additional file 5: Table S5). We identified 676 suggestively associated SNPs with different physical positions, namely quantitative trait nucleotides (QTNs), in at least one of the GWAS panels by EMMAX or FarmCPU, including 132, 498, and 62 QTNs for CL, LH, and RLH, respectively (Additional file 5: Table S5). Of the 676 QTNs, 553 SNPs either produced a synonymous substitution or were located in intergenic regions and introns. According to the reference Nipponbare genome IRGSP 1.0, the remaining SNPs were associated with large effects, and were detected in promoters (57), missense variants (32), 5′ UTRs (9), 3′ UTRs (14), start codons (1), splice regions (4), and stop codons (6) (Additional file 5: Table S5). Details regarding these suggestive association signals are listed in Additional file 5: Table S5. The average physical distance between neighbouring SNPs was 125.2, 223.8, 209.9, and 283.5 bp in the whole, Aus, Xian, and Geng panels, respectively. The average estimated linkage disequilibrium (LD) block region for all 12 chromosomes in the whole panel was 20.6 kb, ranging from 12.1 kb on chromosome 11 to 50.7 kb on chromosome 3. Thus, we combined adjacent QTNs within an LD block to form a suggestively associated locus (SAL) for ShB resistance in each GWAS panel. Moreover, the QTN with the minimum P value in a cluster was considered to be the lead SNP. We focused on the identified RLH associations due to the major parameter used to assess the ShB resistance in this study (Fig. 3 and Additional file 14: Figure S5).

Fig. 3
figure 3

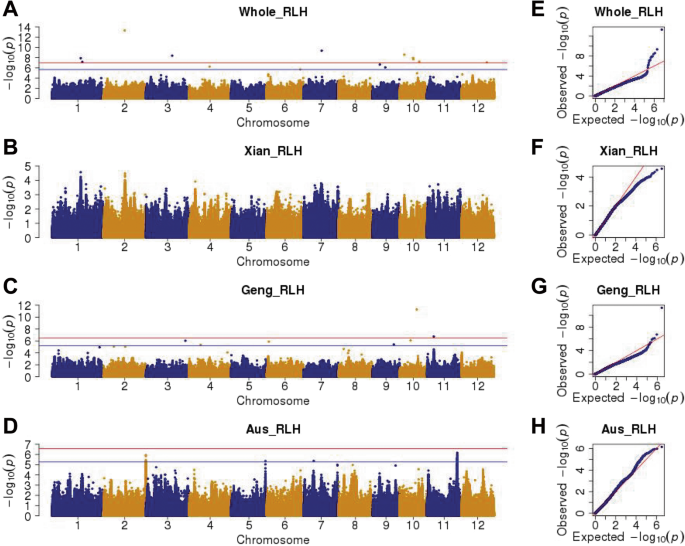

Manhattan and quantile-quantile plots for relative lesion height (RLH) for the whole, Xian, Geng, and Aus association panels based on the multi-locus GWAS method of FarmCPU. a, e Whole association panel. b, f Xian association panel. c, g Geng association panel. d, h Aus association panel. The strength of the associations for the RLH is indicated as the negative logarithm of the P value. Horizontal blue lines in the Manhattan plots indicate the following genome-wide suggestive thresholds (P values adjusted by a Bonferroni correction based on the effective number of independent markers calculated using GEC software): 2.16 × 10− 6, 3.28 × 10− 6, 6.57 × 10− 6, and 5.34 × 10− 6 for the whole, Xian, Geng, and Aus association panels, respectively. Horizontal red lines in the Manhattan plots indicate the following genome-wide significance thresholds (P < 0.05): 1.08 × 10− 7, 1.64 × 10− 7, 6.57 × 10− 6, and 2.67 × 10− 7 for the whole, Xian, Geng, and Aus association panels, respectively

A total of 27 SALs for ShB resistance containing 62 suggestive QTNs (including 11 SALs containing 12 significant QTNs) were detected on all chromosomes except for chromosome 8 by merging the QTNs based on EMMAX or FarmCPU in all panels (Table 1). Remarkably, significant QTNs for RLH were not identified in the Aus and Xian panels, and no QTN was detected in more than one GWAS panel. At least 12 SALs (L4, L7, L10, L13, L15, L16, L18, L19, L23, L25, L26, and L27) were adjacent to one or more previously characterized ShB resistance-related QTLs/genes. In the whole panel, L3 (17.85–17.96 Mb) on chromosome 2 and L15 (15.24–15.25 Mb) on chromosome 7, had the most significant association signals for RLH. We also determined that another previously reported ShB resistance QTL (qSBR7–1) in Tetep (Channamallikarjuna et al. 2010) was located nearby the L15 region. Notably, no QTL/gene related to ShB resistance was reported in the L3 region (17.85–17.96 Mb) on chromosome 2, which included the most significant association signal (rs2_17,889,517, P = 4.8 × 10− 14) in the whole panel, suggesting this region may contain a potentially novel SAL that should be fine-mapped (Table 1). In the Geng panel, L23 (14.42–14.59 Mb) on chromosome 10 and L25 (5.70–5.77 Mb) on chromosome 11 were the only two SALs related to significant association signals. In the Aus panel, there were two SALs localized to two hotspot regions, namely L4 on chromosome 2 and L26 on chromosome 11, detected for RLH and LH by EMMAX and FarmCPU. The lead SNP (rs11_25,580,510, P = 7.0 × 10− 7) of L26 was located in the intergenic region between LOC_Os11g42450 and LOC_Os11g42470, which encode an LRR family protein and a protein with an unknown function, respectively. In the Xian panel, only SAL L5 (16.20–16.25 Mb) on chromosome 3 was detected. Similar to L3, L5 was not associated with previously reported ShB resistance QTLs/genes. The lead SNP (rs3_16,214,232, P = 9.5 × 10− 7) of L5 was detected in the promoter region of a gene associated with an unknown function (LOC_Os03g28170).

Table 1 Significantly associated loci for sheath blight resistance in rice based on a genome-wide association study

Identifying Putative Functional Genes Associated with Sheath Blight Resistance

For a given GWAS locus, the gene nearest to the lead SNP is not always the causal gene (Brodie et al. 2016). Therefore, all genes located in the LD blocks of detected SALs underwent an extensive haplotype analysis to identify putative functional genes. The LD blocks of all detected SALs except for L1 and L27 included more than one gene annotated based on the Nipponbare reference genome IRGSP 1.0. A total of 316 genes were detected in 25 LD blocks (L2–L26). Of these genes, 283 with at least one SNP in the whole GWAS panel were included in a haplotype analysis (e.g., haplotype frequency in each subpopulation) and multiple comparison tests of the RLH in each GWAS panel. Consequently, 261 ShB resistance putative functional genes (SRPFGs) were identified in all SALs except for L1, L12, L13, and L27, with significant differences in the RLH among different haplotypes in at least one GWAS panel. These 261 genes comprised 116 functionally annotated genes, 57 transposons, and 88 genes with unknown functions (Additional file 6: Table S6). Our findings may be useful for identifying the genes responsible for ShB resistance. The number of SRPFGs per SAL ranged from 1 in L22 to 25 in L23, with a mean of 11.3 ± 7.3. These genes were significantly enriched in the gene ontology (GO) biological processes related to plant cellular amino acid metabolic processes (Additional file 7: Table S7). Moreover, they were also significantly enriched in plant metabolic pathways, including fatty acid biosynthesis and degradation based on the Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway database (Additional file 8: Table S8). Out of the 204 non-transposon SRPFGs, we detail showed haplotype analyses of 36 genes within 20 detected SALs (Additional file 9: Table S9) if it met any of the following conditions: (i) involving in GO classification of response to stress term; (ii) genes with known function on disease resistance; (iii) as one hit gene in the significantly enriched pathways, and (iv) the relatively lower p-value of the haplotype analyses in Additional file 6: Table S6. Two of these genes (LOC_Os10g28050 and LOC_Os06g04510) were subsequently analysed as follows.

We detected LOC_Os10g28050, which encodes a chitinase 2, in the LD block region of L23. This gene was located 34 kb downstream of the lead SNP rs10_14,523,517 (Fig. 4a). The haplotypes were built based on six SNPs in a 1-kb region upstream of the LOC_Os10g28050 promoter, one SNP in the coding region with a missense mutation, and two SNPs in the 3′ UTR (Fig. 4b). We detected five haplotypes shared by at least 10 accessions in 501 of 563 accessions (Fig. 4b and Additional file 9: Table S9). A comparison of the RLHs for the five haplotypes revealed that accessions Hap2 and Hap5 had significantly lower RLHs than the other three haplotypes (P < 0.01; Fig. 4c and Additional file 9: Table S9). Furthermore, in the Aus panel, Hap2 was represented by 70 (74.5%) of 94 accessions, while 14 (82.4%) of 17 accessions corresponded to Hap5. In contrast, the Geng panel lacked Hap2 and Hap5 accessions (Fig. 4c and Additional file 9: Table S9). These results partially explained the variability in the resistance to R. solani observed among the Aus, Xian, and Geng panels.

Fig. 4
figure 4

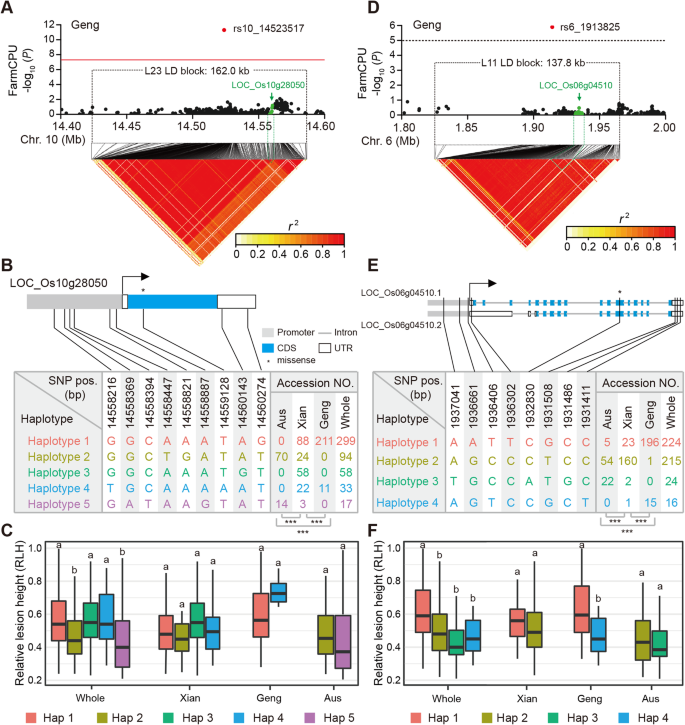

Associated regions for relative lesion height (RLH) in the Geng panel and a haplotype analysis of the candidate genes within the associated regions on chromosomes 6 and 10. Local Manhattan plots (top) and linkage disequilibrium heatmaps (bottom) surrounding the hotspot regions on chromosomes 10 (a) and 6 (d). Red dots indicate the position of the peak SNPs identified by FarmCPU, while green arrows and dots indicate the position of the candidate genes within the LD blocks. Gene structure and haplotype analysis of the sheath blight resistance candidate genes LOC_Os10g28050 (b) and LOC_Os06g04510 (e). Haplotypes with fewer than 10 accessions are not shown. Relative lesion height of accessions in different haplotypes of LOC_Os10g28050 (c) and LOC_Os06g04510 (f) in different association panels. Characters on top of boxplots indicate significant differences based on Duncan’s multiple comparison tests (P < 0.05)

We located LOC_Os06g04510, which encodes an enolase, in the LD block region of L11. This gene was located 17 kb downstream of the lead SNP rs6_1,913,825 (Fig. 4d). According to the Nipponbare reference genome IRGSP 1.0, LOC_Os06g04510 is associated with two transcripts. We analysed these two transcripts, and identified four major haplotypes shared by at least 10 of 479 accessions based on eight SNPs in a 1-kb upstream region, gene coding region, and the 5′ and 3′ UTRs (Fig. 4e). We compared the mean RLH among those haplotypes in each GWAS panel. The RLH of Hap1 was significantly higher than that of the other three haplotypes in the whole panel. Notably, in the Geng panel, the RLH of Hap4 was significantly lower than that of Hap1 (P = 0.0045) (Fig. 4f and Additional file 9: Table S9). Among the 224 accessions with the Hap1 major haplotype, 196 (87.5%) accessions belonged to the Geng panel. Additionally, all but one of the Hap2 accessions were from the Xian and Aus panels, with the exception belonging to the Geng panel. Of the two minor haplotypes, 91.7% of Hap3 accessions belonged to the Aus panel, while 93.8% of Hap4 accessions belonged to the Geng panel. These results were useful for clarifying the phenotypic variability within the Geng panel in response to R. solani.

Discussion

During the past 3 decades, considerable efforts have been made to screen rice germplasm for ShB resistance (Srinivasachary and Savary 2011; Yadav et al. 2015). However, no cultivars with complete resistance are available and no major genes conferring immunity to R. solani have been identified. Most QTLs conferring ShB resistance identified using bi-parental linkage mapping populations exhibited small effects (Zeng et al. 2011). A GWAS based on diversified germplasm with high-density genotypes may provide new insights into the genetic basis of agronomic traits in crops. In the present study, we conducted a large-scale GWAS based on a rice core collection and approximately 3 million SNPs to dissect the genetic mechanisms underlying quantitative resistance to R. solani and to identify novel loci and alleles associated with resistance. Our results may provide useful information for improving ShB resistance in rice.

Diverse Reactions of Accessions to Rhizoctonia solani among Rice Subgroups

In this study, multiple comparisons of RLH among three panels revealed Aus accessions were the most resistant to ShB, followed by the Xian and Geng accessions (Fig. 2b), which is consistent with the results of previous studies (Chen et al. 2019; Willocquet et al. 2012; Zuo et al. 2008). The data from bi-parental mapping populations in earlier investigations implied that RLH is negatively correlated with plant height or CL (Li et al. 2009; Li et al. 1995; Wen et al. 2015), and seedling height and disease score of ShB resistance is aslo negatively correlated in rice diversity panel 1 (Chen et al. 2019). Our results also showed significantly negative correlations between RLH and CL in Xian and Geng accessions (Fig. 2c). Therefore, CL significantly affected the evaluation of the ShB resistance based on RLH. However, there was a non-significant correlation between RLH and CL in the Aus accessions (Fig. 2c), indicating that the influence of CL on evaluation of ShB resistance can be effectively eliminated in Aus panel. One possible reason for the differing relationship between CL and RLH in Aus compared with Xian and Geng is the relatively large variation of LH versus small of variation of CL in Aus (Additional file 4: Table S3), which explains the Type II SALs L4 and L26 could be detected for both RLH and LH (Additional file 5: Table S5). We further examined the relationships between the RLH- and CL-SALs. Only one co-localization of CL-SAL and RLH-SAL L5 at approximately 16.2 Mb on chromosome 3 was detected in the Xian panel (Additional file 5: Table S5). These results suggested that most of the RLH-SALs identified in this study were more likely to control the molecular mechanisms underlying physiological resistance mentioned by Srinivasachary et al. (Srinivasachary and Savary 2011) rather than the disease escape strongly determined by plant architecture. These findings may be useful for enhancing ShB resistance in rice cultivars.

Comparison of SAL and QTL Mapping for Sheath Blight Resistance

According to our results, association studies involving a combination of a single locus genome-wide scan (EMMAX) and a multi-locus GWAS method (FarmCPU) are more efficient in determining the number of loci controlling rice quantitative resistance to R. solani than classical bi-parental linkage mapping methods. One possible explanation is that only QTLs with segregating alleles between limited founder parents can be identified by traditional QTL linkage mapping. We observed that 12 (44.4%) of 27 GWAS loci associated with RLH harboured multiple previously reported QTLs/genes related to ShB resistance (Table 1). For example, in the chromosomal region near SAL L25, one well-known major QTL (qSB-11LE) for ShB resistance was fine-mapped using a set of chromosome segment substitution lines in the Lemont genetic background with Teqing as a donor parent (Zuo et al. 2013). Meanwhile, another QTL (qSBPL-11-2) was detected using three Lemont/Yangdao4 mapping populations (Wen et al. 2015) (Table 1 and Additional file 5: Table S5). Additionally, SAL L23, with the most significant SNP (rs10_14,523,517, P = 5.3 × 10− 12) associated with RLH in the Geng panel, contained one QTL (qDs10) for disease severity in a Teqing/Binam backcross introgression line (BIL) population (Li et al. 2009) (Table 1 and Additional file 5: Table S5). Moreover, two previously reported QTLs (QDs2b and QRh2b) (Li et al. 2009) identified in a Teqing/Tarom Molaii BIL population were found adjacent to the L4 region (35.72–35.82 Mb). Moreover, SAL L26 included 33 suggestively associated SNPs spanning an approximately 64.8-kb interval (25.53–25.60 Mb) on chromosome 11, with another two reported ShB resistance QTLs (QDs11b and QRh11) from a Teqing/Tarom Molaii BIL population (Li et al. 2009) and one fine-mapped QTL (qSBR11–1) from rice line Tetep with a high degree of resistance to R. solani (Channamallikarjuna et al. 2010) (Table 1 and Additional file 5: Table S5). The co-localization of known QTLs/genes helped to verify the SALs identified in our study. These confirmed SALs represent candidates for fine-mapping, gene cloning, and marker-assisted selection for improving the ShB resistance of rice cultivars.

Putative Defence Mechanism against Sheath Blight in Rice

The molecular mechanisms involved in the host–pathogen interactions underlying quantitative ShB resistance in rice remain unclear. Some studies concluded that a jasmonic acid (JA)-induced resistance pathway (Karmakar et al. 2017; Wang et al. 2015) and a salicylic acid (SA)-mediated systemic acquired resistance pathway (Kouzai et al. 2018; Molla et al. 2016) might influence the resistance of rice to R. solani. These two important pathways, which form part of the defence system in rice, have common defence-related and pathogenesis-related proteins such as chitinases (Datta et al. 2001; Karmakar et al. 2016; Karmakar et al. 2017; Richa et al. 2017), glucanases (Datta et al. 1999), and OsWRKY transcription factors (Wang et al. 2015). Chitinase production can be induced by JA in rice (Rakwal et al. 2004). One chitinase gene, LOC_Os11g47510, was recently cloned from a QTL region (qSBR11–1) for ShB resistance in the R. solani-tolerant rice line Tetep, and subsequently validated by a genetic transformation into susceptible rice line Taipei 309 (Richa et al. 2017). The overexpression of several other chitinase genes, such as OsCHI11 and RCH10, have resulted in increased ShB tolerance in transgenic plants (Lin et al. 1995; Mao et al. 2014).

The involvement of SA, which is a product of phenylpropanoid metabolism (Lee et al. 1995), in the resistance of rice to R. solani was confirmed in SA-deficient transgenic plants (Kouzai et al. 2018). The glycolytic pathway is reportedly important for defence responses against R. solani and is connected to the phenylpropanoid pathway (Mutuku and Nose 2012). Additionally, SA biosynthesis may be indirectly induced by cuticular wax accumulation during resistance responses in plants (Kouzai et al. 2018; Seo et al. 2011). Cuticular wax is mainly composed of long-chain aliphatic compounds, and wax biosynthesis in plants begins with the synthesis of fatty acids in the plastid (Kunst and Samuels 2003). The wax forms a natural barrier against biotic and abiotic stresses during plant growth and development (Wang et al. 2017). In rice cultivars, the amount of cuticular wax deposits on the outer sheaths are negatively correlated with the infection rates and formation of infection cushions by R. solani (Marshall and Rush 1980).

In the present study, 36 ShB resistance genes were screened from 261 SRPFGs within LD blocks of 23 RLH-SALs based on the annotation of gene functions, enriched KEGG pathways and GO terms, and multiple comparisons among haplotypes (Additional file 9: Table S9). Our data suggest that JA and SA signalling pathways might regulate rice responses to ShB. For example, LOC_Os10g28050, which encodes chitinase 2, was identified 34 kb downstream of the lead SNP rs10_14,523,517 of the L23 LD block (Fig. 4a). The mean RLHs of the Hap2 and Hap5 accessions carrying LOC_Os10g28050 were significantly lower than that of the other three haplotypes. The resistance haplotypes (Hap2 and Hap5) were mainly enriched in the Aus panel, and the five haplotypes also exhibited a distribution tendency among subgroups (Fig. 4c and Additional file 9: Table S9). Additionally, LOC_Os06g04510, which encodes an enolase that participates in the glycolytic pathway, was detected 17 kb downstream of the lead SNP rs6_1,913,825 of SAL L11 (Fig. 4d). The mean RLH of Hap3 accessions with this gene was significantly lower than that of the other three haplotypes. Similar to LOC_Os10g28050, the LOC_Os06g04510 resistance haplotype of Hap3 accessions was mainly enriched in the Aus panel. Furthermore, two haplotypes (Hap1 and Hap4) explained the phenotypic variability within the Geng panels in response to R. solani (Fig. 4c and Additional file 9: Table S9).

In this study, significant differences in the mean RLH among different haplotypes within subgroups or the whole population were identified for two genes (LOC_Os02g30060 and LOC_Os10g31780) involved in fatty acid biosynthesis and one gene (LOC_Os11g10520 encoding a dehydrogenase) related to the degradation of aromatic compounds (Additional files 8 and 9: Tables S8 and S9). Molecular studies have revealed that rice plants expressing the gene encoding OsGL1–1, which contains regions homologous to parts of short-chain dehydrogenases, exhibit induced deposition of cuticular wax in contrast to the osgl1–1 mutant lacking the corresponding gene (Qin et al. 2011).

Transient expression assays revealed that SA-inducible OsWRKY6 is a positive regulator of a constitutively activated pathogenesis-related gene (OsPR10a), and OsWRKY6-overexpressing transgenic rice plants exhibit enhanced resistance to pathogens (Choi et al. 2015). In this study, we determined that OsWRKY6 (LOC_Os03g58420), located in SAL L7 near three previously mapped QTL regions (qSBR-3, qSBPL-3-2, and qHNLH3) is associated with ShB resistance (Additional file 9: Table S9). Regarding this gene, multiple comparisons of the RLH revealed that Hap3 accessions were most resistant to ShB, followed by Hap2 and Hap1 accessions. Moreover, Hap3 was absent in the Xian and Geng accessions, but was relatively abundant in the Aus panel, confirming a strong differentiation among three rice subgroups. However, some OsWRKY transcription factors, such as OsWRKY4 and OsWRKY30, are reportedly important positive regulators of rice responses to ShB mediated by a JA-dependent signalling pathway (Peng et al. 2012; Wang et al. 2015). These results provide novel information regarding the genes involved in ShB resistance and further elucidate the molecular mechanism underlying rice resistance to ShB.

Conclusions

The current GWAS of ShB resistance detected suggestive signals, estimated the candidate regions with suggestive signals based on LD blocks, and predicted the causal genes according to bioinformatics and haplotype analyses. Our results imply that quantitative resistance to R. solani in rice may be mediated by SA- and JA-dependent signalling pathways. Our future research will focus on the functional validation of the identified candidate genes by genetic transformations and transcriptomics-based investigations. The findings reported herein may be useful for improving the application of rice germplasm resources as well as the knowledge-based management of ShB and the breeding of ShB-resistant rice cultivars.

Methods

Rice Germplasm and Evaluation of Sheath Blight Resistance under Field Conditions

We selected a diverse collection of 563 Oryza sativa accessions from 47 countries and areas without distinct unfavourable agronomic traits and with similar heading dates as those in Beijing, China (116°20′E, 40°22′N) from the 3K RGP database (3K RGP 2014) (Additional file 1: Table S1). To evaluate ShB resistance, the seeds of all rice accessions were sown in a seedling nursery, and 30-day-old seedlings were transplanted to the experimental farm at the Institute of Crop Sciences, Chinese Academy of Agricultural Sciences, Beijing, China. Each row (20 × 17 cm) comprised nine plants, which were inoculated with the highly pathogenic R. solani strain RH-9 at the late tillering stage as described by Zou et al. (Zou et al. 2000). Three central plants for each line were inoculated (with two replicates), with the third leaf sheath of the main stem and the four largest tillers of each plant inserted into the inoculum without changing the holding status of the sheath and stem (Zuo et al. 2008). The ShB resistance of each inoculated plant was evaluated 30 days later (Zeng et al. 2015) according to the RLH, which was calculated as the ratio between LH and CL. The three tillers with the highest lesions were selected for each plant, and the LH was measured along the stem from the lowest to highest sites, while the CL was estimated from the soil surface to the panicle neck. The mean trait value of one accession was calculated based on three individual plants (i.e., three lesions per plant) for each replicate. The average trait values of two replicates for each accession were used for the GWAS.

Population Structure Analysis

The 3K RGP 4.8 mio SNP dataset was downloaded from the Rice SNP-Seek Database. http://snp-seek.irri.org/ (Alexandrov et al. 2015). To avoid the influence of linked SNPs during the population structure analysis, we used the LD pruning tool of the PLINK program (version 1.9) (Purcell et al. 2007) to obtain a subset of 220,335 independent SNPs with a MAF > 5% and a MDR < 0.1 according to ‘indep-pairwise 50 10 0.5’. We used PHYLIP (version 3.6) (Felsenstein 1989) to construct an unrooted neighbour-joining tree with 100 bootstrap replicates. The genetic structure of the whole population was predicted with the ADMIXTURE program (Alexander et al. 2009). Meanwhile, PLINK (Purcell et al. 2007) was used to conduct a principal component analysis to estimate the number of subpopulations in the GWAS panel.

Genome-Wide Association Mapping

A total of 2,977,750 SNPs with a MAF > 5% and MDR < 0.1 were filtered for association analyses of the whole panel. The GWAS was completed using a LMM implemented in EMMAX program (Kang et al. 2010) as well as FarmCPU (Liu et al. 2016) to determine the associations between each SNP and three traits related to ShB resistance (LH, CL, and RLH). We used the Balding–Nichols matrix based on a pruned subset of 65,095 SNPs across the whole rice genome (with parameter ‘indep-pairwise 50 10 0.1’ in PLINK) to develop the kinship matrix, which measured the genetic similarity between individuals. The first three principal components were used as covariates (Q-matrix) to control for population structure. The effective number of independent markers (N) was calculated using GEC software (Li et al. 2012), and the suggestive and significant P-value thresholds of each GWAS panel were calculated (Additional file 4: Table S4). The Manhattan and quantile-quantile plots for the GWAS results were created using the R package qqman (Turner 2014). To obtain independent association signals, multiple suggestively associated SNPs located in one estimated LD block were clustered as one SAL, and the SNP with the minimum P value in a cluster was considered as the lead SNP. The LD block was estimated with the command ‘--blocks’ in PLINK according to the block definition suggested by Gabriel et al. (Gabriel et al. 2002). The pairwise LD r2 values within one estimated LD block were calculated with PLINK (Purcell et al. 2007), and the R package LDheatmap (Shin et al. 2006) was used to draw the heatmap of pairwise LDs.

Annotation of Significant Signals

Synonymous and nonsynonymous SNPs and SNPs associated with large-effect changes were annotated based on the gene models of the annotated version of the Nipponbare reference genome IRGSP 1.0 (Kawahara et al. 2013) using the snpEff program (version 4.0) (Cingolani et al. 2012). Enriched GO terms and KEGG pathways were identified using the agriGO v2.0 (Tian et al. 2017) and EXPath 2.0 (Chien et al. 2015) programs, respectively. We have listed all suggestively associated SNPs located within genes and the annotation information based on the Nipponbare reference genome IRGSP 1.0 (Kawahara et al. 2013).

Haplotype Analysis

The whole GWAS panel SNPs within 1 kb of the upstream promoter region, 3′ untranslated region (UTR), and 5′ UTR as well as non-synonymous SNPs in the coding regions of a candidate gene were concatenated as the haplotype. Only haplotypes shared by at least 10 accessions were used for multiple comparisons. For the multiple group comparison of the RLHs of the major haplotypes, Duncan’s multiple comparison tests followed by a one-way analysis of variance were completed with the agricolae package in R. Additionally, chi-square tests in R were used to determine significant differences in the frequency of different haplotypes for the candidate genes among rice subgroups.

Availability of Data and Materials

All data supporting the conclusions of this article are provided within the article (and its Additional files).

Abbreviations

3K RGP:

3,000 Rice Genomes Project

BIL:

Backcross introgression line

CL:

Culm length

EMMAX:

Efficient Mixed Model Association eXpedited

FarmCPU:

Fixed and random model with a circulating probability unification

GO:

Gene ontology

GWAS:

Genome-wide association study

JA:

Jasmonic acid

KEGG:

Kyoto Encyclopedia of Genes and Genomes

LD:

Linkage disequilibrium

LH:

Lesion height

LMM:

Linear mixed model

MAF:

Minor allele frequency

MDR:

Missing data ratio

QTL:

Quantitative trait locus

QTNs:

Quantitative trait nucleotides

R. :

solani: Rhizoctonia solani Kühn

RLH:

Relative lesion height

SA:

Salicylic acid

SAL:

Suggestively associated locus

ShB:

Sheath blight

SNPs:

Single nucleotide polymorphisms

SRPFGs:

ShB resistance putative functional genes
