Evaluating rice for salinity using pot-culture provides a systematic tolerance assessment at the seedling stage
Rice volume 12, Article number: 57 (2019)
Rice (Oryza sativa L.) is one of the major staple food crops consumed globally. However, rice production is severely affected by high salinity levels, particularly at the seedling stage. A good solution would be the development of an efficient screening methodology to identify genotypes possessing genes for salt tolerance.
A new salinity tolerance screening technique using rice seedlings in pot-culture was tested. This method controls soil heterogeneity by using pure sand as a growth medium and minimizes unexpected extreme weather conditions with a movable shelter. Seventy-four rice genotypes were screened at three salinity treatments including high salt stress (electrical conductivity (EC) 12 dSm− 1), moderate salt stress (EC 6 dSm− 1), and control (no salt stress), imposed 1 week after emergence. Several shoot and root morpho-physiological traits were measured at 37 days after sowing. A wide range of variability was observed among genotypes for measured traits with root traits being identified as the best descriptors for tolerance to salt stress conditions. Salt stress response indices (SSRI) were used to classify the 74 rice genotypes; 7 genotypes (9.46%) were identified as salt sensitive, 27 (36.48%) each as low and moderately salt tolerant, and 13 (17.57%) as highly salt tolerant. Genotypes FED 473 and IR85427 were identified as the most salt tolerant and salt sensitive, respectively. These results were further confirmed by principal component analysis (PCA) for accuracy and reliability.
Although tolerant genotypes still need to be confirmed in field studies and tolerance mechanisms identified at the molecular level, information gained from this study could help rice breeders and other scientists to accelerate breeding by selecting appropriate donor parents, progenies and potential genotypes at early growth stages necessary for salinity tolerance research.
Rice (Oryza sativa L.) is one of the major staple crops, consumed by more than half of the world’s population (Dawe et al. 2010). Production of rice must be increased quantitatively and improved qualitatively to meet the requirements of the growing population in the twenty-first century and to maintain global food security. Although rice has a wide geographic distribution extending from 50 N to 35S, it is vulnerable to climatic changes leading to low rice productivity. The rapidly changing climate is causing different abiotic stresses, including periods of drought, frequent floods, sea water inundations, etc. (Jagadish et al. 2012), which reduce the yield potential of current rice varieties. Among abiotic threats, salinity is the second most devastating constraint in rice production after drought, affecting approximately 1 billion ha of land globally (Fageria et al. 2012). This equals more than 6% of the world’s total farming area (Ismail and Horie 2017) and nearly 20% of the globally irrigated area (Munns 2002). Salinity in arable land is mainly caused by the excessive use of irrigation water with improper drainage, poor quality irrigation water containing an excess level of salts, and flooding from seawater (Ismail et al. 2007).
Salinity is also increasing in the United States, particularly in Louisiana, which is the third largest rice producing state in the country (USDA 2013). Because of its proximity to the Gulf of Mexico, water intrusion can easily occur in coastal areas during the hurricane seasons, making the land more vulnerable to increasing salinity. In California, salinity is also increasing, mainly due to irrigation practices at the seedling growth stage under the direct water-seeded system, the dominant irrigation system for rice production (Scardaci et al. 1996).
Rice is most sensitive to salt stress at the seedling and early vegetative stages (Lutts et al. 1995), and later at the reproductive stages (Ismail et al. 2007; Singh et al. 2009). Excess salt in soil adversely affects plant growth, development, and productivity when osmotic stress reduces water uptake by roots, (Munns and Tester 2008). Direct accumulation of salts disturbs metabolic processes and all major morpho-physiological and yield-related traits including tiller number, panicle length, spikelet number per panicle (Khatun et al. 1995), grain filling (Rao et al. 2013), plant biomass (Zeng et al. 2007) and photosynthesis (Ismail et al. 2007; Baker 2008), leading to significantly decreased yield.
Natural variation is an integral resource for the improvement of beneficial traits which can be found in both wild and domesticated germplasm. Exploiting existing natural variation can lead to an improvement in salt tolerance while maintaining good levels of agronomically and economically important traits like quality and yield. The study of natural variation can also improve understanding of the physiology and genetic mechanisms behind tolerance at sensitive stages of growth (Ismail and Horie 2017). Similarly, extensive and reliable phenotypic evaluation of cultivars is crucial to determine the extent of the genetic basis of salinity tolerance, or for dissecting component traits associated with tolerance, and subsequent exploitation via breeding (Ismail and Horie 2017).
Tolerance to salt stress depends on multiple morphological and physiological component traits. Previous studies have shown that among the physiological parameters, chlorophyll content, alterations in chlorophyll fluorescence (Fv/Fm), and membrane permeability are efficient potential indicators to determine the inhibitory effect of salinity on photosynthetic efficiency (Baker 2008). Similarly, different morphological parameters including leaf area, tiller number, panicle length, root length, dry weight, biomass, relative growth rate, and relative water content have been used to evaluate rice cultivars at the morphological and physiological (morpho-physiological) level for salinity tolerance (Zeng and Shannon 1998). Thus, assessing the cumulative effect of morpho-physiological traits can help to build a comprehensive protocol to evaluate rice genotypes and understand plant mechanisms for salinity tolerance.
Salinity tolerance in rice has been a target for improvement by rice breeders over the years. Evaluating genotypes to be advanced during breeding at an early growth stage via high-throughput phenotyping saves time and resources compared to traditional phenotyping strategies (Ismail and Horie 2017). Two key factors in identifying salt tolerant genotypes are an assessment of salinity sensitive growth stages (Lutts et al. 1995) and growth parameters associated with salinity tolerance (Ashraf and McNeilly 1987). Past morphological variables used in screening and described as effective salinity indices include shoot length, root length, plant biomass, and shoot Na+/K+ ratio (Zeng et al. 2007; Gregorio and Senadhira 1993).
Approaches to screening rice for salt tolerance include on-field mass screening and controlled environment screening using hydroponics or other artificial media (Ismail and Horie 2017). On-field mass screening without replication or multiple years and environments is not reliable for identification of suitable cultivars because of varying environmental factors (weather conditions, soil heterogeneity, and amount of salt accumulation in the soil; Ismail and Horie 2017). Most of the work on salinity tolerance, particularly at the seedling stage, has been done in the laboratory or greenhouses under controlled conditions using solutions of NaCl or mixtures of NaCl + CaCl (Flowers and Yeo 1988). Greenhouse screening with solution culture was initially thought to be advantageous over field screening because of controlled environmental conditions. However, solution culture does not truly represent field conditions and genotypes identified as salt tolerant in solution may not be so in the field, where the level of salinity may show a larger level of spatial and temporal variation (Tavakkoli 2011; Kopittke et al. 2011).
Thus, a proper understanding of the quantitative impacts and critical response thresholds for newly developed cultivars is still limited, particularly under conditions more representative of the field. Development of an intermediate, efficient, reliable, reproducible, and simple high throughput screening technique will improve the practical screening of salinity tolerance, particularly at early growth stages. Pot-culture screening under natural environmental conditions at early growth stages is a simple and rapid screening method and has been used to screen germplasm for salinity tolerance in other crops (Shannon 1997), but further confirmation is lacking.
In the present study, we designed a new screening technique using pot-culture where we controlled soil heterogeneity using pure sand as the growth medium and minimized unexpected extreme weather conditions by using a movable canopy when needed, yet simulated field conditions on other days by removing the canopy. We hypothesized that the selected rice genotypes would show a wide range of variability in morpho-physiological parameters in actual response to salt stress, making this screening methodology the first important step in screening and selection of better rice varieties, paving the way to exploitation of desirable genotypic variation in rice breeding programs for salinity tolerance. The objectives of the study were to (a) determine the quantitative effects of different levels of salinity stress on the selected rice genotypes; (b) identify the most important morpho-physiological descriptors of salinity and their critical threshold responses at an early growth stage; and (c) explore the genetic potential of 74 rice genotypes for salt tolerance and cluster them into different salinity groups, based on root and shoot morpho-physiological parameters.
Data for shoot and root morphological and physiological parameters for all rice genotypes (Additional file 1: Table S1) used in the current study were analyzed. Analysis of variance (P ≤ 0.001) revealed both significant and non-significant differences among the rice genotypes, salinity treatments, and their interaction (genotypes x salt stress) for all measured morpho-physiological shoot and root parameters (Table 1). This significance can be exploited for breeding, and genotype x salinity level interactions need to be considered when studying varieties under salt-stressed conditions.
Shoot growth and developmental parameters
Shoot growth and developmental parameters including plant height (PH), tiller numbers (TN) and leaf area (LA) were significantly different among rice genotypes, salinity treatments, and salinity x genotype interaction (Additional file 1: Table S2). PH was significantly higher at optimum (control) salinity level compared to moderate (6 dSm− 1) and high salinity levels (12 dSm− 1), ranging from 30.25 cm (IR86052) to 13.0 cm (IR70213). At moderate salinity stress, PH ranged from 22.71 cm (IR86052) to 8.33 cm (IRRI 123), with an average of 14.43 cm. However, at high salinity stress, PH was reduced significantly for all rice genotypes, ranging from 19.33 cm (IR86052) to 5.83 cm (IR05N412), with an average PH of 14.43 cm (Additional file 1: Table S2).
Tiller number (TN) and leaf area (LA) also followed the same trend and were significantly reduced at the high salinity level compared to the optimum salinity level. Average TN at optimum salinity level was 12, with a maximum of 20 and a minimum of 4 tillers in genotypes IR07F287 and IR10A134, respectively. Average TN was reduced to 6 tillers per plant at moderate salinity levels, with maximum and minimum ranging from 11 (IR86635) to 2 (75–1-127), respectively. At high salinity levels, TN was reduced significantly to an average of 4 tillers per plant, with a maximum of 7 (WAB) and a minimum of 1 (75–1-127) tillers per plant, respectively. Leaf area (LA) was reduced drastically, particularly under high salinity levels for all rice genotypes, and ranged from 560.65 cm2 (CT18614) to 13.5 cm2 (75–1-127), with an average of 174.5 cm2 compared to LA at optimum salinity levels, which varied from 1427.1 cm2 (IR86635) to 185.8 cm2 (IR10A134) with an average of 721.1 cm2 per plant. At moderate salinity levels, maximum (879.6 cm2 plant− 1) and minimum (105.4 cm2 plant− 1) LA was observed in genotypes IR86635 and IR09L179, respectively (Additional file 1: Table S2).
Substantial natural variation was observed for measured shoot growth, and developmental parameters at different salinity conditions and genotypes responded differently to the salinity treatments, showing great variability among the genotypes. On average, salinity treatments negatively affected recorded shoot growth and developmental traits (Fig. 1).
Root growth and developmental parameters
Major root growth parameters including total root length (TRL), longest root length (LRL), root surface area (SA), average root diameter (AD) and root volume (RV) were significantly different among rice genotypes, salinity treatments, and salinity x genotype interaction (Additional file 1: Table S3). The average TRL decreased significantly from 5968.3 cm at optimum salinity levels to 4817.8 cm at high salinity levels; at moderate salinity levels average TRL was 5286.3 cm. TRL ranged from 7577.5 (Geumg) to 3201.3 cm (IR10A134) at optimum; 6698.4 (IR07F102) to 2818.8 cm (IR1A134) at moderate; and 7516.7 (BR47) to 669.3 cm (75–1-127) at high salinity levels.

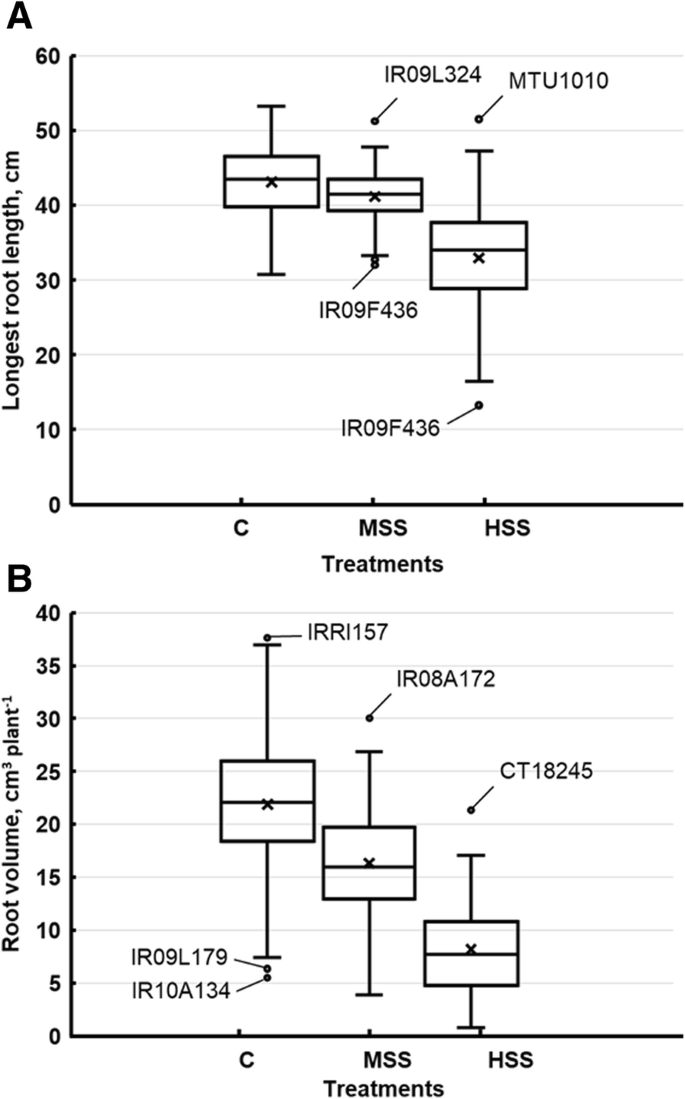

Similarly, the LRL was also significantly reduced from 43.1 cm under optimum conditions to 41.2 and 33.0 cm at moderate and high salinity conditions, respectively. Root surface area decreased with the increase of salinity for all genotypes. Hence, the average SA at optimum conditions decreased from 1246.7 cm− 2 to 1025.6 and 679.0 cm− 2 when salinity was increased to 6 dSm− 1 and 12 dSm− 1, respectively. The decreasing trend was also observed in AD and RV parameters with increasing salinity concentrations. The mean optimum AD (0.7 mm) decreased to 0.6 mm at moderate and 0.4 mm at high salinity levels. RV was profoundly affected by high salt stress, and mean RV decreased from 21.9 cm− 3 under optimum conditions to 8.2 cm− 3 at high salinity levels (electrical conductivity 12 dSm− 1). Under high salt stress, RV ranged from 21.3 cm− 3 in genotype CT18245 to 0.8 cm− 3 in genotype 75–1-127, which is significantly less than under optimum conditions, which ranged from 37.6 mm (IRRI 157) to 5.5 mm (IR10A134) (Additional file 1: Table S3).
Major root developmental parameters, including root tips (TP), root forks (FR), and root crossings (CR) were significantly affected by salinity in most of the rice genotypes (Additional file 1: Table S4). The average number of TP under optimum conditions was 33308, with maximum (41336) and minimum (20850) TP expressed in genotypes IR86635 and IR10A134, respectively. However, at high salt stress, average TP decreased significantly to 30282.8 and genotypes BR47 and 75–1-127 expressed the highest (45566) and lowest (5476) number of TP, respectively. Similarly, the number of FR and CR were also significantly affected as the level of salinity increased from optimum to high (12 dSm− 1), decreasing the overall mean of FR and CR from 108884.8 and 7759.8 under control conditions to 72119.2 and 6239.3 at high salinity level, respectively.
Overall, higher numbers of TR, FR and CR were observed in known salt tolerant genotypes (BR47 and Geumg), indicating that salt tolerant genotypes develop extensive root systems, whereas the known salt sensitive genotype (75–1-127) showed the least TR, FR, and CR indicating a less vigorous root system under salinity stress (Additional file 1: Table S4). Wide natural variation was observed among the measured root growth and developmental traits at different salinity levels, and genotypes responded differently to the salinity treatments showing the presence of substantial genetic variability among the genotypes. On average, salinity treatments negatively affected the recorded root growth and developmental traits (Fig. 2).
Among the major physiological parameters presented in Additional file 1: Table S5, flavonoids (FLV) and anthocyanins (ANT) showed non-significant differences among the genotypes at high salinity levels; however, chlorophyll content (CH) and ANT were significantly different (P > 0.001) between control and moderate salinity levels. Unlike other physiological parameters, nitrogen balance index (NBI) was found to be significantly different among rice genotypes at all three treatment conditions. Interestingly, genotype X salinity interaction was non-significant for all physiological parameters under optimum and both salt treatments. Mean CH contents increased from 21.4 μg cm− 2 at the optimum condition to 24.9 μg cm− 2 at moderate salinity levels but declined to 19.7 μg cm− 2 at high salinity levels. A similar trend was also observed in the average NBI with an increase from 20.2 to 22.7 at moderate salinity levels and decrease to 18.3 at high salinity levels. However, no significant changes were observed in average FL and ANT between the two salinity levels (Additional file 1: Table S5).
Substantial natural variation was also observed among the measured physiological parameters at different salinity levels, and genotypes responded differently to the salinity treatments showing the presence of substantial genetic variability among the genotypes. On average, salinity treatments positively affected physiological traits at medium salinity levels but significantly reduced them at high salt stress (Fig. 3).
Classification of rice genotypes based on SSRI and root image acquisition

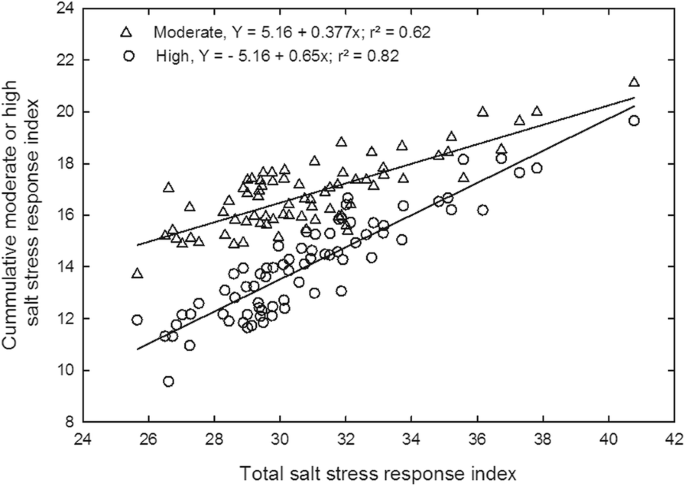

The total salt stress response index (TSSRI) values of all measured shoot, root, and physiological parameters at an early growth stage and their standard deviations were used to classify rice genotypes into four response groups (Table 2). Of the 74 rice genotypes, seven (9.46%) were identified as salt sensitive, and 26 (35%) had low, 27 (36%) had moderate, and 13 (17.57%) had high salt tolerance. TSSRI values for salt tolerance varied from 25.15 for genotype IR85427, identified as highly salt sensitive (Fig. 4a) to 39.87 for genotype FED 473, identified as highly salt tolerant (Fig. 4b).

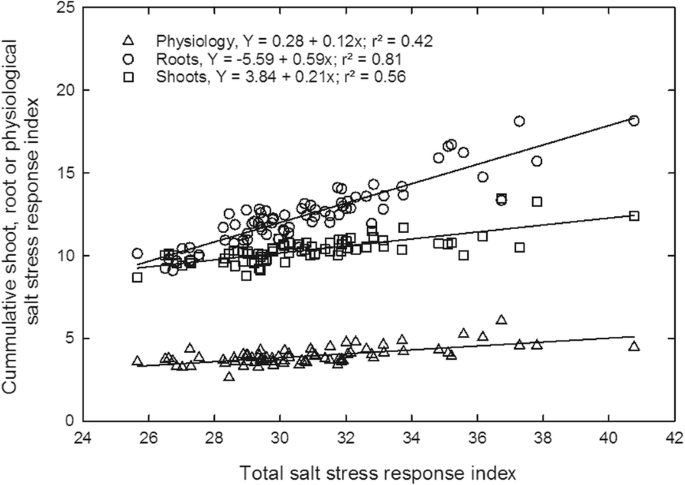

TSSRI were also used to calculate the correlation between shoot, root, and physiological parameters for salt tolerance. The value of the coefficient of determination (R2) gives the percentage of variation of tolerance index explained by each independent variable. An overall positive correlation was observed between total salt stress response index and total shoot (R2 = 0.42), root (R2 = 0.81) and physiological parameters (R2 = 0.56) (Fig. 5). Similarly, TSSRI was also observed to be positively correlated with cumulative moderate (R2 = 0.62) and cumulative high salt stress response (R2 = 0.82) indices (at P = 0.0001, n = 74) (Fig. 6).
Assessment of salt tolerant genotypes using principal component analysis (PCA)
PCA was performed to identify the principal components of shoot and root morpho-physiological parameters of rice genotypes that best describe the response to salt stress to identify salt tolerant genotypes. The first two principal components (PCs) accounted for 45% and 13% of the total variation (58%) among rice genotypes, respectively (Fig. 7) and clustered most of the root traits as the best descriptors followed by shoot traits and then physiological traits. The first principal component (PC1) represented higher values for all root parameters and some shoot parameters including total dry weight (TW), TN, and LA, but lesser loadings for all the physiological parameters. The second principal component (PC2) showed higher values for ANT, LA, FO, PH, TP, and LRL, and lesser loadings for NBI, CHL, FLV, AD, RV, FvFm and SA.
A biplot of PC1 vs. PC2 (Fig. 8) separated the genotypes into different salinity resistance categories. Genotypes showing highest values for the measured shoot and root morpho-physiological parameters for PC1 and PC2, located in the upper-right corner of the biplot, were considered as highly salt tolerant genotypes. Genotypes with moderate values for PC1 and PC2, located in the lower right and upper left corner of the graph, were considered as moderately salt tolerant. In contrast, genotypes showing the low values of the measured shoot and root morpho-physiological parameters for PC1 and PC2 fall in the lower left a portion of the graph and were considered as salt sensitive. Because PC1 and PC2 collectively explained more than half (58%) of the variation and contributed greater importance in the separation of genotypes into different categories, they were used to classify the 74 rice genotypes into four major groups including salt sensitive (19 genotypes, 25.68%), low salt tolerant (20 genotypes, 27.03%), moderately salt tolerant (16 genotypes, 21.62%) and highly salt tolerant (19 genotypes, 25.68%) (Table 3).
Salinity tolerance at the seedling stage does not correlate with tolerance at other vegetative and reproductive stages in rice (Ferdose et al. 2009); however, it can adversely affect crop yield by negatively affecting yield-related components (Negrão et al. 2017) including tiller number per plant and shoot biomass (Zeng and Shannon 2000), flowering time (Saade et al. 2016) and harvest index (Gholizadeh et al. 2014). Therefore, crop seedlings need to be well established to increase the ability of the crop to maintain good yield under salinity stress. Early early stage evaluation is, therefore, crucial to identify salt tolerant cultivars with substantial ability to withstand salinity. Since rice is most sensitive to salinity at the seedling or the 2–3 leaf stage (Lutts et al. 1995), it is essential to develop an efficient screening methodology at this early growth stage to identify genotypes possessing genes for salt tolerance. Quijano-Guerta and Kirk (2002) reported that development of a salinity tolerant variety is the cheapest way to address the salinity problem.
Breeding for salinity tolerance in rice involves reliable and rapid screening techniques. Screening under field conditions is difficult due to soil and environmental heterogeneity. These complexities, together with difficulty in creating controlled levels of salinity and reproducibility, make reproducible screening difficult under the field conditions unless multiple environments, years, and replications are used, which increases the cost. IRRI has been using a standard conventional screening in solution culture method at the seedling stage based on visual symptoms of salt stress for mass screening and under controlled conditions to minimize the effect of environmental factors (Gregorio et al. 1997). However, controlled conditions provide a completely different environment to the growing seedlings, which may not perform the same under the field conditions.
Building on IRRI’s simple and rapid screening protocols, we designed a new method to evaluate rice genotypes for salinity tolerance at an early growth stage in pot-culture using pure sand medium, under natural environmental conditions that simulate field conditions. Shoot and root morphological and physiological parameters are measured on all screened rice genotypes; these parameters are more reliable than visual symptoms. Sand growth medium controls soil heterogeneity, which is a significant issue in screening (Negrão et al. 2017).
Performance of rice genotypes based on shoot and root morpho-physiological parameters and their relationship with salt stress
Salinity negatively affects growth and developmental parameters of rice by reducing shoot length, root length, and plant biomass, which results in the overall decreased growth of the plant (Ali et al. 2014). The decline in growth may be caused by excess toxic NaCl accumulation in the soil around the roots causing imbalanced nutrient uptake by the seedlings. Reduction in leaf area is associated with changes in leaf anatomy due to salinity stress, resulting in a reduced rate of net photosynthesis (Munns and Tester 2008). This may be due to stomatal closure the following internal reduction of CO2 and decreased activity of the enzyme RuBisCo (Chaves et al. 2009). Maintenance of photosynthesis is important to maintain normal rates of transpiration under salt stress and is an important indicator of salinity tolerance (Harris et al. 2010). In the current study, salt stress was correlated with a significant reduction in LA in all rice genotypes, potentially contributing to a decline in photosynthesis and a rise in respiration rate in the growing plants. This may have lead to a deficiency of assimilate supply for developing organs and contributed to plant death before maturity. However, disturbance in ion homeostasis can also disturb photosynthesis when Cl- accumulates in the shoot and inhibits photosynthesis (Flowers and Yeo 1988).
Image acquisition technologies are developing rapidly for assessment of plant growth and its response to salinity. For field studies with mature plants, non-destructive approaches with automated high-throughput phenotyping facilities are preferred to evaluate shoot growth (Berger et al. 2012) as they can be used at defined time intervals including before and after salt imposition. Robust, efficient and reliable software is available to analyze and evaluate mature plants in the field, which has been previously used in rice to estimate biomass and relative growth rates (Berger et al. 2012) and growth models (Ward et al. 2015). Similarly, for root evaluation, root imaging has been reported under field conditions using, for example, Growth and Luminescence Observatory (GLO-Roots) system (Rellan-Alvarez et al. 2015), and transparent growth media like gel and glass beads (Courtois et al. 2013). However, root imaging of mature plants is inherently difficult because of the rigorous and hidden root structure (Reynolds et al. 2012). Root imaging is easier at earlier growth stages to characterize and monitor root architecture in response to salinity treatments (Bucksch et al. 2014). Here, we used WinRHIZO imaging with a specialized dual-scan optical scanner and software system to produce high resolution (800 by 800 dpi) gray-scale root images. These were analyzed for eight root parameters.
Past studies have shown that salinity retards plant growth mainly by affecting root growth parameters (Zeng and Shannon 1998; Barua et al. 2015). The increase of root biomass helps tolerant genotypes to maintain vigorous shoot growth possibly through salt dilution or salt exclusion during uptake, limiting the accumulation of the toxic amount of Na + ions in the shoots and resulting in less salinity stress symptoms and more vigorous shoot growth. In the present study, higher root indices indicate greater importance of root parameters than shoot and physiological parameters in identifying salt tolerant rice lines.
Comparison of PCA and SSRI methods for classification of rice genotypes
Principal component analysis has been previously used to categorize salinity tolerance of canola (Brassica napus L., Singh et al. 2008) and corn (Zea mays L., Wijewardana et al. 2016). This multidimensional preference analysis allows the identification of parameters that are best described using the tolerance to response variables. It was used here to identify the principal variables that explain the pattern of correlations within the measured salinity stress component traits to identify the parameters best-describing salt tolerance as per (Singh et al. 2008). Principal component analysis can provide an indication and explanation of the crucial component traits contributing to salinity tolerance among the germplasm and conditions under study (Negrão et al. 2017). In the current study, PCA analysis revealed that root, as well as shoot parameters, cluster together, indicating that they are strongly correlated, more so than with physiological parameters.
Salt tolerance indices have been previously used to identify genotypes and parameters with substantial ability to withstand salinity (Munns and James 2003; Genc et al. 2007). Using the total salt stress response indices (TSSRI), we observed well developed and vigorous root systems among salt tolerant genotypes and comparatively less vigorous root systems in salt-sensitive genotypes. Ali et al. (2014) reported that shoot parameters and plant biomass might be better descriptors of salinity tolerance and that root length (the only root parameter they measured) had no significant relation to salinity tolerance. While we also found that some shoot parameters and biomass to be important, Ali et al. (2014) conducted their study in solution culture (NaCl) in glass chambers with a controlled environment, exposing plants to salinity for a shorter duration, and measured too few root parameters compared with the present study and so would not have found the importance of the root traits that we did.
Results of PCA classification of rice genotypes generally agreed with results obtained from the total salt stress response index (TSSRI) method, particularly for the two extreme groups (high salt tolerant and salt sensitive). The intermediate categories (low and moderate salt tolerance) showed slight differences with some genotypes categorized interchangeably. Both PCA and SSRI methods identified root parameters including SA, FR, TRL, RV, CR, LRL, AD, TP to be better descriptors under stress conditions than the shoot traits, indicating the higher importance of root traits in screening rice genotypes for salinity tolerance. SSRI also showed that when salt stress was increased from 6 dSm− 1 to 12 dSm− 1, the variation explained increased from 62% to 82%. It may be beneficial to screen all genotypes at higher salinity levels and different growth stages, including the flowering stages to find the most salt tolerant genotypes. Similar results between PCA and SSRI support the accuracy of the experiment and the equivalent reliability of the two methods (SSRI and PCA) in screening for stress conditions, including salinity.
The pot-culture screening technique, designed to control soil heterogeneity and unexpected weather conditions, is a simple and efficient technique for screening rice seedlings for salinity tolerance with a high degree of precision; however, it must be compared with results from future field studies to determine final utility. Although both shoot and root morphological growth and developmental parameters are important indicators of salinity tolerance in rice, this study identified that root parameter are better predictors of salinity tolerance, and physiological parameters are non-predictive. Genotypes which can maintain a deep, well developed and extensive root system will help plants cope under stress conditions by taking up water and nutrients from the soil and efficiently storing them for a longer period for plant survival as compared to genotypes with poorly structured and less vigorous root systems. We also conclude that the two analysis methods (SSRI vs. PCA) are equally reliable and can be used for experiments exclusively and independently, but work better together to confirm the accuracy of experimental results. Knowledge from this study can help rice breeders and other scientists screen and select salinity tolerant rice breeding lines for variety development and related research, and use the lines identified as tolerant in developing new cultivars. This screening method can be used by farmers to screen high yielding commercial cultivars for salinity tolerance at an early stage before taking a potential risk of sowing them in large acreage in salt prone areas.
Materials and methods
Experimental conditions and seed material
The experiment was conducted at the Rodney Foil Plant Science Research facility at Mississippi State University, Mississippi State, MS. A total of 74 rice genotypes were obtained from the International Rice Research Institute (IRRI), Philippines (Additional file 1: Table S1) and used with local checks (Thad and Rex) and well-known salt tolerant varieties (Pokali and Nona Bokra) for comparison. PVC pots (15.24 cm diameter, 30.48 cm height, and 5.5 L volume) were arranged in a randomized complete block design (RCBD) with four replications and 74 rice genotypes each. Pots were filled with pure sand (particle size less than 0.3 mm) with 500 g of gravel at the bottom of each pot and grown outdoors to simulate field conditions. Initially, five seeds were sown in each pot which was later thinned to one plant per pot 1 week after seedling emergence. Plants were irrigated three times a day (8 am, 12 pm, and 5 pm) at 90 s per instance through an automated and computer-controlled drip irrigation system.
The three treatments included high salt stress (HSS) with electrical conductivity (EC) of 12 dS/m, medium salt stress (MSS) with EC of 6 dS/m, and control (C) (Hoagland nutrient solution with no additional salts), was imposed 1 week after emergence. In a previous study, Ali et al. (2014) used low (6 dSm− 1), moderate (8 and 10 dSm− 1) and high (12 and 14 dSm− 1) salinity treatments and reported that the low salinity treatment including 6 dSm− 1 had no significant effect on seedling morpho-physiological parameters. Therefore, we did not include low salinity treatments in the present study. A mixture of NaCl and CaCl2 (5:1 M concentration) was added to full-strength Hoagland nutrient solution (Hewitt 1953), to achieve the final desired ECw of the solutions, which was maintained continuously until harvest. ECw was measured and recorded with an electrical conductivity meter (FieldScout Direct Soil EC Meter, Spectrum Technologies, Aurora, IL, USA) on alternate days by randomly measuring ten pots from each treatment. The pH of the nutrient solution was maintained (using HCl and NaOH solutions) between 5.0 and 6.5 until final harvest (37 days).
Root image acquisition analysis
At the final harvest, roots of all plants were cut from the stems and washed on a sieve thoroughly and cautiously to avoid any destruction to the overall root structure. All the roots were then scanned using the WinRHIZO optical scanner (Regent Instruments 2009). First, the 0.3- by 0.2-m Plexiglas tray was filled with approximately 5 mm of tap water, making sure that roots floated in the tray and easily separated with a plastic paint brush to minimize overlapping. The tray was then placed on the top of a specialized dual-scan optical scanner, linked to a computer system. Gray-scale root images were acquired by setting the parameters to high resolution (800 by 800 dpi). Acquired images were analyzed for different root parameters including root surface area (SA), total or cumulative root length (TRL), average root diameter (AD), root volume (RV), number of roots having laterals (RNL), number of tips (TP), number of forks (FR), and number of crossings (CR) using WinRHIZO Pro software.
Shoot growth and developmental parameters
Shoot growth and developmental parameters included plant height (PH), tiller number (TN), and leaf area (LA) for all the 74 rice genotypes. Plant height (PH), tiller number (TN) were measured 1 day before the final harvest, whereas leaf area (LA) was measured at the final harvest using leaf-area meter, (LI-3100 Area Meter, Inc., Lincoln, Nebraska, USA). Leaves and stems were then stored separately in the oven at 75 °C for at least 72 h, and leaf dry weight (LW), stem dry weight (SW) and total dry weight (TD) were measured after they were permanently dried.
Physiological parameters including chlorophyll contents (CH), flavonoids (FLV), anthocyanins (ANT) and nitrogen balance index (NBI), were calculated on-site non-destructively using instruments like soil and plant analyzer (SPAD) meter (SPAD 502 Minnilota Inc. Canada) and Fluropen (Photosystem Instrument Kolackova Czech Republic). SPAD meter was used for instant chlorophyll measurements for all rice genotypes. Similarly, fluorescence including minimal fluorescence intensity (Fo), maximal fluorescence intensity (Fm), maximal variable fluorescence (Fv), and maximum quantum efficiency or yield (Fv/Fm) were also measured on-site non-destructively using Fluropen 1000.
Salt stress response indices (SSRI)
Rice genotypes selected for this study were classified into different groups based on their responses to salt stress and subsequent summation of individual index values for each parameter (Raman et al. 2012). Individual salt stress response index (ISSRI) for moderate salt stress was calculated as the value of a parameter (Pm) at moderate salt stress for a given genotype divided by the value of the same parameter (Pc) at optimum condition (control) (Eq. 1). Similarly, ISSRI for high salt stress was also calculated as the value of a parameter (Ph) at high salt stress for a given genotype divided by the value of the same parameter (Pc) at optimum condition (control) (Eq. 2).
The combined or cumulative moderate salt stress response indices (CMSSRI) and combined or cumulative high salt stress response indices (CHSSRI) were calculated by adding all the individual ISSRI for all the 20 measured parameters at moderate (Eq. 3) and high salt stress (Eq. 4), respectively.
Where “c” stands for control, “m” for moderate and “h” for high levels of salinity. Total salt stress response index (TSSRI) (Eq. 5) was calculated as the sum of CMSSRI and CHSSRI (Eq. 3) and (4), respectively.
Finally, based on the TSSRI values of all the measured parameters and standard deviations, the 74 rice genotypes were classified into four response groups including salt sensitive (minimum TSSRI + 0.5SD), low salt tolerant (minimum TSSRI + 1.5SD), moderate salt tolerant (minimum TSSRI + 2.5SD) and high salt tolerant (minimum TSSRI + 3.5SD) genotypes.
Means, standard deviations (SD), coefficient of variance (CV), and analysis of variance (ANOVA) were calculated using the SAS statistical program (v 9.4, SAS Institute 2011) for all parameters to determine the significant effects (P < 0.05) of genotypes, salinity treatment, and their interaction as primary sources of variation. Data were analyzed as a randomized completed block design (RCBD) under two factors arrangement, with genotypes as the main factor and salinity as a sub-main factor. Data were also analyzed via one-way ANOVA using PROC GLM in SAS to determine the effect of salt stress on developmental, physiological, and root parameters. The Fisher’s protected least significance difference test at P ≤ 0.05 was employed to test the differences among the treatments for the measured parameters. The standard errors of the means were calculated using Sigma Plot 13.0 (Systat Software, Inc., San Jose, CA, 2008) and presented in the figures as error bars.
Principal component analysis (PCA) was performed on the correlation matrix of 74 rice genotypes and response variables including PH, LA, TN, LW, SW, RW, TW, LRL, TRL, SA, AD, RV, TP, FR, CR, FO, FM, FvFm, CHL, FLV, ANT, NBI. Initially, index values for each treatment were calculated by assessing the response of each shoot, root, and physiological parameter compared to its control value. Then, the responses of all the traits under each treatment were combined and used as index values for PCA analysis. These index values were used to identify the correlation of response variable vectors and genotypes across the ordination space. The analysis was performed using the PRINCOMP procedure in SAS, and results were summarized in biplots (plots of mean PC scores for the first two principal components) using SigmaPlot 13.
Availability of data and materials
The datasets generated during and analyzed during the current study are used in the manuscript directly or presented in the supplementary Tables available online.
Average root diameter
Root crossings number
Maximal fluorescence intensity
Minimal fluorescence intensity,
Root forks number
Quantum efficiency of fluorescence
Longest root length
Leaf dry weight
Nitrogen balance index
Root dry weight
Root surface area
Stem dry weight
Root tips number
Total root length
Total dry weight
Ali MN, Yeasmin L, Gantait S et al (2014) Screening of rice landraces for salinity tolerance at seedling stage through morphological and molecular markers. Physiol Mol Biol Plants 20:411–423. https://doi.org/10.1007/s12298-014-0250-6
Ashraf M, McNeilly T (1987) Salinity effects on five cultivars/lines of pearl millet (Pennisetum americanum L.). Plant Soil 103:13–19. https://doi.org/10.1007/BF02370662
Baker NR (2008) Chlorophyll fluorescence: a probe of photosynthesis in vivo. Annu Rev Plant Biol 59:89–113. https://doi.org/10.1146/annurev.arplant.59.032607.092759
Barua R, De Ocampo M, Egdane J, Ismail AM, Mondal S (2015) Phenotyping rice (Oryza sativa L.) genotypes for physiological traits associated with tolerance of salinity at seedling stage. Sci Agric 12:156–162
Berger B, de Regt B, Tester M (2012) Trait dissection of salinity tolerance with plant phenomics. Methods Mol Biol 913:399–413
Bucksch A, Burridge J, York LM et al (2014) Image-based high-throughput field phenotyping of crop roots. Plant Physiol 166:470–486
Chaves MM, Flexas J, Pinheiro C (2009) Photosynthesis under drought and salt stress: regulation mechanisms from whole plant to cell. Ann Bot 103:551–560
Courtois B, Audebert A, Dardou A et al (2013) Genome-wide association mapping of root traits in a japonica rice panel. PLoS One 8:e78037
Dawe D, Pandey S, Nelson A (2010) Emerging trends and spatial patterns of rice production. Rice in the global economy: strategic research and policy issues for food security. International Rice research institute (IRRI), Los Baños
Fageria NK, Stone LF, Santos AB (2012) Breeding for salinity tolerance. In R Fritsche-Neto, A Borém (Eds) Plant breeding for abiotic stress tolerance. Springer-Verlag Berlin: Heidelberg, pp 103–122.
Ferdose J, Kawasaki M, Taniguchi M, Miyake H (2009) Differential sensitivity of rice cultivars to salinity and its relation to ion accumulation and root tip structure. Plant Prod Sci 12:453–461. https://doi.org/10.1626/pps.12.453
Flowers TJ, Yeo AR (1988) Ion relations of salt tolerance. In: Baker DA, Halls JL (eds) Solute transport in plant cells and tissues. Longman Scientific and Technical: Harlow, pp 392–413
Genc Y, McDonald GK, Tester M (2007) Reassessment of tissue Na(+) concentration as a criterion for salinity tolerance in bread wheat. Plant Cell Environ 30:1486–1498
Gholizadeh A, Dehghania H, Dvorakb J (2014) Determination of the most effective traits on wheat yield under saline stress. Agric Adv 3:103–110
Gregorio GB, Senadhira D (1993) Genetic analysis of salinity tolerance in rice (Oryza sativa L.). Theor Appl Genet 86:333–338. https://doi.org/10.1007/BF00222098
Gregorio GB, Senadhira D, Mendoza RD (1997) Screening rice for salinity tolerance. Vol. 22. IRRI discussion paper series, pp 1–30
Harris BN, Sadras VO, Tester M (2010) A water-centred framework to assess the effects of salinity on the growth and yield of wheat and barley. Plant Soil 336:377–389
Hewitt EJ (1953) Sand and Water Culture Methods Used in the study of Plant Nutrition. Technical Communication No. 22, Farmham Royal Commonwealth Agriculture Bureaux, Bucks, 187–190.
Ismail AM, Heuer S, Thomson MJ, Wissuwa M (2007) Genetic and genomic approaches to develop rice germplasm for problem soils. Plant Mol Biol 65:547–570. https://doi.org/10.1007/s11103-007-9215-2
Ismail AM, Horie T (2017) Genomics, physiology, and molecular breeding approaches for improving salt tolerance. Annu Rev Plant Biol 68:405–434
Jagadish SVK, Septiningsih EM, Kohli A, Thomson MJ, Ye C, Redona E, Singh RK (2012) Genetic advances in adapting rice to a rapidly changing climate. J Agron Crop Sci 198:360–373. https://doi.org/10.1111/j.1439-037X.2012.00525.x
Khatun S, Rizzo CA, Flowers TJ (1995) Genotypic variation in the effect of salinity on fertility in rice. Plant Soil 173:239–250. https://doi.org/10.1007/BF00011461
Kopittke PM, Blamey FPC, Kinraide TB, Wang P, Reichman SM, Menzies NW (2011) Separating multiple, short-term, deleterious effects of saline solutions on the growth of cowpea seedlings. New Phytol 189:1110–1121
Lutts S, Kinet JM, Bouharmont J (1995) Changes in plant response to NaCl during development of rice (Oryza sativa L.) varieties differing in salinity resistance. J Exp Bot 46:1843–1852. https://doi.org/10.1093/jxb/46.12.1843
Munns R (2002) Comparative physiology of salt and water stress. Plant Cell Environ 25:239–250. https://doi.org/10.1046/j.0016-8025.2001.00808.x
Munns R, James RA (2003) Screening methods for salinity tolerance: a case study with tetraploid wheat. Plant Soil 253:201–218
Munns R, Tester M (2008) Mechanisms of salinity tolerance. Annu Rev Plant Biol 59:651–681
Negrão S, Schmöckel SM, Tester M (2017) Evaluating physiological responses of plants to salinity stress. Ann Bot 119:1–11
Quijano-Guerta C, Kirk GJD (2002) Tolerance of rice germplasm to salinity and other soil chemical stresses in tidal wetlands. Field Crop Res 76:111–121. https://doi.org/10.1016/S0378-4290(02)00033-3
Raman A, Verulkar S, Mandal N, Variar M, Shukla V, Dwivedi J, Singh B, Singh O, Swain P, Mall A, Robin S (2012) Drought yield index to select high yielding rice lines under different drought stress severities. Rice 5:31. https://doi.org/10.1186/1939-8433-5-31
Rao PS, Mishra B, Gupta SR (2013) Effects of soil salinity and alkalinity on grain quality of tolerant, semi-tolerant and sensitive rice genotypes. Rice Sci 20:284–291
Regent Instruments (2009) WinRHIZO pro software, version 2009c. Regent Instruments, Inc., Quebec
Rellan-Alvarez R, Lobet G, Lindner H et al (2015) GLO-roots: an imaging platform enabling multidimensional characterization of soil-grown root systems. ELife 4:e07597. https://doi.org/10.7554/eLife.07597
Reynolds MP, Pask AJD, Mullan DM (2012) Physiological breeding I: interdisciplinary approaches to improve crop adaptation. CIMMYT, Mexico
Saade S, Maurer A, Shahid M et al (2016) Yield-related salinity tolerance traits identified in a nested association mapping (NAM) population of wild barley. Sci Rep 6:32586
SAS Institute (2011) SAS guide to macro processing, vol 11. SAS Inst, Cary
Scardaci SC, Eke AU, Hill JE, Shannon MC, Rhodes JD (1996) Water and soil salinity studies on California rice. Rice Publ 2 Coop Ext, Univ California, Colusa, CA, USA.
Shannon MC (1997) Adaptation of plants to salinity. Adv Agron 60:75–120. https://doi.org/10.1016/S0065-2113(08)60601-X
Singh RK, Redoña E, Refuerzo L (2009) Varietal improvement for abiotic stress tolerance in crop plants: special reference to salinity in rice. In: Abiotic stress adaptation in plants. Springer, Dordrecht, pp 387–415
Singh SK, Kakani VG, Brand D, Baldwin B, Reddy KR (2008) Assessment of cold and heat tolerance of winter-grown canola (Brassica napus L.) cultivars by pollen-based parameters. J Agron Crop Sci 194:225–236. https://doi.org/10.1111/j.1439-037X.2008.00309.x
Systat Software Inc (2008) SigmaPlot 11. User’s guide. Part 1. Systat Software, Inc, San Jose, CA
Tavakkoli E (2011) Limitations to yield in saline-sodic soils: quantification of the osmotic and ionic regulations that affect the growth of crops under salinity stress. Ph.D. thesis. University of Adelaide, Australia
USDA National statistics service USDA National Agricultural Statistics Service 2013. https://www.nass.usda.gov/
Ward B, Bastian J, van den Hengel A et al (2015) A model-based approach to recovering the structure of a plant from images. Computer Vision – ECCV 2014 Workshops. Springer International, Berlin
Wijewardana C, Henry WB, Hock MW, Reddy KR (2016) Growth and physiological trait variation among corn hybrids for cold tolerance. Can J Plant Sci 96:639–656. https://doi.org/10.1139/cjps-2015-0286
Zeng L, Shannon MC (1998) Salinity effects on seedling growth and yield components of rice. Crop Sci 40:996–1003. https://doi.org/10.2135/cropsci2000.404996x
Zeng L, Shannon MC (2000) Salinity effects on seedling growth and yield components of rice. Crop Sci 40:996–1003
Zeng Y, Zhang H, Li Z, Shen S, Sun J, Wang M, Liao D, Liu X, Wang X, Xiao F, Wen G (2007) Evaluation of genetic diversity of rice landraces (Oryza sativa L.) in Yunnan, China. Breed Sci 57:91–99
This work was financially supported by the AIP-Pakistan funded by the US Agency for International Development (USAID) through the International Maize and Wheat Improvement Center (CIMMYT), and the MS Rice Promotion Board. We thank the International Rice Research Institute (IRRI) for providing rice genotypes for the project. We also thank the Environmental Plant Physiology Lab staff and students for the technical help and data collection.
This work was partially supported by the AIP-Pakistan funded by the US Agency for International Development (USAID) through CIMMYT, the MS Rice Promotion Board, the National Institute of Food and Agriculture Grant 2016–34263–25763 and MAFES -SRI. We thank the International Rice Research Institute (IRRI) for providing rice genotypes for the project. We also thank the Environmental Plant Physiology Lab staff and students for the technical help and data collection.
Ethics approval and consent to participate
Consent for publication
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Table S1. List of rice genotypes used in this study with accession number, genotype, abbreviated, and country of origin. Table S2. Plant height, tillers number, and leaf area of 74 rice genotypes measured 37 days after sowing for control (C), moderate salt stress (MSS) and high salt stress (HSS). Each value represents the mean of four replications. Table S3. Total root length, longest root length, root surface area, average diameter, and root volume of 74 rice genotypes under control (C), moderate salt stress (MSS) and high salt stress (HSS) measured 37 days after sowing. Each value represents the mean of four replications. Table S4. Root tips, forks, and crossings of 74 rice genotypes under control (C), moderate salt stress (MSS) and high salt stress (HSS), measured 37 days after sowing. Each value represents the mean of four replications. Table S5. Chlorophyll, flavonoids, anthocyanin, and nitrogen balance index of 74 rice genotypes under control (C), moderate salt stress (MSS) and high salt stress (HSS), measured 37 days after sowing. Each value represents the mean of four replications. (DOCX 72 kb)
