  • Original article
  • Open Access

A semi-dominant mutation in a CC-NB-LRR-type protein leads to a short-root phenotype in rice

Rice201811:54

https://doi.org/10.1186/s12284-018-0250-1

  • Received: 12 April 2018
  • Accepted: 27 September 2018
  • Published:

Abstract

The mechanisms of plant defense against pathogen attack in plant leaves have been extensively studied. However, our understanding of plant defense mechanisms in plant roots is still limited. In this study, a semi-dominant mutant nrtp1-D (necrotic root tip 1), with a short-root phenotype, was characterized in rice. Map-based cloning revealed that NRTP1 encoded a typical coiled-coil nucleotide binding leucine rich repeat (CC-NB-LRR) type protein and the mutation caused an amino acid substitution in the Nucleotide-Binding adaptor shared by Apaf1, certain R genes and CED4 (NB-ARC) domain, which may cause constitutive auto-activation of the NRTP1 protein. Gene expression analysis revealed that NRTP1 was preferentially expressed in rice roots. Expression of mutant nrtp1-D in tobacco leaves induced necrotic lesions, which indicated a common mechanism of plant defense response between leaves and roots. Transcriptome analysis revealed that many typical defense-response genes were differentially expressed in homozygous nrtp1-D. In addition, we also found differential expression of genes in pathways which had not previously been described as being associated with pathogen response. Histochemical analysis showed that the level of nitric oxide (NO), but not reactive oxygen species (ROS), was increased in homozygous nrtp1-D mutant roots. These results indicate that, in addition to the mechanism of defense response common to both roots and shoots, a novel pathway may also exist in rice roots, which does not operate in shoots.

Keywords

  • Defense
  • Mutation
  • Necrotic
  • NO
  • Pathogen
  • Rice
  • Root
  • ROS

Background

Rice (Oryza sativa L.) is not only a model plant for monocotyledonous species, but is also the most important staple food, feeding half of the world’s population. Rice diseases are among the major constraints to sustainable rice production (Dai et al. 2007). Thus, studies of rice defense responses are of great interest for both advancing our mechanistic knowledge of plant-pathogen interaction and for accelerating crop improvement (Chen and Ronald 2011).

When plants are invaded by pathogens, pathogen-associated molecular patterns (PAMPs) are recognized and a basal resistance response, called PAMP-triggered immunity (PTI), is triggered in plants. To overcome the defense responses caused by PTI, some pathogens secrete effectors to increase pathogen virulence. Plants, in turn, employ resistance (R) proteins to interact with these effectors to induce a resistance response called effector-triggered immunity (ETI). Typically, a localized programmed cell death, the hypersensitive response (HR), is associated with ETI to restrict pathogen growth in plant cells (Dangl et al. 2013; Jones and Dangl 2006).

The largest family of R proteins is the nucleotide-binding site leucine-rich repeat (NB-LRR) family of proteins (Tameling and Takken 2008). This large family is encoded by hundreds of genes per plant genome, and can be subdivided into two subfamilies: Toll/interleukin-1 receptor (TIR)-NB-LRRs (TNLs) and coiled-coil (CC)-NB-LRRs (CNLs) (McHale et al. 2006). The N-terminal TIR or CC domains are involved in the formation of dimers to activate defense signaling. The central NB-ARC domain (the nucleotide-binding adaptor shared by Apaf1, certain R gene products and CED4) acts as a nucleotide-binding pocket and hydrolyzes ATP to induce conformational changes in NB-LRR proteins, and plays important roles in controlling protein activity. The C-terminal LRR domain interacts with the NB-ARC domain to keep the NB-LRR protein in an auto-inhibited state in the absence of pathogen effectors. Upon pathogen attack, the LRR domain interacts with effectors, releasing the auto-inhibition state of NB-LRR to activate defense signaling (Takken and Goverse 2012). Disruption of the interaction between the LRR domain and the NB-ARC domain results in constitutive activation of plant disease responses, coupled with programmed cell death (PCD), in the absence of pathogen attack (Ade et al. 2007; Bendahmane et al. 2002; Michael Weaver et al. 2006; Rairdan and Moffett 2006). Specifically, amino acid substitutions in the NB-ARC domain of NLS1, a CC-NB-LRR-type R protein in rice, caused constitutive auto-activation of the NLS1 protein, resulting in spontaneous lesions in rice leaves (Tang et al. 2011).

In addition to the roles of plant defense hormones (Robert-Seilaniantz et al. 2011), nitric oxide (NO) and reactive oxygen species (ROS) are also important signaling molecules in plant defense response to pathogen attack (Scheler et al. 2013). Upon pathogen recognition, both NO and ROS function as signals in plant defense responses (Wang et al. 2013). Non-expresser of pathogen-related gene 1 (NPR1), a key player controlling defense gene expression, is affected by both NO and ROS regulation (Lindermayr et al. 2010; Peleg-Grossman et al. 2010). Furthermore, NO and ROS are tightly regulated by one another via a complex mechanism. For example, ROS production is inhibited by S-nitrosylation, while NO production is also required for the induction of ROS accumulation (Rasul et al. 2012; Yun et al. 2011). This apparent contradiction indicates a complex relationship between NO and ROS signaling in plant defense responses. Accumulation of ROS was observed in nls1-D mutant leaves, which was considered to be part of defense responses in rice leaves (Tang et al. 2011).

In the current research, we describe the isolation and characterization of a semi-dominant rice mutant, nrtp1-D (necrotic root tip 1), which displayed short roots and defense-related phenotypes. Map-based cloning revealed an amino acid substitution in the NB-ARC domain of a typical CC-NB-LRR-type protein. Our results indicated that, in addition to the mechanism of defense response common to both roots and shoots, a novel pathway may also exist in rice roots, which is not expressed in shoots.

Methods

Plant materials and growth conditions

The rice (Oryza sativa) seedlings were grown in culture solution (Yoshida et al. 1976) in a growth chamber with 12 h of light at 28 °C and 12 h of dark at 22 °C. The light intensity was 4000 lx and the humidity was 70%. The root and shoot lengths of 7-d-old rice seedlings were measured for comparison. For the resin sectional analysis of roots, primary root tips were selected and the procedures of staining, dehydration, cleaning, infiltration and embedding were performed as previously described (Liu et al. 2005).The rice mutant was isolated from an EMS-mutagenized M2 population derived from the indica cultivar Kasalath, and the nrtp1-D heterozygous mutant was initially identified for its short root phenotype.

Map-based cloning of NRTP1

For the positional cloning of the mutated gene, an nrtp1-D heterozygous mutant was crossed with O. sativa ssp. japonica Nipponbare wild type, to generate an F2 mapping population. The map-based cloning was carried out as previously described (Ni et al. 2011). To confirm the result of map-based cloning, a derived cleaved amplified polymorphic sequences (dCAPS) marker was developed and the PCR products were digested using Eco91I (Thermo Fisher Scientific). Markers mentioned in this experiment are listed in Additional file 1: Table S1.

Complementation of nrtp1-D mutant

For the reverse complementation test, an 8 kb genomic fragment, containing the entire nrtp1-D gene (including two exons and one intron) and 2.7 kb upstream and 1.6 kb downstream sequences, was amplified from the genome of the homozygous nrtp1-D mutant using PCR and the primers HFBP-U and HFBP-L. The DNA fragment was first cloned into the pDONR201 entry vector, and then shuttled into the Gateway destination vector pGWB501 as previously described (Ni et al. 2016). The vector was transformed into ‘Kasalath’ wild type by the Agrobacterium-mediated method (Ni et al. 2014a). We generated five independent lines and the phenotype of T2 generation transgenic rice was compared with that of the wild type. We chose two independent lines for complementation test. Primers used in this experiment are listed in Additional file 1: Table S1.

RNA isolation and RT-PCR analysis

For tissue expression studies, total RNA was extracted from different tissues of Kasalath wild type including shoots, stem bases and roots of 7-d-old seedlings, and the stem and young panicle of adult plants. For NRTP1 expression analysis after hormone treatments, 7-d-old wild-type seedlings were transferred to 1 mM salicylic acid (SA) or jasmonic acid (JA) solution for 6 h. Meanwhile, leaves were sprayed with SA and JA solution with 0.01% Tween 20. Untreated roots were used as a positive control. For characterization of 35Sp:NRTP1 transgenic rice, RNA from leaves of 7-d-old seedlings was extracted. The expression of NRTP1 was analyzed by RT-PCR, using primers 410RT-U and 410RT-L. The expression level of OsActin was used as an internal control. Primers used in these experiments are listed in Additional file 1: Table S1.

Transcriptome analysis

Total RNA was extracted from the whole plant of 7-d-old Kasalath wild type and homozygous nrtp1-D mutant seedlings. Three biological replicates were set up. The RNA library construction and sequencing were performed as previously described (Ni et al. 2018). Illumina Hiseq2500 was used in the paired-end sequencing. The information of basic sequencing data is listed in Additional file 2: Table S2. The reads were aligned to the rice reference genome (http://genome.jgi.doe.gov) using Tophat package. The aligned read files were processed by Cufflinks, which uses the normalized sequence fragment counts to measure the relative abundances of the transcripts. Only those comparisons with q values less than 0.01 and status marked as “OK” in the Cuffdiff output were regarded as differentially expressed genes. Kyoto Encyclopedia of Genes and Genomes (KEGG) and Gene Ontology (GO) analyses were performed as previously described (Ni et al. 2018).

Construction and characterization of transgenic plants

For the construction of NRTP1p:GUS transgenic rice, a 2.2 kb promoter fragment was amplified by Pro-U and Pro-L. The PCR product was digested by Kpn I and Sal I, and then cloned into the binary vector pCAMBIA1300NH-plus GUS (Qin et al. 2013). The T2 generation of three independent transgenic lines was used in this experiment. The histochemical GUS analysis was performed as previously described (Jefferson et al. 1987). Leaves and flowers were collected form mature plants and the rest of the tissues were collected from the 7-d-old seedlings. The transverse sections of roots were carried out using a vibratome (DTK-1000), and longitudinal and transverse sections at the shoot-root junctions were carried out manually.

For the construction of 35Sp:NRTP1 and 35Sp:nrtp1-D transgenic rice, full length cDNA of NRTP1 and nrtp1-D was amplified by PCR using Over-U and Over-L. The PCR product was digested by BamH I and Sal I, and then cloned into the binary vector 35S-pCAMBIA1301, which had the 35S promoter to drive these coding sequences (Zhang et al. 2015). In addition to screening for resistance, positive lines were also characterized by checking the expression of NRTP1 in leaves, using RT-PCR. NRTP1 was not expressed in wild-type rice leaves, so the leaves expressing NRPT1 would be transgenic positive lines. We obtained eight independent lines of 35Sp:NRTP1 transgenic rice, and the T2 generation of two lines was used in this experiment.

Agrobacterium-mediated transient transformation of Nicotiana benthamiana was performed as previously described (Ni et al. 2016). Leaves of 4-week-old plants were infiltrated with bacterial cultures and observed for necrotic lesions every 12 h for 96 h. Constructions used for the transgenic rice were also used in tobacco experiment (35Sp:NRTP1, 35Sp:nrtp1-D and the empty vector 35S-pCAMBIA1301). Three different controls were used in this experiment. They were water control, empty vector control and 35Sp:NRTP1 control. Primers used in these experiments are listed in Additional file 1: Table S1.

Histochemistry in root tip

The primary root tips of 7-d-old seedlings from wild type and homozygous nrtp1-D were used to perform histochemistry experiments. Cell death detection was observed by Evans blue staining, performed as previously described (Qin et al., 2013). The endogenous NO level was detected by DAF-FM DA as previously described (Zhao et al. 2009). For the histochemical detection of H2O2 and O2.- (NBT) and ROS (HPF), staining was performed as previously described (Xu et al. 2017). For positive control of HPF staining, wild-type root tips were submerged with 0.1% H2O2 for 10 min before staining. For the quantification of NO and H2O2 contents, leaves and root tips (~ 1 cm) of 7-d-old seedlings were collected. NO and H2O2 contents were measured using the nitric oxide assay kit (Beyotime) and hydrogen peroxide assay kit (Beyotime) following the vendor’s instructions.

Results

Isolation and characterization of nrtp1-D

A semi-dominant rice mutant, which was designated nrtp1-D, was isolated by screening for the short-root phenotype in an M2 ethyl methane sulfonate- (EMS-) treated population of rice cultivar Kasalath (Oryza sativa ssp. indica). The mutant was identified initially in the heterozygous state. Among self-pollinated offspring of the original mutant plant, 56/249 of the progeny exhibited a wild-type phenotype, and 63/249 of the progeny showed severe defects in plant growth, especially in terms of root development; these plants were seedling lethal. The remaining 130/249 of the progeny exhibited a mild mutant phenotype, with short roots, and the segregation rate among wild type, mild mutant and severe mutant phenotypes is 1:2:1 (P = 0.880). These mild mutants developed reproductive tissues and set seeds, with their offspring also segregating in a 1:2:1 ratio (Fig. 1a). These results indicate that the nrtp1-D phenotype segregates as a semi-dominant trait, homozygous mutant plants being seedling lethal.
Fig. 1
Fig. 1

Phenotypes of 7-d-old nrtp1-D mutant seedlings. (a) Overall comparison of phenotypes between wild type and nrtp1-D mutant seedlings. AA, wild-type ‘Kasalath’ plants; Aa, nrtp1-D heterozygous plants; aa, nrtp1-D homozygous plants. Bar = 2 cm. (b) Shoot length, primary root length and crown root number of nrtp1-D mutant seedlings. Samples with different letters are significantly different (P < 0.01; Tukey’s test). Values are mean ± SD of three biological replicates. White, AA; grey, Aa; black, aa. (c) Comparison of leaves among AA, Aa and aa. Bar = 0.5 cm. (d) Longitudinal section of wild-type root tip. (e) Longitudinal section of homozygous mutant root tip. (f) Transverse section of wild-type root tip. (g) Cross section of homozygous mutant root tip. Bars = 200 μm

The shoot and root lengths of both heterozygous and homozygous mutants were significantly shorter than those of the wild type, with a clear dosage effect (Fig. 1B). In particular, the homozygous nrtp1-D seedling was almost rootless, with very short roots less than 1 cm long. The short-root phenotype of both heterozygous and homozygous mutants was not due to a defect in root initiation, because the number of crown roots was similar between the wild type and the mutants (Fig. 1b). Although the mutant shoot was significantly shorter than that of the wild type, there were no other significant differences in both heterozygous and homozygous nrtp1-D leaves (Fig. 1c). To investigate the cellular pattern in root tips of the mutant, longitudinal and transverse sections of wild type and homozygous nrtp1-D mutants were compared. Although the meristem organization of the homozygous mutant seemed similar to that of the wild type, and no obvious defects in the quiescent center region were observed in the mutant, significant differences were observed in longitudinal sections of the root cap. Numerous layers of columella cells were observed in the root cap of the wild-type seedlings, and these cells contained starch granules, which appeared as small dots in the longitudinal sections (Fig. 1d). In the root cap of the homozygous mutant, however, the shapes of the columella cells were irregular, and they were not arranged in an orderly manner as they were in the wild type. In addition, we did not find starch granules in the columella cells of the homozygous mutant seedlings, indicating a loss of function in these cells (Fig. 1e). In the wild-type seedlings, the cells were arranged close together and they were stained easily by blue dye (Fig. 1f). In contrast, although the radial patterning appeared similar, the cells in the homozygous mutant seedlings were arranged loosely, with the cells in the outer layers (epidermis, exodermis and sclerenchyma layer) being wizened in appearance (Rebouillat et al. 2009). In addition, these cells did not stain as easily as did those of the wild type (Fig. 1g). These results indicated that the status of the cells in the root tip of the homozygous nrtp1-D mutant was abnormal.

NRTP1 encodes a CC-NB-LRR type protein

We isolated the mutated gene using a map-based cloning strategy. We first developed an F1 population by crossing the heterozygous mutant (nrtp1-D/NRTP) with wild-type ‘Nipponbare’ (Oryza sativa ssp. japonica). Segregation of the mild “short-root” phenotype in the F1 population displayed a ratio close to 1:1 (23 plants of the wild-type phenotype and 25 plants of the mild mutant phenotype, P = 0.885). The F1 seedlings with the mild mutant phenotype were self-pollinated to generate the F2 mapping population. Segregation in the F2 generation expressed a ratio close to 1:2:1. These results further support the fact that a single semi-dominant gene was responsible for the mutant phenotype.

Using PCR-based molecular markers, the location of the mutation was defined to a 170 kb region between markers 94 N04 and 12E17–2, and it co-segregated with marker 56I18 on chromosome 12. Although we enlarged the mapping population to 1500, we failed to narrow down the defined region. As a result, there were several candidate genes in this relatively wide region. This may due to the low recombination rate near the centromere within this region. We amplified and sequenced all the putative genes in this region from the homozygous mutant and found an A to G base pair substitution in the putative gene LOC_Os12g17410. Comparison of genomic and cDNA sequences of LOC_Os12g17410 revealed that it consisted of two exons and one intron, and the mutation occurred in the second exon of LOC_Os12g17410 (Fig. 2a). LOC_Os12g17410 encoded a putative 916-amino-acid protein, containing a typical CC-NB-LRR structure. The mutation resulted in an Asp to Gly substitution in a non-conserved region of the NB-ARC domain (Figs. 2B, Additional files 3 and 4: Figures S1, S2). To facilitate future research, a dCAPS marker was developed to identify the mutation site (Additional file 5: Figure S3). Using this marker, all the homozygous mutants produced higher mobility bands than the wild type, while all of the heterozygous mutants produced double bands (Figs. 2c, Additional file 6: Figure S4).
Fig. 2
Fig. 2

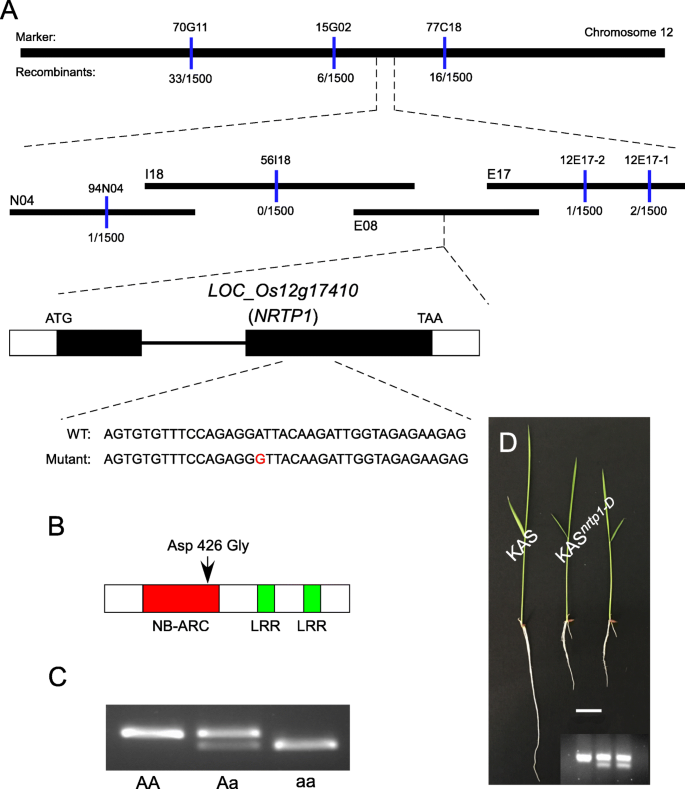

Map-based cloning of NRTP1. (a) Physical map of the NRTP1 locus. The number of recombinants per 1500 meioses is indicated for each molecular marker represented by blue bars. N04, I18, E08 and E17 are abbreviations of BAC clones corresponding to OSJNBa0094N04, OSJNBa0056I18, OSJNBb0071E08 and OSJNBb0112E17, respectively. For the structure of the NRTP1 gene, two boxes indicate the two exons and the line indicates the intron. (b) Structure of the NRTP1 protein. Arrow indicates the substitution in the 426-amino-acid protein in the nrtp1-D mutant. (c) A derived cleaved amplified polymorphic sequences (dCAPS) marker differentiates the wild type, heterozygous and homozygous mutant. (d) Complementation test. KASnrtp1-D, two independent transgenic lines harboring mutated DNA fragmentexhibited the heterozygous nrtp1-D mutant phenotype. KAS, wild-type control. Insertion is the dCAPS marker confirmation of transgenic lines. Bar = 2 cm

To confirm our map-based cloning result, an 8 kb genomic fragment, containing the entire LOC_Os12g17410 gene (including the native promoter and terminator) with the nrtp1-D point mutation, was cloned and transformed into wild-type ‘Kasalath’ plants via Agrobacterium tumefaciens-mediated transformation. Heterozygous nrtp1-D mutant-like morphology was observed in the transgenic plants (Fig. 2d). This result confirmed that NRTP1 is LOC_Os12g17410, and that the mutation in nrtp1-D resulted in severe defects in plant development, especially with respect to root development.

NRTP1 is expressed preferentially in roots

To study the expression pattern of NRTP1 in different tissues of rice, we performed RT-PCR analysis in various tissues and found that the expression of NRTP1 was only detected in roots and stem bases (Fig. 3a). To investigate the possible hormone induction of NRTP1 expression in rice leaves, we examined the NRPT1 expression after SA and JA treatments. RT-PCR analysis revealed that both SA and JA could slightly induce the expression of NRTP1 in rice leaves (Additional file 7: Figure S5). To further analyze the expression of NRTP1, we generated NRTP1p:GUS transgenic lines. As expected, β-glucuronidase (GUS) staining was strongly detected in roots and stem bases (Figs. 3b to 3i). Longitudinal and transverse sections of stem bases revealed that only crown roots and crown root primordia were stained, while other tissues (including the shoot apical meristem) showed no GUS staining (Fig. 3d and e). Transverse section of roots revealed strong GUS staining in the three outermost layers of cells (Fig. 3h and i). These results indicated that NRTP1 is strongly expressed in roots, and its expression is localized in the three outermost cell layers of rice roots.
Fig. 3
Fig. 3

Tissue expression pattern of NRTP1. (a) RT-PCR analysis of NRTP1 expression in different tissues. 1, shoot; 2, root; 3, stem base. 1, 2 and 3 are from 7-d-old seedlings. 4, stem; 5, young panicle. 4 and 5 are from mature plants. (b-i) GUS staining of NRTP1p-GUS transgenic plants. (b) Leaf; (c) Flower; (d) Transverse section of stem base. Arrow heads indicate crown root primordia; (e) Longitudinal section of stem base. Arrow indicates shoot apical meristem, arrow head indicates crown root primordia; (f and g) Root; (h) Transverse section of root; (i) Magnification of (h), arrows indicate three outermost cell layers stained by GUS. (b-c) mature plants, (d-i) 7-d-old seedlings. Bars = 500 μm in (b-g), bar = 100 μm in (h)

Ectopic expression of NRTP1 does not affect the growth and development in rice

To explore the functions of NRTP1 in rice, we generated independent transgenic rice plants overexpressing wild-type NRTP1 and mutated nrtp1-D under the control of the CaMV35S (35S) promoter, namely 35Sp:NRTP1 and 35Sp:nrtp1-D. We generated eight lines of the transgenic 35Sp:NRTP1. However, none of the lines showed any phenotypic differences from the wild type (Additional file 8: Figure S6). On the other hand, we failed to get transgenic rice overexpressing nrtp1-D (35Sp:nrtp1-D). This indicated the embryonic lethal condition, when nrtp1-D was not restricted to the root or root primordium.

Expression of nrtp1-D in tobacco leaves induces necrotic lesions

To examine the lethal effect of nrtp1-D, we transiently expressed nrtp1-D in tobacco leaves by Agrobacterium-mediated transient transformation. No significant differences were observed in the first 24 h after injection. However, necrotic lesions developed at a number of the sites expressing nrtp1-D (12/20) 36 h after injection. At 48 h after injection, all sites expressing nrtp1-D developed necrotic lesions (20/20). On the other hand, sites injected with wild-type NRTP1 or with the empty vector control did not show any necrotic lesions, even 96 h after injection (Fig. 4).
Fig. 4
Fig. 4

Expression of nrtp1-D in tobacco leaves induces necrotic lesions. Necrotic lesions were observed after transient expression of nrtp1-D in tobacco leaves. Each leaf was injected at four sites, with a, water; b, empty vector control; c, NRTP1; and d, nrtp1-D. Arrow heads indicate necrotic lesions caused by cell death

Transcriptome analysis of homozygous nrtp1-D

To further investigate the characteristics of the nrtp1-D mutant, the transcriptome of homozygous nrtp1-D rice was analyzed. The whole plant of 7-d-old homozygous nrtp1-D mutant and wild-type seedlings were harvested and three biological replicates were carried out. A total of 2819 genes exhibited altered expression level in the nrtp1-D mutant, compared to the wild type. The expressions of 1300 genes were up-regulated, while 1519 genes exhibited down-regulated expression in the nrtp1-D mutant (Additional files 9 and 10: Table S3, Table S4). A GO enrichment analysis showed that the largest proportion of differentially expressed genes (DEGs) was enriched with respect to the metabolic process. In addition, many DEGs were enriched with respect to the responses to different stresses (Fig. 5, Additional file 11: Table S5). A KEGG enrichment analysis showed that, except for the plant-pathogen interaction, most of the DEGs were enriched with respect to the pathways of metabolism, biosynthesis and degradation of different primary or secondary metabolic products (Additional files 12 and 13: Figure S7, Table S6). Further analysis revealed that many genes involved in the catabolic pathway were down-regulated. In contrast, many genes involved in the anabolic pathway were up-regulated. Nine percent of the genes in the plant-pathogen interaction pathway were up-regulated in the mutant, while 12% of the genes were down-regulated (Additional files 14 and 15: Figure S8, Table S7).
Fig. 5
Fig. 5

GO enrichment of differentially expressed genes

Elevated NO levels in homozygous nrtp1-D mutant roots

In order to explore the status of homozygous nrtp1-D roots, 7-d-old seedling roots were stained with Evans blue. Large patches of stained cells were observed in nrtp1-D roots, indicating the occurrence of cell death in nrtp1-D root tips (Fig. 6A). Next, the NO-specific fluorescent probe 4-amino-5-methylamino-2′,7′-difluorofluorescein diacetate (DAF-FM DA) was used to investigate the endogenous NO levels in root tips. The fluorescence intensity was much higher in the nrtp1-D mutant than in the wild type, indicating an elevated NO level in nrtp1-D mutant roots (Fig. 6B). The ROS levels in root tips were also measured, using 3′-(ρ-hydroxyphenyl) fluorescein (HPF). The ROS levels in nrtp1-D root tips were not markedly higher than in the wild type (Fig. 6C). Specifically, H2O2 and O2.- levels were measured by nitro blue tetrazolium (NBT) staining. H2O2 and O2.- levels may even have been lower in homozygous nrtp1-D root tips than in wild-type root tips (Fig. 6D). We also measured the NO and H2O2 contents independently, and similar results were achieved (Additional file 16: Figure S9).
Fig. 6
Fig. 6

Staining for dead cells, NO and ROS in nrtp1-D mutant roots. 7-d-old seedling root tips were stained by (a) Evans blue (to stain dead cells), (b) 4-amino-5-methylamino-2′,7′-difluorofluorescein diacetate (to detect NO levels), (c) 3′-(ρ-hydroxyphenyl) fluorescein (to detect ROS levels) and (d) Nitro blue tetrazolium (to detect H2O2 and O2.- levels), respectively. Insertion with red frame, positive control. Bars = 100 μm

Discussion

Many lesion-mimic mutants have been isolated in rice, and almost all of these lesions were observed on the leaf blades or sheaths (Shen et al. 2014; Takahashi et al. 1999; Tang et al. 2011; Wu et al. 2008; Yin et al. 2000). In this study, we describe a semi-dominant mutant, nrtp1-D. Heterozygous mutants exhibited a mild short-root phenotype, while homozygous mutants showed an extreme short-root phenotype. The homozygous nrtp1-D exhibited defense-related phenotypes in roots, including cell death and accumulation of NO in roots. Map-based cloning revealed that NRTP1 encodes a typical CC-NB-LRR-type protein, of a type which is widely accepted to be involved in plant defense response (Lee and Yeom 2015).

Intramolecular interaction between NB-ARC domain and LRR domain within the CC-NB-LRR-type protein is essential for the protein to keep an auto-inhibited state (Takken and Goverse 2012). A number of previous experiments had shown that mutations in the NB-ARC domain may disrupt this interaction and resulted in auto-activation of defense response in plants (Bendahmane et al. 2002; Tang et al. 2011). Expression of the mutated nrtp1-D gene in wild-type ‘Kasalath’ resulted in altered morphology similar to that exhibited by the nrtp1-D heterozygote. Thus, the point mutation in nrtp1-D is responsible for the mutant phenotype, and it probably caused an auto-activation of the defense response in rice roots.

The expression of the mutated nrtp1-D gene caused cell death in situ in tobacco leaves. This showed that a common signaling cassette exists in evolutionarily divergent monocots and dicots. While plants have evolved hundreds of R genes (McHale et al. 2006), it is unlikely they have evolved a corresponding number of signaling pathways to couple with these R proteins. Thus, it is possible that plants utilize a conserved signaling cassette downstream of R-protein-mediated signaling. Consistent with this, a chaperone complex was reported to facilitate the correct folding of R proteins in pathogen recognition and signal transduction, and this chaperone is structurally and functionally conserved (Shirasu 2009). The failure to generate transgenic rice over-expressing the mutated nrtp1-D may be due to the cell death induced by the expression of nrtp1-D in situ, leading to embryonic lethality in the transgenic rice.

Transcriptome analysis revealed that, besides genes directly involved in the plant-pathogen interaction, gene expression levels in several other pathways were also altered in the homozygous nrtp1-D mutant. For instance, many genes involved in phenylpropanoid biosynthesis were upregulated in the mutant. Phenylpropanoids are widely involved in plant resistance at several levels, by providing building units of physical barriers, by synthesizing an array of antibiotic compounds and by producing signal molecules implicated in the mounting of plant resistance (La Camera et al. 2004). We also found up-regulation of genes involved in sugar metabolism in the mutant. Up-regulation of genes involved in sugar metabolism was observed in an early study of plant defense research, using microarray analysis (Schenk et al. 2000). Since then, a number of research studies have revealed the multifunctional roles of sugars in plant defense responses (Morkunas and Ratajczak 2014). In addition, many genes in the stilbenoid, diarylheptanoid and gingerol biosynthesis pathway were down-regulated in the nrtp1-D mutant, and similar results were also reported in the defense responses of other plant species (Xu et al. 2015; Zhang et al. 2014). These results supported the hypothesis that auto-activation of plant defense responses occurred in the nrtp1-D mutant. On the other hand, we also found down-regulation of genes that were involved in many catabolic pathways. Some of the pathways, such as pathways for the degradation of polycyclic aromatic hydrocarbons and bisphenols, have not previously been reported to be associated with plant defense responses. This may be due to the specificity of the defense response in rice roots. Alternatively, these unusual gene expression changes may be due to the cascade effect emanating from severe defects in root functions, as a result of cell death in mutant roots.

NO and ROS signaling pathways are closely connected with plant biotic interactions, including symbiotic interactions, herbivore attacks and disease responses (Scheler et al. 2013). Moreover, NO and ROS synthesis are considered to be a routine requirement for plant cells to undergo PCD during plant defense responses (Wang et al. 2013). After the recognition of pathogen attack, NO accumulation occurred concomitantly with the production of ROS at the site of invasion (Romero-Puertas et al. 2004). However, in our experiments, we found that elevated NO levels were accompanied by almost unchanged ROS levels in homozygous nrtp1-D mutant root tips (Fig. 6). To explain this unusual phenomenon, we propose that the structure of the root, compared with the leaf, is complex and fragile (Ni et al. 2014b; Ni et al. 2014c). For instance, cell death surrounding infection sites in a leaf would not destroy the entire leaf, because water and nutrients could still be transported by alternative routes near the infection sites by the complex leaf vein network. However, the situation is different for roots. If cell death occurred surrounding the infection sites, it may spread into the vascular cylinder nearby, and this would endanger the entire root structures below the infection site, resulting in total interruption of water and nutrient transport at the infection sites. Thus, we speculate that a different (compared to that in leaves) and precisely controlled strategy of cell death may be used in the root defense responses. Interestingly, it has been shown that, in addition to the reinforcing relationship between NO and ROS, NO can also scavenge ROS to protect plant cells from further damage under certain conditions (Beligni et al. 2002; Crawford and Guo 2005). Furthermore, high concentrations of NO would abolish ROS synthesis by S-nitrosylation of NADPH oxidase to regulate a negative feedback loop, limiting the HR responses (Yun et al. 2011). Thus, our results may indicate a different mechanism of defense response which operates in plant roots, compared to leaves.

Conclusions

We isolated and characterized a semi-dominant short-root rice mutant nrtp1-D. Map-based cloning revealed that NRTP1 encoded a typical CC-NB-LRR type protein and the mutation caused an amino acid substitution in the NB-ARC domain, which might have caused constitutive auto-activation of the NRTP1 protein. As expected, transient expression of the mutated nrtp1-D in tobacco leaves induced the formation of necrotic lesions. Transcriptome analysis revealed that many typical defense response genes were expressed in nrtp1-D, although we also found differential expression of genes not previously reported to be associated with plant defense. The level of NO, but not ROS, was increased in nrtp1-D roots. This is different from a previous report, where auto-activation of the NLS1 R protein caused constitutive activation of defense responses, accompanied by increased ROS levels in rice leaves (Tang et al. 2011). Thus, our results indicate that, in addition to the mechanism of defense response common to both roots and shoots, a novel pathway may also exist in rice roots, which is different from that in shoots.

Abbreviations

35S:

CaMV35S

CC:

coiled-coil

CNL:

CC-NB-LRR

DAF-FM DA:

4-amino-5-methylamino-2′,7′-difluorofluorescein diacetate

dCAPS:

Derived cleaved amplified polymorphic sequences

EMS:

Ethyl methane sulfonate

ETI:

Effector-triggered immunity

GO:

Gene Ontology

GUS:

β-glucuronidase

HPF:

3′-(ρ-hydroxyphenyl) fluorescein

HR:

Hypersensitive response

KEGG:

Kyoto Encyclopedia of Genes and Genomes

NADPH:

Nicotinamide adenine dinucleotide phosphate

NB-ARC:

Nucleotide-Binding adaptor shared by Apaf1, certain R genes and CED4

NB-LRR:

Nucleotide-binding site leucine-rich repeat

NBT:

Nitro blue tetrazolium

NO:

Nitric oxide

NPR1:

Non-expresser of pathogen related gene 1

NRTP1:

Necrotic root tip 1

PAMP:

Pathogen-associated molecular pattern

PCD:

Programed cell death

PTI:

PAMP-triggered immunity

R:

Resistance

ROS:

Reactive oxygen species

TIR:

toll/interleukin-1 receptor

TNL:

TIR-NB-LRR

Declarations

Acknowledgments

We thank Prof. Chuanzao Mao from Zhejiang University for technical assistance.

Funding

This work was funded by the Zhejiang Provincial Natural Science Foundation of China (Grant No. LY18C060008) and the Independent Projects for Agricultural Research in Hangzhou (Grant No. 20170432B07).

Availability of data and materials

The data sets supporting the results of this article are included within the article.

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
College of Life and Environmental Science, Hangzhou Normal University, No. 16 Xuelin Street, Hangzhou, 310018, Xiasha District, China
(2)
Key Laboratory of Plant Nutrition and Fertilizers, Ministry of Agriculture, Institute of Agricultural Resources and Regional Planning, Chinese Academy of Agricultural Sciences, Beijing, 10081, China
(3)
Faculty of Science, Hong Kong Baptist University, Hong Kong, China
(4)
College of Agriculture, Northeast Agricultural University, Harbin, 150030, China
(5)
Agricultural Crops Molecular Improving Lab, Liaoning Academy of Agricultural Sciences, Shenyang, 110161, China
