Overexpression a “fruit-weight 2.2-like” gene OsFWL5 improves rice resistance



Rice (Oryza sativa) feeds half of the world’s population. Rice grain yield and quality which are constrained by diseases and mineral nutritions have important human healthy impacts. Plant “fruit-weight 2.2-like” (FWL) genes play key roles in modulating plant fruit weight, organ size and iron distribution. Previous work has uncovered that the grains of OsFWL5-oeverexpressing rice accumulated more beneficial element zinc (Zn) and less toxic element cadmium (Cd) content. However, whether FWL genes play roles in rice resistance remains unknown.


Here, we validated that one of rice FWL genes OsFWL5 plays a positive role in defense to Xanthomonas oryzae pv. oryzae (Xoo). Overexpresion of OsFWL5 promotes H2O2 accumulation and cell death. The OsFWL5-overexpresing plants show activated flg22-induced reactive oxygen species (ROS) generation, and increased resistance to Xoo, indicating that OsFWL5 functions to increase pathogen-associated molecular pattern (PAMP)-triggered immunity in rice. The activated defense response is associated with increased the expression of genes involved in jasmonic acid (JA)-related signaling. Furthermore, Cd can induce rice resistance to Xoo, and OsFWL5 is required for Cd-induced rice defense response.


Putting our finds and previous work together, OsFWL5 could be a candiate gene for breeders to genetically improve rice resistance and grain quality.


Mineral nutrients and diseases constrant crop production and quality. To increase crop yields, tromendous fertilizers and pesticide have been used resulting in adverse impacts on environment (Withers and Lord, 2002; Niño-Liu et al., 2006). Beside up take essential mineral nutrients (e.g. nitrogen, Zn) for orchestrating development and defense response, plants also take up non-essential and toxic elements (e.g. Cd and arsenic) which induce chronic and toxic effects in humans (White and Broadley, 2009; Zhao et al., 2010; Clemens and Ma, 2016). As it feeds about half of the world’s population, rice (Oryza sativa) grian quality is fundamental importance for human health. Thus, applying genetic approaches to improve rice plant resistance, to increase the accumulation of essential nutrients, and to reduce the concentration of chronic and toxic elements in grains have very important agricultral and human healthy impacts.

Tomato FW2.2 was identified as a key to control fruit weight and size (Frary et al., 2000). Plenty of findings imply that FW2.2-like proteins play various roles in plant. Arabidopsis FWL genes plant cadmium resistance 1 (AtPCR1) involved in cadmium resistance (Song et al., 2004), AtMCA1 and AtMCA2 were found to mediate Ca2+ uptake (Yamanaka et al., 2010). Soybean FWL gene GmFWL1 was found to affect the nodule organogenesis in plant interaction with the nitrogen-fixing symbiotic bacterium Bradyrhizobium japonicum (Libault et al., 2010). Overexpression of OsFWL5/OsPCR1 increases rice grain Zn content and reduces Cd content (Song et al., 2015). However, no FWL gene was designated to be associated with defense response so far.

Bacterial blight caused by Xoo is one of the most devastating bacterial diseases of rice worldwide. To demonstrate whether OsFWL5 involving in rice resistance to Xoo, we first checked the expressional patterns of OsFWL5 in rice resistant and susceptible interaction with Xoo strain PXO341. MKbZH1 carried a transgenic major disease resistance gene Xa3/Xa26 in the genetic background of japonica/geng variety Zhonghua 11 (ZH11) conferring race-specific resistance to Xoo including to strain PXO341, wild type ZH11 is susceptible to Xoo strain PXO341 (Cao et al., 2007; Gao et al., 2010; Li et al., 2012). OsFWL5 showed differential expression patterns in rice resistant and susceptible interactions (Additional file 1: Figure S1). The transcript level of OsFWL5 was lower in MKbFZH1 relative to wild type before Xoo inoculation, while higher transcript level of OsFWL5 was observed in resistant plants than in susceptible plants at 4, 8, 24, 48 and 72 h after Xoo infection. The differential expression patterns of OsFWL5 in susceptible and resistant response in the same genetic background indicated that OsFWL5 might be involved in the rice-Xoo interaction.

We then generated OsFWL5-overexpressing plants (OsFWL5-oe) by transforming ZH11 with OsFWL5 cDNA under the control of maize ubiquitin (Ubi) promoter. The OsFWL5-oe plants displayed a spontaneous lesion mimic (LMM) phenotype from seedling stage, and developed more serious LMM at adult stage (Fig. 1a). Many LMM show an accumulation of reactive oxygen species ROS (including H2O2) in and around lesions (Lorrain et al., 2003). To test whether the lesions of OsFWL5-oe plants accumulate H2O2, we stained the leaves of OsFWL5-oe plants with diaminobenzidine (DAB) revealing a strong accumulation of H2O2 in the OsFWL5-oe plants relative to WT (Fig. 1b). The appearance of LMM in OsFWL5-oe plants promotes us to check the expression of cell death related gene. Rice NAC4 (a plant-specific transcription factor) positively regulates programed cell death (PCD) and activation of NAC4 expression promotes PCD (Kaneda et al., 2009). The expression of NAC4 were up-regulated in OsFWL5-oe plants (Fig. 1c). These results indicate that overexpression of OsFWL5 promotes H2O2 accumulation and cell death.

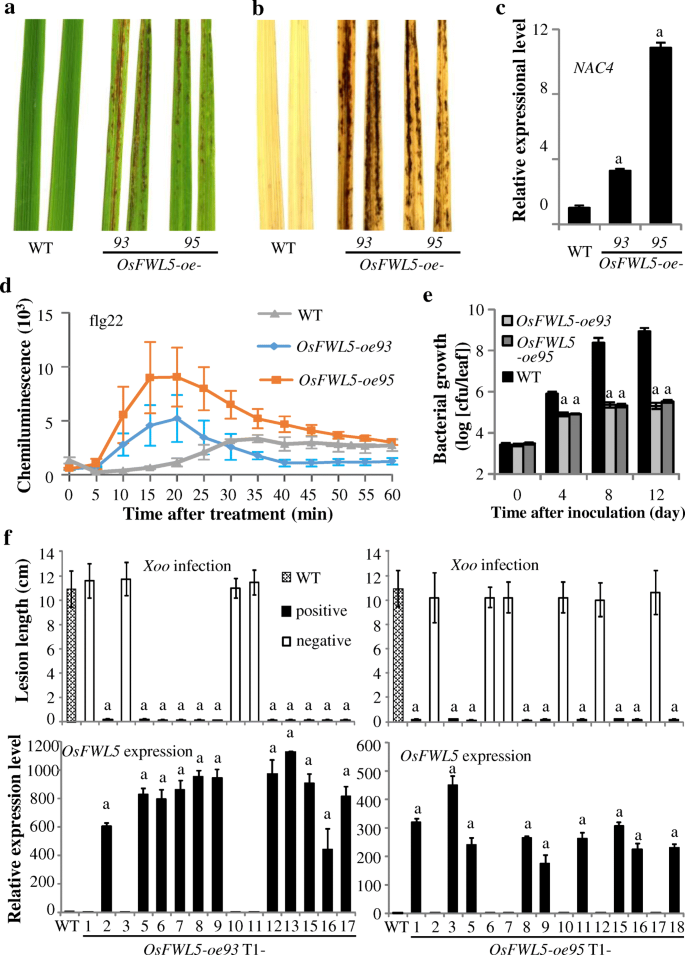

Fig. 1

Performance of OsFWL5-oe plants. The “a” above bars indicate significant differences compared to wild type (WT) at P < 0.01. Primers and methods are listed in Additional files 2 and 3. a Lesion mimic phenotype of 8-week-old OsFWL5-oe plants. b DAB staining of H2O2 accumulation in 8-week-old OsFWL5-oe plants leaves. c NAC4 gene expression analysis in OsFWL5-oe plants leaves. Data are means ± SD (n = 3). d Flg22-induced ROS burst in the OsFWL5-oe and WT plants. Rice leaf disks were treated with 1 μM flg22 and water. ROS were detected with a luminol-chemiluminescence assay. Data are means ± SD (n = 3). e Growth of Xoo strain PXO341 on the leaves of OsFWL5-oe plants. Data are means ± SD (n = 3). cfu, colony-forming units. f Increased resistance of OsFWL5-oe plants to Xoo strain PXO341 was associated with increased OsFWL5 expression. Data are means ± SD (n = 3 for gene expression, and 3 to 5 for lesion length)

Upon pathogen infection, the recognition of PAMPs by the pattern recognition receptors (PRRs) triggers PAMP-triggered immunity (PTI) and includes the accumulation of ROS (Jones and Dangl, 2006). Rice cells can recognize bacterial pathogen PAMP elicitor flg22 through the PRR FLS2 (Takai et al., 2008). Mutations resulting in constitutive expression of defense mechanisms cause spontaneous lesions. To examine whether overexpression of OsFWL5 affects ROS production after PAMP elicitor flg22 treatment, we collected leaves from the OsFWL5-oe and WT plants and measured the ROS level after flg22 treatment using a ROS inhibition assay (Schwacke and Hager, 1992). Tissues of 4-week-old rice leaves exhibited a ROS burst when they were exposed to flg22 (Fig. 1d). In OsFWL5-oe plants, the flg22-induced ROS generation was earlier and higher than that in WT. These data suggested that overexpressing OsFWL5 enhances rice PAMP-triggered immune response.

We further inoculated OsFWL5-oe plants with Xoo strain PXO341 at the booting (panicle development) stage. The OsFWL5-oe plants showed increased resistance to Xoo strain PXO341 compared to WT plants (Fig. 1e; 1f), with the lesion length ~ 0.5 cm for OsFWL5-oe transgenic positive plants versus ~ 11.0 cm for negative transgenic plants and WT. The increased resistance of OsFWL5-oe plants co-segregated with increased OsFWL5 transcripts. The correlations between length and OsFWL5 transcripts were − 0.926 (significant at α = 0.01; n = 15) and − 8993 (significant at α = 0.01; n = 15) for OsFWL5-oe93 and OsFWL5-oe95 families, respectively. Bacterial growth analysis showed that the growth rate of PXO341 on transgenic plants was significantly lower than the growth rate on WT plants at 4–12 days after infection. These results suggest that the increased resistance of the transgenic plants may be attributable to the increased expression level of OsFWL5.

To further investigate the role of OsFWL5 in rice-Xoo interaction, we generated OsFWL5-knockout mutants osfwl5 using CRISPR/Cas9 editing in ZH11. We selected two 20-nt sequences as target sites for Cas9 cleavage with one in the 5′ UTR and another one in the first exon of OsFWL5 gene (Additional file 1: Figure S2). We found two mutant lines osfwl5–1 and osfwl5–2. osfwl5–1 carries a 242-base fragment deletion in 5′ UTR and one-base insertion in site 2; osfwl5–2 carries a 678-base fragment deletion from site 2 to 5′ UTR of OsFWL5 gene (Additional file 1: Figure S2). We inoculated osfwl5 lines with Xoo strain PXO341 at booting stage. osfwl5 lines developed similar lesion length as WT (Additional file 1: Figure S3a), indicating that OsFWL5 is not necessary for Xoo resistance in rice. Together with the results from the above analysis, these data suggested that OsFWL5 contributes to rice resistance by activating rice basal defense.

The enhanced resistance of OsFWL5-oe plants promoted us to check the expression of defense-related genes to dissect possible defense pathways mediated by OsFWL5. AOS2 (allene oxide synthase 2; AY062258) is involved in JA biosynthesis, JAZ8 (jasmonate ZIM-domain protein; XP_015612402) associates with the JA-dependent signaling pathway (Mei et al., 2006; Ke et al., 2014), WRKY13 antagonistically regulates salicylic acid (SA)- and JA-dependent signal pathway acting as a positive regulator in SA-dependent and a negative regulator in JA-dependent signal pathway, ICS1 (isochorismate synthase 1, AK120689) is involved in SA biosynthesis (Qiu et al., 2007), PR1a (for acidic pathogenesis-related protein 1; AJ278436) is a SA and JA responsive gene (Ke et al., 2014). The expression levels of AOS2, JAZ8 and PR1a were significantly higher in OsFWL5-oe plants than those in WT (Fig. 2a). By contrast, the expression levels of WRKY13 and ICS1 were significantly lower in OsFWL5-oe plants than those in WT (Fig. 2a). We also checked the expression of these genes in osfwl5 mutants plants, and results showed that osfwl5 mutants plants accumulate similar AOS2, JAZ8, PR1a and ICS1 transcripts, and slightly more WRKY13 transcripts relative to wild type (Additional file 1: Figure S3b). These data indicated that overexpression of OsFWL5 promotes defense response associated with activated JA-dependent pathway but repressed SA-dependent pathway.

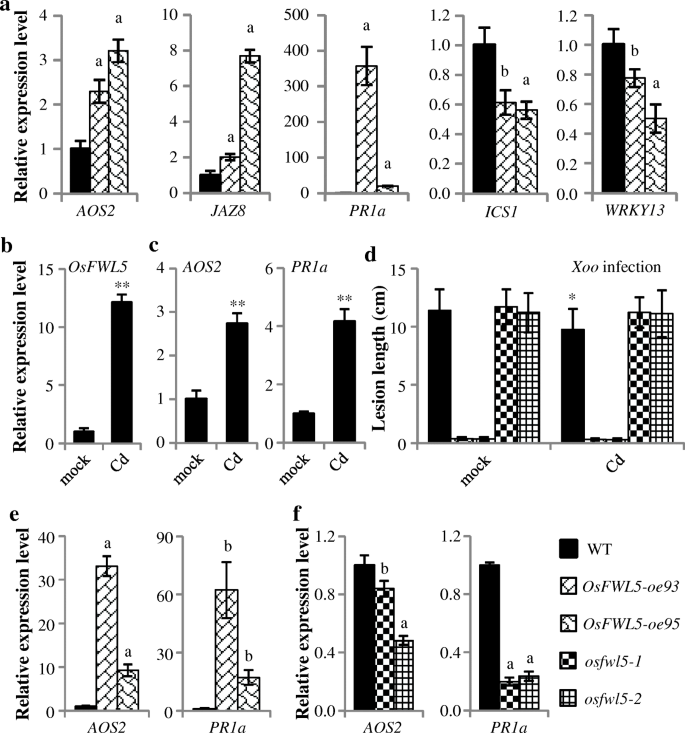

Fig. 2

OsFWL5 affects a set of Pathogenesis-related genes expression and rice response to Cd. ** and * indicate significant differences between Cd treatment and mock treatment at P < 0.01 and P < 0.05, respectively. The “a” and “b” above bars indicate significant differences compared to wild type (WT) at P < 0.01 and P < 0.05, respectively. Data are means ± SD (n = 3 for gene expression, and 5 to 15 for lesion length). Primers and methods are listed in additional files 2 and 3. a OsFWL5-oe plants accumulate more JA signaling involved genes AOS2, JAZ8 and PR1a transcripts, and less SA signaling involved genes ICS1 and WRKY13 transcripts. b OsFWL5 expression was induced by Cd treatment. c AOS2 and PR1a expression was induced by Cd treatment. d Disease resistance analysis after Cd treatment. OsFWL5-oe plants accumulate more AOS2 and PR1a transcripts (e), while osfwl5 plants accumulate less AOS2 and PR1a transcripts (f) after Cd treatment

As OsFWL5 is involved in grain Cd distribution (Song et al., 2015), we treated wild type ZH11 with Cd to analyze OsFWL5 expression. Result showed that Cd treated plants accumulated more OsFWL5 transcripts than mock treated plants did (Fig. 2b), indicating OsFWL5 expression is induced by Cd. Overexpressing OsFWL5 activates JA-dependent related signaling, promoting us to test JA-signaling related genes expression after Cd treatment. We analyzed AOS2 and PR1a expression and this analysis showed that Cd could induce AOS2 and PR1a expression (Fig. 2c). Cd treatment promotes ROS accumulation in pea plant (Romero-Puertas et al., 2002). These data suggests that Cd might induce plant defense response. To test this inference, we treated OsFWL5-oe, osfwl5 mutants and WT with Cd and inoculated with Xoo. Results showed that Cd induced wild type ZH11 resistance to Xoo (Fig. 2d). Cd did not further increase OsFWL5-oe resistance to Xoo, although OsFWL5-oe plants accumulated more AOS2 and PR1a transcripts relative to wild type after Cd induction (Fig. 2d; 2e). One of the possible reasons is that OsFWL5-oe plants show high resistance to Xoo with the lesion length less than 0.5 cm. Cd induced resistance, AOS2 and PR1a expression was impaired in osfwl5 mutants (Fig. 2d; 2f). These results suggested that OsFWL5 is required for Cd-induced defense response.

The amino acid sequence of OsFWL5 from ZH11 is identical to that from another geng/japonica variety Nipponbare (Additional file 1: Figure S4). The sequence diversity of OsFWL5 from gene/japonica-type accessions and jing/indica-type accessions is correlated with Zn content in both rice and yeast cells, while yeast cells accumulate similar Cd concentrations expressing both types of OsFWL5 (Song et al., 2015). In this study, OsFWL5 mediated rice defense may be associated with Cd, suggesting that OsFWL5 from jing/indica-type accessions might also play a role in rice resistance. Further studies are needed to provide insight on this perspective.

In conclusion, in this study we have confirmed the novel function of rice OsFWL5. Activation of OsFWL5 expression in rice triggers H2O2 accumulation and cell death. We further demonstrated that OsFWL5 positively regulates PTI response and disease resistance. In addition, OsFWL5 is required for Cd-induced defense response. The grains of OsFWL5-oeverexpressing rice accumulated more beneficial element Zn and less toxic element Cd content (Song et al., 2015). So breeders can use OsFWL5 for rice genetic improvement through screening alleles with optimal expression level.

Availability of data and materials

All data generated or analyzed during this study are included in this published article [and its supplementary information files].



allene oxide synthase 2


fruit-weight 2.2-like


isochorismate synthase 1


jasmonic acid


jasmonate ZIM-domain protein


acidic pathogenesis-related protein 1


pathogen-associated molecular pattern (PAMP)-triggered immunity


reactive oxygen species


salicylic acid

Xoo :

Xanthomonas oryzae pv. oryzae


  1. Cao Y, Ding X, Cai M, Zhao J, Lin Y, Li X, Xu C, Wang S (2007) Expression pattern of a rice disease resistance gene Xa3/Xa26 is differentially regulated by the genetic backgrounds and developmental stages that influence its function. Genetics 177:523–533

    CAS  Article  Google Scholar

  2. Clemens S, Ma JF (2016) Toxic heavy metal and metalloid accumulation in crop plants and foods. Annu Rev Plant Biol 67:489–512

    CAS  Article  Google Scholar

  3. Frary A, Nesbitt TC, Grandillo S, Knaap E, Cong B, Liu J, Meller J, Elber R, Alpert KB, Tanksley SD (2000) fw2.2: a quantitative trait locus key to the evolution of tomato fruit size. Science 289:85–88

    CAS  Article  Google Scholar

  4. Gao J, Zhao J, Xu C, Li X, Wang S (2010) Development of rice germplasms conferring high-level and broad-spectrum resistance to Xanthomonas oryzae pv. oryzae at both seedling and adult stages. Mol Plant Breeding 8:420–425

    CAS  Google Scholar

  5. Jones JD, Dangl JL (2006) The plant immune system. Nature 444:323–329

    CAS  Article  Google Scholar

  6. Kaneda T, Taga Y, Takai R, Iwano M, Matsui H, Takayama S, Isogai A, Che FS (2009) The transcription factor OsNAC4 is a key positive regulator of plant hypersensitive cell death. EMBO J 28:926–936

    CAS  Article  Google Scholar

  7. Ke Y, Liu H, Li X, Xiao J, Wang S (2014) Rice OsPAD4 functions differently from Arabidopsis AtPAD4 in host-pathogen interactions. Plant J 8:619–631

    Article  Google Scholar

  8. Li H, Li X, Xiao J, Wing RA, Wang S (2012) Ortholog alleles at Xa3/Xa26 locus confer conserved race-specific resistance against Xanthomonas oryzae in rice. Mol Plant 5:281–290

    CAS  Article  Google Scholar

  9. Libault M, Zhang XC, Govindarajulu M, Qiu J, Ong YT, Brechenmacher L, Berg RH, Hurley-Sommer A, Taylor CG, Stacey G (2010) A member of the highly conserved FWL (tomato FW2.2-like) gene family is essential for soybean nodule organogenesis. Plant J 62:852–864

    CAS  Article  Google Scholar

  10. Lorrain S, Vailleau F, Balagué C, Roby D (2003) Lesion mimic mutants: keys for deciphering cell death and defense pathways in plants? Trends Plant Sci 8:263–271

    CAS  Article  Google Scholar

  11. Mei C, Qi M, Sheng G, Yang Y (2006) Inducible overexpression of a rice allene oxide synthase gene increases the endogenous jasmonic acid level, PR gene expression, and host resistance to fungal infection. Mol Plant-Microbe Interact 19:1127–1137

    CAS  Article  Google Scholar

  12. Niño-Liu DO, Ronald PC, Bogdanove AJ (2006) Xanthomonas oryzae pathovars: model pathogens of a model crop. Mol Plant Pathol 7:303–324

    Article  Google Scholar

  13. Qiu D, Xiao J, Ding X, Xiong M, Cai M, Cao Y, Li X, Xu C, Wang S (2007) OsWRKY13 mediates rice disease resistance by regulating defense-related genes in salicylate- and jasmonate-dependent signaling. Mol Plant-Microbe Interact 20:492–499

    CAS  Article  Google Scholar

  14. Romero-Puertas MC, Palma JM, G’omez M, del Rio LA, Sandalio LM (2002) Cadmium causes the oxidative modification of proteins in pea plants. Plant Cell Environ 25:677–686

    CAS  Article  Google Scholar

  15. Schwacke R, Hager A (1992) Fungal elicitors induce a transient release of active oxygen species from cultured spruce cells that is dependent on Ca2+ and protein-kinase activity. Planta 187:136–141

    CAS  Article  Google Scholar

  16. Song WY, Lee HS, Jin SR, Ko D, Martinoia E, Lee Y, An G, Ahn SN (2015) Rice PCR1 influences grain weight and Zn accumulation in grains. Plant Cell Environ 38:2327–2339

    CAS  Article  Google Scholar

  17. Song WY, Martinoia E, Lee J, Kim D, Kim DY, Vogt E, Shim D, Choi KS, Hwang I, Lee Y (2004) A novel family of cys-rich membrane proteins mediates cadmium resistance in Arabidopsis. Plant Physiol 135:1027–1039

    CAS  Article  Google Scholar

  18. Takai R, Isogai A, Takayama S, Che FS (2008) Analysis of flagellin perception mediated by flg22 receptor OsFLS2 in rice. Mol Plant-Microbe Interact 21:1635–1642

    CAS  Article  Google Scholar

  19. White PJ, Broadley MR (2009) Biofortification of crops with seven mineral elements often lacking in human diets - iron, zinc, copper, calcium, magnesium, selenium and iodine. New Phytol 182:49–84

    CAS  Article  Google Scholar

  20. Withers PJA, Lord EI (2002) Agricultural nutrient inputs to rivers and groundwaters in the UK: policy, environmental management and research needs. Sci Total Environ 282:9–24

    Article  Google Scholar

  21. Yamanaka T, Nakagawa Y, Mori K, Nakano M, Imamura T, Kataoka H, Terashima A, Iida K, Kojima I, Katagiri T, Shinozaki K, Iida H (2010) MCA1 and MCA2 that mediate Ca2+ uptake have distinct and overlapping roles in Arabidopsis. Plant Physiol 152:1284–1296

    CAS  Article  Google Scholar

  22. Zhao FJ, McGrath SP, Meharg AA (2010) Arsenic as a food chain contaminant: mechanisms of plant uptake and metabolism and mitigation strategies. Annu Rev Plant Biol 61:535–559

    CAS  Article  Google Scholar

Download references


Not applicable.


This work was supported by grants from the National Key Research and Development Program of China (2016YFD0100903) and the National Natural Science Foundation of China (31501618).

Author information




BL and SYS designed and performed most of the experiments, analyzed the data, drafted the manuscript; XMG analyzed OsFWL5 sequence diversity; MXW and YD helped to generate transgenic rice plants and pathogen inoculation; QZ, JX, and XL provided biochemical and molecular analysis support and management; YGK and SW supervised the project, designed some of the experiments, interpreted data, revised the manuscript. All authors read and approved the final manuscript.

Corresponding authors

Correspondence to Yinggen Ke or Shiping Wang.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Additional files

Additional file 1:

Figure S1. Expression patterns of OsFWL5 in rice susceptible and resistant reactions. Figure S2. osfwl5 genotype characterization. Figure S3. Performance of osfwl5 plants. Figure S4. Comparison of OsFWL5 amino acid sequences. (PPTX 103 kb)

Additional file 2:

Table S1. PCR primers used for construction of vectors, detection of positive transgenic plants, mutant analysis, and sequencing. Table S2. Primers used for quantitative PCR in gene expression analysis. (DOC 43 kb)

Additional file 3:

Materials and Methods. (DOC 37 kb)
