Interactions between the oomycete Pythium arrhenomanes and the rice root-knot nematode Meloidogyne graminicola in aerobic Asian rice varieties

Abstract

Background

Aerobic rice fields are frequently infested by pathogenic oomycetes (Pythium spp.) and the rice root-knot nematode Meloidogyne graminicola. Here, the interaction between Pythium arrhenomanes and Meloidogyne graminicola was studied in rice roots of two aerobic rice varieties. In different experimental set-ups and infection regimes, plant growth, rice yield, Pythium colonization, as well as establishment, development and reproduction of M. graminicola were studied.

Results

In this study, it is shown that the presence of P. arrhenomanes delays the establishment, development and reproduction of M. graminicola compared to single nematode infected plants. The delay in establishment and development of M. graminicola becomes stronger with higher P. arrhenomanes infection pressure.

Conclusions

Our data indicate that P. arrhenomanes antagonizes M. graminicola in the rice root and that the plant benefits from this antagonism as shown by the yield data, especially when either of the pathogens is present in high levels.

Background

Asian rice (Oryza sativa L.) is traditionally cultivated in paddy fields where the plants are grown anaerobically in a layer of water. This cultivation system uses a large quantity of the available water in rice-producing countries, especially in Asia (Peng et al. 2006). To utilize water more efficiently, rice farmers are increasingly adopting less water-consuming farm practices. The aerobic rice production system is considered one of the most promising adaptation strategies to grow more rice with less water and to react effectively to the looming water crisis (Tuong and Bouman 2003). In the last decennia, aerobic Asian rice varieties have been bred that can compete in yield with traditional rice varieties (Bouman et al. 2005; Lafitte et al. 2002; Sandhu et al. 2013). However, continuous cropping of aerobic rice in the same field resulted in yield decline (Peng et al. 2006), rapid yield losses (George et al. 2002), and even yield failure (Kreye et al. 2009b). The cause of these reductions in yield is still unclear but there are increasing indications that root pathogens that can build up large population densities on aerobic rice may be the most important factors affecting growth and yield of tropical aerobic rice (Peng et al. 2006; Kreye et al. 2009a; Kreye et al. 2009b). Common root pathogens found in aerobic rice fields are oomycetes (Pythium spp.) and the rice root-knot nematode Meloidogyne graminicola (Kreye et al. 2009b).

Plant pathogenic Pythium species are known to colonize seeds, seedlings and young plant tissues, causing pre- and post-emergence damping off. Infection is most often not lethal but may result in wilting and stunting of rice seedlings, and yield decline (Martin and Loper 1999). Van Buyten et al. (2013) isolated and identified three Pythium species (i.e., P. inflatum, P. graminicola, and P. arrhenomanes) associated with plant growth reduction of aerobic rice in the Philippines, of which Pythium arrhenomanes was shown to be the most virulent species. These Pythium species have been isolated from a wide range of economically important crops (including maize, barley, sorghum and sugarcane), but can also thrive on wild grasses and weeds (Van Buyten et al. 2013). Chun & Schneider (1998), studying the infection cycle of Pythium spp. on rice seeds and seedlings, noticed that the zoospores were selectively attracted towards germinating rice embryos and colonized the primary radicle. Plants infected with Pythium spp. three days after germination showed less stunting than earlier infected plants, indicating an increased resistance and/or tolerance in older plants. An in vitro study by Van Buyten & Höfte (2013) showed that hyphae of P. arrhenomanes grow intracellularly and colonize the cortical and endodermal cells within 27 h after infection. Subsequently, hyphae colonize the xylem, thus blocking water transportation to the shoot, resulting in stunting.

Meloidogyne graminicola is one of the most predominant nematode species associated with Asian rice. It has been found in every country in South and Southeast Asia surveyed so far (Soriano and Reversat 2003; De Waele et al. 2013; De Waele and Elsen 2007). Meloidogyne graminicola is a sedentary endoparasitic nematode and rice infection is characterized by hook-shaped galls (root-knots), mainly on the root tips (Kyndt et al. 2014). Under optimal conditions, the duration of its life cycle is 2 to 4 weeks at ambient temperatures of 25-35 °C (Fernandez et al. 2013; Plowright and Bridge 1990). After establishing a feeding site in the root vascular tissue, the infective second-stage juveniles (J2) molt three times to become mature, swollen females which lay eggs inside the roots (Kyndt et al. 2014). The feeding site consists of so-called giant cells surrounding the head of the female. These cells act as a metabolic sink to provide the female with nutrients. Parasitism by M. graminicola deforms the vascular tissue thus limiting water and nutrient transport and this may lead to reduced plant growth and lower yield (Padgham et al. 2004; Vovlas et al. 2005).

Under field conditions, a variety of pathogens may attack a crop. However, studies on interactions between these biotic stress factors are usually scarce (Atkinson and Urwin 2012). Although infections by Meloidogyne spp. and Pythium spp. frequently co-occur in rice fields, their interaction has not been studied. Nevertheless, interactions between Pythium species and plant-parasitic nematodes have been described on chrysanthemum (Johnson and Littrell 1970), tobacco (Khan and Haque 2013), and sugarcane (Bond et al. 2004). In sugarcane, P. arrhenomanes was able to suppress the reproduction of the ectoparasitic nematodes Tylenchorhynchus annulatus and Mesocriconema xenoplax, but not of Paratrichodorus minor. In contrast, P. arrhenomanes colonization was inhibited by high infection with a mixture of the three ectoparasitic nematodes (Bond et al. 2004). Pythium aphanidermatum was able to suppress the egg production of Meloidogyne incognita, but not of Belonolaimus longicaudatus in chrysanthemum. However, when both nematodes and the oomycete were present, plant disease became more severe compared to single infections showing a synergistic interaction between the oomycete and the two nematodes (Johnson and Littrell 1970). In tobacco, a P. aphanidermatum population in the soil became significantly larger in the presence of M. incognita, whereas the nematode population in soil decreased in the presence of the oomycete. In the roots a similar interaction was observed, where P. aphanidermatum reduced root galling compared to M. incognita alone and M. incognita accelerated the pathogenesis of P. aphanidermatum. However, the plant growth was more reduced when both pathogens were present (Khan and Haque 2013).

The objectives of our research were to (i) investigate if there is an interaction between P. arrhenomanes and M. graminicola in rice, (ii) study the population dynamics of both pathogens and their interaction in two different rice varieties throughout a rice crop cycle in the Philippines, and (iii) to examine the interaction between both pathogens using different inoculation schemes.

Results

In a preliminary phytotron experiment, plant growth and yield was evaluated in single and double infected rice of the variety IR81413-BB-75-4 in comparison with un-inoculated plants (Additional file 1: Fig. S1). The plants in sterile soil were on average 20 % taller than the plants infected with either Pythium arrhenomanes or Meloidogyne graminicola alone or in combination (Additional file 1: Fig. S1A). At 17 days after germination (DAG), P. arrhenomanes infected plants were also significantly (p = 0.003) smaller compared to the single M. graminicola infected plants. However, this difference disappeared at later time points. At harvest, the grain weight of the plants infected only with P. arrhenomanes was similar to the grain weight of the control plants (Additional file 1: Fig. S1B), while plants infected with M. graminicola alone had a 47 % lower grain weight (p = 0.05) compared to the control plants. The grain weight of the plants infected both with P. arrhenomanes and M. graminicola was not significantly different from the grain weight of the control plants.

Raised bed experiment

A raised bed experiment was set up to evaluate the population dynamics of M. graminicola and the presence of P. arrhenomanes in roots of two aerobic rice varieties, Palawan (Fig. 1) and IR81413-BB-75-4 (Fig. 2). In a first treatment, natural infection was used (Natural infestation), while a second treatment was additionally inoculated with extra P. arrhenomanes (Natural + P. arrhenomanes) to enhance its infection pressure. Control plants, grown in sterilized soil, had at several evaluated time points significantly higher root weight compared to the two infested treatments for both varieties (Figs. 1a & 2a), although this was not consistent throughout the growth season. Under natural infection pressure, P. arrhenomanes DNA could only be detected at 10 and 60 days after transplantation (DAT) in Palawan (Fig. 1a, Additional file 2: Figure S3A), and only at 60 DAT in IR81413-BB-75-4 (Fig. 2a, Additional file 2: Figure S3B). Under higher infection pressure, P. arrhenomanes could be detected at all measured time points (10, 20, 45 & 60 DAT; Additional file 2: Fig. S3A, B).

Fig. 1

Growth variables of Palawan in raised bed. Sterilized soil = soil taken from field B912 and steamed; Natural infestation = soil taken from field B912 and; Natural infestation + P. arrhenomanes = B912 soil with additional P. arrhenomanes inoculation. a Fresh root weight over the cropping season. †‡ indicate the presence of Pythium arrhenomanes DNA in rice roots in naturally infested soil (bottom row) and naturally infested soil + P. arrhenomanes, (top row) respectively. bd indicates that the level of Pythium arrhenomanes DNA in rice roots is below detection. b Gall scoring on a scale of 5; 0 = 0 %, 1 = <10 %, 2 = 10-25 %, 3 = 26-50 %, 4 = 51-75 %, 5 = 75 < % of roots infected with galls. c Population dynamics of Meloidogyne graminicola juveniles in rice roots (n = 4 to 8). d Number of galls, e number of nematodes and f their developmental stages at 20 days after transplanting. Statistics were performed with One-way ANOVA Duncan test (α = 0.05; a, b, c) or Mann-Whitney U test (α = 0.05; d, e, f), different letters indicate significant differences. Error bars are the standard error (n = 4 to 8 for a, b, c; n = 15 for d, e, f)

Fig. 2

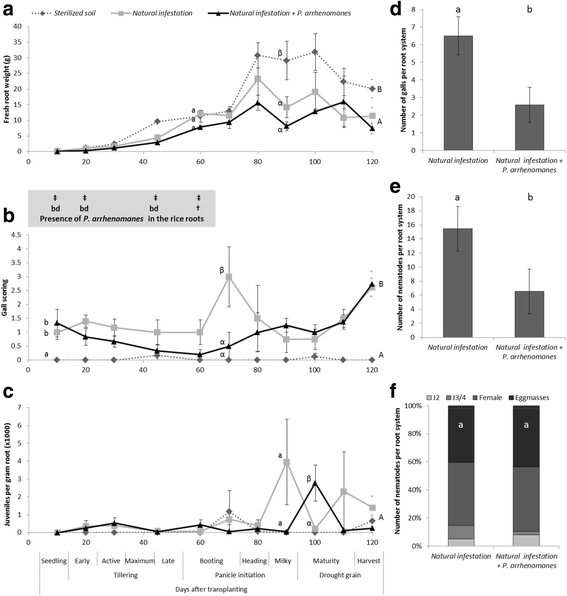

Growth variables of IR881413-BB-75-4 in raised bed. Sterilized soil = soil taken from field B912 and steamed; Natural infestation = soil taken from field B912 and; Natural infestation + P. arrhenomanes = B912 soil with additional P. arrhenomanes inoculation. a Fresh root weight over the cropping season. †‡ indicate the presence of Pythium arrhenomanes DNA in rice roots in naturally infested soil (bottom row) and naturally infested soil + P. arrhenomanes, (top row) respectively. bd indicates that the level of Pythium arrhenomanes DNA in rice roots is below detection. b Gall scoring on a scale of 5; 0 = 0 %, 1 = <10 %, 2 = 10-25 %, 3 = 26-50 %, 4 = 51-75 %, 5 = 75 < % of roots infected with galls. c Population dynamics of Meloidogyne graminicola juveniles in rice roots. d Number of galls, e number of nematodes and f their developmental stages at 20 days after transplanting. Statistics were performed with One-way ANOVA Duncan test (α = 0.05; a, b, c) or Mann-Whitney U test (α = 0.05; d, e, f), different letters indicate significant differences. Error bars are the standard error (n = 4 to 8 for a, b, c; n = 15 for d, e, f)

Population dynamics of M. graminicola was evaluated by gall scoring on the rice roots (Figs. 1b & 2b) and by extracting J2 from the roots during the crop cycle (Figs. 1c & 2c). For both rice varieties, a distinct peak in number of J2 per gram of root was observed in the naturally infested soil at the milky stage of plant development (90 DAT). This peak was delayed by 10 days in the raised beds where an additional P. arrhenomanes inoculation was performed. For both varieties a peak in gall scoring could be observed 20 days preceding the J2 peaks under naturally infested soil, while with an additional P. arrhenomanes inoculation the gall scoring peak preceded the J2 peaks with only 10 days.

The number of galls, nematodes and the developmental stages of M. graminicola were assessed at 20 DAT, after about one life cycle of M. graminicola. A significant (p ≤ 0.006) decrease in number of galls (Figs. 1d & 2d) and total number of nematodes (Figs. 1e & 2e) was observed in plants grown in soil with additional P. arrhenomanes inoculation, compared to plants grown in naturally infested soil. There was no shift in nematode development observed at this time point (Figs. 1f & 2f).

Panicle emergence started at 64 DAG in Palawan, and 2 weeks later in IR81413-BB-75-4. Figure 3 shows data of the panicle emergence of both varieties, recorded at 83, 90 DAG, and at harvest (120 DAG). At 83 and 90 DAG, the plants in the naturally infested soil showed the same panicle emergence pattern as plants grown in un-inoculated, sterilized soil. In contrast, for both varieties we observed a significant (p ≤ 0.021) delay in panicle emergence in the soil with high P. arrhenomanes infection pressure, where 7.5 (Palawan) and 3 times (IR81413-BB-75-4) less panicles were observed at 83 DAG compared to the control plants. This delay was still observed at 90 DAG in Palawan. However, at 120 DAG, no significant differences in the number of panicles were observed for Palawan. In contrast, for IR81413-BB-75-4, plants grown in sterilized soil had 2.2 times more panicles at harvest compared to plants grown in infested soils.

Fig. 3

Yield data of raised bed experiment for Palawan a, c, e and IR81413-BB-75-4 b, d, f. Sterilized soil = soil taken from field B912 and steamed; Natural infestation = soil taken from field B912 and; Natural infestation + P. arrhenomanes = B912 soil with additional P. arrhenomanes inoculation. a, b Panicle emergence at 83, 90 and 120 days after germination. Four independent samples were taken (n = 4), each consisting of a pool of 30 plants for the first two time points, at harvest 12 plants were sampled (n = 12). c, d Filled grain weight per plant (n = 12). e, f Number of filled grains per plant (n = 12). Statistics were performed with Mann-Whitney U test (α = 0.05), different letters indicate significant differences. Error bars are the standard error

At harvest the filled grain weight (Fig. 3c,d) and number of filled grains (Fig. 3e, f) were evaluated. For Palawan, plants grown in naturally infested soils showed a reduction in grain weight compared to the plants grown in sterilized soil, although this effect was not significant (p = 0.057). This effect was however not observed with higher Pythium infection pressure (p = 0.644). For IR81413-BB-75-4, no difference in yield was observed between plants grown in sterilized soil and naturally infested soils (p ≥ 0.603).

Greenhouse experiments

To confirm and extend the observations made in the phytotron and raised beds experiments, an experiment was performed under controlled conditions in a greenhouse. Here, several artificial inoculation treatments were compared; (i) un-inoculated control; (ii) M. graminicola inoculated; (iii) P. arrhenomanes inoculated; (iv) P. arrhenomanes + M. graminicola; (v) M. graminicola + P. arrhenomanes 6 days later; and (vi) P. arrhenomanes + M. graminicola 5 days later.

All treatments with M. graminicola were sampled at 15 and 20 days after infection (DAI) to assess the nematode development. For both rice varieties, the number of nematodes were significantly (p ≤ 0.029) lower in all treatments where Pythium was co-infected, in comparison with single nematode inoculation (Figs. 4a, 5a & Additional file 3: Figure S2A,B). The same observations were made for the number of galls (Figs. 4b, 5b & Additional file 3: Figure S2C,D), although there was no significance for Palawan at 15 DAI (Fig. 4b). Pre-, post- and simultaneous inoculation of P. arrhenomanes in respect to M. graminicola inoculation did not influence these observations. In both varieties, the single nematode infected roots show significantly more developed nematodes compared to the plants infected with both pathogens, regardless of the inoculation regime (Figs. 4c, 5c & Additional file 3: Figure S2E,F). The level of P. arrhenomanes colonization was similar between P. arrhenomanes single infected roots and double infected roots (Additional file 2: Fig. S3C).

Fig. 4

Nematode infection data and yield of Palawan in greenhouse under different infection schemes. a Total number of nematodes, b number of galls, and c the developmental stages of M. graminicola per plant at 15 days after infection. d Average number of juveniles extracted from rice roots at 54 days after infection from M. graminicola single infection and M. graminicola + P. arrhenomanes infection. The numbers in the bars are the Pf/Pi-values (Final population/ initial population). e Filled grain weight per plant (n = 12). Statistics were performed with Mann-Whitney U test (α = 0.05), different letters indicate significant differences (n = 12). Statistics for c were performed by giving each group a total score; where the percentage of each stage has a value; J2 = 1; J3/J4 = 2; Females = 3; and Females with Egg masses = 4. Error bars are the standard error

Fig. 5

Nematode infection data and yield of IR881413-BB-75-4 in greenhouse under different infection schemes. a Total number of nematodes, b number of galls, and c the developmental stages of M. graminicola per plant at 15 days after infection. d Average number of juveniles extracted from rice roots at 54 days after infection from M. graminicola single infection and M. graminicola + P. arrhenomanes infection. The numbers in the bars are the Pf/Pi-values (Final population/ initial population). e Filled grain weight per plant (n = 12). Statistics were performed with Mann-Whitney U test (α = 0.05), different letters indicate significant differences (n = 12). Statistics for c were performed by giving each group a total score; where the percentage of each stage has a value; J2 = 1; J3/J4 = 2; Females = 3; and Females with Egg masses = 4. Error bars are the standard error

At 54 DAI, which theoretically corresponds to the 3rd generation of M. graminicola, juveniles were extracted. The number of extracted juveniles and the corresponding Pf/Pi-values are shown in Figs. 4d & 5d. When comparing the single M. graminicola infected plants of both varieties, the reproduction rate of M. graminicola is about 70 % higher in Palawan compared to IR81413-BB-75-4. In Palawan, a significantly (p = 0.002) lower number of juveniles and a 5.5 times lower nematode reproduction rate was recorded from roots where both pathogens are present compared to single M. graminicola infected roots. In IR81413-BB-75-4 there is a similar trend, although the difference is not significant (p = 0.534).

As a measure of rice yield, the filled grain weight was evaluated at the end of the experiment (Figs. 4e & 5e). For IR81413-BB-75-4, the various inoculation regimes did not significantly influence the grain weight. Palawan plants infected with M. graminicola produced the same yield as the un-inoculated control plants. For Palawan, there was a significant (p = 0.008) reduction in filled grain weight after P. arrhenomanes single infection compared to the sterilized control. However, in combination with M. graminicola, P. arrhenomanes did not cause significant yield losses in this variety (p ≥ 0.129).

Discussion

Numerous studies on rice pathogens have been done, but there have been few reports on root pathogens and their interactions. Here we report that P. arrhenomanes antagonize M. graminicola in the rice root, an antagonism from which the plant benefits.

When focusing on grain yield, the antagonistic effect of Pythium presence negatively affecting M. graminicola was seen most clearly in the preliminary phytotron experiment with variety IR81413-BB-75-4, where the grain yield was reduced after M. graminicola single infection, whereas plants infected with both pathogens showed a similar yield as the control plants. The reason why the antagonism was seen most clearly in this set-up is most likely due to the high infection pressure of both pathogens in this system. The direct seeding technique used in this experiment will promote P. arrhenomanes colonization since seeds and young seedlings are more susceptible to P. arrhenomanes compared to older seedlings. Within the first 4 days after germination rice seedlings become resistant to Pythium spp. (Chun and Schneider 1998; Halpin and Hanson 1958; Van Buyten 2013). Therefore it is likely that P. arrhenomanes was able to colonize the roots to a higher extent in the phytotron experiment and antagonized M. graminicola more effectively.

In support of this, our raised bed experiment confirmed that mainly under high infection pressure, P. arrhenomanes is able to reduce nematode establishment, root galling and delay nematode development. The population of M. graminicola showed a single peak in number of J2 at the milky stage of plant development (90 DAT), with a delay of 10 days when plants where grown under high P. arrhenomanes infection pressure. A previous population dynamics study on M. graminicola by Win et al. (2013) showed two distinctive peaks throughout the crop cycle, with a 1st peak at the maximum tillering stage and a 2nd peak around the heading stage. Both studies were done in different countries under different conditions with naturally infested soil, which makes it difficult to compare the data. The delaying effect of P. arrhenomanes on the M. graminicola development was confirmed under greenhouse conditions, where fewer galls and a delay in nematode development inside the roots were observed when both pathogens were present together. Similar observations were made while studying Meloidogyne spp. and Pythium spp. interactions on chrysanthemum (Johnson and Littrell 1970) and tobacco (Khan and Haque 2013). An interaction study with P. arrhenomanes and the migratory ectoparasitic nematode Tylenchorhynchus annulatus showed a significantly decreased reproduction rate of the nematode when co-inoculated with a high oomycete inoculum (Bond et al. 2004), revealing that this antagonism is not only limited to sedentary nematodes. However, no negative effect of P. arrhenomanes on reproduction of ectoparasitic nematode Belonolaimus longicaudatus was observed in chrysanthemum (Johnson and Littrell 1970).

Next to a delay in nematode development when P. arrhenomanes is present in the soil, we observed a general negative effect of P. arrhenomanes on nematode penetration and/or feeding site initiation. This might be caused by a potential negative influence of P. arrhenomanes on the attractiveness of the roots. Root attractiveness is mainly determined by root exudates (Bais et al. 2006). A study with two fungal species (i.e., Cochliobolus sativus and Fusarium culmorum) showed that volatile organic compounds (VOCs) from the roots affected the growth of one fungus when barley roots were infected with the other fungus (Fiers et al. 2013). No data are currently available on alteration of the root exudates by P. arrhenomanes colonization, but this hypothesis deserves further investigation.

However, changes in root exudates might not be the only explanation for the observed antagonism. In the greenhouse experiment, we observed that the inoculation order of P. arrhenomanes and M. graminicola did not influence the level of antagonism. It was remarkable that, compared with single nematode inoculated plants, significantly less galls and nematodes were found in plants infected with P. arrhenomanes, even if the P. arrhenomanes inoculation was done 6 days after nematode inoculation. Under optimal conditions M. graminicola infects within the first days, with visible galls at 3 days after infection. These data indicate that either the plant is not able to provide enough nutrients to the nematodes to maintain a feeding site or that P. arrhenomanes might be able to disintegrate the feeding sites. This hypothesis is supported by histological studies of Melendez and Powell (1967), who showed that Fusarium can colonize nematode-induced giant cells. Since Pythium spp. are known to colonize the vascular tissue (Van Buyten and Höfte 2013; Yadeta and J. Thomma 2013), a colonization of the nematode feeding site might explain the here-reported antagonism.

An alternative explanation could be that the nematodes leave P. arrhenomanes colonized roots because the root’s nutritional capacity is weakened. A recent study by Ji et al. (2014) showed that rice roots treated with defense elicitor β-aminobutyric acid 2 days post M. graminicola infection, had slightly less nematodes inside the roots than non-treated plants. In addition, the number of M. incognita juveniles in the roots of resistant alfalfa decreased significantly at 8 days after infection compared to a susceptible alfalfa variety (Griffin and Elgin 1977). These reports and our data indicate that Meloidogyne spp. could emigrate from the roots when conditions are unfavorable even up to 8 days after infection. However, since this hypothesis contradicts with the general knowledge that juveniles of Meloidogyne spp. become sedentary at 2-3 days after rice root infection (Bridge et al. 2005), we believe that nematode emigration at 6 days after nematode inoculation is rather unlikely.

M. graminicola secretes a variety of enzymes in the giant cells that degrade cellulose, hemi-cellulose or pectin for easier digestion (Gheysen and Mitchum 2011). In cotton, it has been demonstrated that alterations in the xylem fluid caused by M. incognita infection lead to enhanced spore germination of Fusarium and Verticillium (Minton and Minton 1963). Similarly, P. arrhenomanes could potentially take advantage of the cellular degradation products released by nematode migration and feeding, resulting in fewer nutrients available for M. graminicola, hence leading to a slower nematode development. It should however be noted that a higher P. arrhenomanes density in the soil in the raised bed experiment did not delay the development of M. graminicola any further. Based on the fact that Pythium spp. infect only young plants and its presence is hard to detect beyond seedling stage (Chun and Schneider 1998), our analyses focused less on the potential of M. graminicola negatively affecting P. arrhenomanes colonization. However, yield parameters are useful parameters to evaluate P. arrhenomanes damage on rice plants. Yield data from the greenhouse experiment shows that Palawan suffered strongly from the single P. arrhenomanes infection, but this effect was generally less severe when both pathogens are present, indicating that M. graminicola also antagonizes P. arrhenomanes in rice roots. This could however not be confirmed by quantification of P. arrhenomanes DNA in the plant roots in the greenhouse experiment, were P. arrhenomanes DNA levels were similar between P. arrhenomanes single infected plants and P. arrhenomanes + M. graminicola double infected plants (Additional file 2: Figure S3C).

Quantitative PCR revealed that P. arrhenomanes DNA concentrations in the root system were generally below the detection limit in roots grown in naturally infested soil, whereas P. arrhenomanes DNA could be detected in most roots grown in soil with additional P. arrhenomanes colonization (Additional file 2: Fig. S3A,B). The level of P. arrhenomanes DNA in the roots has been studied previously in vitro by Van Buyten et al. (2013), who showed that P. arrhenomanes levels reached between 179 to 590 pg/ng total DNA within 3 days of infection, causing severe stunting and seedling death at 10 days after infection. In our study the P. arrhenomanes DNA levels ranged from 100 to 300 pg/ng total DNA (Additional file 2: Fig. S3), but seedling death could not be observed. The fact that P. arrhenomanes did not have any visual effect on the rice seedlings might be due to the transplanting of 7 day old seedlings. Chun and Schneider (1998) studied pathogenicity of Pythium species in rice seedlings and described an increased resistance of rice seedlings towards Pythium species starting 4 days after germination. In older plants, root colonization by Pythium spp. has not been described. However, here we demonstrate that P. arrhenomanes is able to colonize the roots of 7 days-old rice plants under field conditions, and that P. arrhenomanes DNA is detectable in the root system up to 60 days after transplanting, while only causing yield losses in Palawan in the greenhouse experiment. In the field, Pythium species were re-isolated from rice roots up to 68-77 days after sowing, with positive ITS identification for P. arrhenomanes at 37 days after sowing (personal communication; Banaay, G.). This shows that P. arrhenomanes remains viable in mature plants.

From our experiments it can be concluded that both varieties are susceptible to both pathogens, as P. arrhenomanes could be detected in the roots of both varieties in the raised bed experiment and high nematode population densities and severe root galling by M. graminicola was observed in all experiments. Severe root galling is usually related with high yield loss (personal communication; De Waele, D.), but based on the yield data of the greenhouse experiment it can be concluded that both varieties are tolerant to M. graminicola. The tolerance of Palawan to M. graminicola observed in the greenhouse experiment contradicts the results of a study by De Waele et al. (2013), where Palawan was shown to be sensitive to M. graminicola. Tolerance of rice varieties towards M. graminicola is difficult to confirm, as it depends on many factors (personal communications; De Waele, D.). Tolerance towards P. arrhenomanes also depends on different factors, as Palawan showed to be sensitive to P. arrhenomanes in the greenhouse experiment, but in the raised bed experiment a high P. arrhenomanes pressure gave a similar filled grain weight as un-inoculated plants.

Conclusions

Overall the here-reported experiments show that P. arrhenomanes antagonizes M. graminicola in the rice root system. The underlying mechanisms are however still unclear and molecular, biochemical and histopathological techniques are required to give more insight. In practice it might be interesting to introduce P. arrhenomanes into the soil when the seedlings are more mature and hence resistant to Pythium, as a strategy to prevent nematode damage on nematode susceptible rice varieties. P. arrhenomanes is still able to enter the roots, but will not cause any reduction on grain yield, if the variety has a certain tolerance to P. arrhenomanes. Our data indicates that in variety Palawan M. graminicola can alleviate yield losses caused by P. arrhenomanes infection. On the other hand, in both varieties P. arrhenomanes can suppress nematode establishment, development and reproduction, ultimately reducing yield losses caused by M. graminicola.

Methods

Preparation of pathogen inoculum

Pythium arrhenomanes (PT60), isolated from an aerobic rice field in Tarlac, Philippines (Van Buyten et al. 2013), was maintained in water agar plugs submerged in sterile distilled water and kept at 15 °C. Working cultures were revived on potato dextrose agar (PDA) and incubated at 28 °C. Final inocula were prepared by inoculating one-fourth of a 3-days-old PDA plate into a glass jar containing 150 g sterile rice grain:rice hull (RG:RH, 1:3) substrate for 7 days.

Meloidogyne graminicola, isolated from infected Asian rice roots from Tarlac and Batangas, Philippines, were maintained on roots of the susceptible Asian rice variety UPLRi-5 at the International Rice Research Institute (IRRI), Los Baños, Philippines. The Tarlac population was used for the phytotron experiment, the Batangas population for the raised bed and greenhouse experiments. Second-stage infective juveniles (J2) were extracted from 3-month-old infected plants by incubation in a mistifier for 48 h (Seinhorst 1962).

Preparation of plants and soil

Two Asian rice varieties were included in the experiments: the traditional upland variety Palawan (GID 48535, IRRI) and the breeding line IR81413-BB-75-4, which showed respectively synergism and antagonism between the two pathogens in preliminary experiments (Kreye et al. 2010). Seeds were supplied by the Plant Breeding, Genetics and Biotechnology Division of IRRI. Before germination, the seeds were incubated for 5 days at 45 °C to break the dormancy. For the raised bed and greenhouse experiments, seeds were germinated in a layer of fresh water for 7 days at 29/26 °C and a 14/10 h light/dark regime before transplanting. For the phytotron experiment direct seeding was performed.

Soil used in the experiments was taken from the top layer (21 cm) of field B912, part of the experimental farm of IRRI at Los Baños. The soil was a clay loam (45 % silt, 34 % clay and 21 % sand). Natural populations of M. graminicola and Pythium spp. had been observed in this field before (Banaay et al. 2010). The presence of M. graminicola was quantified to 0.35 juveniles per mL soil. Rice variety UPLRi-5 was grown during the season prior to the collection of the soil, to maintain the pathogen populations in the field. Prior to the experiment, weeds were collected from field B912 to verify the presence of both pathogens in the soil. Typical hook-shaped root galls were observed on the root tips of the weeds. The presence of P. arrhenomanes was confirmed by cutting discolored roots in 1-cm-pieces and surface-sterilized in 5 % hypochlorite for 1 min. Afterwards they were blotted dry and plated on PDA supplemented with 200 mg/L streptomycin. Hyphae emerging from the roots were transferred to fresh plates and grown for identification. Identification was done by PCR according to Van Buyten & Höfte (2013) with P. arrhenomanes (PT60) specific primers in the ITS region (Forward 5’-ATTCTGTACGCGTGGTCTTCCG-3’; Reverse 5’-ACCTCACATCTGCCATCTCTCTCC-3’). This pre-experiment analysis confirmed the natural presence of both pathogens in field B912.

Fertilizer was applied in three parts during the experiments: at 14 days after germination (DAG), 30-35 DAG (at mid-tillering) and 45-50 DAG (at panicle initiation). For the phytotron experiment N, P, K, Zn and Fe at 120:60:40:20:20 kg/ha were applied, whereas for the raised bed and greenhouse experiment N, P, K was applied at 120:40:40 kg/ha final concentration. Plants were watered daily to maintain water tension at field capacity (-10 to -30 kPa at a depth of 15 cm).

Phytotron experiment set-up

Soil of field B912 was steam-sterilized for 8 h at 100 °C. In this experiment, the interaction of P. arrhenomanes and M. graminicola on IR81413-BB-75-4 was examined using chopped UPLRi-5 root pieces infected with M. graminicola as a nematode inoculum. Infected roots were cut in 1-cm-pieces and 5 g (determined to be equivalent to 1,000 J2) was mixed per kg soil in the upper 1/3 portion of the soil in the PVC pots. Seven day old P. arrhenomanes grain:rice hull mixture was incorporated into sterile potting soil at a ratio of 1:20 (inoculum:soil). The same amount of sterile un-inoculated soil was added to the control plants.

After pathogen inoculation in the soil, seeds were directly sown in the pots. Two seeds each were planted at 2-3 cm depth in four equally spaced points in 6-kgs-capacity cylindrical PVC pots. Treatments were as follows: (i) un-inoculated control, (ii) inoculation with P. arrhenomanes, (iii) inoculation with M. graminicola, and (iv) inoculation with P. arrhenomanes + M. graminicola. Three replicates (1 pot = 1 replicate) per treatment were prepared and set-up at the phytotron growth chamber. The pots were arranged in a randomized complete block design (RCBD). The phytotron was set at 29 °C/26 °C day/night cycle.

Plant height was assessed at regular time points during the first 60 days after germination (DAG). At harvest the grain weight was evaluated per replicate of all treatments.

Raised bed experiment set-up

Six adjacent concrete raised beds (each 6.66 m long, 1.05 m wide and 0.21 m deep) were filled with 1500 kg soil from field B912. The raised beds were used to examine three treatments: (i) un-inoculated, steam-sterilized B912 soil as a control treatment, (ii) natural B912 infestation with both P. arrhenomanes and M. graminicola, and (iii) natural B912 infestation with both pathogens plus additional artificial inoculation with P. arrhenomanes. For the artificial Pythium inoculation, 15 kg of 7-days-old rice grain:rice hull (RG:RH, 1:3) was mixed in 1,500 kg soil. As a result, treatment (iii) has a higher P. arrhenomanes pressure (i.e., additional artificial inoculation with P. arrhenomanes PT60), than treatment (ii) (i.e., natural infestation only). The seedlings were spaced 15 cm apart in the raised beds.

Plants were sampled at 10-days-interval during the dry season. Six to eight plants of each genotype and treatment were carefully uprooted and washed under running tap water. Plant growth traits and fresh root weight were determined per plant. Afterwards, roots were cut in 5-mm-pieces and 0.5-1 g of fresh roots was collected for Pythium quantification, the rest was used for nematode extraction. The collected root tissue for Pythium quantification, consisting of six roots, was split in two biological replicates (except at time points 2, 10 & 20 DAG, where the limited material allowed to sample only 1 replicate) and was directly frozen in liquid nitrogen to preserve the DNA. DNA was extracted using the DNeasy Plant Mini Kit (Qiagen). The quality and concentration of the extracted DNA were determined with a Nanodrop 2000 spectrophotometer (Thermoscientific). Quantitive PCR was performed with three technical replicates for each biological replicate. Primers specific for the internal transcribed spacer (ITS) region of the ribosomal DNA (rDNA) of P. arrhenomanes PT60 and primers for plant DNA (reference gene LOC_Os07g02340) were used (Ji et al. 2015; Van Buyten and Höfte 2013). Pure P. arrhenomanes DNA and non-infected plant DNA were used to make standard curves.

At 20 days after transplanting, 12 plants were collected to study the nematode development. Root galling and nematode development were assayed after visualization with acid fuchsin staining. Staining was performed by boiling the roots for 3 min in 0.8 % acetic acid and 0.013 % acid fuchsin, washing under running tap water and destaining in 5:100 mL acidified glycerol. At harvest, 12 plants were collected to determine the plant growth traits and yield from the different treatments.

Greenhouse experiment set-up

Soil of field B912 was steam sterilized for 8 h at 100 °C. Cylindrical PVC pots with a 9 L capacity were filled with 6 kg sieved and sterilized soil from field B912. There were six treatments: (i) un-inoculated control; (ii) M. graminicola inoculation; (iii) P. arrhenomanes inoculation; (iv) P. arrhenomanes + M. graminicola; (v) M. graminicola + P. arrhenomanes 6 days later; and (vi) P. arrhenomanes + M. graminicola 5 days later. One day prior to transplanting, 150 g of RG:RH was mixed per pot (1:40 ratio) for the P. arrhenomanes inoculations. The same amount of sterile un-inoculated soil was added to the other pots. Seven-days-old seedlings were transplanted in four equally spaced points per pot. Soil was watered to near saturation prior to seeding. For the M. graminicola inoculation, 6,000 J2 per pot were inoculated with 750 J2 on each side of the seedlings 1 day after transplanting (DAT). The same inoculation procedures were followed for the P. arrhenomanes-M. graminicola combination treatments.

At two time points, 15 and 20 days after M. graminicola inoculation, 12 plants were collected to study the nematode development. At 54 days after M. graminicola inoculation, J2 were extracted to determine the reproduction rate for two treatments: (ii) M. graminicola single inoculated and (iv) P. arrhenomanes + M. graminicola inoculated. At harvest, 12 plants were collected to determine the plant growth traits and yield.

Statistical analysis

Analyses were performed using SPSS v21 software (IBM, USA). Data were statistically analyzed by analysis of variance (ANOVA) and Duncan test (α = 0.05), when the assumptions of normal distribution and homogeneity of variances were met. Not normally distributed data was log(x + 1)-transformed to meet the assumptions for ANOVA or analyzed with Mann-Whitney non-parametric tests (α = 0.05).
