Characterization and Functional Analysis of Pyrabactin Resistance-Like Abscisic Acid Receptor Family in Rice

Contributed equally
Rice20158:28

https://doi.org/10.1186/s12284-015-0061-6

Received: 13 February 2015

Accepted: 23 July 2015

Published: 11 September 2015

Abstract

Background

Abscisic acid (ABA) plays crucial roles in regulating plant growth and development, especially in responding to abiotic stress. The pyrabactin resistance-like (PYL) abscisic acid receptor family has been identified and widely characterized in Arabidopsis. However, PYL families in rice were largely unknown. In the present study, 10 out of 13 PYL orthologs in rice (OsPYL) were isolated and investigated.

Results

Quantitative reverse transcription-polymerase chain reaction (qRT-PCR) analysis showed that expression of OsPYL genes is tissue-specific and display differential response to ABA treatment, implying their functional diversity. The interaction between 10 OsPYL members and 5 protein phosphatase 2C in rice (OsPP2C) members was investigated in yeast two-hybrid and tobacco transient expression assays, and an overall interaction map was generated, which was suggestive of the diversity and complexity of ABA-sensing signaling in rice. To study the biological function of OsPYLs, two OsPYL genes (OsPYL3 and OsPYL9) were overexpressed in rice. Phenotypic analysis of OsPYL3 and OsPYL9 transgenic rice showed that OsPYLs positively regulated the ABA response during the seed germination. More importantly, the overexpression of OsPYL3 and OsPYL9 substantially improved drought and cold stress tolerance in rice.

Conclusion

Taken together, we comprehensively uncovered the properties of OsPYLs, which may be good candidates for the improvement of abiotic stress tolerance in rice.

Keywords

Rice, ABA receptors PYL Drought stress Cold stress Seed germination

Background

Abscisic acid (ABA) plays pivotal roles in regulating plant growth and development, including seed dormancy, germination, and seedling growth. More importantly, ABA is the key phytohormone that functions in a plant’s response to abiotic stressors such as drought, high salinity, and extreme temperature (Cutler et al. 2010). During abiotic stress, ABA biosynthesis is activated, resulting in an increase in ABA levels in the plant. ABA binds to the pyrabactin resistant-like/regulatory components of ABA receptors, PYL/RCAR (hereafter referred to as PYLs for simplicity), an ABA receptor family that promotes the interaction between PYL with protein phosphatase 2C (PP2C), which then results in the release of SNF1-related protein kinase (SnRK)) from the repression of PP2C. Finally, the active SnRK phosphorylates and activates downstream transcriptional factors that promote the expression of ABA-regulated genes. An ABA signal is then generated, which in turn results in the acquisition of abiotic stress resistance in plants (Ma et al. 2009; Park et al. 2009; Cutler et al. 2010; Klingler et al. 2010). ABA receptor PYL proteins, which contain a conserved steroidogenic acute regulatory-related lipid transfer (START) protein domain, are the core components of this ABA sensing signaling pathway (Ma et al. 2009; Park et al. 2009). To date, PYL proteins have been identified from distinct plant species, including Arabidopsis, rice, tomato, and soybean, which present highly conserved PYL-mediated ABA-sensing signaling pathways (Ma et al. 2009; Park et al. 2009; Kim et al. 2012; Bai et al. 2013; Gonzalez-Guzman et al. 2014; He et al. 2014). The biochemical property and structure of PYLs have been extensively studied in the dicot plant model Arabidopsis (Ma et al. 2009; Melcher et al. 2009; Klingler et al. 2010; Joshi-Saha et al. 2011). Some AtPYLs are monomers that facilitate interactions with PP2C in the absence of ABA; some AtPYLs are in a dimeric state and require ABA to form a complex with PP2C (Hao et al. 2011). Recent studies have investigated the biological functions of various AtPYLs. The overexpression of AtPYL5 leads to ABA hypersensitivity during early seedling development, as well as enhanced drought stress tolerance (Klingler et al. 2010). AtPYL8 is involved in root growth and development, which is in line with its root-specific expression pattern (Antoni et al. 2013). Although AtPYL13 is not an ABA receptor, it can positively regulate the ABA signaling pathway by interacting with and inhibiting both the PYL receptors and the PP2C co-receptors (Li et al. 2013; Zhao et al. 2013). AtPYL4A194T forms stable complexes with PP2CA in the absence of ABA, and the overexpression of AtPYL4A194T increases a plant’s sensitivity to ABA-mediated inhibition of germination and seedling establishment, as well as enhances drought resistance (Pizzio et al. 2013). In addition, AtPYLs are largely functionally conserved, and the analysis of higher order mutants have indicated that AtPYLs regulate stomatal conductance (Gonzalez-Guzman et al. 2012).

Unlike AtPYLs, information on PYL homologs in rice is limited. Studies have predicted that rice has 13 OsPYL members that share high sequence similarity with AtPYLs (Kim et al. 2012; He et al. 2014). Core components in ABA signaling, including OsPYLs, OsPP2C, OsSAPK2, and OsOREB1, have been identified in rice, and the ABA signaling transduction pathway has also been reconstituted in a protoplast system (Kim et al. 2012). The biochemical properties and structure of OsPYLs have also been recently reported (He et al. 2014). However, to date, only OsPYL/RCAR5 has been identified as a positive regulator in seed germination, early seedling growth, and drought and salt stress tolerance (Kim et al. 2012; Kim et al. 2014). Other features of OsPYLs such as expression pattern, subcellular localization, interaction specificity with OsPP2C, and biological function, have not been examined.

The present study examined the tissue-specific expression pattern and distinct response of OsPYL members to ABA treatment, which was suggestive of its differential biological function. An overall interaction map between 10 OsPYLs and 5 OsPP2C members indicated that OsPYLs were selective of their interaction partner, thus indicating the complexity and specificity of the rice ABA-sensing signaling pathway. Furthermore, using OsPYL3 and OsPYL9, we determined that OsPYLs play pivotal roles in ABA-mediated inhibition of seed germination, as well as drought and cold stress tolerance, which thereby could serve as potential targets for the improvement of abiotic stress tolerance in rice.

Results

Expression Pattern of OsPYL Members

Using the AtPYLs sequence as queries and search in the rice genome database, a total of 13 OsPYL orthologs were identified in rice. Among these, three (OsPYL11–13) are thought to be nonfunctional that were caused by a large fragment deletion in the N or C terminal of the gene (Kim et al. 2012). To obtain an overview of the expression pattern of OsPYL members in different tissues, quantitative RT-PCR was performed. Because of the high level of sequence similarity among OsPYL members, it was difficult to design primers that could discriminate between OsPYL2 and OsPYL9, and OsPYL7 and OsPYL8. Most of the OsPYLs were detected in all tissues, although differentially expressed (Fig. 1a). OsPYL7/8 was upregulated in embryos, OsPYL3 and OsPYL5 were upregulated in leaves, OsPYL1 in roots, and OsPYL2/9 in all tissues (Fig. 1a). These diverse tissue-specific patterns of OsPYLs were indicative of its diverse biological functions.
Fig. 1

Tissue-specific and ABA-regulated expression of OsPYLs genes. a Tissue-specific expression of OsPYLs was analyzed by quantitative RT-PCR in roots, leaves, stems, embryo, endosperm and panicles. The expression level of OsPYLs in roots was set as 1 and the fold change was analyzed via the 2-CT method using the rice ubiquitin gene as an internal control. Values represent the mean ± SD of three biological replicates. b ABA-regulated expression of OsPYLs was analyzed by quantitative RT-PCR. Two-week-old seedlings were incubated in liquid MS medium containing 200 μM ABA for 0, 1, 3 and 6 h. The expression level of OsPYLs at 0 h was set as 1 and the fold change was analyzed via the 2-CT method using the rice ubiquitin gene as an internal control. Values represent the mean ± SD of three biological replicates

OsPYLs are also differentially expressed after ABA treatment (Fig. 1b). Some OsPYLs were downregulated such as OsPYL1, OsPYL2/9, and OsPYL3 (Fig. 1b), whereas OsPYL4 was upregulated (Fig. 1b). The expression of OsPYL5, OsPYL7/8, and OsPYL10 was not affected by ABA treatment (Fig. 1b). These findings suggest that OsPYL members play diverse roles in sensing the ABA signal.

OsPYLs are Localized in the Cytosol and Nucleus

To determine the subcellular localization of OsPYLs, green fluorescent protein (GFP)-OsPYL fusion proteins driven by a 35S promoter were transiently expressed in Nicotiana benthamiana leaves. All tested OsPYLs were localized in both the cytosol and nucleus (Fig. 2a), which were consistent with the results involving AtPYL9 and soybean GmPYL members (Ma et al. 2009; Bai et al. 2013). These results indicated that PYLs of different plant species are localized in the same cellular regions, which might partly explain the functional conservation of PYL proteins as ABA receptors.
Fig. 2

Subcellular localization of OsPYLs and OsPP2Cs. Confocal images were taken from Nicotiana benthamiana leaves epidermal cells. Constructs of (GFP)-OsPYLs (a) and (GFP)-OsPP2Cs (b) driven by the 35S promoter were infiltrated and observed at 3 days later. From left panel to right panel are GFP image, DAPI dye image, merged image and bright-field image. Empty GFP vector was used as control. The positions of nuclei were shown by DAPI staining

OsPYL Members Selectively Interact with OsPP2C Members

PYL family proteins, as functional ABA receptors, interact with clade A PP2Cs to form PYL-ABA-PP2C triple complexes that facilitate in the transmission of ABA signals (Cutler et al. 2010; Joshi-Saha et al. 2011). A total of 10 predicted clade A OsPP2Cs have been identified in rice (Xue et al. 2008). In the present study, five clade A OsPP2Cs were isolated and investigated (Fig. 2b). To determine whether OsPYLs interacted with these OsPP2Cs, yeast two-hybrid assays were conducted in the absence or presence of ABA. The results showed that the interaction between OsPYLs and OsPP2Cs was selective and specific (Fig. 3, Additional file 1: Figure S1). Some OsPYLs interacted with all OsPP2C members, except for OsPYL2 and OsPYL10. Most interactions were ABA-dependent or ABA-enhanced. A few interactions were ABA-independent or constitutive such as that observed with OsPYL1 and OsPP2C53 (Fig. 3). Most OsPYLs strongly interacted with OsPP2C30 and OsPP2C53 in an ABA-dependent or ABA-independent manner, respectively (Fig. 3). These results demonstrated that OsPYLs bind to OsPP2Cs in diverse fashions and with different intensities. To confirm these interactions in plant cells, BiFC experiments in N. benthamiana leaves were performed. The in vivo interaction results indicated that these could reproduce, as well as validated the results of the yeast two-hybrid assay (Fig. 4). Based on the results of the yeast two-hybrid and BiFC assays, an overall interaction map was generated between the 10 OsPYLs and 5 OsPP2C members (Fig. 3). These results provide evidence that the tested OsPYLs were capable of functioning as ABA receptors, and that the ABA-sensing mechanism was conserved among different plants.
Fig. 3

Interaction map between OsPYLs and OsPP2Cs. Interaction between OsPYLs and OsPP2Cs was first examined in yeast two-hybrid, “–” and “+” indicated without and with ABA supplement. Number of “*” indicate the interaction strength from weak to strong, one (*) to four star (****) represent that the yeast colony can grow on SD/-His/-Leu/-Trp plate containing different concentration of 3-AT (0, 3.0, 5.0 and 10 mM). “x” means no interaction. These interactions were further confirmed by BiFC in tobacco transient expression system

Fig. 4

OsPYL3 and OsPYL9 interact with OsPP2Cs in planta. In planta interaction and subcellular localization analysis using agroninfiltrated Nicotiana benthamiana leaves. The interaction was detected by fluorescence in BiFC analysis. 100 μM ABA was injected at 24 h before observation. From upper panel to bottom panel are YFP image, DAPI dye image, merged image and bright-field image. The positions of nuclei were shown by DAPI staining

OsPP2C Determines the Subcellular Localization of the OsPYLs-OsPP2C Complex in an ABA-independent Manner

The results of the BiFC assay indicated that the subcellular localization of the fused green fluorescent proteins varied among different OsPYLs and OsPP2C members, and most of the OsPYL-OsPP2C complexes were localized in the nucleus (Fig. 4), which is not consistent with the localization of OsPYLs (Fig. 2a). To explore the underlying mechanism of this activity, the subcellular localization of five OsPP2C members was investigated. OsPP2C53 was localized to both the nucleus and cytosol, whereas other OsPP2C members were detected only in the nucleus (Fig. 2b). Comparative analysis showed a similarity between the subcellular localization of OsPP2C members and that of OsPYLs-OsPP2C complexes (Figs. 2b and 4). In the BiFC assay, ABA was also injected to test whether ABA affected the interaction between OsPYLs and OsPP2Cs. The results showed that ABA treatment only enhanced interaction strength, and did not affect the subcellular localization of the OsPYL-OsPP2C complexes (Fig. 4). Consequently, the findings indicated that OsPP2C members can determine the subcellular localization of OsPYL-OsPP2C complexes in an ABA-independent manner.

Overexpression of OsPYL3 and OsPYL9 Confers ABA Hypersensitivity during Seed Germination

To determine whether OsPYLs are functional ABA receptors in rice, OsPYL3 and OsPYL9 were selected for further investigation. Constructs of OsPYL3 and OsPYL9 driven by the 35S promoter were transformed into rice, and more than 20 independent transgenic lines were produced for each gene. Three independent transgenic lines of each gene were chosen for further analysis. The expression levels of OsPYL3 and OsPYL9 in the transgenic lines were measured by quantitative RT-PCR and RT-PCR, respectively (Fig. 5a and b). OsPYL3 and OsPYL9 were overexpressed in the transgenic lines compared to the control lines (Fig. 5a and b). A seed germination assay was conducted to examine the ABA-related phenotype of OsPYL3 and OsPYL9 overexpression lines. In the absence of ABA, OsPYL3 and OsPYL9 overexpression lines showed a slight delay in germination rate, and the OsPYL9 overexpression line germinated at a slower rate compared to that of the OsPYL3 overexpression line (Fig. 5c, d, and g). Application of different concentrations of ABA showed that the seed germination rate of the OsPYL3 and OsPYL9 overexpression lines was markedly slower than that of the controls (Fig. 5c, e, f, h, and i). OsPYL9 overexpression lines hardly germinated in a medium containing 3 μM of ABA until 5 days later (Fig. 5i). This finding indicated that the overexpression of OsPYL3 and OsPYL9 conferred ABA-hypersensitivity during seed germination and functioned as an active ABA receptor. In addition, a higher expression level of OsPYL9 than that observed with OsPYL3 in embryos may explain its enhanced phenotype during ABA-regulated seed germination (Figs. 1a and 5).
Fig. 5

Overexpression of OsPYL3 and OsPYL9 confer ABA hypersensitivity during seed germination. a Quantitative RT-PCR analysis of OsPYL3 in overexpression transgenic lines. The expression level of OsPYL3 in control line was set as 1 and the fold change was analyzed via the 2-CT method using the rice ubiquitin gene as an internal control. Values represent the mean ± SD of three biological replicates. b RT-PCR analysis of OsPYL9 in overexpression transgenic lines. Full length OsPYL9 primer was used and rice ubiquitin transcripts were used as control. c Representative photographs of seed germination of OsPYL3 and OsPYL9 overexpression transgenic lines. Seeds of control and transgenic lines were grown on half-strength MS medium containing indicated concentration of ABA for 5 days. Photographs were taken on day 5. (D to I) Germination time course of OsPYL3 (d-f) and OsPYL9 (g-i) overexpression transgenic lines and control in medium without ABA (d and g), 1 μM ABA (E and H) and 3 μM ABA (f and i). Data show the mean ± SD of three replicates. At least 50 seeds per genotype were measured in each replicate

Overexpression of OsPYL3 and OsPYL9 Enhances Drought Stress Tolerance

To further investigate the biological function of OsPYLs, OsPYL3 and OsPYL9 overexpression lines were subjected to a drought tolerance assay. Three-week-old seedlings of similar sizes showed the capability of withholding water for 10 days, control seedling leaves were curved and wilted and its seedling had fallen down, whereas OsPYL3 and OsPYL9 overexpression lines remained upright (Fig. 6a). After 7 days of re-watering, over 80 % of the OsPYL3 and OsPYL9 overexpression lines were turgid and survived; in contrast, only less than 10 % of the control lines remained alive (Fig. 6ac). These results indicated that the ectopic expression of OsPYL3 and OsPYL9 enhanced drought stress tolerance in rice (Fig. 6ac).
Fig. 6

Overexpression of OsPYL3 and OsPYL9 exhibit enhanced drought stress tolerance. a Three-week-old OsPYL3 and OsPYL9 overexpression seedlings were subjected to drought conditions by withholding water and then rewatered. Photographs were taken before drought (upper panel) and 10 dayays after drought (middle panel), and 7 days after rewatering (bottom panel). b and c Survival rates of the drought treated OsPYL3 (B) and OsPYL9 (C) overexpression seedlings after 7 days of rewatering. Values are mean ± SD (n = 30 for each replicate) of three independent experiments. d and e Water loss rate of OsPYL3 d and OsPYL9 (e) overexpression lines. Leaves of the same developmental stages were excised and weighed at various time points after detachment. Values are means ± SD of three individual plants per genotype. Experiments were repeated at least three times with similar results. (f and g) Relative water content of OsPYL3 (f) and OsPYL9 (g) overexpression lines. Seedling of similar stage was withhold water for indicated days and used for measure relative water content. Values are means ± SD of three individual plants per genotype. Experiments were repeated three times

Plants lose water mainly through stomata transpiration. To determine whether stomatal closure is involved in the enhanced drought tolerance of OsPYL3 and OsPYL9 overexpression lines, a water-loss assay was performed using detached leaves. The water loss rate of the OsPYL3 and OsPYL9 overexpression lines was significantly slower than that observed in the controls (Fig. 6d and e). Relative water content (RWC) more accurately reflects the physiological consequence of cellular water deficit. Fig. 6e and g shows that with drought stress, the OsPYL overexpression lines lost water at a slower rate and have a lower minimum relative water content that helped the plants survive during severe drought conditions. These results indicated that the OsPYL3 and OsPYL9 overexpression lines have a faster rate of stomatal closure and were hypersensitive to drought treatment compared to the controls, thereby contributing to a high level of drought stress tolerance.

Overexpression of OsPYL3 and OsPYL9 Increases Cold Stress Tolerance

The rice seedlings were also subjected to cold stress. To examine whether OsPYLs played a role during cold stress response, a cold tolerance assay was performed. Two-week-old rice seedlings of similar size were incubated in a 10 °C growth chamber for 4 days. After 4 days, the leaves of the transgenic lines remained green and flats, and only the leaf tips were rolled up. In contrast, the leaves of the control lines were wilted, rolled up, and dry (Fig. 7a). After 7 days of recovery at the normal temperature, the survival rate of the OsPYL3 and OsPYL9 transgenic plant was >50 %, compared to the >95 % death rate of the control lines (Fig. 7a-c). To evaluate the effect of cold stress on cell membranes, two-week-old rice seedlings were exposed to a 10 °C environment, and relative ion leakage was measured. Without cold treatment, the relative ion leakage rate of the transgenic lines and control lines was similar. After 3 days cold treatment, the relative ion leakage rate of the control lines was 70 %, whereas that of the OsPYL3 and OsPYL9 overexpression lines was <10 % (Fig. 7d and e). These findings indicated that the increased cell membrane stability of OsPYL3 and OsPYL9 overexpression lines during cold stress partially, if not totally, contributed to the observed enhanced tolerance of cold stress. These results indicated that overexpression of OsPYL3 and OsPYL9 substantially improved cold stress tolerance in rice.

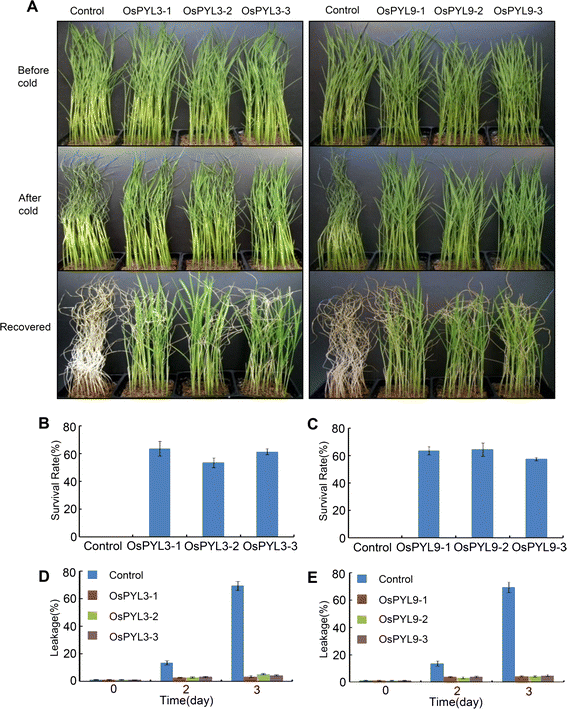

Fig. 7

Overexpression of OsPYL3 and OsPYL9 enhanced cold stress tolerance. a Two-week-old OsPYL3 and OsPYL9 overexpression seedlings were subjected to 10 °C treatment and then recovered at room temperature. Photographs were taken at before cold (upper panel) and 4 days after cold treatment (middle panel), and 7 days after recovered (bottom panel). b and c Survival rates of the cold-treated plants after 7 days of recovery. Values are mean ± SD (n = 30 for each replicate) of three independent experiments. d and e Relative ion leakage in rice leaves after 10 °C treatment for 0 d, 2 d and 3 d. Data represent means ± SD of three biological replicates

Expression of ABA-Regulated Genes is Enhanced in OsPYL3 and OsPYL9 Overexpression lines

Because OsPYL3 and OsPYL9 overexpression lines showed significant drought and cold stress tolerance at the seedling stage, we were prompted to determine whether the expression of ABA-regulated genes was also enhanced in these transgenic lines. Several ABA-regulated genes (LEA3, RAB16A, and OsABA45) were selected, and its expressions levels between the control and OsPYL3 and OsPYL9 overexpression lines in response to ABA treatment were compared. Quantitative RT-PCR analysis indicated that ABA induced the expression of these genes, which was significantly higher than that observed in the controls (Fig. 8). Notably, in the absence of ABA treatment, the expression of these ABA-regulated genes was still higher in the OsPYL3 and OsPYL9 overexpression lines than that in the control, indicating that the overexpression of OsPYL3 and OsPYL9 promoted the constitutive expression of ABA-regulated genes (Fig. 8), which possibly explains the delayed seed germination of OsPYL3 and OsPYL9 overexpression lines in the absence of ABA (Fig. 5c, d, and g). Taken together, the upregulation of ABA-regulated genes might also have contributed to the observed ABA hypersensitivity and the enhanced stress tolerance of the OsPYL3 and OsPYL9 overexpression lines.
Fig. 8

Overexpression of OsPYL3 and OsPYL9 increased the expression of ABA responsive genes. Fourteen-day-old control, OsPYL3 and OsPYL9 overexpression seedlings were treated with ABA solution (100 μM) for indicated time. Shoots were analyzed by quantitative RT-PCR. LEA3 (LOC_Os05g46480), RAB16A (LOC_Os11g26790), and OsABA45 (LOC_Os12g29400) were monitored. The expression level of ABA regulated gene in control at 0 h was set as 1 and the fold change was analyzed via the 2-CT method using the rice ubiquitin gene as an internal control. Values represent the mean ± SD of three biological replicates

Discussion

Members of the PYL protein family such as the ABA receptors and the core component in ABA-sensing signaling have been investigated in various plant species, including Arabidopsis, soybean, rice, and cucumber (Ma et al. 2009; Wang et al. 2012; Bai et al. 2013; He et al. 2014; Kim et al. 2014). Compared to the extensive studies on AtPYLs, the property, function, and mechanism of OsPYLs are largely unknown. In the present study, based on amino acid sequence analysis of AtPYLs and predicted OsPYLs in the rice genome annotation project, 10 out of the 13 OsPYLs were cloned and studied. OsPYLs were differentially expressed in the leaves, stems, roots, panicles, embryo, and endosperm, and some OsPYL members showed pronounced tissue-specific expression patterns (Fig. 1a). OsPYLs also displayed a differential response to ABA treatment (Fig. 1b). The diverse expression patterns of OsPYLs were indicative of their functional diversity. All OsPYLs were localized to the cytoplasm and nucleus (Fig. 2a), which was consistent with the results of previous reports on the subcellular localization of AtPYLs and GmPYLs (Ma et al. 2009; Bai et al. 2013).

The interaction between the OsPYLs and OsPP2Cs was investigated in both yeast and tobacco, and an overall interaction map was generated between 10 OsPYLs and 5 OsPP2C members in the absence or presence of ABA treatment (Figs. 3 and 4). OsPYLs selectively interacted with OsPP2Cs in ABA-dependent or ABA-independent manner. Combined with a recent report that OsPYLs inhibit OsPP2C activity (He et al. 2014), these data suggest that OsPYLs are functional rice ABA receptors.

In addition to the discovery of PYLs as ABA receptors, the present study has shown that these proteins also regulate ABA signaling and improve tolerance to abiotic stress. Overexpression of AtPYL4 and AtPYL5 leads to enhanced ABA hypersensitivity during seed germination and improved drought tolerance (Santiago et al. 2009; Pizzio et al. 2013). In addition, the root-specific expression of AtPYL8 regulates ABA-mediated inhibition of root growth (Antoni et al. 2013). However, information on the biological function of OsPYLs in rice, which is considered a monocot model, is limited. OsPYL5 has been shown to positively regulate seed germination and drought stress response (Kim et al. 2012; Kim et al. 2014). In the present study, transgenic rice overexpressing OsPYL3 and OsPYL9 were produced and analyzed in detail (Fig. 5a and b). First, overexpression of OsPYL3 and OsPYL9 conferred ABA hypersensitivity during seed germination (Figs. 5c-i). In addition, overexpression of OsPYL3 and OsPYL9 in the absence of ABA significantly delayed seed germination, and OsPYL9 played more important roles, which was consistent with the upregulation of OsPYL9 in the embryo compared to that of OsPYL9 (Fig. 5c-i). Second, overexpression of OsPYL3 and OsPYL9 enhanced drought stress tolerance, which can be partly explained by a slower water loss rate through the stomata in transgenic lines (Fig. 6). Third, OsPYL3 and OsPYL9 overexpression lines show increased membrane stability during cold stress and enhanced cold stress tolerance (Fig. 7). Last, expression of ABA-regulated genes in OsPYL3 and OsPYL9 overexpression lines was significantly higher than that in the controls (Fig. 8), which accounted for the increased stress tolerance of transgenic plants. Interestingly, compared to the controls, OsPYL3 and OsPYL9 overexpression lines did not show any negative effect on growth, grain yield, and other observable phenotypes, whereas these were observed in OsPYL5 (Kim et al. 2014). One possible explanation for this finding is that OsPYL5 was directed by the maize ubiquitin promoter, which is a very strong promoter in monocots, and OsPYL3 and OsPYL9 was directed by the 35S promoter, whose efficiency was less than that of ubiquitin in rice. Taken together, these results indicate that OsPYL3 and OsPYL9 can be used as a target gene for the improvement of abiotic stress tolerance in rice.

Conclusions

In the present study, we study the expression pattern of PYL orthologs in rice (OsPYL), generate an overall interaction map between 10 OsPYL members and 5 protein phosphatase 2C in rice (OsPP2C) members and show the biological function ofOsPYL3 and OsPYL9. Taken together, we comprehensively uncovered the properties of OsPYLs, which may be good candidates for the improvement of abiotic stress tolerance in rice.

Methods

Plant materials, and rice transformation

For cloning of OsPYLs and OsPP2Cs genes, Oryza sativa L. ssp. Japonica cv. Nipponbare was used. The coding sequence of OsPYLs and OsPP2Cs were cloned from the cDNA using standard PCR-based protocol. The primers used are listed at Additional file 1: Table S1. Full-length sequences of OsPYLs and OsPP2Cs were cloned into pENTR/D-Topo (Invitrogen), resultant constructs were confirmed by sequencing and saved for later use. To over express the OsPYLs in rice, OsPYLs was transferred to pH7WG2 vector via LR recombination reaction of the Gateway system. The resultant 35S:OsPYLs constructs, in which OsPYLs was drived by the cauliflower mosaic virus (CaMV) 35S promoter, were transferred into Agrobacterium tumefaciens EHA105. Finally, OsPYLs were transformed into Oryza sativa L. ssp. Japonica cv. Longjing 11 by the Agrobacterium-mediated co-cultivation method.

Yeast two-hybrid assay

Full-length sequences of OsPYLs and OsPP2Cs were cloned into pDEST32 or pDEST22 vector via an LR recombination reaction and used as baits or preys respectively. The resultant constructs were transformed into the yeast strain Y2H gold. Presence of the transgenes was confirmed by growth on a SD/-Leu/-Trp plate. To assess protein interactions, the transformed yeast cells were suspended in liquid SD/-Leu/-Trp to OD600 = 1.0. The suspended cells were spread on plates containing SD/-His/-Leu/-Trp medium supplied with indicated concentration of 3-AT (3-amino-1, 2, 4-triazole) and ABA. The interactions were observed after 4 days of incubation at 30 °C. The experiments were repeated three times with similar results.

Subcellular localization and Bimolecular fluorescence complementation in tobacco

For subcellular localization of OsPYLs and OsPP2Cs, full-length sequences of OsPYLs and OsPP2Cs were cloned into the pH7WGF vector via an LR recombination reaction, in which the OsPYLs and OsPP2Cs fused with green fluorescent protein (GFP) was drived by 35S promoter. For Bimolecular fluorescence complementation (BiFC) assays, OsPYLs were fused with the C-terminal portion of the yellow fluorescent protein (YFP) via an LR recombination reaction; OsPP2Cs were fused with the N-terminal portion of the yellow fluorescent protein (YFP) via an LR recombination reaction. For transient expression, the fusion constructs were transferred into Agrobacterium tumefaciens GV3101. Agrobacterium tumefaciens strain harboring each construct along with the p19 strain were infiltrated into 4-week-old N. benthamiana leaves. For staining of the nuclei, 10 mg/ml 4, 6-diamidino-2-phenylindole (DAPI) was infiltrated into N. benthamiana leaves 3 h before observation. For microscopic analyses, leaf discs were cut 3 d after infiltration. The fluorescence signal was observed using confocal microscopy.

Analysis of genes expression

Total RNA was extracted using TRIzol (Invitrogen) and treated with DNaseI. cDNA was synthesized from 2 µg of total RNA using SuperscriptII Reverse Transcriptase. Real-time PCR was performed with SYBR Green PCR master mix (TransStart). Data were collected using Bio-Rad chromo 4 real-time PCR detector. All expressions were normalized against the Ubiquitin gene. The primers used are listed at Additional file 1: Table S1.

Germination and abiotic stress tolerance assay

Dehulled seeds were surface-sterilized and planted on half-strength MS medium supplemented with indicated concentration of ABA (A1049, Sigma-Aldrich). Seed germination was defined as the coleoptiles emerged from the seed and scored every 12 h for 5 days. Three independent T3 homologous transgenic lines and the control Longjing 11 were used for stress tolerance experiments. For the dehydration treatment, rice plants grown for 3 weeks were withhold water for 10 days and then rehydrated and grown under normal conditions for 7 days. For cold treatment, 14-day-old seedlings were transferred to 10 °C for 4 days and then returned to normal growth conditions for 7 days. The survival rates were recorded. Approximately 50 seedlings of each line were used for each experiment, and three replicates of each experiment were performed. Tests for statistical analysis between transgenic lines and the controls were performed using Microsoft excel 2007.

Water loss assay and measurement of relative electrolyte leakage

For water loss assay, leaves of control and OsPYLs transgenic plants grown under normal conditions were detached from 3-week-old seedlings and weighed immediately on a piece of weighing paper, and then placed on a laboratory table and weighed at indicated time intervals. Three replicates were performed for each line.

For relative water content measurement (RWC), Three-week-old seedlings of control and three independent OsPYLs transgenic lines were withhold water. The protocol was as described by (Barrs and Weatherley 1962). RWC was measured until the leaf cannot expand during dipped in the water.

Two-week-old seedlings of control and three independent OsPYLs transgenic lines were transferred into a 10 °C chamber. At 0 d, 2 d and 3 d, 0.5 g of leaves were harvested from each of ten plants. Leaf fragments were immersed in 6 mL deionized water and shaken at 100 rpm at 25 °C for 2 h, and electrical conductivity was determined (C1). The samples were then boiled for 20 min, and the total conductivity was determined again (C2) after cooling to room temperature. Relative ion leakage (%) was calculated as C1/C2 × 100.

Notes

Declarations

Acknowledgements

This work was supported by Hundred–Talent-Program of Chinese Academy of Sciences, National Natural Science Foundation of China (No. 31070255), Excellent Academic Leaders of Harbin (RC2014XK002003), National Key Project of Transgenic Crops of China (2014ZX0800205B-003) and the 863 High Tech Program of Ministry of Science and Technology of China (2012AA101105).

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Northeast Institute of Geography and Agroecology, Key Laboratory of Soybean Molecular Design Breeding, Chinese Academy of Sciences
(2)
Graduate University of Chinese Academy of Sciences
(3)
Rice Research Institute, Heilongjiang Academy of Land Reclamation Sciences
(4)
Cultivation institute, Heilongjiang Academy of Agricultural Science
(5)
National Engineering Research Centre for Wheat, Henan Agricultural University
