Assessing the Genetic Diversity of Parents for Developing Hybrids Through Morphological and Molecular Markers in Rice (Oryza sativa L.)


The advancement of hybrid technology plays a crucial role in addressing yield plateau and diminishing resources in rice cultivating regions. The knowledge of genetic diversity among parental lines is a prerequisite for effective hybrid breeding program. In the current study, a set of 66 parental lines was studied for diversity based on both morphological characters and microsatellite SSR markers. The genetic variability parameters unveiled that number of productive tillers per plant, single plant yield and hundred grain weight exhibited additive gene action. Mahalanobis D2 statistics grouped the genotypes into ten clusters based on yield and grain traits. The principal component analysis identified four PCs with eigen value more than one accounting for 71.28% of cumulative variance. The polymorphic SSR markers produced 122 alleles among which the marker RM474 recorded the highest values for Polymorphic Information Content (0.83) and heterozygosity index (0.85). The genotypes were assembled in seven clusters based on jaccard distances using the Unweighted Pair Group method with Arithmetic Mean (UPGMA). The population structure divided the entire population into 3 subpopulations. In both clustering, there was difference in the assembling of genotypes, but, good performing genotypes identified through PCA were positioned in different clusters in both approaches. The genotypes CBSN 495 and CBSN 494 located in different clusters were identified as the potential restorers for high yielding and short duration hybrids. The hybridization among CRR Dhan 310, CRR Dhan 315, IR64 DRT, CB 17135 and WGL 347 can be performed to develop climate smart varieties with improved nutrition.


Rice, filling the calorie requirement of half of the world population faces a challenge marked by yield plateau in the recent years. This challenge compounded with escalating population necessitates urgent focus on increasing productivity which in turn is achieved by developing high yielding hybrids. The success in hybrid breeding largely depends on the genetic diversity of parents used for crossing. This emphasizes the scope of examining genetic diversity among various rice genotypes to help in the selection of precise parents for hybrid breeding. The literatures provide many studies of diversity using both morphological and molecular clustering such as Singh et al. (2022) for 47 rice genotypes, Pathak et al. (2020) for 29 local rice cultivars, Islam et al. (2019) in 28 restorer lines, Vengadessan et al. (2016) for 33 traditional and 12 improved rice cultivars and Rahman et al. (2011) for 21 rice varieties. Hence, the present study was conducted to assess the genetic diversity of 66 rice parental lines using morphological and molecular clustering for the development of hybrids.


Rice stands as a global significant crop nourishing more than 50% of the world’s population (Muthayya et al. 2014). With the demographic expansion under ever declining resources, there is an urgent need to harness heterosis in crop plants. In case of rice, a highly self-pollinated crop, the study of genetic diversity assumes a critical role in the selection of diverse parents aimed for attaining maximum heterosis and transgressive segregants in the successive generations. The understanding of diversity among genotypes is achieved through various multivariate statistical analysis. Mahalanobis D2 statistics is a potent statistical tool to quantify the genetic distance between genotypes based on replicated data of multiple variables (Mahalanobis 1936). The Principal Component Analysis helps in streamlining the selection process by condensing the total number of variables into key variables with major contribution to the total variation (Devasena et al. 2023; Sheela et al. 2020). The advent of molecular markers enabled the characterization of genotypes more precisely at DNA level differences free from the interference of environmental interactions. The microsatellite Simple Sequence Repeat markers exhibit great level of allelic polymorphism and has widespread application in rice for various molecular studies (Rahman et al. 2011). Further the resolution of population into distinct subgroups is made possible through structure analysis. Assessing the genetic diversity among genotypes based on molecular markers ensure enhanced resolution and significant time savings compared to traditional morphological study. In this regard, the present study was undertaken to assess the genotypic diversity among 66 rice parental lines, employing both morphological and molecular based clustering. The findings aim to provide valuable insights into the significance of these diverse genotypes in the context of rice breeding, offering opportunities for the development of high yielding hybrids to meet the ever-growing global demand.

Materials and Methods

A total of 66 parental lines including released varieties from Tamil Nadu, Andhra Pradesh, Telangana, improved varieties for nutrition and abiotic stress tolerance, indica-japonica cross derivatives in which indica lines were confirmed for restorer genes and wild rice Multi-parent advanced generation inter-cross (MAGIC) derivatives were evaluated at Paddy Breeding Station, Tamil Nadu Agricultural University, India. The station is located at 110N latitude and 770E longitude with an elevation of 426.72 meters above the sea level. The experiment was carried out in Rabi, 2022 in Randomized Block Design with three replications. The list of genotypes with their geographical origin and subspecies type are presented in Table 1. The 30 days old seedlings were transplanted with a spacing of 20 × 20 cm. The fertilizer application and intercultural operations were carried out as per the recommended standard. The observations for ten agronomical and grain traits viz., days to 50% flowering (DFF), plant height (PH), number of productive tillers per plant (NPTP), panicle length (PL), flag leaf length (FLL), single plant yield (SPY), hundred grain weigh (HGW), grain length (GL), grain breadth (GB), grain L/B ratio (L/B) were randomly recorded in 5 plants of each genotype in each replication. The mean values of the genotypes for all the recorded traits are given in Table S1.

Table 1 The list of genotypes with their geographical origin and subspecies type

Molecular Assay

The Genomic DNA was extracted from young leaf samples of 3–4 weeks old seedlings following Doyle and Doyle’s protocol (1987). The Polymerase Chain Reaction (PCR) was performed in a 10 μl reaction mixture: Template DNA 2 μl (20ng/μl), forward primer 0.5 μl (10μM), reverse primer 0.5 μl (10μM), master mix 4 μl (2X) and sterile water (3 μl) for 51 SSR primers distributed across all the chromosomes. The temperature profile used for PCR was initial denaturation at 95 °C (5 min) followed by 35 cycles of denaturation at 94 °C (1 min), annealing at 55 °C (45 s), extension at 72 °C (30 s) and a final extension at 72 °C (10 min). The samples were then held at 4 °C until retrieval. The resulting amplified products were separated on a 3% polyacrylamide gel in 1X TBE buffer alongside a 100 bp ladder (Bio-Helix), visualized under UV transillumination by Bio-Rad imaging system. The details of polymorphic markers along with range of amplified base pair are given in Table 2. The 30 polymorphic primers were scored as ‘1’ and ‘0’ for the presence or absence of alleles respectively in all the 66 genotypes. The Jaccard distance based molecular cluster analysis was performed using this scoring while base pair scoring was applied for structure analysis.

Table 2 The list of polymorphic markers along with their sequence, chromosome number, annealing temperature and range of amplified product size

Statistical Analysis

The Genetic variability parameters, Analysis of Variance and Principal Component Analysis were performed using the packages ‘variability’, ‘Agricolae’, ‘FactoMineR’ and ‘factoextra’ of R studio 4.2.3. The Mahalanobis D2 statistics and clustering by Tocher’s method was done in TNAUSTAT software (Manivannan 2014). The marker scorings were analysed with R-shiny based package ‘PBPERFECT’ (Allan 2023) for Jaccard distance, molecular cluster, PIC value and Heterozygosity index. The structure analysis was carried out using STRUCTURE 2.3.4 software and the results were viewed in STRUCTURE HARVESTER. The Analysis of Molecular Variance (AMOVA), genetic differentiation (Fst), genetic diversity parameters viz., observed heterozygosity (Ho) and expected heterozygosity (He) were analysed using GenAlex 6.5 (Peakall and Smouse 2007).


Genetic Variability

The Phenotypic Co-efficient of Variation (PCV), Genotypic Co-efficient of Variation (GCV), broad sense heritability and Genetic Advance as per cent of Mean (GAM) were calculated for all the traits under study. The estimates of PCV were more than GCV for all the traits indicating the influence of environment in the expression of the traits (Fig. 1). High PCV and GCV were observed for number of productive tillers per plant (33.30, 21.01), single plant yield (49.03, 44.40) and hundred grain weight (21.79, 21.13). All other traits except grain length exhibited low range for both PCV and GCV. The range of heritability and GAM was derived between moderate to high for which the traits viz., days to 50% flowering, plant height, number of productive tillers per plant, single plant yield, hundred grain weight, grain breadth and grain length breadth ratio had high heritability coupled with high GAM. These traits offer advantage by responding to selection and therefore can be taken as a criterion for selection of parents.

Fig. 1
figure 1

Genetic parameters for the yield and grain traits

PCV -Phenotypic Co-efficient of Variation; GCV – Genotypic Co-efficient of Variation; GAM – Genetic Advance as per cent of Mean

DFF – Days to 50 % flowering; PH – Plant height (cm); NPTP – Number of productive tillers per plant; PL – Panicle length (cm); FLL – Flag leaf length (cm); SPY – Single plant yield (g); HGW – Hundred grain weight (g); GL – Grain length (cm); GB – Grain breadth (cm); L/B – Grain Length Breadth ratio

Morphological Diversity

The Analysis of Variance (ANOVA) for the ten biometrical traits revealed significant variation among all the genotypes (Table 3). The genetic diversity of parental lines was estimated by Mahalanobis D2 statistics and the genotypes were categorized into clusters by Tocher’s method. All the 66 genotypes were grouped into ten clusters based on D2 values in a random manner without any consideration of origin or subspecies (Table 4). The cluster I was the largest comprising 19 genotypes followed by cluster IV (10 genotypes). The clusters V, III, II and VI contained 9, 7, 6 and 2 genotypes respectively. The clusters VII, VIII and X contained 4 genotypes in each and cluster IX was identified as a solitary cluster with only one genotype viz., CBSN 495. The intra and inter cluster distances (Table 5) portray the diversity within and among the different clusters respectively. The maximum inter cluster distance was recorded between clusters III and X (5952.26) followed by clusters VIII and X (4915.97) and clusters IX and X (4259.24). The cluster X comprised of wild rice magic derivatives therefore it was showing maximum diversity with most of the other clusters. The minimum inter cluster distance was observed between clusters I and IV (197.00) followed by clusters II and VI (215.24) emphasizing close relation between them. The maximum intra cluster distance was observed for cluster VII (175.97) followed by cluster X (158.30) and cluster IV (153.66). The minimum intra cluster distance was noticed for cluster IX (0) since it was solitary with single genotype followed by cluster III (102.85). The trait days to 50% flowering (79.63%) exerted maximum contribution towards total divergence (Table S2 and Fig. 2). It was followed by hundred grain weight (7.79%), plant height (5.17%), flag leaf length (4.66%) and panicle length (2.75%). This showed that the genotypes had a wide variation with regard to duration. The cluster mean for all the traits are given in Table 6. The cluster III recorded low mean values for days to 50% flowering (79.05) and plant height (68.52). The high mean values were registered for panicle length (25.50) and single plant yield (28.63) by cluster VII, flag leaf length (32.37) by cluster VI, hundred grain weight (2.57) and plant height (118.33) by cluster IX. The cluster II had comparably high mean values for number of productive tillers per plant, panicle length, flag leaf length and low mean value for grain breadth. The genotypes from this cluster shall be employed as parents for producing superior hybrids with medium slender grain type.

Table 3 ANOVA for all the biometrical traits
Table 4 Clustering of genotypes by Tocher’s method
Table 5 The inter and intra cluster distances among ten clusters

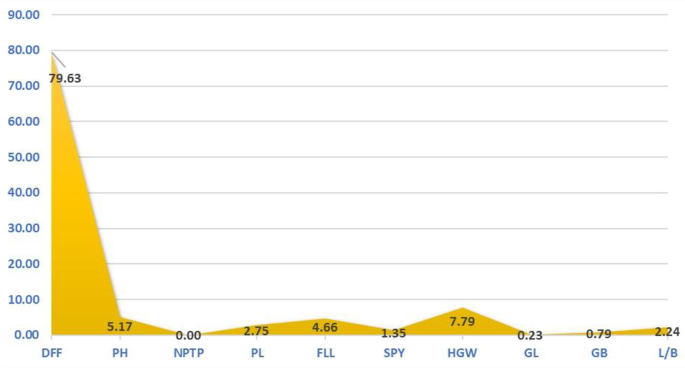

Fig. 2
figure 2

The individual contribution of traits to the total divergence

DFF – Days to 50 % flowering; PH – Plant height (cm); NPTP – Number of productive tillers per plant; PL – Panicle length (cm); FLL – Flag leaf length (cm); SPY – Single plant yield (g); HGW – Hundred grain weight (g); GL – Grain length (cm); GB – Grain breadth (cm); L/B – Grain Length Breadth ratio

Table 6 The cluster mean for all the biometrical traits

Principal Component Analysis

The PCA reduces the dimensionality of data by identifying the most prominent few variables responsible for variation in the genotypes. The principal component analysis for the morphological traits under study revealed the presence of variability among all the parental lines. The factor loadings of each variable, eigen values, percent of variance and cumulative percent of variance for all the ten principal components are given in Table 7. The first four PCs had eigen value > 1 and accounted for a cumulative variance of 71.28%. PC1 (eigen value of 2.65) contributed 26.48% of total variance followed by PC2 (19.50%), PC3 (14.43%) and PC4 (10.87%). The remaining PCs altogether contributed 28.72% to the total divergence of the genotypes. Days to 50% flowering (0.205), plant height (0.423), panicle length (0.322), flag leaf length (0.247), hundred grain weight (0.425), grain length (0.152) and grain breadth (0.501) exhibited positive weightage to PC axis 1. The PC2 showed positive loadings for days to 50% flowering (0.186) and grain breadth (0.256). In PC3, hundred grain weight (0.321), grain length (0.390) and grain breadth (0.208) and in PC4, days to 50% flowering (0.557) and hundred grain weight (0.213) had positive weightage to the corresponding PC axis respectively. The scree plot (Fig. 3) displaying the relation between all the principal components and the contribution of variation percent depicted the PC1’s dominant role in variation among the genotypes guiding trait selection to harness maximum variability.

Table 7 The factor loadings, eigen values, percent of variance and cumulative percent of variance for all principal components
Fig. 3
figure 3

Scree plot depicting the relation between all the principal components and the contribution of variation percent

The degree and the relation between variables are shown as vectors in PCA plot for variables (Fig. 4). The length of the variable vector is directly proportional to the contribution of respective trait to the total divergence. Considering the traits with positive loadings to the first four PCs, the longest vector is observed for grain breadth followed by plant height, hundred grain weight, grain length and panicle length. The maximum contribution by the traits to the total divergence is pronounced in the above-mentioned order of vector lengths. Further, angle between the vectors determine the direction of association among the variables. If the angle between the vectors is acute (< 900) or obtuse (> 900), there exist a positive or negative correlation between the corresponding traits respectively. If the vectors of two traits are at right angle (900) to each other, they are said to be uncorrelated (Christina et al. 2021). The positively correlated variables with single plant yield were number of productive tillers per plant, grain length, panicle length, plant height, hundred grain weight and grain length breadth ratio. The variable vectors viz., flag leaf length, grain breadth and days to 50% flowering produced obtuse angle with vector of single plant yield showing negative association. The interaction between genotypes and the variables are depicted in PCA biplot (Fig. 5). The genotypes located around the variable vectors in the same quadrant are meant to be best performers for the particular trait. The genotypes viz., CBSN 495, CRR Dhan 315, CBSN 494, CRR Dhan 310, AD 13253, MTU 1156 and IR64 DRT clustered in the same quadrant perform better for plant height, hundred grain weight, panicle length, flag leaf length, grain length and single plant yield. The genotypes viz., CO51, RNR 15048 and ADT 56 grouped together had high number of productive tillers per plant. The genotypes in the opposite quadrant viz., WGL 21356, CB 19127 and CO 51 Pyr A7 were poor performers for yield attributing traits.

Fig. 4
figure 4

PCA for variables

DFF – Days to 50% flowering; PH – Plant height (cm); NPTP – Number of productive tillers per plant; PL – Panicle length (cm); FLL – Flag leaf length (cm); SPY – Single plant yield (g); HGW – Hundred grain weight (g); GL – Grain length (cm); GB – Grain breadth (cm); L/B – Grain Length Breadth ratio

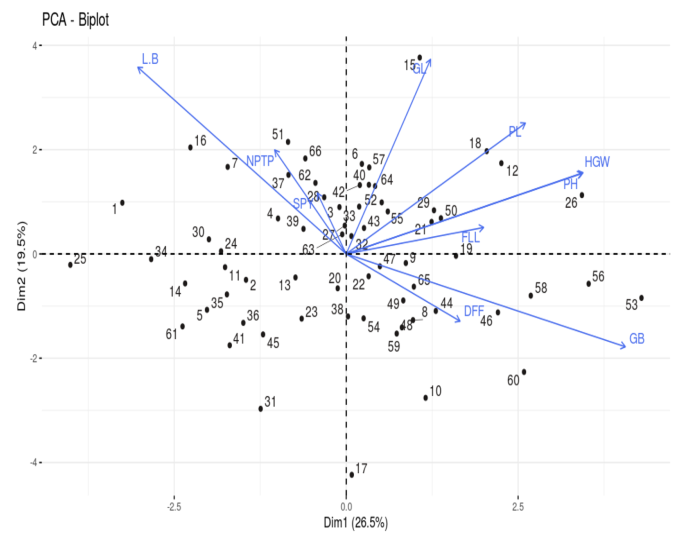

Fig. 5
figure 5

PCA Biplot

The numbers denote genotypes* and the vectors correspond to the biometrical traits

The genotypes are numbered according to the list provided in Table 1

Molecular Diversity

UPGMA Clustering

Thirty Polymorphic Simple Sequence Repeat markers produced a total of 122 alleles among 66 parental lines. The number of alleles produced per marker ranged from 2 (RM1, RM443, RM471, RM555, RM205 and RM267) to 9 (RM474) with an average of 4 alleles per marker (Table 8). The marker RM474 (Fig. 6) recorded the highest values for Polymorphic Information Content (PIC) (0.83) and heterozygosity index (0.85). Conversely, RM267 had the lowest PIC (0.28) and heterozygosity index (0.33). The average values for PIC and heterozygosity index were 0.55 and 0.61 respectively. The genotypes were assembled in seven clusters based on Jaccard distances (dissimilarity coefficient) using the Unweighted Pair Group method with Arithmetic Mean (UPGMA) (Table S3 and Fig. 7). The largest cluster with 15 genotypes was cluster IV followed by cluster I and III with 11 genotypes each. The cluster VI contained 9 genotypes, clusters II and VII with 7 genotypes each and the smallest cluster V with 6 genotypes. The maximum Jaccard distance (Jaccard distances are given in Supplementary material S4) was found between CR1009 Sub1 and CBSN 514 (0.95) followed by TRY3 and CBSN 497 (0.93) and between CRR Dhan 310 and CBSN 520(0.93). The genotypes between which minimum Jaccard distance recorded were CBSN 510 and CBSN 516 (0.18) followed by WGL 283 and WGL 3962 (0.20), CO43 Sub 1 and CO51 Pyr A10 (0.21) and CB 20142 and CBSN 518 (0.21).

Table 8 The list of polymorphic markers along with their number of alleles, Polymorphic Information Content (PIC) value and heterozygosity index
Fig. 6
figure 6

Banding pattern of RM 474

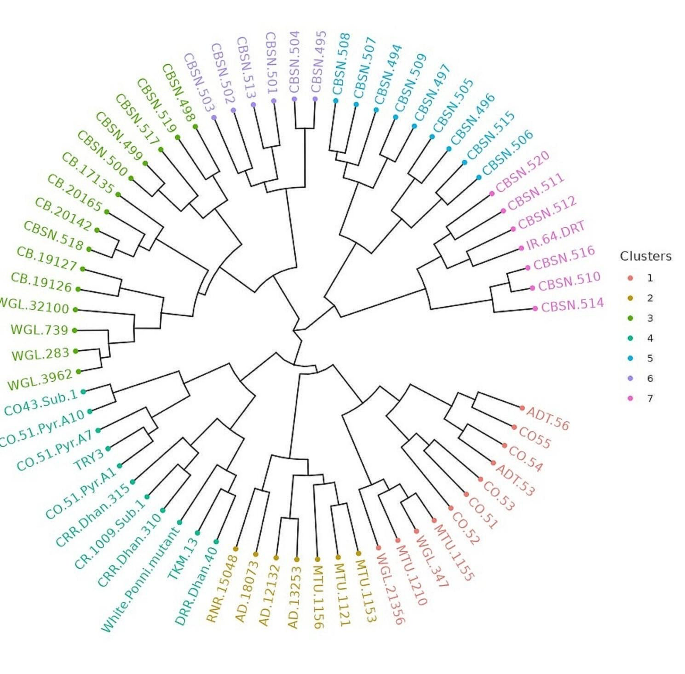

Fig. 7
figure 7

The clustering of parental lines based on jaccard distance

Population Structure

The population structure analysis using Bayesian model-based approach in STRUCTURE 2.3.4 software was conducted on 66 genotypes. The program was set at 50,000 burns in iterations with number of subpopulations k from 1 to 10. The best k value was determined by plotting likelihood value LnP(D) against ad hoc statistics (Δk) according to Evanno et al. (2005). The maximum value for Δk (10.89) was attained when k = 3 (Fig. 8). Therefore, the entire material was divided into 3 subpopulations (Fig. 9). The second subgroup (SG2) was the largest with 32 genotypes (56.25% pure and 43.75% admixture), followed by first subgroup (SG1) with 16 (62.5% pure and 37.5% admixture) and third subgroup (SG3) with 18 genotypes (55.56% pure and 44.44% admixture) respectively. The Analysis of Molecular Variance (AMOVA) delineated the total genetic variation, revealing that 80% of the variation existed among individuals within populations. The genetic divergence among populations accounted for 16%, while variation within individuals contributed 4% to the total variation (Table 9, Supplementary figure 1). On examining pairwise genetic differentiation (Fst) between subpopulations, SG2 and SG3 registered large divergence (0.171) which suggested limited gene flow between them as corroborated by the lowest Nm value of 1.212 (Table 10). The overall average Fst and Nm for the populations were 0.159 and 1.321 respectively. The quantification of genetic diversity parameters identified SG1 and SG2 with highest expected and observed heterozygosity (0.563, 0.036) respectively. SG3 displayed lowest estimates for both expected and observed heterozgosity (0.485, 0.015). The clusters formed in STRUCTURE analysis were not in congruent with biometrical clustering which were evident through the disparity in the number of clusters formed based on molecular and morphological data. In the morphological clusters, there was a co-mingling of genotypes representing both indica and indica-japonica derivatives. In contrast, the population structure analysis conducted through STRUCTURE distinctly categorized the subspecies, allocating all indica-japonica cross derivatives to SG3, while genotypes belonging to the indica subspecies were segregated into SG1 and SG2. Furthermore, the grouping of all improved varieties in a single subgroup (SG2) in STRUCTURE contrasts with their disparate placement across different clusters in the D2 grouping. This discrepancy may be attributed to environmental and seasonal influences, which are known to impact morphological clustering.

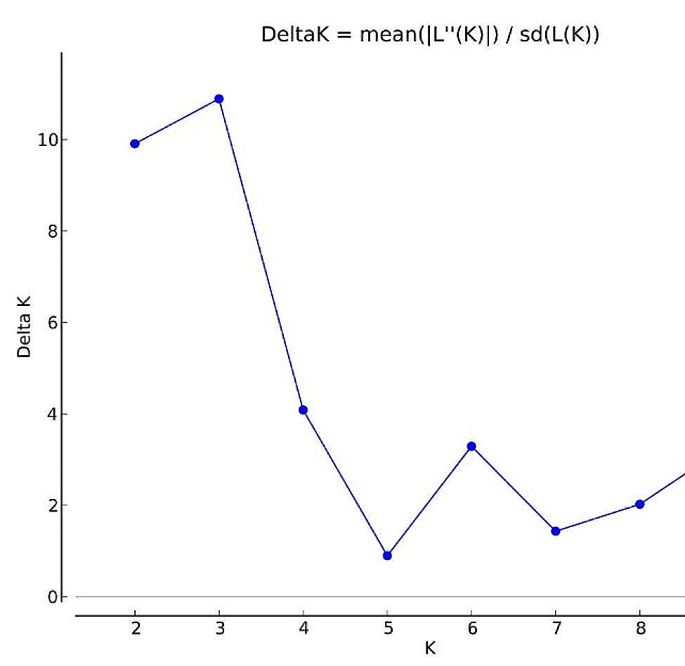

Fig. 8
figure 8

The relation between number of subpopulations and Δk

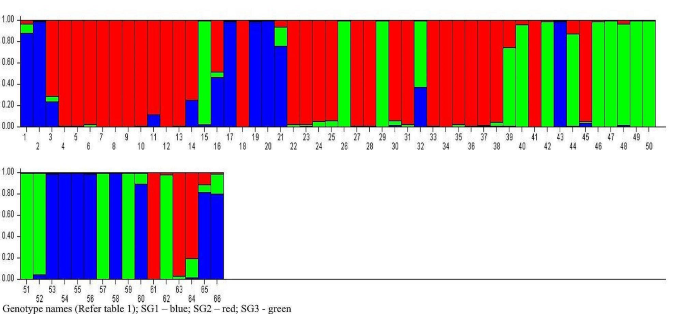

Fig. 9
figure 9

Pictorial representation of distribution of parental lines into different subgroups

Table 9 Analysis of molecular variance between subpopulations
Table 10 Pairwise genetic differentiation (Fst) and gene flow (Nm) between three subpopulations along with observed and expected heterozygosity


In the light of surging global population and depleting resources, it is crucial to explore alternatives that enhance the productivity of rice in major regions worldwide. This necessitates a shift towards leveraging heterosis to overcome the challenges posed by the yield plateau of existing varieties. A deep understanding of the genetic diversity among parental lines is essential for optimizing hybrid breeding outcomes. With this goal, we initiated an investigation involving 66 rice genotypes to assess the genetic landscape and provide insights for the judicious selection of parents in effective hybrid breeding.

The study of genetic parameters revealed that PCV was more than GCV which indicated the influence of environmental parameters other than genes in the determination of phenotype. The number of productive tillers per plant, single plant yield and hundred grain weight had high PCV, GCV, heritability and genetic advance. The traits days to 50% flowering, plant height, grain length and grain length breadth ratio also possessed high heritability, GAM with moderate GCV. These traits offer wide variability coupled with additive gene action and therefore selection based on these traits is appreciable for choosing parents. Similar report for yield and grain characters were furnished by Duraiswamy et al. (2023) and Khalequzzaman et al. (2023) respectively. In D2 statistics, the clustering of 66 genotypes in ten different clusters indicated sufficient genetic diversity existing in the experimental material. Most of the released varieties from Tamil Nadu and Andhra Pradesh were grouped together in cluster I while, varieties released from Tamil Nadu were also grouped in cluster II. This clearly indicated that there was no association between genetic diversity and geographical origin. This was in agreement with the findings of Bhargavi et al. (2023), Bhoite et al. (2023) and Srinivas et al. (2023). The distribution of indica-japonica cross derived lines in different clusters (III, IV, V, VI and VII) indicated that artificial selection and genetic drift played a significant role in determining genetic diversity. The grouping of genotypes in cluster V with less intra cluster distance showed close resemblance for days to 50% flowering and could be due to unidirectional selection pressure during development of these genotypes (Srinivas et al. 2023). The maximum intra cluster distance for cluster VII and X shall be explained to be the result of past selection history, degree of combining ability, genetic architecture or the genotype heterogeneity (Dinesh et al. 2023). The maximum contribution of days to 50% flowering, hundred seed weight and plant height to the genetic divergence makes these traits to be the direct selection indices in parental lines. Srinivas et al. (2023), jebakani et al. (2023) and Jangala et al. (2022) also reported 50% flowering, hundred seed weight and plant height with maximum contribution towards divergence. Based on the cluster mean values, the genotypes in cluster VII (Blue Bonnet/CB 87R 5-3-1, CB 17135, CO 51 Pyr A10, CBSN 500) can be used as donors for producing hybrids with high yield and high panicle length. The genotypes in cluster III (CBSN 499, WGL 347 and WGL 283) can be employed as donors to produce dwarf and early maturing hybrids. The indica-japonica cross derivative CBSN 495 in the solitary cluster shall be employed as a parent in three-line breeding in order to achieve high yield with good restorability of fertile hybrids. The higher inter cluster distances than intra cluster distances express enough genetic variability to be present among the genotypes (Jebakani et al. 2023). On combining high inter cluster distance and cluster mean, the crosses between genotypes in clusters III, IX and cluster V, cluster VII and VI are beneficial to obtain superior hybrids.

Principal component analysis (PCA) measures the spatial distance between genotypes, contrasting with D2 statistics (Nadarajan et al. 2016). The contribution of days to 50% flowering, plant height, panicle length, flag leaf length, hundred grain weight, grain length and grain breadth for PC1 in our study is supported by the reports of Nachimuthu et al. (2014), Kathare et al. (2023), Duraiswamy et al. (2023) and Gupte et al. (2023). The traits occurring together in different principal components with maximum positive contribution viz., days to 50% flowering, hundred grain weight and grain breadth tend to remain together and so prior importance should be given for positive selection of them in breeding programme (Kumari et al. 2023). In PCA biplot, the genotypes viz., CBSN 495, CB 17135, CBSN 494, CRR Dhan 315, CRR Dhan 310 and IR64 DRT which are good performers for yield contributing traits were positioned around the corresponding trait vectors in the same quadrant. The genotype WGL 347, despite high yield appeared in a different quadrant due to low plant height, making it a viable parent. All these genotypes identified in PCA were assembled in the diverse clusters (III, V, VI, VII and IX) by D2 statistics.

The cluster analysis by Jaccard distance for SSR scoring grouped the 66 parental lines into seven clusters. The released varieties from Tamil Nadu, Andhra Pradesh and Telangana were grouped in cluster I and II reflecting similarity in parentage for medium slender grain types preferred in those regions. Bhattacharjee et al. (2021) also reported marker-based grouping independent of geographical origin. The average PIC (0.55) and the number of alleles (4) were in close accordance with the reports of Tripathi et al. (2020) who reported average alleles of 3.7 and average PIC of 0.56 in molecular diversity analysis of 27 rice cultivars using 12 SSR markers and Salem and Sallam (2016) who obtained average values of 4.5 and 0.57 for number of alleles per locus and PIC respectively in genetic diversity study of 22 Egyptian and exotic rice genotypes using 23 SSR markers. Whereas Pandita et al. (2023), Akter et al. (2022) and Bajracharya et al. (2006) reported lower mean values than our findings for PIC and number of alleles per locus. The most informative marker with the highest PIC value was identified to be RM474. Based on Jaccard distance, the minimum genetic diversity was found among released varieties which shall be attributed to their free gene flow and shared genetic architecture. Among PCA identified good performing genotypes, high dissimilarity coefficients of 0.90 between CRR Dhan 315 and CBSN 494, 0.83 between CRR Dhan 310 and IR64 DRT and 0.85 between CBSN 495 and CB 17135 were registered. These genotypes also belonged to different molecular clusters reinforcing their genetic distinctiveness. In population structure analysis, the best k value was identified to be 3 which was in accordance with the results of Mishra et al. (2019) in 35 germplasm accessions, Nachimuthu et al. (2015) in 192 rice germplasm lines and Upadhyay et al. (2012) in 25 rice varieties. Most of the genotypes with admixtures were identified to be wild rice derivatives and indica-japonica cross derivatives. The admixtures may be due to the constitution of inherited alleles as a result of artificial crossing and hybridization (Yamasaki and Ideta 2013). The analysis of molecular variance identified significant genetic variation of 80% attributed to differences among individuals within the population. This highlighted the presence of ample variation in the genotypes that can be harnessed in breeding programmes. The pairwise Fst values exceeding 0.15 as propounded by Wright (1978) indicated large genetic differentiation. The lower genetic differentiation and high gene flow observed between SG1 and SG2 was postulated to be the consequence of shared evolutionary history of common parents for released and improved varieties, all belonging to indica subspecies and the exchange of genetic materials across states for breeding. In contrast, SG3 encompassing genotypes from indica-japonica cross derivatives, exhibited a noteworthy and large genetic differentiation from other two subpopulations. The average observed heterozygosity was 0.022 which was lower than the reports of Tarang et al. (2016) and Suvi et al. (2020). This low estimate can be ascertained to the autogamous mode of reproduction in rice. On the other hand, the average expected heterozygosity, estimated at 0.524, aligned with the findings of Nachimuthu et al. (2015). This can be attributed to the exchange of genes among the genotypes resulting in broad spectrum of genetic diversity. Out of 3 subpopulations, SG3 distinctly encompassed all the indica-japonica cross derivatives in which indica lines were confirmed for the presence of restorer genes. This subgroup could be exploited to select good restorers based on mean value for yield attributes.

The comparison of morphological and molecular cluster revealed that the number of clusters and distribution of genotypes in clusters were different in both approaches. This swapping of genotypes might be attributed to the influence of environment and genotype-environment interaction in determining the morphology. Similar pattern of differences in clusters of morphological and molecular marker analysis were reported by Pathak et al. (2020), Rahman et al. (2011), Vengadessan et al. (2016) and Han-Yong et al. (2004). But the good performing genotypes identified through PCA were positioned in different clusters in both clustering which enable us to select diverse parents for producing superior hybrids.


The present experimental material exhibited a wide genetic divergence in both D2 statistics and Jaccard distance-based analyses. Two lines viz., CBSN 495 and CBSN 494 located in different clusters were identified as the potential donors for short duration hybrids. The cross between WGL 347, CB 17135 and improved varieties viz., CRR Dhan 310 CRR Dhan 315, IR64 DRT assembled in different clusters shall be attempted to develop nutritionally improved and drought tolerant hybrids. Henceforth, a more precise parental selection for hybridization programme is possible by collaborative understanding of morphological and molecular clusters.

Data Availability

No datasets were generated or analysed during the current study.


  • Akter MB, Mosab-Bin A, Kamruzzaman M, Reflinur R, Nahar N, Rana MS, Hoque MI, Islam MS (2022) Morpho-molecular diversity study of rice cultivars in Bangladesh. Czech J Genet Plant Breed 58(2):64–72.

    Article  CAS  Google Scholar

  • Allan V (2023) PB-Perfect: a comprehensive R-based tool for plant breeding data analysis, PB - Perfect.

  • Bajracharya J, Steele KA, Jarvis DI, Sthapit BR, Witcombe JR (2006) Rice landrace diversity in Nepal: variability of agro-morphological traits and SSR markers in landraces from a high-altitude site. Field Crops Res 95(2–3):327–335.

    Article  Google Scholar

  • Bhargavi B, Yadla S, Kumar Jukanti A, Thati S (2023) Genetic divergence studies for yield and quality traits in high protein landraces of rice (Oryza sativa L). Plant Sci Today 10(2):195–204.

    Article  CAS  Google Scholar

  • Bhattacharjee M, Majumder K, Kundagrami S, Dasgupta T (2021) Analysis of genetic diversity using molecular markers among some elite rice genotypes. Curr J Appl Sci Technol 40(42):36–42.

    Article  Google Scholar

  • Bhoite KD, Pardeshi SR, Chaure JS (2023) Genetic diversity studies in selected elite genotypes and released varieties of rice. J Cereal Res 15(1):103–110.

    Article  Google Scholar

  • Christina GR, Thirumurugan T, Jeyaprakash P, Rajanbabu V (2021) Principal component analysis of yield and yield related traits in rice (Oryza sativa L.) landraces. Electron J Plant Breed 12(3):907–911.

    Article  Google Scholar

  • Devasena N, Sharmili K, Wilson D (2023) Principal component and cluster analysis on eating and cooking quality parameters in rice (Oryza sativa L.) Germplasm. Biological Forum –. Int J 15(5):326–332

    Google Scholar

  • Dinesh K, Devi MS, Sreelakshmi C, Paramasiva I (2023) Exploring the genetic diversity for yield and quality traits in indigenous landraces of rice (Oryza sativa L). Electron J Plant Breed 14(2):502–510.

    Article  Google Scholar

  • Doyle JJ, Doyle JL (1987) A rapid DNA isolation procedure for small quantities of fresh leaf tissue. Phytochemical Bull 19:11–15

  • Duraiswamy A, Jebakani KS, Pramitha JL, Ramchander S, Devasena N, Wilson D, Kumar PD, Kumar PR (2023) Evaluating the variability parameters among rice (Oryza sativa. L) landraces and varieties from Tamil Nadu. Electron J Plant Breed 14(2):487–495.

    Article  Google Scholar

  • Evanno G, Regnaut S, Goudet J (2005) Detecting the number of clusters of individuals using the software STRUCTURE: a simulation study. Mol Ecol 14:2611–2620.

    Article  CAS  PubMed  Google Scholar

  • Gupte VP, Manonmani S, Nivedha R, Suresh R, Kumar GS, Raveendran M (2023) Genetic diversity studies and identification of donors for lodging resistance in rice (Oryza sativa L). Electron J Plant Breed 14(3):1158–1166.

    Article  Google Scholar

  • Han-yong Y, Xing-hua W, Yi-ping W, Xiao-ping Y and, Sheng-xiang T (2004) Study on genetic variation of rice varieties derived from Aizizhan by using morphological traits, allozymes and simple sequence repeat (SSR) markers. Chinese Journal of Rice Science 18: 477–482

  • Islam MZ, Siddique MA, Akter N, Prince MF, Islam MR, Anisuzzaman M, Mian MA (2019) Morpho-molecular divergence of restorer lines for hybrid rice (Oryza sativa L.) development. Cereal Res Commun 47:531–540.

    Article  Google Scholar

  • Jangala DJ, Amudha K, Geetha S, Uma D (2022) Studies on genetic diversity, correlation and path analysis in rice germplasm. Electron J Plant Breed 13(2):655–662.

    Article  Google Scholar

  • Jebakani KS, Aishwarya D, Pramitha JL, Ramchander S, Devasena N, Wilson D, Kumar PD, Samundeswari R (2023) Assessing the genetic diversity and association of traits among the rice (Oryza sativa L.) landraces and varieties from Tamil Nadu. Electron J Plant Breed 14(3):818–832.

    Article  Google Scholar

  • Kathare P, Roy A, Sinha P, Gupta P, Kavitha M, Nagarajan S, Mannade AK (2023) Genetic variability and characters association study for yield and attributing traits in rice (Oryza sativa L.) under heat stress condition. Pharma Innov J 12(7):1332–1335

    Google Scholar

  • Khalequzzaman M, Chakrabarty T, Islam MZ, Rashid ES, Prince MF, Siddique MA (2023) Deciphering genetic variability, traits association, correlation and path coefficient in selected Boro rice (Oryza sativa L.) Landraces. Asian J Biology 19(2):33–45.

    Article  Google Scholar

  • Kumari P, Nilanjaya, Shah P (2023) Study of genetic diversity in rice (Oryza sativa L.) genotypes under direct seeded condition by using principal component analysis. Ecol Environ Conserv J 29:S211–S219.

    Article  Google Scholar

  • Mahalanobis PC (1936) On the generalized distance in statistics. Natl Inst Sci India 2:49

    Google Scholar

  • Manivannan N (2014) TNAUSTAT-Statistical package.

  • Mishra A, Kumar P, Shamim M, Tiwari KK, Fatima P, Srivastava D, Singh R, Yadav P (2019) Genetic diversity and population structure analysis of Asian and African aromatic rice (Oryza sativa L.) genotypes. J Genet 98:1–9.

    Article  CAS  Google Scholar

  • Muthayya S, Sugimoto JD, Montgomery S, Maberly GF (2014) An overview of global rice production, supply, trade, and consumption: global rice production, consumption, and trade. Annals New York Acad Sci 1324:7–14.

    Article  ADS  Google Scholar

  • Nachimuthu VV, Robin S, Sudhakar D, Raveendran M, Rajeswari S, Manonmani S (2014) Evaluation of rice genetic diversity and variability in a population panel by principal component analysis. Indian J Sci Technol 7(10):1555–1562

    Article  Google Scholar

  • Nachimuthu VV, Muthurajan R, Duraialaguraja S, Sivakami R, Pandian BA, Ponniah G, Gunasekaran K, Swaminathan M, Sabariappan KKS R (2015) Analysis of population structure and genetic diversity in rice germplasm using SSR markers: an initiative towards association mapping of agronomic traits in Oryza sativa. Rice 8(1):1–25.

    Article  Google Scholar

  • Nadarajan N, Manivannan N, Gunasekaran M (2016) Quantitative genetics and biometrical techniques in plant breeding. Kalyani, New Delhi, India, pp 227–232

    Google Scholar

  • Pandita D, Mahajan R, Zargar SM, Nehvi FA, Dhekale B, Shafi F, Shah MU, Sofi NR, Husaini AM (2023) Trait specific marker-based characterization and population structure analysis in rice (Oryza sativa L.) germplasm of Kashmir Himalayas. Mol Biol Rep 50(5):4155–4163.

    Article  CAS  PubMed  Google Scholar

  • Pathak P, Singh SK, Korada M, Habde S, Singh DK, Khaire A, Kumar Majhi P (2020) Genetic characterization of local rice (Oryza sativa L.) genotypes at morphological and molecular level using SSR markers. J Experimental Biology Agricultural Sci 8(2):148–156.

    Article  CAS  Google Scholar

  • Peakall R, Smouse PE (2007) GENALEX6: genetic analysis in excel. Population genetic software for teaching and research. Mol Ecol 6:288–295

    Article  Google Scholar

  • Rahman MM, Hussain A, Syed MA, Ansari A, Mahmud MA (2011) Comparison among clustering in multivariate analysis of rice using morphological traits, physiological traits and simple sequence repeat markers. American-Eurasian J Agric Environ Sci 11(6):876–882

    Google Scholar

  • Salem KF, Sallam A (2016) Analysis of population structure and genetic diversity of Egyptian and exotic rice (Oryza sativa L.) genotypes. CR Biol 339(1):1–9.

  • Sheela KS, Robin S, Manonmani S (2020) Principal component analysis for grain quality characters in rice germplasm. Electron J Plant Breed 11(01):127–131.

  • Singh S, Singh SK, Korada M, Khaire A, Singh DK, Habde SV, Majhi PK, Rai B (2022) Morpho-molecular diversity analysis in rice (Oryza sativa L.) Genotypes using microsatellite markers. Indian J Agricultural Res 1:1–8.

    Article  Google Scholar

  • Srinivas B, Chandramohan Y, Padmaja D, Thippeswamy S, Laxman S (2023) Genetic analysis of rice (Oryza sativa L.) genotypes under Wet Direct Seeding Condition. Int J Bio-resource Stress Manage 14(6):916–923.

    Article  Google Scholar

  • Suvi WT, Shimelis H, Laing M, Mathew I, Shayanowako AI (2020) Assessment of the genetic diversity and population structure of rice genotypes using SSR markers. Acta Agriculturae Scand Sect B—Soil Plant Sci 70(1):76–86.

    Article  CAS  Google Scholar

  • Tarang A, Gashti AB (2016) The power of microsatellite markers and AFLPs in revealing the genetic diversity of Hashemi aromatic rice from Iran. J Integr Agric 15(6):1186–1197.

    Article  CAS  Google Scholar

  • Tripathi S, Singh SK, Srivashtav V, Khaire AR, Vennela P, Singh DK (2020) Molecular diversity analysis in rice (Oryza sativa L.) using SSR markers. Electron J Plant Breed 11(03):776–782.

    Article  Google Scholar

  • Upadhyay P, Neeraja CN, Kole C, Singh VK (2012) Population structure and genetic diversity in popular rice varieties of India as evidenced from SSR analysis. Biochem Genet 50:770–783.

    Article  CAS  PubMed  Google Scholar

  • Vengadessan V, Ramapriya S, Selvarajeswari N (2016) Morpho-molecular diversity analysis of traditional and improved cultivars in rice. Int J Multidisciplinary Educ Res 1(4):59–65

    Google Scholar

  • Wright S (1978) Evolution and the genetics of populations: variability within and among natural populations. University of Chicago Press, Chicago

    Google Scholar

  • Yamasaki M, Ideta O (2013) Population structure in Japanese rice population. Breed Sci 63(1):49–57.

    Article  PubMed  PubMed Central  Google Scholar

Download references


The first author acknowledges the Council of Scientific and Industrial Research for providing CSIR-SRF grant (File. No: 09/641(0177)/2021-EMR-I) and the scheme CRP on Hybrid Rice Technology 2023-24.


The authors did not receive support from any organization for the submitted work.

Author information

Authors and Affiliations



RN and SM conceptualized the research. SM and TK designed the experiments and provided experimental materials. RN conducted the original experiments and collected datasets. RN performed the analyses and wrote the manuscript. SM, TK, MR, SK reviewed the manuscript and provided inputs to improve the manuscript. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Swaminathan Manonmani.

Ethics declarations

Ethical Approval and Consent to Participate

Not applicable.

Consent for Publication

Not applicable.

Competing Interests

The authors declare no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Electronic Supplementary Material

Below is the link to the electronic supplementary material.
