Identification of a Seed Vigor–Related QTL Cluster Associated with Weed Competitive Ability in Direct–Seeded Rice (Oryza Sativa L.)
Rice volume 16, Article number: 45 (2023)
Direct seeding of rice (Oryza sativa L.) is a low-labor and sustainable cultivation method that is used worldwide. Seed vigor and early vigor are important traits associated with seedling stand density (SSD) and weed competitive ability (WCA), which are key factors in direct-seeded rice (DSR) cultivation systems. Here, we developed a set of chromosome segment substitution lines with Xiushui134 as receptor parent and Yangdao6 as donor parent and used these lines as a mapping population to identify quantitative trait loci (QTLs) for seed vigor, which we evaluated based on germinability–related indicators (germination percentage (GP), germination energy (GE), and germination index (GI)) and seedling vigor–related indicators (root number (RN), root length (RL), and shoot length (SL) at 14 days after imbibition) under controlled conditions in an incubator. Ten QTLs were detected across four chromosomes, of which a cluster of QTLs (qGP11, qGE11, qGI11, and qRL11) co-localized on Chr. 11 with high LOD values (12.03, 8.13, 7.14, and 8.75, respectively). Fine mapping narrowed down the QTL cluster to a 0.7-Mb interval between RM26797 and RM6680. Further analysis showed that the QTL cluster has a significant effect (p < 0.01) on early vigor under hydroponic culture (root length, total dry weight) and direct seeding conditions (tiller number, aboveground dry weight). Thus, our combined analysis revealed that the QTL cluster influenced both seed vigor and early vigor. Identifying favorable alleles at this QTL cluster could facilitate the improvement of SSD and WCA, thereby addressing both major factors in DSR cultivation systems.
Rice (Oryza sativa L.), an important global food crop, is traditionally cultivated by transplanting seedlings into puddled soil (Kumar and Ladha 2011). However, puddling and transplanting consume 30% of the total water requirements of rice, and require much energy and labor (Raj and Syriac 2017). Various problems, such as labor scarcity due to a shift of rural laborers to the city, are increasing production costs and reducing profits to farmers (Mondal et al. 2020; Raj and Syriac 2017), making rice production via transplantation increasingly unsustainable (Farooq et al. 2011; Mondal et al. 2020). Direct seeding is a good alternative to transplantation, with advantages that include lower labor requirements, less need for water and energy (Liu et al. 2014; Sun et al. 2015), and increased profitability to farmers (Mondal et al. 2020). More importantly, direct–seeded rice (DSR) matures 7 to 10 days earlier than conventional transplanted rice (TPR) due to the absence of transplant shock and faster seedling establishment (Raj and Syriac 2017; Rana et al. 2014) while being almost on par with TPR in terms of yield (Awan, Manzoor, Ali, Safdar, & Yaqub, 2007). Therefore, in recent years, there has been a shift from TPR to DSR cultivation in several Southeast Asian countries (Sun et al. 2015). Studies in countries including China, India, Sri Lanka, Nepal, and Australia indicated that rice can be successfully cultivated using direct seeding (Mondal et al. 2020). In some parts of Southeast Asia (such as the Philippines, Malaysia, and Vietnam), transplantation is widely being replaced by wet direct seeding in puddled soils (Mondal et al. 2020).
Despite its advantages over TPR, DSR is subject to two major biological constraints (Raj and Syriac 2017). The first is non–uniform seedling stand density (SSD, seedling emergence performance). In TPR cultivation, seeds germinate and seedlings are grown under controlled conditions in nurseries, whereas in DSR cultivation, the seeds and seedlings are exposed to adverse environmental conditions during germination and emergence, which can lead to non–uniform SSD (Qi et al. 2012). To ensure uniform SSD, a high sowing rate is usually recommended (Sun et al. 2015), but this wastes seeds and results in high population density and low quality. The second major constraint is high weed infestation (poor weed control) (Chauhan and Abugho 2013; Kumar and Ladha 2011; Singh et al. 2017). Under direct seeding, the emergence of weeds concurrently with rice seedlings and the wide adaptability and competitive advantage of weeds can make weeds dominate the crop habitat, which adversely affects crop yields (Raj and Syriac 2017).
The key to obtaining a uniform SSD is to use seeds that exhibit high performance during germination and seedling emergence, especially during the growth of the first leaf, when adventitious roots normally emerge in a timely manner. These seed properties, referred to collectively as seed vigor, determine seed germinability and seedling vigor (Perry 1978). Seed vigor is thus an essential trait affecting SSD in direct seeding systems.
The weed competitive ability (WCA) of crops is closely linked to several traits, including plant height, tiller number, early biomass accumulation, shoot and root dry weight, leaf area index and specific leaf area during vegetative growth, and canopy ground cover (Caton et al. 2003; Dimaano et al. 2020; Dingkuhn et al. 1999; Fischer et al. 1997; Lu et al. 2007; Mahajan et al. 2014; Okami et al. 2011; Raj and Syriac 2017; Zhao et al. 2006). All these characteristics are expressed as early vigor (i.e., the ability of a plant to grow relatively rapidly during the early growth stages), which is an important trait associated with the ability of a crop to suppress weeds.
However, improving seed vigor and early vigor via conventional breeding is difficult due to the quantitative inheritance of these two traits (Redoña and Mackill 1996; Singh et al. 2017). Marker-assisted selection (MAS) can improve breeding efficiency through the exploitation and introgression of favorable alleles into commercial varieties. This process requires the identification of genes/quantitative trait loci (QTLs) for seed vigor and early vigor.
Many efforts have been made to identify QTLs and regulatory genes for seed vigor (Zhao et al. 2021), as well as QTLs for early vigor or strong WCA (Bharamappanavara et al. 2020; Cairns et al. 2009; Cui et al. 2002, 2007; Redoña and Mackill 1996; Singh et al. 2017; Thapa and Septiningsih 2021; Xie et al. 2014; Xu et al. 2004; Z.-H. Zhang et al. 2005; Zhang 2004; Zhou et al. 2007). However, to date, no studies combined the analysis of QTLs for seed vigor (which governs SSD) and for early vigor (which favors weed suppression) to link the genetic architectures of seed vigor and early vigor. Here, we identified candidate QTLs associated with seed vigor under controlled conditions and investigated their effects on early vigor in rice under hydroponic culture and direct seeding conditions. This combined analysis helped us identify additional common QTLs for both seed vigor and early vigor. These QTLs could both improve uniform SSD and enhance WCA in DSR cultivation systems and thereby increase the feasibility and uptake of DSR cultivation.
Materials and Methods

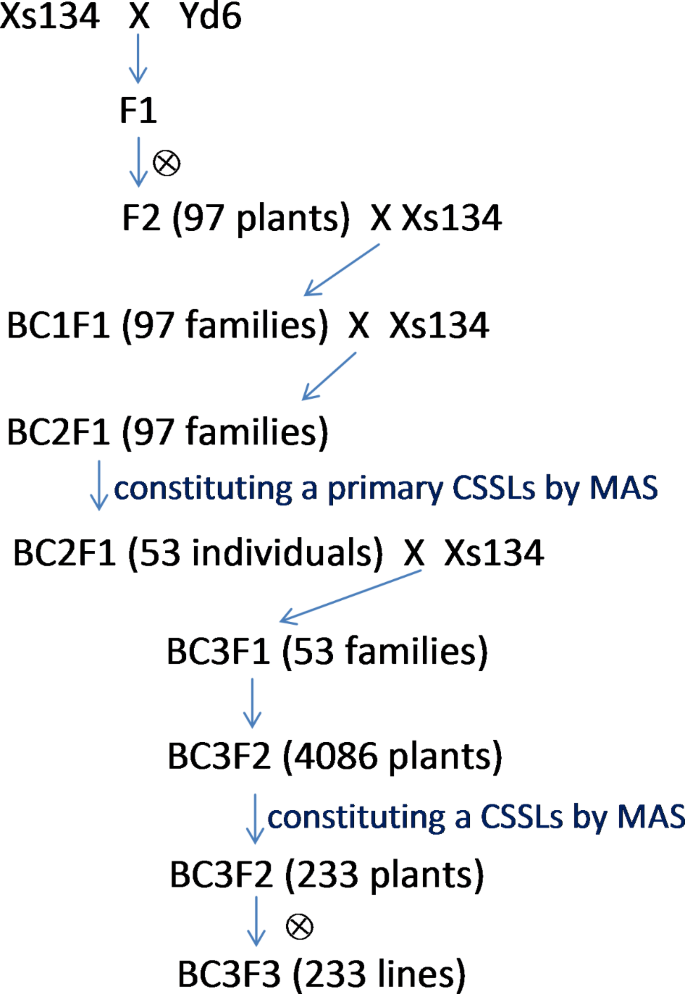

A set of chromosome segment substitution lines (CSSLs) with Xiushui134 (Xs134) as the receptor parent and Yangdao6 (Yd6) as the donor parent was developed and used in this study. Xs134, a japonica cultivar, is grown extensively in south China but has poor seed germinability (Fig. 1). Yd6 is an indica super parent with strong seed germinability that has been used to produce many hybrid varieties, such as the super hybrid rice cultivars LYP9 and YLY1, which are commercially cultivated widely in China. Figure 2 shows a schematic diagram of the strategy used to develop the CSSLs. The F1 seeds were generated by crossing Xs134 with Yd6 and was then advanced to the F2 generation by selfing. In the F2 population, 97 individuals were randomly selected as the female parents and backcrossed with Xs134 to generate 97 BC1F1 families. One individual from each BC1F1 family was randomly selected and backcrossed (as female parent) with Xs134 to generate 97 BC2F1 families.
A set of 12 randomly selected individuals from each BC2F1 family was genotyped in the first round using a set of polymorphic markers (71 SSRs and 24 insertions/deletions); information about these markers is shown in Table S1, and a linkage map is shown in Fig. S1. The 53 resulting individuals (founders, with a known genotype) constituted a set of primary CSSLs, with each individual containing one or a few overlapping marker-defined heterozygous segments that together covered the entire donor genome. All 53 individuals were used as females in backcrosses with Xs134, generating 53 BC3F1 families. Approximately 96 plants per BC3F1 family were generated, yielding a total of 4086 BC3F2 plants, each of which can be traced to a founder (one of 53 individuals). All these plants were screened by MAS for various backcross progenies with targeted introgressed donor chromosome segments based on their genotypic content using GGT (van Berloo 2008), a graphical genotyping software program, to generate a set of 233 CSSLs (Fig. S2). Each line contained one or a few homozygous donor segments, which together covered the entire donor genome. Each marker locus had ≥ 3 replicates of donor segments, with each replicate corresponding to a CSSL (Fig. S2).
The CSSLs were grown during the regular growing season in 2017 at the Experiment Station of Zhejiang Agricultural and Forestry University, Linan, China (30.16 °N, 120.12 °E). On the about 45 days after heading when seeds turned yellow, the seeds were harvested, air-dried in ambient conditions to ~13% moisture, stored at room temperature (~25°C) for three months for after-ripening and afterward in the cold room (16 °C with < 65% relative humidity) until being used to phenotype for seed vigor.
Phenotyping the CSSLs for Seed Vigor
Seed vigor determines seed germinability and seedling vigor. Seed germinability was evaluated using a germination test in which 100 seeds were placed in a germination box (12 cm × 12 cm × 6 cm) containing wet foam paper (in three replications) in an incubator with day/night temperatures of 30/20◦C and a 13-h/11-h day/night cycle. Cumulative germination count was recorded daily from 2 to 14 days after imbibition (DAI) when the radicle length of a germinated seed was approximately equal to the seed length and the coleoptile length was approximately half the seed length. Seed germinability is reflected by the germination percentage (GP), germination energy (GE), and germination index (GI). Seedling vigor is reflected by the root number plant−1 (RN), root length (RL), and shoot length (SL), which were determined using the same germination test as described above, except that 50 seeds were placed in a germination box, and the average values are based on 12 seedlings sampled from each replicate at 14 DAI. These traits are described in Table 1.
Analysis of QTLs for Seed Vigor
QTL analysis was performed by the RSTEP-LRT-ADD (Stepwise regression based-likelihood ratio tests for additive QTL) method for the CSL functionality provided by the QTL IciMapping Version 4.1 software package (Meng et al. 2015), which was well suited for the CSSLs (Alam et al. 2011). Threshold value of condition number for reducing multi-collinearity among marker variables was specified as -1, which means that only duplicate markers will be deleted before QTL mapping. PIN (probability in stepwise regression) was set to 0.01, which means that the largest P-value for entering variables in stepwise regression of phenotype on marker variables is 0.01, and the largest P-value for removing variables is 0.02. A standard threshold logarithm of odds (LOD) score of 3.0 was used to suggest the presence of a putative QTL.
Validating and Fine Mapping the Putative QTL Cluster
A cluster of QTLs (qGP11, qGE11, qGI11, and qRL11) was detected near marker 11-21 M on Chr. 11. The CSSL 7Lx218 harbored only one marker (11-21 M)-defined donor segment (Table S2; Fig. S2; Fig. 3a). To validate the putative QTL cluster, 7Lx218 and Xs134 were grown in 2018 as described above, and their seed vigor was compared. Furthermore, 7Lx218 was crossed with Xs134 to produce a sub-F2 population, and SSR markers were selected from the Rice Universal Core Genetic Map (Orjuela et al. 2009) and the list provided by IRGSP (Sasaki 2005) to identify polymorphisms between Xs134 and Yd6 at the interval flanked by RM287 and TJ146-19. These polymorphic markers were used for fine mapping of the QTL cluster by substitution mapping (Paterson et al. 1990; Tan et al. 2020; Wissuwa et al. 2002). During the fine mapping, a set of near-isogenic lines (NILs) of the QTL cluster was obtained (Fig. 3b).
Studying the Effects of the QTL Cluster on Early Vigor
The NIL 7Lx218-361 harboring the QTL cluster, together with Xs134 as a control, was used to conduct a hydroponic culture experiment in the greenhouse to study the effects of the QTL cluster on early vigor. Before the experiment, 50 seeds per sample were germinated at 25◦C. The germinated seeds were sown sequentially based on the order of germination in a cell tray (cell count: 6 × 6; tray size: 15 cm × 30 cm; depth of cell: 1 cm) (Fig. 3c), and the trays were placed in a greenhouse where the temperature was controlled at 25◦C under natural light conditions. The plants were subjected to hydroponic culture conditions as described by (Yoshida et al. 1976). Estimations of early vigor, including RN21, RL21, PH21, and TDW21 (Table 1), were made based on average values of 12 plants selected from the middle four columns of each replicate at 21 DAI. TDW21 of the samples was calculated after oven drying at 105◦C for 0.5 h, closely followed by 80◦C for 72 h.
The field experiment was conducted by direct seeding using a completely randomized design in six replications with a plot size of 1 × 2 m2 (14 rows × 4 columns). Uniformly germinated seeds were sown at a soil depth of 1 cm in furrows, and the furrows were covered by vegetable garden soil. The experimental field was irrigated based on soil moisture levels, which were determined by recording the water level (−3 cm) of the ditch. All weeds were removed by manual weeding during the cropping period. Compound fertilizer with 25% (12% N + 7% P2O5 + 6% K2O) nutrient content was applied at a rate of 375 kg ha−1 at the time of sowing. Early vigor, including PH28, TN28, and ADW28 (Table 1), was estimated as described above, except that sampling was performed at 28 days after sowing (DAS).
Analysis of variance (ANOVA) was carried out to compare the genotypic means of seed vigor and early vigor using the least significance difference (LSD) test. The percentage data for GP and GE were arcsine square root transformed before being subjected to ANOVA. Data analysis was performed using SPSS Statistics version 17.0 software for Windows (SPSS Inc., Chicago, IL, USA).
Variation in Seed Vigor in the CSSLs
We investigated six seed vigor–related indicators, including seed germinability (GP, GE, and GI) and seedling vigor (RL, SL, and RN at 14 DAI), in the CSSL population (Table 2) and constructed biplots with the indicators in rows and frequency in columns (Fig. 4). The classical quantitative genetics hypothesizes that variation in a specific quantitative trait in a segregating population follows a normal distribution then this trait may be controlled by many genes, each with a small effect. In this study, all six indicators exhibited continuous distributions in the population, instead of following a normal distribution, indicating that a large amount of genetic variation and some major QTLs existed in the population. Transgressive segregants were observed for the six indicators. Some segregants performed better and others performed worse than the receptor parent (Xs134) (Table 2), suggesting that each indicator is controlled by multiple genes and that some alleles from the donor parent have positive effects while others have negative effects.
Correlation Analysis Among Seed Vigor–Related Indicators
GP, GE, and GI values, derived from a set of relational germination data, are widely used to estimate seed germinability. Significant correlations existed among GP, GE, and GI (Table 3). The highest correlation coefficient (0.921) was detected between GE and GI. We detected significant positive correlations (p < 0.01) between seed germinability (GP, GE, and GI) and seedling vigor (RL, SL, and RN at 14 DAI), suggesting that seed germinability may translate into seedling vigor.
Mapping and Validation of QTLs for Seed Vigor
We identified 10 QTLs at 6 loci across 4 chromosomes (Table 4). Only one QTL each (qSL3, qRL7, qGP8, and qRN11) was detected at loci 1, 3, 4, and 6, respectively, with respective LOD scores of 4.96, 3.75, 4.11, and 7.34. Positive alleles of qSL3 and qRL7 were derived from Yd6, and positive alleles of qGP8 and qRN11 were derived from Xs134. The phenotypic variation explained (PVE) by qSL3, qRL7, qGP8, and qRN11 was 8.97%, 6.51%, 6.27%, and 11.73%, respectively. Two QTLs (qGE7 and qGI7) co-localized at locus 2 on Chr. 7, with low LOD values (2.97 and 5.32, respectively). Nonetheless, there was a highly significant positive correlation coefficient of 0.921 between GE and GI (Table 3), suggesting that qGE7 and qGI7 are the same locus or closely linked loci.
A cluster of QTLs (qGP11, qGE11, qGI11, and qRL11) co-localized at locus 5 on Chr. 11, with high LOD values (12.03, 8.13, 7.14, and 8.75) and high PVE (19.04, 14.75, 12.43, and 16.04), respectively, and negative additive effects of alleles from the donor. To validate the results, we identified the CSSL 7Lx218, containing only one substituted donor segment targeting the QTL cluster at an interval between markers RM287 and TJ146-19 (Table S2; Fig. S2; Fig. 3a). We grew this line together with Xs134 and compared the values for the six indicators at 14 DAI between 7Lx218 and Xs134 (Table 5). The GP, GE, GI, and RL were significantly lower for 7Lx218 than for Xs134 (p < 0.01), while there was no significant difference in SL or RN; these results coincided with the mapping results described above, which confirmed the presence of the QTL cluster.
Fine Mapping of the QTL Cluster for Seed Vigor
To uncover the gene(s) underlying this QTL cluster, we performed substitution mapping to determine the precise location of each QTL. We assessed 23 SSR markers for the substituted interval of 7Lx218 between RM287 and TJ146-19. Nine of these markers (RM26797, RM26811, RM6680, RM457, RM2596, 11-21 M, RM26998, RM27154, and RM27167) detected differences between Yd6 and Xs134, and six of the nine (RM26811, RM6680, RM457, RM2596, 11-21 M, and RM26998) detected polymorphisms between 7Lx218 and Xs134 (Fig. 3b). These results indicated that 7Lx218 carried a substituted segment between markers RM26797 and RM27154, with an estimated length of 6.85 Mb, based on the Nipponbare Reference Genome (IRGSP_1.0).
We crossed 7Lx218 with Xs134 to develop a sub-F2 population. We genotyped 1537 individuals from this population at the six polymorphic marker loci and obtained five homozygous recombinants. These recombinants, along with 7Lx218 and Xs134, composed our set of NILs (Fig. 3b). We phenotyped these NILs for seed vigor (GP, GE, GI, RN, RL, and SL), finding that the NILs fell into two phenotypic classes. In class 1, comprising 7Lx218-453, 7Lx218-1406, and Xs134 (receptor parent), no significant difference was detected for all six indicators, indicating that they contained no QTLs in the substituted segment defined by RM26811 and RM27154. In class 2, comprising 7Lx218-528, 7Lx218-1411, 7Lx218-361, and 7Lx218, GP, GE, GI, and RL were significantly lower than the values for class 1 (p < 0.01), although there was no significant difference in SL or RN between class 1 and class 2, and their substitution segments overlapped between markers RM26797 and RM6680. Based on these results, we narrowed down the QTL cluster (qGP11, qGE11, qGI11, and qRL11) to an estimated interval of 0.7 Mb between RM26797 and RM6680, with negative effects of the allele from the donor at the QTL cluster on GP, GE, GI, and RL (Fig. 3b).
Studying the Effects of the QTL Cluster on Early Vigor
Early seed germination and early seedling growth are crucial for early vigor parameters such as plant height, number of tillers, shoot fresh weight, and shoot dry weight (Dimaano et al. 2020); in turn, early vigor is closely linked to WCA. The critical period of weed competition is 14–41 DAS (Bhagirath S. Chauhan and Johnson 2011). The NIL 7Lx218-361 carried a single substituted segment, with an estimated length of 0.7 Mb, targeting the QTL cluster (Fig. 3b). To study the effects of the QTL cluster on early vigor, we performed hydroponic culture experiments in the greenhouse and direct seeding experiments in the field. When we assessed plant grown under hydroponic culture conditions at 21 DAI, we observed only a few differences in shoots, but many differences in roots, between 7Lx218-361 and Xs134 (Fig. 3c). The PH21 was higher and the RN21 was lower for 7Lx218-361 compared to Xs134, but these differences were not significant (Table 6). However, the RL21 and TDW21 were significantly lower for 7Lx218-361 than for Xs134 (p < 0.01). These results indicated that the QTL cluster had a significant effect on early vigor in plants grown in hydroponic culture for 21 days, with the allele from the donor having a negative effect on this trait. We obtained similar results at 28 DAS under direct seeding conditions in the field (Table 7). Both TN28 and ADW28 were significantly lower for 7Lx218-361 than for Xs134, though PH28 did not significantly differ between 7Lx218-361 and Xs134. These results further confirmed that the QTL cluster was responsible for both seed vigor and early vigor and that the allele from the donor had negative effects on these traits.
Direct-seeded rice is increasingly being cultivated in many Asian countries due to the lower labor requirements and operational simplicity compared to transplanted rice. Rice varieties suitable for direct seeding must possess two major characteristics: high seed vigor and high early vigor. Seed vigor is the ability of germinated seeds to develop roots and shoots and grow into seedlings. After the seed reserve is depleted (at ~ 14 DAI), seedlings with roots and shoots enter the physiological transition period from heterotrophic to autotrophic growth. Thus, early plant development involves three stages: germination, heterotrophic growth (seedling growth), and early autotrophic growth (vegetative growth); the performance at these stages is referred to as germinability, seedling vigor, and early vigor, respectively (Lu et al. 2007). As germination and seedling growth rely on seed reserves, seed vigor (i.e., the sum total of a seed’s properties) determines seed germinability and seedling vigor, which govern uniform SSD. Once plants enter autotrophic growth, they rely on nutrients from the soil and photosynthesis to develop tillers, leaf area, and biomass in an exponential growth pattern before canopy closure. This performance, which is also expressed as early vigor, favors weed suppression via early canopy closure (Rebolledo et al. 2012; Singh et al. 2017).
As germination and seedling growth are closely linked to early vegetative growth, seed vigor may be associated with early vigor. In the current study, seed germinability (GP, GE, and GI) was positively correlated with seedling vigor (RL, RN, and SL at 14 DAI) (Table 3). Similarly, previous studies demonstrated that germination rate and seedling vigor are positively correlated with field emergence, seedling establishment, plant height, and seedling dry weight (Dimaano et al. 2017, 2020; Mahajan et al. 2014; Wang et al. 2010; A. Zhang et al., 2017). High seed vigor leads to rapid seed germination and rapid seedling growth, thereby ensuring vigorous seedling stand growth, with rapid canopy development giving rice plants an initial advantage over weeds (Anwar et al. 2012). Thus, seed vigor estimated under controlled conditions is thought to translate into early vigor under field conditions.
Seed vigor is commonly evaluated based on germination-related indicators (GP, GE, and GI) and seedling growth–related indicators (RN, RL, SH, and DW before 14 DAI). Measuring these indicators under controlled conditions (such as in an incubator) provides repeatable data, which should have good observation value. By contrast, early vigor–related indicators (RN, RL, SH, and DW after 14 DAS) are difficult to measure under field conditions due to the influence of climate, soil, and fertility level. Therefore, it is preferable to initially map a QTL for seed vigor in a population under controlled conditions and then validate its effect on early vigor under field conditions. The resulting QTLs should both improve SSD and enhance WCA, thereby addressing both major constraints of DSR cultivation systems.
In the current study, by examining seed vigor under controlled conditions in an incubator, we detected 10 QTLs for seed vigor at 6 loci consisting of three loci with positive effect and three loci with negative effect (Table 4), and identified a QTL cluster for seed vigor consisting of qGP11, qGE11, qGI11, and qRL11, which co-localized in a 0.7-Mb genomic region (Fig. 3). As expected, the QTL cluster had a significant effect (p < 0.01) on early vigor (RL21 and TDW21) under hydroponic culture conditions in the greenhouse and on early vigor (TN28 and ADW28) under direct seeding conditions in the field. Thus, the QTL cluster influenced both seed vigor and early vigor. This QTL cluster was identified under diverse conditions, with high LOD values (12.03, 8.13, 7.14, and 8.75, respectively; Table 4), indicating that this is a reliable QTL cluster.
Unexpectedly, at the major QTL cluster for seed vigor, the positive effect allele isn’t from Yd6 that has stronger germinability than Xs134. Most agronomically important traits are quantitative in practice. QTL mapping experiment can uncover the genetic basis of these traits by determining the number, locations, gene effects of loci involved and their interactions with other loci (epistasis). However, only a small number of these loci are detectable in a mapping population largely because of epistasis (Li 2001) which has been recognized as an important genetic basis underlying complex phenotypes. In addition, it is difficult to detect a minor QTL with a relatively small effect. Using a set of backcross inbred lines derived from the cross between Habataki (nonrecurrent parent with more grain number per panicle) and Koshihikari (recurrent parent with smaller grain number per panicle), only five QTLs for grain number, consisting of two with positive effect and three with negative effect, were detected (Ashikari et al. 2005). Thus, One largely possible reason is that many minor QTLs bearing Yd6 positive main effects were not detected; the other one is that there exist some epistasic QTLs. These QTLs, together, explained phenotypic variance as two important genetic component determining seed vigor.
We compared the newly identified QTL cluster with previously reported QTLs associated with seed vigor, seedling vigor, and early vigor, including WCA traits such as shoot length, shoot weight, coleoptile length, shoot dry weight, leaf area, and specific leaf area, by converting genetic positions into physical positions by Primer-BLAST based on the Nipponbare IRGSP_1.0 Reference (https://rapdb.dna.affrc.go.jp/tools/blast). Two QTLs, qGP-11 (Chr. 11: 151,66,527–18,874,200 Mb) (Z.-f. Wang, Wang, Bao, Wang, & Zhang, 2010) and qGE-11 (Chr. 11: 18,768,641 Mb) (Guo et al. 2019), co-localized with the QTL cluster identified in this study (Chr. 11: 18,382,045–19,082,768 Mb). However, each of these previously identified QTLs affected only one of three indicators, GP, GE, and GI, and no reports are available on seedling vigor or early vigor. Therefore, whether the two previously reported QTLs are identical to the QTL cluster identified in this study remains unclear.
Many QTL clusters (also known as QTL hotspots) have been identified on different chromosomes for various co-localized traits (Almeida et al. 2014; Bharamappanavara et al. 2020; Cai and Morishima 2002; Cai et al. 2017; Crowell et al. 2016; Guan et al. 2020; Liu et al. 2013; Mia et al. 2019; Singh et al. 2017; Sivasakthi et al. 2018; Xie et al. 2007). Two major scenarios, pleiotropy (identical locus) and linkage (disparate locus), can account for QTL clusters. Pleiotropy often contributes to positive correlation between traits having physiological (causal) relationships (Li 2001). As germination is closely linked to seedling growth, the QTL cluster arises possibly from pleiotropy, that is to say an identical locus. However, it needs to be validated by disassembling the QTL cluster into one or more loci. Anyway, QTL clusters are ideal for improving rice varieties through marker-assisted breeding because they simultaneously improve several traits, such as seed vigor and early vigor, as demonstrated in this study. Despite the negative effect of the allele from the donor at the QTL cluster on target traits, we delimited the QTL cluster to a 0.7-Mb genomic region, which sets the stage for disassembling the QTL cluster into one or more loci. When one locus underlies a QTL cluster, favorable alleles (haplotypes) can be explored. When multiple linked loci underlie a QTL cluster, favorable haploblocks can be explored by combining favorable alleles for the multiple linked loci from germplasm resources, such as the receptor parent Xs134. These favorable haplotypes or haploblocks at this QTL cluster are under positive selection, which could facilitate the improvement of rice varieties for traits beneficial for direct seeding (Cai et al. 2017).
Seed vigor and early vigor are important traits associated with seedling stand density (SSD) and weed competitive ability (WCA), which are key factors in direct-seeded rice (DSR) cultivation systems. In this study, we detected a QTL cluster for seed vigor (germination percentage, germination energy, germination index, root length) at a 0.7-Mb interval between RM26797 and RM6680 on Chr.11. The QTL cluster has a significant effect on early vigor under hydroponic culture (root length, total dry weight) and under direct seeding conditions (tiller number, aboveground dry weight). Thus, our combined analysis revealed that the QTL cluster influenced both seed vigor and early vigor. Identifying favorable alleles at this QTL cluster could facilitate the improvement of SSD and WCA, thereby addressing both major factors in DSR cultivation systems.
All data supporting the conclusions of this article are included in the article and Supplementary files.
Seedling stand density
Weed competitive ability. The others are described in Table 1
Alam R, Sazzadur Rahman M, Seraj Z, Thomson MJ, Ismail AM, Tumimbang-Raiz E, Gregorio GB (2011) Investigation of seedling-stage salinity tolerance QTLs using backcross lines derived from Oryza sativa L. Pokkali. Plant Breeding 130(4):430–437. https://doi.org/10.1111/j.1439-0523.2010.01837.x
Almeida GD, Nair S, Borém A, Cairns J, Trachsel S, Ribaut JM, Bänziger M, Prasanna BM, Crossa J, Babu R (2014) Molecular mapping across three populations reveals a QTL hotspot region on chromosome 3 for secondary traits associated with drought tolerance in tropical maize. Mol Breeding 34(2):701–715. https://doi.org/10.1007/s11032-014-0068-5
Anwar MDP, Juraimi AS, Puteh A, Selamat A, Rahman MDM, Samedani B (2012) Seed priming influences weed competitiveness and productivity of aerobic rice. Acta Agriculturae Scandinavica Section B - Soil & Plant Science 62:499–509. https://doi.org/10.1080/09064710.2012.662244
Ashikari M, Sakakibara H, Lin S, Yamamoto T, Takashi T, Nishimura A, Angeles ER, Qian Q, Kitano H, Matsuoka M (2005) Cytokinin oxidase regulates rice grain production. Science 309:741–745. https://doi.org/10.1126/science.1113373
Awan TH, Manzoo Z, Ali l, Safdar ME, Yaqub M (2007) Economic effect of different plant establishment techniques on rice, Oryza sativa production. J Agricultural Res 45(1):73–80
Bharamappanavara M, Siddaiah AM, Ponnuvel S, Ramappa L, Patil B, Appaiah M, Maganti SM, Sundaram RM, Shankarappa SK, Tuti MD, Banugu S, Parmar B, Rathod S, Barbadikar KM, Kota S, Subbarao LV, Mondal TK, Channappa G (2020) Mapping QTL hotspots associated with weed competitive traits in backcross population derived from Oryza sativa L. and O. glaberrima Steud. Sci Rep 10(1):22103. https://doi.org/10.1038/s41598-020-78675-7
Cai H, Morishima H (2002) QTL clusters reflect character associations in wild and cultivated rice. Theor Appl Genet 104(8):1217–1228. https://doi.org/10.1007/s00122-001-0819-7
Cai L, Voorrips RE, van de Weg E, Peace C, Iezzoni A (2017) Genetic structure of a QTL hotspot on chromosome 2 in sweet cherry indicates positive selection for favorable haplotypes. Mol Breeding 37:857. https://doi.org/10.1007/s11032-017-0689-6
Cairns JE, Namuco OS, Torres R, Simborio FA, Courtois B, Aquino GA, Johnson DE (2009) Investigating early vigour in upland rice (Oryza sativa L.): part II. Identification of QTLs controlling early vigour under greenhouse and field conditions. Field Crops Research 113(3):207–217. https://doi.org/10.1016/j.fcr.2009.05.007
Caton BP, Cope AE, Mortimer M (2003) Growth traits of diverse rice cultivars under severe competition: implications for screening for competitiveness. Field Crops Research 83(2):157–172. https://doi.org/10.1016/s0378-4290(03)00072-8
Chauhan BS, Abugho SB (2013) Effects of water regime, nitrogen fertilization, and rice plant density on growth and reproduction of lowland weed Echinochloa crus-galli. Crop Prot 54:142–147. https://doi.org/10.1016/j.cropro.2013.08.005
Chauhan BS, Johnson DE (2011) Row spacing and weed control timing affect yield of aerobic rice. Field Crops Research 121(2):226–231. https://doi.org/10.1016/j.fcr.2010.12.008
Crowell S, Korniliev P, Falcão A, Ismail A, Gregorio G, Mezey J, McCouch S (2016) Genome-wide association and high-resolution phenotyping link Oryza sativa panicle traits to numerous trait-specific QTL clusters. Nat Commun 7(1):1–14. https://doi.org/10.1038/ncomms10527
Cui K, Peng S, Xing Y, Xu C, Yu S, Zhang Q (2002) Molecular dissection of seedling-vigor and associated physiological traits in rice. Theor Appl Genet 105(5):745–753. https://doi.org/10.1007/s00122-002-0908-2
Cui K, Huang J, Xing Y, Yu S, Xu C, Peng S (2007) Mapping QTLs for seedling characteristics under different water supply conditions in rice (Oryza sativa). Physiol Plant 132:53–68. https://doi.org/10.1111/j.1399-3054.2007.00991.x
Dimaano NGB, Ali J, Sta Cruz PC, Baltazar AM, Diaz MGQ, Acero BL, Li Z (2017) Performance of newly developed weed-competitive Rice Cultivars under Lowland and Upland Weedy Conditions. Weed Sci 65(6):798–817. https://doi.org/10.1017/wsc.2017.57
Dimaano NGB, Ali J, Mahender A, Sta Cruz PC, Baltazar AM, Diaz MGQ, Pang YL, Acero BL, Li Z (2020) Identification of quantitative trait loci governing early germination and seedling vigor traits related to weed competitive ability in rice. Euphytica 216(10):159. https://doi.org/10.1007/s10681-020-02694-8
Dingkuhn M, Johnson DE, Sow A, Audebert AY (1999) Relationships between upland rice canopy characteristics and weed competitiveness. Field Crops Research 61(1):79–95. https://doi.org/10.1016/s0378-4290(98)00152-x
Farooq M, Siddique KHM, Rehman H, Aziz T, Lee DJ, Wahid A (2011) Rice direct seeding: experiences, challenges and opportunities. Soil Tillage Res 111(2):87–98. https://doi.org/10.1016/j.still.2010.10.008
Fischer A, Ramírez HV, Lozano J (1997) Suppression of junglerice [Echinochloa colona (L.) Link] by Irrigated Rice Cultivars in Latin America. Agron J 89(3):516–521. https://doi.org/10.2134/agronj1997.00021962008900030023x
Guan P, Shen X, Mu Q, Wang Y, Wang X, Chen Y, Zhao Y, Chen X, Zhao A, Mao W, Guo Y, Xin M, Hu Z, Yao Y, Ni Z, Sun Q, Peng H (2020) Dissection and validation of a QTL cluster linked to Rht-B1 locus controlling grain weight in common wheat (Triticum aestivum L.) using near-isogenic lines. Theor Appl Genet 133(9):2639–2653. https://doi.org/10.1007/s00122-020-03622-z
Guo T, Yang J, Li D, Sun K, Luo L, Xiao W, Wang J, Liu Y, Wang S, Wang H, Chen Z (2019) Integrating GWAS, QTL, mapping and RNA-seq to identify candidate genes for seed vigor in rice (Oryza sativa L). Mol Breeding 39(6):87. https://doi.org/10.1007/s11032-019-0993-4
Kumar V, Ladha JK (2011) Direct seeding of Rice: recent developments and Future Research needs. Advances in Agronomy. 111:297–413. https://doi.org/10.1016/b978-0-12-387689-8.00001-1
Li ZK (2001) QTL mapping in rice: a few critical considerations. In: Khush GS, Brar DS, Hardy B (Ed), Rice Genetics VI. Proceedings of The Fourth International Rice Genetics Symposium, 22–27 Oct., 2000, Los Banos, Philippines, New Delhi (India): Science Publishers, Inc. and Los Banos (Philippines): International Rice Research Insititute, pp.153–171. https://doi.org/10.1142/9789812814296_0010
Liu T, Yu T, Xing Y (2013) Identification and validation of a yield-enhancing QTL cluster in rice (Oryza sativa L). Euphytica 192(1):145–153. https://doi.org/10.1007/s10681-013-0929-8
Liu H, Hussain S, Zheng M, Peng S, Huang J, Cui K, Nie L (2014) Dry direct-seeded rice as an alternative to transplanted-flooded rice in Central China. Agron Sustain Dev 35(1):285–294. https://doi.org/10.1007/s13593-014-0239-0
Lu XL, Niu AL, Cai HY, Zhao Y, Liu JW, Zhu YG, Zhang ZH (2007) Genetic dissection of seedling and early vigor in a recombinant inbred line population of rice. Plant Sci 172(2):212–220. https://doi.org/10.1016/j.plantsci.2006.08.012
Mahajan G, Ramesha MS, Chauhan BS (2014) Response of Rice genotypes to Weed Competition in Dry Direct-Seeded Rice in India. Sci World J 2014:1–8. https://doi.org/10.1155/2014/641589
Meng L, Li H, Zhang L, Wang J (2015) QTL IciMapping: Integrated software for genetic linkage map construction and quantitative trait locus mapping in biparental populations. Crop J 3(3):269–283. https://doi.org/10.1016/j.cj.2015.01.001
Mia MS, Liu H, Wang X, Yan G (2019) Multiple Near-Isogenic lines targeting a QTL hotspot of Drought Tolerance showed contrasting performance under post-anthesis water stress. Front Plant Sci 10:271. https://doi.org/10.3389/fpls.2019.00271
Mondal S, Khan MIR, Dixit S, Sta Cruz PC, Septiningsih EM, Ismail AM (2020) Growth, productivity and grain quality of AG1 and AG2 QTLs introgression lines under flooding in direct-seeded rice system. Field Crops Research 248:107713. https://doi.org/10.1016/j.fcr.2019.107713
Okami M, Kato Y, Yamagishi J (2011) Role of early vigor in adaptation of rice to water-saving aerobic culture: Effects of nitrogen utilization and leaf growth. Field Crops Research 124(1):124–131. https://doi.org/10.1016/j.fcr.2011.06.013
Orjuela J, Garavito A, Bouniol M, Arbelaez JD, Moreno L, Kimball J, Wilson G, Rami JF, Tohme J, McCouch SR, Lorieux M (2009) A universal core genetic map for rice. Theor Appl Genet 120(3):563–572. https://doi.org/10.1007/s00122-009-1176-1
Paterson AH, DeVerna JW, Lanini B, Tanksley SD (1990) Fine mapping of quantitative trait loci using selected overlapping recombinant chromosomes, in an interspecies cross of tomato. Genetics 124(3):735–742. https://doi.org/10.1093/genetics/124.3.735
Perry DA (1978) The concept of seed vigour and its relevance to seed production techniques. In: P D, Hebblathwaite (eds) Seed production. Butterworths, London, pp 585–591
Qi X, Nie L, Liu H, Peng S, Shah F, Huang J, Cui K, Sun L (2012) Grain yield and apparent N recovery efficiency of dry direct-seeded rice under different N treatments aimed to reduce soil ammonia volatilization. Field Crops Research 134:138–143. https://doi.org/10.1016/j.fcr.2012.05.010
Raj SK, Syriac EK (2017) Weed management in direct seeded rice: a review. Agricultural Reviews 38(1):41–50. https://doi.org/10.18805/ag.v0iOF.7307
Rana MM, Mamun MAA, Zahan A, Ahmed MN, Mridha MAJ (2014) Effect of planting methods on the yield and yield attributes of short duration Aman Rice. Am J Plant Sci 05(03):251–255. https://doi.org/10.4236/ajps.2014.53033
Rebolledo MC, Dingkuhn M, Clément-Vidal A, Rouan L, Luquet D (2012) Phenomics of rice early vigour and drought response: are sugar related and morphogenetic traits relevant? Rice 5(1). https://doi.org/10.1186/1939-8433-5-22
Redoña ED, Mackill DJ (1996) Genetic variation for Seedling Vigor Traits in Rice. Crop Sci 36(2):285–290. https://doi.org/10.2135/cropsci1996.0011183X003600020012x
Sasaki T (2005) The map-based sequence of the rice genome. Nature 436(7052):793–800. https://doi.org/10.1038/nature03895
Singh UM, Yadav S, Dixit S, Ramayya PJ, Devi MN, Raman KA, Kumar A (2017) QTL hotspots for early Vigor and related traits under Dry Direct-Seeded System in Rice (Oryza sativa L). Front Plant Sci 8:286. https://doi.org/10.3389/fpls.2017.00286
Sivasakthi K, Thudi M, Tharanya M, Kale SM, Kholová J, Halime MH, Jaganathan D, Baddam R, Thirunalasundari T, Gaur PM, Varshney RK, Vadez V (2018) Plant vigour QTLs co-map with an earlier reported QTL hotspot for drought tolerance while water saving QTLs map in other regions of the chickpea genome. BMC Plant Biol 29(1):18. https://doi.org/10.1186/s12870-018-1245-1
Sun L, Hussain S, Liu H, Peng S, Huang J, Cui K, Nie L (2015) Implications of low sowing rate for hybrid rice varieties under dry direct-seeded rice system in Central China. Field Crops Research 175:87–95. https://doi.org/10.1016/j.fcr.2015.02.009
Tan Q, Zou T, Zheng M, Ni Y, Luan X, Li X, Yang W, Yang Z, Zhu H, Zeng R, Liu G, Wang S, Fu X, Zhang G (2020) Substitution mapping of the major quantitative trait loci Controlling Stigma Exsertion Rate from Oryza glumaepatula. Rice 29(1):13. https://doi.org/10.1186/s12284-020-00397-1
Thapa R, Septiningsih EM (2021) Genome-wide association study for traits related to seedling vigor in rice. Crop Sci 61(6):3931–3946. https://doi.org/10.1002/csc2.20585
van Berloo R (2008) GGT 2.0: Versatile Software for visualization and analysis of Genetic Data. J Hered 99(2):232–236. https://doi.org/10.1093/jhered/esm109
Wang Y, Guo Y, Hong DL (2010) Discovery of Elite alleles for seed Vigor Traits in two populations of Japonica Rice in Taihu Lake Region. Acta Agron Sinica 36(5):754–763. https://doi.org/10.1016/s1875-2780(09)60048-1
Wang Zf W, Jf, Bao YM, Wang FH, Zhang HS (2010) Quantitative trait loci analysis for rice seed vigor during the germination stage. J Zhejiang Univ Sci B 11(12):958–964. https://doi.org/10.1631/jzus.B1000238
Wissuwa M, Wegner J, Ae N, Yano M (2002) Substitution mapping of Pup1: a major QTL increasing phosphorus uptake of rice from a phosphorus-deficient soil. Theor Appl Genet 105(6):890–897. https://doi.org/10.1007/s00122-002-1051-9
Xie X, Jin F, Song MH, Suh JP, Hwang HG, Kim YG, McCouch SR, Ahn SN (2007) Fine mapping of a yield-enhancing QTL cluster associated with transgressive variation in an Oryza sativa × O. rufipogon cross. Theor Appl Genet 116(5):613–622. https://doi.org/10.1007/s00122-007-0695-x
Xie L, Tan Z, Zhou Y, Xu R, Feng L, Xing Y, Qi X (2014) Identification and fine mapping of quantitative trait loci for seed vigor in germination and seedling establishment in rice. J Integr Plant Biol 56(8):749–759. https://doi.org/10.1111/jipb.12190
Xu CG, Li XQ, Xue Y, Huang YW, Gao J, Xing YZ (2004) Comparison of quantitative trait loci controlling seedling characteristics at two seedling stages using rice recombinant inbred lines. Theor Appl Genet 109(3):640–647. https://doi.org/10.1007/s00122-004-1671-3
Yoshida S, Forno DA, Cock JH, Gomez KA (1976) Laboratory manual for physiological studies of rice. International Rice Research Institute Ed. 3 ed. Los Baños, Philippines
Zha A, Liu C, Chen G, Hong K, Gao Y, Tian P, Peng Y, Zhang B, Ruan B, Jiang H, Guo L, Qian Q, Gao Z (2017) Genetic analysis for rice seedling vigor and fine mapping of a major QTL qSSL1b for seedling shoot length. Breed Sci 67(3):307–315. https://doi.org/10.1270/jsbbs.16195
Zhang ZH (2004) Comparison of QTL Controlling Seedling Vigour under different temperature conditions using recombinant inbred lines in Rice (Oryza sativa). Ann Botany 95(3):423–429. https://doi.org/10.1093/aob/mci039
Zhang ZH, Yu SB, Yu T, Huang Z, Zhu YG (2005) Mapping quantitative trait loci (QTLs) for seedling-vigor using recombinant inbred lines of rice (Oryza sativa L). Field Crops Research 91(2–3):161–170. https://doi.org/10.1016/j.fcr.2004.06.004
Zhao DL, Atlin GN, Bastiaans L, Spiertz JHJ (2006) Cultivar Weed-Competitiveness in Aerobic Rice: heritability, correlated traits, and the potential for Indirect Selection in Weed‐Free environments. Crop Sci 46(1):372–380. https://doi.org/10.2135/cropsci2005.0192
Zhao J, He Y, Huang S, Wang Z (2021) Advances in the identification of quantitative trait loci and genes involved in seed Vigor in Rice. Front Plant Sci 12:659307. https://doi.org/10.3389/fpls.2021.659307
Zhou L, Wang JK, Yi Q, Wang YZ, Zhu YG, Zhang ZH (2007) Quantitative trait loci for seedling vigor in rice under field conditions. Field Crops Research 100(2–3):294–301. https://doi.org/10.1016/j.fcr.2006.08.003
The authors are sincerely grateful to two anonymous reviewers for their constructive comments and suggestions that helped us to improve the paper.
This work was financially supported by the Open Project Program of State Key Laboratory of Rice Biology (20210202) and by Key Research and Development Program of Zhejiang province (2021C02063-6-5).
Ethics Approval and Consent to Participate
Consent for Publication
The manuscript has been approved by all authors.
The authors declare no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Electronic Supplementary Material
Below is the link to the electronic supplementary material.
Supplementary Table S1 Polymorphic markers information used to develop CSSLs.
Supplementary Fig. S1 Physical linkage map (Mb) of markers in the CSSLs population.
