The miR528-D3 Module Regulates Plant Height in Rice by Modulating the Gibberellin and Abscisic Acid Metabolisms
Rice volume 15, Article number: 27 (2022)
Plant height, as one of the important agronomic traits of rice, is closely related to yield. In recent years, plant height-related genes have been characterized and identified, among which the DWARF3 (D3) gene is one of the target genes of miR528, and regulates rice plant height and tillering mainly by affecting strigolactone (SL) signal transduction. However, it remains unknown whether the miR528 and D3 interaction functions in controlling plant height, and the underlying regulatory mechanism in rice. In this study, we found that the plant height, internode length, and cell length of internodes of d3 mutants and miR528-overexpressing (OE-miR528) lines were greatly shorter than WT, D3-overexpressing (OE-D3), and miR528 target mimicry (OE-MIM528) transgenic plants. Knockout of D3 gene (d3 mutants) or miR528-overexpressing (OE-miR528) triggers a substantial reduction of gibberellin (GA) content, but a significant increase of abscisic acid (ABA) accumulation than in WT. The d3 and OE-miR528 transgenic plants were much more sensitive to GA, but less sensitive to ABA than WT. Moreover, the expression level of GA biosynthesis-related key genes, including OsCPS1, OsCPS2, OsKO2 and OsKAO was remarkably higher in OE-D3 plants, while the NECD2 expression, a key gene involved in ABA biosynthesis, was significantly higher in d3 mutants than in WT and OE-D3 plants. The results indicate that the miR528-D3 module negatively regulates plant height in rice by modulating the GA and ABA homeostasis, thereby further affecting the elongation of internodes, and resulting in lower plant height, which adds a new regulatory role to the D3-mediated plant height controlling in rice.
As one of the important components of plant architecture, plant height is closely related to the photosynthetic efficiency and lodging resistance, and directly affects the biomass of plants in rice (Zhang et al. 2014). Accordingly, appropriate dwarfing of plant height will benefit in improving the lodging resistance of rice. In the 1950s, the discovery and application of the rice semi-dwarf gene sd1 greatly alleviate the food shortages in at least nineteen developing countries (Monna et al. 2002; Wang and Wang 2017). It is thus feasible that genetically manipulating of functional genes should be effective in controlling plant height and further grain yield in rice.
In recent years, amounts of genes related to plant height have been characterized and identified in rice, where most of them are involved in plant hormone metabolism and signal transduction, such as gibberellin (GA), brassinolide (BR), strigolactone (SL) and abscisic acid (ABA) (Zou et al. 2019; Zhang et al. 2020a). The OsKO2 gene encodes a kaurene oxidase that catalyzes the early steps of GA biosynthesis. The expression of OsKO2 was repressed by LRK1 and activated by OsbZIP58, thereby affecting GA biosynthesis and internode elongation in rice (Yang et al. 2013; Wu et al. 2014). GID1 encodes a soluble GA signal receptor, which mediates GA signal transduction and plays a major role in regulation of rice plant height (Ueguchi-Tanaka et al. 2005). Except for GA, BRs are also determinant in controlling plant height. The plant height of BR-deficient dwarf mutant brd2 was about 70% of the wild type (WT) at the seedling stage, but the mutants were severe dwarfing, only 40% of the WT plants, and most of the internodes did not elongate except the uppermost internode at the mature stage (Hong et al. 2005). In addition, D2, D11/CYP724B1, D61/OsBRI1, OsDWARF4 also control plant height by regulating BR synthesis and signaling (Zhang et al. 2016; Tong et al. 2018). Interestingly, previous studies reveal that the abnormal signal pathways related to SL, such as d88/d14, d27, d3, dit1, often cause changes in tiller number and plant height (Ishikawa et al. 2005; Arite et al. 2009; Gao et al. 2009; Lin et al. 2009). Another kind of hormone ABA negatively regulates plant growth, and results in dwarfing of plants, which often functions in the way with GA antagonism (Wang et al. 2020a, b).
In rice, D3 encodes a leucine-rich repeat F-box protein, which is homologous to MAX2/ORE9 that controls the activity of axillary buds by participating in an SCF complex and SL signal transduction in Arabidopsis thaliana (Ishikawa et al. 2005; Zhao et al. 2014; Sun et al. 2018). The rice d3 mutant exhibits a shorter plant height and increased tiller numbers (Ishikawa et al. 2005; Zhao et al. 2014; Sun et al. 2018). Recently, D3 was found to be involved in a karrikin signaling complex (D14L-D3-OsSMAX1) that mediates the regulation of rice mesocotyl elongation in the dark (Choi et al. 2020; Zheng et al. 2020). In addition, D3 was experimentally validated to be a target gene of rice miR528 through degradome sequencing (Li et al. 2010; Zhou et al. 2010). As known, miR528 plays multifaceted roles in regulation of plant growth and development, and biotic and abiotic stress responses (Liu et al. 2015; Wu et al. 2017; Tang and Thompson 2019; Yang et al. 2019; Zhang et al. 2020b; Wang et al. 2021). However, whether the miR528 and D3 interaction plays a role in regulation of plant height in rice, and its further underlying regulatory mechanism remains unclear.
In this study, we aim to uncover the regulatory role of the miR528-D3 module in controlling plant height by regulating the expression of some key genes related to GA and ABA biosynthesis, leading to the changes of the content of endogenous hormones and the cell elongation in rice. This research is significant for further understanding the D3-mediated mechanism in regulation of plant height in plants.

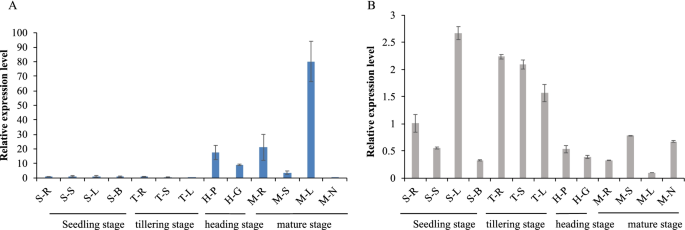

miR528 and D3 Exhibit Opposite Expression Patterns Along Developmental Stages
To explore whether the D3 expression is regulated by miR528, we first investigated their temporal and spatial expression patterns in different tissues along developmental stages. It is obvious that miR528 and D3 showed totally different expression patterns (Fig. 1). The transcriptional level of miR528 was relatively lower in roots, shoots, and leaves at the seedling and tillering stages, but was significantly higher in the examined tissues at the heading and mature stages, except for in the stems and stem nodes at the maturity stage (Fig. 1A). On the contrary, the D3 gene was highly expressed in roots and leaves at the seedling stage and in roots, shoots, and leaves at the tillering stage, while its expression level was greatly lower in other tested tissues, especially in leaves at the mature stage (Fig. 1B). Furthermore, the transcriptional level of D3 gene was separately examined in the miR528-overexpressing (OE-miR528) and miR528 target mimicry (OE-MIM528) transgenic lines. The D3 expression was significantly down-regulated in OE-miR528, but strongly up-regulated in OE-MIM528 plants (Additional file 1: Fig. S1A). These observations strongly support that the expression of D3 is truly controlled by miR528 in rice.
The miR528-D3 Module Negatively Regulates Plant Height in Rice
In order to better understand whether the miR528-D3 module have potential roles in regulation of plant height in rice, two independent D3-overexpressing transgenic lines (OE-D3-2 and OE-D3-9) and two homozygous D3-knockout mutant lines (d3-1 and d3-3) were developed. The D3 gene was significantly up-regulated in the OE-D3 lines, whose transcriptional level was about 12- and 166-fold higher than in WT (Additional file 1: Fig. S1B). The d3-1 mutant had a deletion of three nucleotides (ACG) at the position of 101–103 bp in the coding region, leading to the deletion of the aspartic acid (D) at the 34th residues, while the d3-3 mutant contained a deletion of four nucleotides (GACG) at the position of 100–103 bp in the coding region, resulting in a frameshift mutation (Additional file 1: Fig. S2).
Compared with WT plants, the plant height of d3-3 and d3-1 decreased by 29.9% and 26.4% at the tillering stage; Consistently, the plant height of OE-miR528 lines was also apparently shorter, which decreased by 15.5% and 13.8% in OE-miR528-10 and OE-miR528-5 plants. By contrast, OE-D3 and OE-MIM528 lines were slightly higher than WT (4.4% and 2.0% for OE-D3-2 and OE-D3-9, and 2.1% and 2.3% for OE-MIM528-1 and OE-MIM528-16) (Fig. 2A, B). At the maturity stage, the difference on plant height was more pronounced among transgenic lines. The plant height of d3 mutants and OE-miR528 lines was decreased by 69.7% (d3-3), 36.9% (d3-1), 19.3% (OE-miR528-10), and 10.2% (OE-miR528-5), while the plant height of OE-D3 and OE-MIM528 lines was increased by 12.3% (OE-D3-2), 4.3% (OE-D3-9), 5.6% (OE-MIM528-1), and 8.9% (OE-MIM528-16), in comparison with WT plants (Fig. 2C, D and Additional file 1: Fig. S3). The results indicate that miR528 and D3 genes both have regulatory effect on plant height in rice, but they function in opposite ways. In addition, d3-3 was more dwarfed than d3-1 at the mature stage (Fig. 2C, D and Additional file 1: Fig. S3), which may be due to the loss-of-function mutation occurred in d3-3 plants.
The Dwarfness of d3 and OE-miR528 Plants are Due to the Shorter Internodes and Cell Length
To reveal the histological mechanism of the changes in plant height, we counted and measured the internode number and length of WT and transgenic lines at the maturity stage. There was no difference in internode numbers between WT and transgenic plants, both of them have five internodes (Fig. 2C). However, the internode length of d3 and OE-miR528 lines were significantly shorter, while the internode length of OE-D3 and OE-MIM528 lines were slightly longer than WT (Fig. 2C, E). The uppermost internode exhibited the most prominent difference among different transgenics (Fig. 2C, E). Thus, it is reasonable to infer that the miR528-D3 module affects rice plant height by controlling the length of internodes, especially the uppermost internode.
Previous studies show that the length of internodes is related to the stem elongation and growth caused by cell division and expansion of the apical meristem (SAM) and the intermediate meristem (IM) in rice (Wang et al. 2018). Accordingly, we speculate that the observed difference in the internode length of transgenic rice plants may be due to the change in the size of cells. To verify this, longitudinal tissue sections were made from the uppermost internode of WT and transgenic lines at the tillering stage. The results showed that the cell length of d3 and OE-miR528 lines was greatly shorter, while the cell length of OE-D3 and OE-MIM528 was significantly longer than WT (Fig. 3), indicating that the elongation of cells is responsible for the length of internodes.
The Accumulation of GA and ABA is Severely Affected in d3 and OE-miR528 Lines
A variety of plant hormones affect the elongation of stems in rice, of which GA deficiency or abnormal signal transduction will cause the dwarfness of plants, while ABA has antagonistic effect of GA on plant height (Ayano et al. 2015). To clarify whether the miR528-D3 module controls internode elongation by affecting the metabolism of GA and ABA, we determined the content of endogenous GA1, GA4 and ABA of WT and transgenic lines at the seedling stage. There was no clear difference in GA1 accumulation between WT and transgenic lines (Fig. 4A). However, compared with WT, d3-1 and OE-miR528-10 lines had significantly lower GA4 content, whereas OE-D3-9 and OE-MIM528-1 lines contained extensively much more GA4 (Fig. 4B). The ABA content of d3-1 and OE-miR528-10 lines was significantly higher than WT, while there was clearly lower ABA content in OE-D3-9 and OE-MIM528-1 lines in comparison with WT plants (Fig. 4C). Thus, the dwarfness of d3 and OE-miR528 plants should be attributed to the highly increased endogenous ABA content and the decreased GA content.
To further verify the responses of rice plants to GA and ABA, the WT and transgenic lines were treated with exogenous GA3 (1 µM) and ABA (3 µM). After 7 d and 14 d of GA3 treatment, the plant height of d3-1 and OE-miR528-10 increased significantly (Fig. 5A, B, D), as reflected by their significantly higher relative elongation of plant height than WT, OE-D3-9, and OE-MIM528-1 lines (Fig. 5D). However, the relative elongation of plant height of OE-D3-9 and OE-MIM528-1 lines is not significantly different from WT plants (Fig. 5D). This observation indicates that the d3 and OE-miR528 lines are more sensitive to external GA3. Moreover, after 7-d of ABA supplementation, the relative elongation of plant height was not apparently different from WT and transgenic lines (Fig. 5C, E); But, along with the treatment time (14 d), the d3-1 and OE-miR528-10 plants grew significantly much faster than WT, while OE-D3-9 and OE-MIM528-1 lines were not obviously different from WT (Fig. 5C, E), suggesting that the d3 and OE-miR528 lines were not sensitive to the exogenous application of ABA. These results indicated that the miR528-D3 module should be involved in the anabolic processes of GA and ABA.

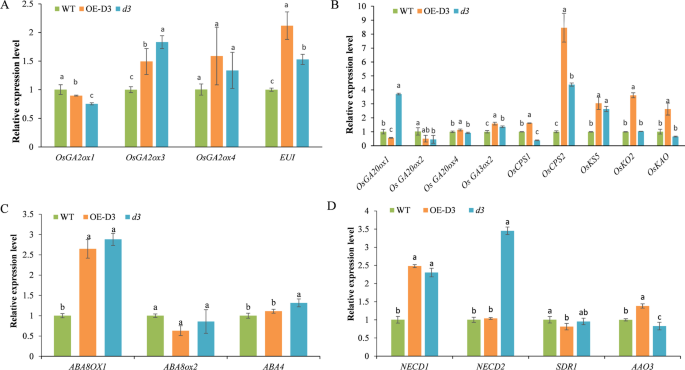

miR528-D3 Regulates the Expression of GA and ABA Biosynthesis- and Metabolism-Related Genes
Do the decreased GA content and increased ABA accumulation in d3 and OE-miR528 lines result from the expression changes of key genes involved in GA and ABA biosynthesis and metabolism? To verify this, we analyzed the expression level of four GA degradation (OsGA2ox1, OsGA2ox3, OsGA2ox4 and OsEUI), seven GA biosynthesis (OsGA20x, OsGA3ox2, OsCPS1, OsCPS2, OsKS5, OsKO2 and OsKAO), three ABA oxidation (ABA8OX1, ABA8ox2 and ABA4), and four ABA biosynthesis-related genes (NECD1, NECD2, SDR1 and AAO3) in WT, OE-D3-9 and d3-1 lines (Spielmeyer et al. 2002; Itoh et al. 2004; Oikawa et al. 2004; Sakamoto et al. 2004; Luo et al. 2006; Saika et al. 2007; Lo et al. 2008; Zhang et al. 2008, 2020c; Zhu et al. 2009; Toyomasu et al. 2009; Huang et al. 2010; Feng and Zhao 2011; Bang et al. 2013; Qin et al. 2013; Chi et al. 2014; Endo et al. 2014; Tong et al. 2014). The GA degradation-related genes OsGA2ox3 and OsEUI were highly expressed in d3-1 and OE-D3-9 lines, respectively (Fig. 6A). The expression of four GA biosynthesis-related key genes, including OsCPS1, OsCPS2, OsKO2 and OsKAO, was significantly up-regulated in OE-D3-9 than that in WT and d3-1 mutant (Fig. 6B). The expression level of the three ABA oxidation-related genes was similar in d3-1 and OE-D3-9 lines (Fig. 6C). However, the ABA biosynthesis-related key gene NECD2 was significantly up-regulated in d3-1 plants (Fig. 6D). These results indicate that the changes of plant height of transgenic lines would be partially due to the expression changes of some GA and ABA biosynthesis and metabolism-related genes.
Plant height is one of the most important agronomic traits, which largely affects crop yields. During the past decades, a number of dwarf mutants have been identified in rice, of which d3 is a tillering dwarf mutant caused by the mutation in an F-box protein with leucine-rich repeats (Ishikawa et al. 2005; Yan et al. 2007). In the present study, we newly generated two allelic mutants, d3-1 and d3-3, through CRISPR/Cas9 system (Additional file 1: Fig. S2). Both the two homozygous mutants exhibit dwarf phenotype during the whole growth stages, which results from the abnormal elongation of internode cells (Figs. 2, 3). But, d3-3 has a much severer tillering dwarf phenotype than d3-1, which may be due to the introduced loss-of-function mutation that caused its prematurely transcription termination. On the contrary, D3-overexpressing plants are relatively higher than WT (Fig. 2 and Additional file 1: Fig. S3). Accordingly, D3 should be a crucial gene in regulation of plant height in rice.
miR528 is a monocot-specific miRNA, which plays multifunctional roles in plants (Wu et al. 2017; Tang and Thompson 2019; Yang et al. 2019; Zhang et al. 2020a). But, whether miR528 regulates plant height remains unknown. In rice, D3 is one of the target genes of miR528 with the target site located in the 3’-UTR (Li et al. 2010; Zhou et al. 2010; Tang and Thompson 2019). We found that the plant height of OE-miR528 transgenics was significantly lower than WT, but was greatly higher than the d3 mutants (Fig. 2 and Additional file 1: Fig. S3). Moreover, there were remarkably more number of tillers in OE-miR528 than WT, while the tiller number of OE-MIM528 was slightly fewer than WT plants (Additional file 1: Fig. S3). These observations indicate that in rice, miR528 plays an important role in regulation of both plant height and tiller number by targeting the D3 gene. However, in OE-miR528 lines, the D3 expression may maintain at a relative level, although it was substantially down-regulated by miR528, suggesting that the plant height may be closely positively related to the transcriptional abundance of D3 gene in rice (Additional file 1: Fig. S1).
As reported, BRs play important roles in regulation of plant height (Hong et al. 2005; Zhang et al. 2016; Tong et al. 2018). However, are BRs involved in the regulation of plant height by the miR528-D3 module? It was found that the contents of endogenous brassinolide (BL), castasterone (CS), and 6-Deoxocastasterone (6-DS) in OE-miR528-10 and OE-MIM528-1 lines were not significantly different from that of the WT plants (Additional file 1: Fig. S4A–C). SLs are endogenous phytohormones that regulate diverse physiological processes, including shoot branching and elongation (Sang et al. 2014). D3 encodes an F-box containing protein, and is critical for SL signal transduction to suppress the shoot branching through assembled into an SCF complex and associated with D14 in rice (Zhao et al. 2014). It is therefore intriguing to further examine whether the change of D3 expression will affect the SL accumulation in transgenic plants. We measured the endogenous 2’-epi-5-Deoxystrigol content in OE-miR528 and OE-MIM528 transgenic seedlings, and found that compared with WT, the content of 2’-epi-5-Deoxystrigol was significantly lower and higher in OE-miR528-10 and OE-MIM528-1 lines, respectively (Additional file 1: Fig. S4D).
Accumulating evidence shows that plant hormones have synergistic effects on each other. For instance, SL-deficient mutants la1 and d3 have increased IAA contents in both shoot base and whole seedlings, indicating that SL regulates the tiller/branch angle by inhibiting auxin biosynthesis in rice (Sang et al. 2014). The SL-insensitive (d14) and SL-deficient mutants (d17) are dwarf, and have reduced bioactive GA1 contents compared with WT, which could be rescued by application of exogenous GA3 (Zou et al. 2019). Accordingly, we speculate that D3 should be involved in multiple regulatory pathways in response to different plant hormones. In this study, the d3 mutants have lower GA4 content and higher ABA content, which is more sensitive to GA but not to ABA; The dwarfness of d3 mutants could be rescued by exogenous GA3 supplementation (Fig. 5). By contrast, OE-D3 seedlings have increased GA4 content and restored GA3 and ABA sensitivity like WT plants (Figs. 4, 5). In view of the antagonizing regulation of GA and ABA in plants, it is reasonable to infer that miR528-D3 regulates shoot elongation by regulating the expression of the GA and ABA metabolic pathway-related genes (Fig. 6). Therefore, D3, as a key regulatory node, may control plant height by mediating the signaling and metabolism of SL, GA, and ABA phytohormones in rice.
In the present study, the functional role of the miR528-D3 module in regulation of plant height in rice was investigated. It was found that miR528 and its targeting gene D3 were oppositely expressed in tested tissues along developmental stages, where miR528 was mainly expressed in roots and leaves at the maturity stage. The plant height of d3 and OE-miR528 lines was significantly lower than WT, OE-D3, and OE-MIM528 lines, with the former transgenics having severely shortened internodes. However, both WT and transgenics had the same number of internodes, while the cell length of internodes of OE-D3 and OE-MIM528 lines was extensively longer than those of d3 and OE-miR528 plants that contained apparently lower level of GA4 but higher ABA content. The supplementation of exogenous GA3 (1 µM) and ABA (3 µM) promoted the increase of plant height of d3 and OE-miR528 lines, indicating that these transgenic lines were much more sensitive to external GA but not to ABA. Furthermore, GA biosynthesis-related genes (OsCPS1, OsCPS2, OsKO2 and OsKAO) were strongly expressed in OE-D3 plants, while ABA biosynthesis-related gene NECD2 was highly expressed in d3 mutant. The results are useful for further understanding and manipulating the regulatory mechanism of plant height in rice.
Materials and Methods
Oryza sativa L. japonica cv. Nipponbare was used as the wild type (WT) and genetic transformation in this study. The miR528 overexpressing plants (OE-miR528) and the miR528 target mimicry lines (OE-MIM528) were developed in our previous studies (Liu et al. 2015; Wang et al. 2021). The OE-miR528, OE-MIM528, OE-D3 lines, and d3 mutants were created with the Nipponbare background and used in the following experiments.
Generation of Transgenic Rice Plants
Using the full-length cDNA from the cv. Nipponbare as the template, the coding sequence (CDS) of the D3 gene (LOC_Os06g06050) was amplified using the specific primers listed in Additional file 1: Table S1. The purified PCR product was then cloned into the pCAMBIA1300-UBI-RBCS vector using the Hieff Clone® Plus One Step Cloning Kit. The D3 knockout vector was constructed using the CRISPR/Cas9 method. Based on the genomic sequence of D3 gene, two specific CRISPR target sites were designed in the protein-encodable region. After determining the sites to be knocked out, the 23–25 bp exon sequence was selected, and subjected to obtain the sgRNA target site sequence for the specifically edited D3 gene by using the Guide Design Resources (http://crispr.mit.edu/). Th gRNA vector was subsequently cut with BsaI and connected to the small fragment annealed at the target site. Then PCR amplification was performed to obtain the gRNA expression box containing the target site. After that, the recovered and amplified target site fragments were digested with BsaI, and multi-fragmented with the Cas9 vector digested with BsaI. The constructed CRISPR vector was then transferred into E. coli competent cells for proliferation. The constructs were separately transferred into Nipponbare by Agrobacterium-mediated transformation method to generate transgenic lines (Tzfira and Citovsky 2006).
The genomic DNA was extracted from the leaves of transgenic seedlings using the CTAB method, and used for positive identification. For knockout transgenic plants, the target site-specific primers were used for PCR amplification and sequencing to detect the editing sites (Additional file 1: Table S1).
Quantitative Real-Time PCR (qRT-PCR)
Total RNA was extracted from different tissues using TRIzol reagent (TaKaRa). After treated with DNase I, the RNA was used to synthesize cDNA using the Hifair™ III 1st Strand cDNA Synthesis Kit (YEASEN, China, http://www.yeasen.com). qRT-PCR was conducted in a BIO-RAD CFX96 Real-Time PCR System using the Hieff® qPCR SYBR® Green Master Mix (YEASEN, China, http://www.yeasen.com), according to the manufacturer’s instructions. The total volume of the reaction system was 20 μL, including Hieff® qPCR SYBR Green Master Mix, 10 μL, Forward primer, 0.4 μL, Reverse primer, 0.4 μL, Template of cDNA, 9 μL, and RNase-free water, 0.2 μL. The reaction procedure for qRT-PCR was as follows: 95℃ for 5 min, followed by 40 cycles of 95℃ for 10 s, 55–60℃ for 20 s, and 72℃ for 20 s. All experiments were performed with three biological repeats and three technical replicates. The Ubquitin gene was used as the internal control for normalization. The 2−ΔΔCT method was adopted to evaluate the relative expression level of corresponding genes. Primers used for qRT-PCR were listed in Additional file 1: Table S2.
Histological Analysis of Cell Morphology
To explore the cell morphology of WT and transgenic plants, the same region of the uppermost internode was collected from 31-day-old seedlings, and fixed in 75% alcohol solution immediately. The rice samples were heated in a water bath until the leaves turned into white completely, and then oven-dried at 37℃ overnight. The samples were put under an optical microscope to observe the cell morphology. The cell length of the uppermost internode was measured using ImageJ (Collins 2007). The measurement was conducted for more than 15 cells each of three plants per line.
Determination of Endogenous Hormone Content
For GA1, GA4 and ABA quantification, 0.2 g of stems of 31-day-old WT and transgenic rice plants were collected and powdered with liquid nitrogen. Each sample was extracted in acetonitrile according to the method from Liu et al. (2020). For brassinolide (BL), castasterone (CS), and 6-Deoxocastasterone (6-DS) quantification, 2.0 g of stems of 31-day-old WT and transgenic rice plants were collected and extracted in 95% methanol, according to the previously described method (Kim et al. 2005). For the measurement of 2’-epi-5-Deoxystrigol content, 2.0 g of stems of 31-day-old WT and transgenic rice plants were collected and extracted in acetonitrile, using the method from Wang et al. (2020a, b). After extraction and purification, all samples were subjected to LC/MS–MS analyses using an Acquity Ultra Performance Liquid Chromatograph (LC-30AD, Shimadzu) coupled to a triple quadruple tandem mass spectrometer (SCIEX-6500Qtrap, SCIEX). Each assay was performed with three biological replicates.
Exogenous GA and ABA Treatment
Rice seeds were sterilized with 0.5% NaClO solution for 15 min, and washed three times with sterile distilled water, and then immersed in water for two days in a constant temperature incubator at 32℃. Germinated seeds were grown on a nylon net floating on hydroponic solution (pH 5.8) (Shim et al. 2021). The 14-day-old seedlings of WT and transgenic lines were treated with 1 μM GA3 or 3 μM ABA for two weeks. Each treatment experiment was performed with three replicates with twelve seedlings. The nutrient solution was renewed every three days. After the 7 and 14 d of hormone treatment, the shoot length of each plant was measured (Chu et al. 2019; Chen et al. 2021).
Availability of data and materials
The datasets supporting the conclusions of this article are included within the article and its additional files.
- D3 :
Shoot apical meristem
Arite T, Umehara M, Ishikawa S, Hanada A, Maekawa M, Yamaguchi S, Kyozuka J (2009) d14, a strigolactone-insensitive mutant of rice, shows an accelerated outgrowth of tillers. Plant Cell Physiol 50:1416–1424
Ayano M, Kani T, Kojima M, Sakakibara H, Ashikari M (2015) Gibberellin biosynthesis and signal transduction is essential for internode elongation in deepwater rice. Plant Cell Environ 37:2313–2324
Bang SW, Park SH, Jeong SJ, Kim YS, Jung H, Ha SH, Kim JK (2013) Characterization of the stress-inducible OsNCED3 promoter in different transgenic rice organs and over three homozygous generations. Planta 237:211–224
Chen Y, Shen J, Zhang L, Qi H, Yang L, Wang H, Wang J, Wang Y, Du H, Tao Z, Zhao T, Deng P, Shu Q, Qian Q, Yu H, Song S (2021) Nuclear translocation of OsMFT1 that is impeded by OsFTIP1 promotes drought tolerance in rice. Mol Plant 14:1297–1311
Chi S, Mei Z, Duan J, Chen H, Feng H, Cai W, Gloria M (2014) OsGA2ox5, a gibberellin metabolism enzyme, is involved in plant growth, the root gravity response and salt stress. PLoS ONE 9:e87110
Choi J, Lee T, Cho J, Servante EK, Pucker B, Summers W, Bowden S, Rahimi M, An K, An G, Bouwmeester HJ, Wallington EJ, Oldroyd G, Paszkowski U (2020) The negative regulator SMAX1 controls mycorrhizal symbiosis and strigolactone biosynthesis in rice. Nat Commun 11:2114
Chu Y, Xu N, Wu Q, Yu B, Li X, Chen R, Huang J (2019) Rice transcription factor OsMADS57 regulates plant height by modulating gibberellin catabolism. Rice 12:38
Collins TJ (2007) ImageJ for microscopy. Biotechniques 43:25–30
Endo A, Nelson KM, Thoms K, Abrams SR, Nambara E, Sato Y (2014) Functional characterization of xanthoxin dehydrogenase in rice. J Plant Physiol 171:1231–1240
Feng Q, Zhao KJ (2011) The influence of RNAi targeting of OsGA20ox2 gene on plant height in rice. Plant Mol Biol Report 29:952
Gao Z, Qian Q, Liu X, Yan M, Feng Q, Dong G, Liu J, Han B (2009) Dwarf 88, a novel putative esterase gene affecting architecture of rice plant. Plant Mol Biol 71:265–276
Hong Z, Ueguchi-Tanaka M, Fujioka S, Takatsuto S, Yoshida S, Hasegawa Y, Ashikari M, Kitano H, Matsuoka M (2005) The rice brassinosteroid-deficient dwarf2 mutant, defective in the rice homolog of Arabidopsis DIMINUTO/DWARF1, is rescued by the endogenously accumulated alternative bioactive brassinosteroid, dolichosterone. Plant Cell 17:2243–2254
Huang J, Tang D, Shen Y, Qin B, Hong L, You A, Li M, Wang X, Yu H, Gu M, Cheng Z (2010) Activation of gibberellin 2-oxidase 6 decreases active gibberellin levels and creates a dominant semi-dwarf phenotype in rice (Oryza sativa L.). J Genet Genomics 37:23–36
Ishikawa S, Maekawa M, Arite T, Onishi K, Takamure I, Kyozuka J (2005) Suppression of tiller bud activity in tillering dwarf mutants of rice. Plant Cell Physiol 46:79–86
Itoh H, Tatsumi T, Sakamoto T, Otomo K, Toyomasu T, Kitano H, Ashikari M, Ichihara S, Matsuoka M (2004) A rice semi-dwarf gene, Tan-Ginbozu (D35), encodes the gibberellin biosynthesis enzyme, ent-kaurene oxidase. Plant Mol Biol 54:533–547
Kim TW, Hwang JY, Kim YS, Joo SH, Chang SC, Lee JS, Takatsuto S, Kim SK (2005) Arabidopsis CYP85A2, a cytochrome P450, mediates the Baeyer-Villiger oxidation of castasterone to brassinolide in brassinosteroid biosynthesis. Plant Cell 17:2397–2412
Li YF, Zheng Y, Addo-Quaye C, Zhang L, Saini A, Jagadeeswaran G, Axtell MJ, Zhang W, Sunkar R (2010) Transcriptome-wide identification of microRNA targets in rice. Plant J 62:742–759
Lin H, Wang R, Qian Q, Yan M, Meng X, Fu Z, Yan C, Jiang B, Su Z, Li J, Wang Y (2009) DWARF27, an iron-containing protein required for the biosynthesis of strigolactones, regulates rice tiller bud outgrowth. Plant Cell 21:1512–1525
Liu Q, Hu H, Zhu L, Li R, Feng Y, Zhang L, Yang Y, Liu X, Zhang H (2015) Involvement of miR528 in the regulation of arsenite tolerance in rice (Oryza sativa L.). J Agric Food Chem 63:8849–8861
Liu X, Hu Q, Yan J, Sun K, Liang Y, Jia M, Meng X, Fang S, Wang Y, Jing Y, Liu G, Wu D, Chu C, Smith SM, Chu J, Wang Y, Li J, Wang B (2020) ζ-carotene isomerase suppresses tillering in rice through the coordinated biosynthesis of strigolactone and abscisic acid. Mol Plant 13:1784–1801
Lo SF, Yang SY, Chen KT, Hsing YI, Zeevaart JAD, Chen LJ, Yu SM (2008) A novel class of gibberellin 2-oxidases control semidwarfism, tillering, and root development in rice. Plant Cell 20:2603–2618
Luo A, Qian Q, Yin H, Liu X, Yin C, Lan Y, Tang J, Tang Z, Cao S, Wang X, Xia K, Fu X, Luo D, Chu C (2006) EUI1, encoding a putative cytochrome P450 monooxygenase, regulates internode elongation by modulating gibberellin responses in rice. Plant Cell Physiol 47:181–191
Monna L, Kitazawa N, Yoshino R, Suzuki J, Masuda H, Maehara Y, Tanji M, Sato M, Nasu S, Minobe Y (2002) Positional cloning of rice semidwarfing gene, sd-1: rice “green revolution gene” encodes a mutant enzyme involved in gibberellin synthesis. DNA Res 9:11–17
Oikawa T, Koshioka M, Kojima K, Yoshida H, Kawata M (2004) A role of OsGA20ox1, encoding an isoform of gibberellin 20-oxidase, for regulation of plant stature in rice. Plant Mol Biol 55:687–700
Qin X, Liu JH, Zhao WS, Chen XJ, Guo ZJ, Peng YL (2013) Gibberellin 20-oxidase gene OsGA20ox3 regulates plant stature and disease development in rice. Mol Plant Microbe Interact 26:227–239
Saika H, Okamoto M, Miyoshi K, Kushiro T, Shinoda S, Jikumaru Y, Fujimoto M, Arikawa T, Takahashi H, Ando M, Arimura SI, Miyao A, Hirochika H, Kamiya Y, Tsutsumi N, Nambara E, Nakazono M (2007) Ethylene promotes submergence-induced expression of OsABA8oxl, a gene that encodes ABA 8’-hydroxylase in rice. Plant Cell Physiol 48:287–298
Sakamoto T, Miura K, Itoh H, Tatsumi T, Ueguchi-Tanaka M, Ishiyama K, Kobayashi M, Agrawal G, Takeda S, Abe K, Miyao A, Hirochika H, Kitano H, Ashikari M, Matsuoka M (2004) An overview of gibberellin metabolism enzyme genes and their related mutants in rice. Plant Physiol 134:1642–1653
Sang D, Chen D, Liu G, Liang Y, Huang L, Meng X, Chu J, Sun X, Dong G, Yuan Y, Qian Q, Li J, Wang Y (2014) Strigolactones regulate rice tiller angle by attenuating shoot gravitropism through inhibiting auxin biosynthesis. Proc Natl Acad Sci USA 111:11199–11204
Shim JS, Park SH, Lee DK, Kim YS, Park SC, Redillas MCFR, Seo JS, Kim JK (2021) The rice GLYCINE-RICH PROTEIN 3 confers drought tolerance by regulating mRNA stability of ROS scavenging-related genes. Rice 14:31
Spielmeyer W, Ellis MH, Chandler PM (2002) Semidwarf (sd-1), “green revolution” rice, contains a defective gibberellin 20-oxidase gene. Proc Natl Acad Sci USA 99:9043–9048
Sun S, Wang T, Wang L, Li X, Jia Y, Liu C, Huang X, Xie W, Wang X (2018) Natural selection of a GSK3 determines rice mesocotyl domestication by coordinating strigolactone and brassinosteroid signaling. Nat Commun 9:2523
Tang W, Thompson WA (2019) OsmiR528 enhances cold stress tolerance by repressing expression of stress response-related transcription factor genes in plant cells. Curr Genomics 20:100–114
Tong H, Xiao Y, Liu D, Gao S, Liu L, Yin Y, Jin Y, Qian Q, Chu C (2014) Brassinosteroid regulates cell elongation by modulating gibberellin metabolism in rice. Plant Cell 26:4376–4393
Tong X, Wang Y, Sun A, Bello BK, Ni S, Zhang J (2018) Notched belly grain 4, a novel allele of dwarf 11, regulates grain shape and seed germination in rice (Oryza sativa L.). Int J Mol Sci 19:4069
Toyomasu T, Kagahara T, Hirose Y, Usui M, Abe S, Okada K, Koga J, Mitsuhashi W, Yamane H (2009) Cloning and characterization of cDNAs encoding ent-copalyl diphosphate synthases in wheat: insight into the evolution of rice phytoalexin biosynthetic genes. Biosci Biotechnol Biochem 73:772–775
Tzfira T, Citovsky V (2006) Agrobacterium-mediated genetic transformation of plants: biology and biotechnology. Curr Opin Biotechnol 17:147–154
Ueguchi-Tanaka M, Ashikari M, Nakajima M, Itoh H, Katoh E, Kobayashi M, Chow TY, Hsing YI, Kitano H, Yamaguchi I, Matsuoka M (2005) GIBBERELLIN INSENSITIVE DWARF1 encodes a soluble receptor for gibberellin. Nature 437:693–698
Wang B, Wang H (2017) IPA1: a new “green revolution” gene? Mol Plant 10:779–781
Wang B, Smith SM, Li J (2018) Genetic regulation of shoot architecture. Annu Rev Plant Biol 69:437–468
Wang F, Han T, Song Q, Ye W, Song X, Chu J, Li J, Chen ZJ (2020a) The rice circadian clock regulates tiller growth and panicle development through strigolactone signaling and sugar sensing. Plant Cell 32:3124–3138
Wang Y, Hou Y, Qiu J, Wang H, Wang S, Tang L, Tong X, Zhang J (2020b) Abscisic acid promotes jasmonic acid biosynthesis via a “SAPK10-bZIP72-AOC” pathway to synergistically inhibit seed germination in rice (Oryza sativa). New Phytol 228:1336–1353
Wang M, Guo W, Li J, Pan X, Pan L, Zhao J, Zhang Y, Cai S, Huang X, Wang A, Liu Q (2021) The miR528-AO module confers enhanced salt tolerance in rice by modulating the ascorbic acid and abscisic acid metabolism and ROS scavenging. J Agric Food Chem. https://doi.org/10.1021/acs.jafc.1c01096
Wu J, Zhu C, Pang J, Zhang X, Yang C, Xia G, Tian Y, He C (2014) OsLOL1, a C2C2-type zinc finger protein, interacts with OsbZIP58 to promote seed germination through the modulation of gibberellin biosynthesis in Oryza sativa. Plant J 80:1118–1130
Wu J, Yang R, Yang Z, Yao S, Zhao S, Wang Y, Li P, Song X, Jin L, Zhou T, Lan Y, Xie L, Zhou X, Chu C, Qi Y, Cao X, Li Y (2017) ROS accumulation and antiviral defence control by microRNA528 in rice. Nat Plants 3:16203
Yan H, Saika H, Maekawa M, Takamure I, Tsutsumi N, Kyozuka J, Nakazono M (2007) Rice tillering dwarf mutant dwarf3 has increased leaf longevity during darkness-induced senescence or hydrogen peroxide-induced cell death. Genes Genet Syst 82:361–366
Yang M, Qi W, Sun F, Zha X, Chen M, Huang Y, Feng YQ, Yang J, Luo X (2013) Overexpression of rice LRK1 restricts internode elongation by down-regulating OsKO2. Biotechnol Lett 35:121–128
Yang R, Li P, Mei H, Wang D, Sun J, Yang C, Hao L, Cao S, Chu C, Hu S, Song X, Cao X (2019) Fine-tuning of miR528 accumulation modulates flowering time in rice. Mol Plant 12:1103–1113
Zhang Y, Zhu Y, Peng Y, Yan D, Li Q, Wang J, Wang L, He Z (2008) Gibberellin homeostasis and plant height control by EUI and a role for gibberellin in root gravity responses in rice. Cell Res 18:412–421
Zhang Y, Zhang S, Jing L, Wang Y, Fang X (2014) Research progress on cloning and functional analysis of plant height genes in rice (Oryza sativa L.). Chin Agric Sci Bull 12:1–7
Zhang B, Wang X, Zhao Z, Wang R, Huang X, Zhu Y, Yuan L, Wang Y, Xu X, Burlingame AL, Gao Y, Sun Y, Tang W (2016) OsBRI1 activates BR signaling by preventing binding between the TPR and kinase domains of OsBSK3 via phosphorylation. Plant Physiol 170:1149–1161
Zhang J, Zhang X, Chen R, Yang L, Fan K, Liu Y, Wang G, Ren Z, Liu Y (2020a) Generation of transgene-free semidwarf maize plants by gene editing of gibberellin-oxidase20-3 using CRISPR/Cas9. Front Plant Sci 11:1048
Zhang Y, Wang X, Luo Y, Zhang L, Yao Y, Han L, Chen Z, Wang L, Li Y (2020b) OsABA8ox2, an ABA catabolic gene, suppresses root elongation of rice seedlings and contributes to drought response. Crop J 8:480–491
Zhang YC, He RR, Lian JP, Zhou YF, Zhang F, Li QF, Yu Y, Feng YZ, Yang YW, Lei MQ, He H, Zhang Z, Chen YQ (2020c) OsmiR528 regulates rice-pollen intine formation by targeting an uclacyanin to influence flavonoid metabolism. Proc Natl Acad Sci USA 117:727–732
Zhao J, Wang T, Wang M, Liu Y, Yuan S, Gao Y, Yin L, Sun W, Peng L, Zhang W, Wan J, Li X (2014) DWARF3 participates in an SCF complex and associates with DWARF14 to suppress rice shoot branching. Plant Cell Physiol 55:1096–1109
Zheng J, Hong K, Zeng L, Wang L, Kang S, Qu M, Dai J, Zou L, Zhu L, Tang Z, Meng X, Wang B, Hu J, Zeng D, Zhao Y, Cui P, Wang Q, Qian Q, Wang Y, Li J, Xiong G (2020) Karrikin signaling acts parallel to and additively with strigolactone signaling to regulate rice mesocotyl elongation in darkness. Plant Cell 32:2780–2805
Zhou M, Gu L, Li P, Song X, Wei L, Chen Z, Cao X (2010) Degradome sequencing reveals endogenous small RNA targets in rice (Oryza sativa L. ssp. indica). Front Biol 5:67–90
Zhu G, Ye N, Zhang J (2009) Glucose-induced delay of seed germination in rice is mediated by the suppression of ABA catabolism rather than an enhancement of ABA biosynthesis. Plant Cell Physiol 50:644–651
Zou X, Wang Q, Chen P, Yin C, Lin Y (2019) Strigolactones regulate shoot elongation by mediating gibberellin metabolism and signaling in rice (Oryza sativa L.). J Plant Physiol 237:72–79
This work was financially supported by grants from the Key Project of Zhejiang Provincial Natural Science Foundation of China (LZ19B070001) and the National Natural Science Foundation of China (31972959) to Q.L.
Ethics Approval and Consent to Participate
Consent for Publication
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Fig. S1. Expression analysis of the D3 gene in A OE-MIM528, OE-miR528 and B OE-D3 transgenic plants. Fig. S2. Sequence analysis of d3 mutants generated by CRISPR/Cas9. A The target sites and sanger sequence of d3-1 and d3-3 mutants. B Deduced amino acid sequence alignment of d3 mutants. Fig. S3. Phenotypes of plant height of different transgenic lines at the maturity stage. Bars, 10 cm. Fig. S4. Comparison of the contents of endogenous brassinolide (BL) (A), castasterone (CS) (B), 6-Deoxocastasterone (6-DS) (C), and 2′-epi-5-Deoxystrigol (D) in 31-day-old OE-miR528 and OE-MIM528 transgenic seedlings. Table S1. Primers used for vector construction and positive identification. Table S2. Primers used for qRT-PCR analysis.
