TAL Effectors with Avirulence Activity in African Strains of Xanthomonas oryzae pv. oryzae

Abstract

Background

Xanthomonas oryzae pv. oryzae (Xoo) causes bacterial leaf blight, a devastating disease of rice. Among the type-3 effectors secreted by Xoo to support pathogen virulence, the Transcription Activator-Like Effector (TALE) family plays a critical role. Some TALEs are major virulence factors that activate susceptibility (S) genes, overexpression of which contributes to disease development. Host incompatibility can result from TALE-induced expression of so-called executor (E) genes leading to a strong and rapid resistance response that blocks disease development. In that context, the TALE functions as an avirulence (Avr) factor. To date no such avirulence factors have been identified in African strains of Xoo.

Results

With respect to the importance of TALEs in the Rice-Xoo pathosystem, we aimed at identifying those that may act as Avr factor within African Xoo. We screened 86 rice accessions, and identified 12 that were resistant to two African strains while being susceptible to a well-studied Asian strain. In a gain of function approach based on the introduction of each of the nine tal genes of the avirulent African strain MAI1 into the virulent Asian strain PXO99A, four were found to trigger resistance on specific rice accessions. Loss-of-function mutational analysis further demonstrated the avr activity of two of them, talD and talI, on the rice varieties IR64 and CT13432 respectively. Further analysis of TalI demonstrated the requirement of its activation domain for triggering resistance in CT13432. Resistance in 9 of the 12 rice accessions that were resistant against African Xoo specifically, including CT13432, could be suppressed or largely suppressed by trans-expression of the truncTALE tal2h, similarly to resistance conferred by the Xa1 gene which recognizes TALEs generally independently of their activation domain.

Conclusion

We identified and characterized TalD and TalI as two African Xoo TALEs with avirulence activity on IR64 and CT13432 respectively. Resistance of CT13432 against African Xoo results from the combination of two mechanisms, one relying on the TalI-mediated induction of an unknown executor gene and the other on an Xa1-like gene or allele.

Introduction

Cultivated plants constantly face multiple abiotic and biotic stresses, the latter of which are estimated to cause from 17 to 30% of global yield losses on five of the most important crops including rice (Savary et al. 2019). Rice (Oryza sativa L.) is one of the most widely cultivated crops around the world and a staple food for much of the developing world (Ainsworth 2008). A major threat to rice production in Asia and Africa is bacterial leaf blight (BLB) caused by the bacterial phytopathogen Xanthomonas oryzae pv. oryzae (Xoo). BLB may indeed cause up to 50% of yield loss depending on rice variety, growth stage of infection, geographic location and environmental conditions (Liu et al. 2014). Xoo enters leaves through hydathodes or wounds. Bacteria then multiply in the intercellular spaces of the underlying epitheme prior to reaching the xylem vessels and propagating into the plant. BLB symptoms are water-soaked lesions that spread following the bacteria’s progression down the leaf and become chlorotic and then necrotic (Niño-Liu et al. 2006).

As do many pathogenic gram-negative bacteria, Xoo uses a type-3 secretion system (T3SS) to secrete into the host cytoplasm a cocktail of type-3 effectors (T3Es) that can be classified as transcription activator-like (TAL) effectors and non-TAL effectors. While the latter include a diverse array of effector families with various molecular activities, members of the TAL effector (TALE) family function as eukaryotic transcription factors that bind in a sequence-specific manner to the promoters of target genes in the host cells. Repeat-variable diresidues (RVDs) located at positions 12th and 13th of each of several contiguous repeats in a central domain of TALEs determine the DNA sequence binding specificity of the protein, one repeat to one nucleotide (Boch et al. 2009; Moscou and Bogdanove 2009). The target sequence, unique to each TALE, is called the effector binding element (EBE). Some Xoo TALEs are major virulence factors, targeting susceptibility (S) genes. Upregulation of S genes by TALEs contributes to disease development. S genes characterized to date for BLB mainly encode clade-3 SWEET sugar uniporters that may increase the abundance of apoplastic sugar to the benefit of the pathogen, or transcription factors that regulate so far unknown secondary targets promoting host susceptibility (Garcia-Ruiz et al. 2021).

Forty-six genes, several dominant and some recessive, individually govern rice resistance against Xoo. Twelve have been cloned and nine are TALE-dependent, reflecting the crucial role of TALEs in the interaction (Jiang et al. 2020). Recessive resistance often involves mutations within the EBE of an S gene to prevent the TALE-DNA interaction and consequent S gene induction. This is well illustrated by the non-TALE-inducible xa13, xa25 and xa41 loss-of-susceptibility alleles of the major S genes OsSWEET11, OsSWEET13, and OsSWEET14, respectively (Chu et al. 2006; Liu et al. 2011; Hutin et al. 2015). Dominant resistance is often triggered by TALE-mediated induction of so-called executor (E) genes, expression of which leads to rapid plant cell death that blocks disease development (Boch et al. 2014). Four E genes, namely Xa7, Xa10, Xa23, Xa27, and their respective matching tal genes, avrXa7, avrXa10, avrXa23, avrXa27, have been cloned and characterized (Hopkins et al. 1992; Gu et al. 2005; Tian et al. 2014; Wang et al. 2014, 2015; Chen et al. 2021; Luo et al. 2021). These tal genes are only present in Asian strains of Xoo and no E genes induced by African Xoo TALEs have been identified to date. E genes so far code for small proteins with transmembrane domains, and the molecular mechanisms underlying their function are still far from being understood (Zhang et al. 2015; Chen et al. 2021). Another type of dominant resistance is conferred by receptor-like kinases (RLK), such as Xa3/Xa26 (Sun et al. 2004; Xiang et al. 2006) and Xa21 (Song et al. 1995), but also Xa4 which encodes a cell wall-associated kinase (Hu et al. 2017). Finally, the last category are genes encoding nucleotide-binding domain leucine-rich repeat containing receptors (NLRs) such as Xa1 and its apparent alleles Xo1, Xa2, Xa14, Xa31(t) and Xa45(t) (Ji et al. 2020; Read et al. 2020a; Zhang et al. 2020). We consider the latter genes “apparent” alleles because Xo1 resides in a cluster of NLR genes, the number of which varies among rice genotypes, making orthology uncertain. Xa1 and Xo1 were shown to mediate resistance in response to TALEs generally, independently of their specific RVD sequence, and with no requirement for the transcriptional activation domain (Ji et al. 2016; Triplett et al. 2016; Read et al. 2020a). A variant class of TALEs called interfering (iTALE) or truncated (truncTALE) TALEs suppress Xa1/Xo1-mediated resistance, and the truncTALE Tal2h has been demonstrated to interact with Xo1 (Ji et al. 2016; Read et al. 2016, 2020a). Whether this interaction is direct, and whether Xo1 interacts with TALEs to mediate resistance remains to be elucidated. Analysis of functional apparent alleles of Xa1 and Xo1 revealed the absence of an intervening motif present in non-functional alleles, and differences in the number (4 to 7) of central tandem repeats that might explain differences in their activity (Zhang et al. 2020). Interestingly, most Asian strains of Xoo harbor iTALEs/truncTALEs while African strains do not, explaining why African strains are widely controlled by Xa1, Xo1 or functional homologs (Ji et al. 2016; Read et al. 2016, 2020a).

Previous studies demonstrated that African Xoo are genetically distant from Asian Xoo and closer to Xanthomonas oryzae pv. oryzicola (Xoc) (Poulin et al. 2015), which causes bacterial leaf streak (BLS). A characteristic feature of African Xoo is their small TALome (set of tal genes) consisting of 8–9 genes, relative to Asian Xoo which carry up to 19 tal genes. Moreover, no TALE is conserved between Asian and African strains (Lang et al. 2019). Comparative analysis of the TALome of several African strains revealed six groups of polymorphic TALEs based on their RVD sequences, including TalA, TalB, TalD, TalF, TalH, and TalI (Doucouré et al. 2018; Tran et al. 2018). African Xoo are also distinguished by a reduced number of races as compared to Asian Xoo (Gonzalez et al. 2007; Tekete et al. 2020). Race profiling on near isogenic lines (NILs) reported the potential of Xa4, xa5 and Xa7 or co-segregating genes to control a few African Xoo from Burkina Faso, Niger, and Cameroon (Gonzalez et al. 2007), but the resistance spectrum of these genes has yet to be evaluated on a larger set of strains. Furthermore, Xa1 comes up as one of the most promising R genes in terms of resistance spectrum for the Malian Xoo population (Tekete et al. 2020). Other studies to identify resistance against African Xoo evaluated 107 accessions of O. glaberrima, the cultivated rice species domesticated in Africa, as well as improved varieties including NERICA (NEw RICe for Africa) (Djedatin et al. 2011; Wonni et al. 2016). NERICA varieties are often the result of the inter-specific crosses between O. glaberrima, which represents important germplasm for resistance to local biotic and abiotic stresses, and high-yielding Asian O. sativa. These studies identified 25 accessions of O. glaberrima that are resistant to one or more African strains of Xoo, and five Burkinabe elite rice varieties (Djedatin et al. 2011; Wonni et al. 2016). Genes or quantitative trait loci accounting for resistance in these varieties remain to be explored.

In this study, toward providing breeders with new resistance genes against African Xoo, we screened 86 rice accessions including 16 accessions tested previously (Djedatin et al. 2011; Wonni et al. 2016) for resistance to two reference African Xoo strains MAI1 and BAI3, respectively originating from Mali and Burkina Faso. We included the Asian strain PXO99A for comparison. For select accessions, we probed with individual TALEs from the African strains expressed in PXO99A to identify potential E or other TALE-dependent resistance genes. We report on the identification of 12 accessions showing resistance to both African strains, nine of which involving an Xa1-like immunity, and unveil two TALEs with avirulence activity in African Xoo. Interestingly, our approach unmasked the occurrence of two overlapping TALE-mediated sources of resistance in the rice variety CT13432, one involving Xa1-like activity and the other a so far unknown TalI-dependent E gene.

Results

Germplasm Screening for TALE-Dependent Resistance Against African Xoo Uncovers Three Resistant Rice Varieties

To search for African Xoo tales with avr activity, we established a gain-of-function approach consisting in the trans-expression of these tal genes in a virulent recipient strain of Xoo. We first screened a germplasm of 86 accessions of rice and selected those that were susceptible to the Asian Xoo strain PXO99A and resistant to the reference African Xoo strains MAI1 and BAI3. Twelve accessions exhibited that phenotype, including two O. glaberrima, seven O. sativa (two indica and one japonica), and three elite varieties that are popular in West-Africa (Additional file 6: Table S1). To investigate whether the resistance of these 12 accessions to African Xoo is triggered by TALEs, each of the nine tal genes of the Xoo strain MAI1 was introduced into the virulent strain PXO99A. The expression in PXO99A of each TALE was confirmed by Western blot (Additional file 1: Fig. S1). Each PXO99A transformant carrying an Xoo MAI1 tal gene was inoculated to the 12 accessions and to the rice variety Azucena, which was used as susceptible check. No significant difference in lesion lengths was observed upon leaf-clip inoculation of Azucena leaves with the different transformants 15 days after inoculation. In contrast, the varieties CT13432 and FKR47N exhibited resistance when inoculated with PXO99A transformants carrying talI and talF, respectively. In addition, PXO99A strains with talD or talH both elicited resistance when inoculated to the O. sativa ssp. indica variety IR64. Overall, four TALEs with avirulence activity and three rice accessions with TAL-dependent resistance were pinpointed through this gain-of-function strategy (Table 1).

Table 1 Four African TALEs mediate resistance when expressed in PXO99A on resistant varieties

Genes Mutagenesis Confirms talD Avirulence Activity in IR64

To confirm that talD, talH, talI and talF act as avirulence genes in strain MAI1, we attempted to generate a library of MAI1 tal gene mutants by transformation of the suicide plasmid pSM7 as reported previously (Cernadas et al. 2014; Tran et al. 2018). Because MAI1 turned out to be poorly amenable to genetic transformation, we focused on the Xoo strain BAI3, which has a similar TALome (Tran et al. 2018). We obtained at least one mutant strain with a single insertion for each tal gene, except for talH (Additional file 2: Fig. S2). Alongside wild-type (WT) BAI3, mutant strains BAI3ΔtalI, BAI3ΔtalF and BAI3ΔtalD were inoculated to CT13432, FKR47N and IR64, respectively, and to the Azucena susceptible control. Both leaf-clip inoculation and leaf-infiltration of the three BAI3Δtal mutants produced WT-like symptoms on Azucena, indicating that virulence of these mutant strains was not affected (Fig. 1; Additional file 3: Fig. S3). In contrast, an increase of lesion lengths was observed upon clip-inoculation of leaves of IR64 with BAI3ΔtalD. Avirulence was fully restored when a plasmid-borne copy of talD was introduced into BAI3ΔtalD (Fig. 1A), demonstrating the avirulence activity of talD in IR64. In contrast, no loss of resistance was observed upon leaf-infiltration or leaf-clipping of CT13432 and FKR47N with talI or talF mutant strains, respectively (Additional file 3: Fig. S3, Fig. 1B), leading to the hypothesis that one or more other avr activities, corresponding to one or more other R genes, may be masking those of talI and talF.

Fig. 1
figure 1

BAI3∆talD loses avirulence on IR64 but BAI3∆talI and BAI3∆talF do not on CT13432 and FKR47N. A Leaves of IR64 and Azucena were challenged with Xoo strains BAI3, and BAI3ΔtalD carrying an empty vector (EV) or a plasmid with talD (ptalD). To assess significance, the parametrical test ANOVA (α = 0.05) was carried out using the R package. Values labeled with the same lower-case letter are not significantly different. B Leaves of rice varieties CT13432, and FKR47N were clip-inoculated with the wild-type African Xoo strain BAI3 and with mutant strains BAI3ΔtalI and BAI3ΔtalF, respectively. Azucena was included for all strains as a susceptible check. Lesion lengths were measured at 15 dpi. Data are the mean of eight measurements. Error bars represent ± SD. Significant differences (p < 0.001) were determined using an unpaired two-sample t-test, bars with « ns » are not statistically different. Experiments were repeated three time with similar results

CT13432 and FKR47N Exhibit Xa1-Like Resistance

When leaves of CT13432 and FKR47N were infiltrated with BAI3, an early and strong hypersensitive response (HR) apparent as rapidly developing necrosis could be observed at the site of inoculation (Additional file 3: Fig. S3). Xa1/Xo1 being able to confer resistance against African strains of Xoo and Xoc specifically (Ji et al. 2016; Triplett et al. 2016), and among the Xa genes that trigger an early and strong HR-like phenotype upon Xoo leaf-infiltration, we hypothesized that some Xa1/Xo1-like mechanism may be at play in the BAI3-CT13432/FKR47N interactions, redundant to the talI and talF-specific resistances observed in the gain-of-function experiments. To test this hypothesis we infiltrated the Asian Xoc strain BLS256 which carries the truncTALE tal2h, and the derivative mutant strain BLS256Δtal2h, into leaves of CT13432, FKR47N and the susceptible control Azucena (Fig. 2). As expected, all strains promoted water-soaking symptoms upon infiltration of the susceptible variety Azucena. Typical BLS symptoms were observed when leaves of CT13432 and FKR47N were infiltrated with Xoc strain BLS256, while a strong resistance phenotype appeared upon infiltration of the truncTALE derivative mutant BLS256Δtal2h, indicating that CT13432 and FKR47N have Xa1/Xo1-like activity. To further confirm that the resistance of these varieties against Xoo strains BAI3 and MAI1 is conferred in part by an Xa1-like gene, both strains were transformed with tal2h and pathogenicity assays were performed. As expected, expression of the truncTALE in BAI3 and MAI1 resulted in a complete loss of HR on CT13432 and FKR47N, which was not the case when the strains carried an empty vector (Fig. 2). Altogether, our results suggest that African Xoo resistance in CT13432 and FKR47N is mediated by Xa1 or other alleles, in addition to as yet unidentified resistance genes corresponding to talI and talF.

Fig. 2
figure 2

The resistance of CT13432 and FKR47N against African Xoo is largely suppressed by a truncTALE. Leaves of CT13432 and FKR47N rice varieties were inoculated with Xoo strains BAI3 and MAI1 carrying an empty vector (EV) or the truncTALE tal2h as well as Xanthomonas oryzae pv. oryzicola (Xoc) strain BLS256 which is naturally carrying tal2h and the mutant strain BLS256Δtal2h. The susceptible rice variety Azucena and the Asian Xoo strain PXO99A were used as controls. Leaves were photographed at 5 dpi

To test whether any of the ten remaining resistant accessions involve similar mechanisms, 3-week-old plants were inoculated by infiltration and checked for appearance of the HR. As expected, Carolina Gold Select and IRBB1, carrying respectively Xo1 and Xa1, displayed water-soaking lesions when infiltrated with the Asian Xoc strain BLS256, and HR when infiltrated with the African Xoo strain BAI3 and the truncTALE derivative mutant BLS256Δtal2h (Additional file 4: Fig. S4). Surprisingly, seven out of the eight O. sativa spp. accessions also exhibited a typical Xa1-like HR to BAI3 and BLS256Δtal2h while being susceptible to BLS256 (and to PXO99A, which also carries iTALEs). The two O. glaberrima accessions exhibited no Xa1-like resistance, developing water-soaking in response to BAI3 or BLS256Δtal2h following leaf infiltration (Additional file 4: Fig. S4, Additional file 6: Table S2). Overall, these observations show that 9 of the 12 resistant varieties including CT13432 and FKR47N resist African Xoo through Xa1/Xo1-like mechanisms.

Presence of Xa1 Allelic R Genes in CT13432 and FKR47N Rice Varieties

To test the prediction that an Xa1 allele was present in CT13432 and FKR47N, we PCR-amplified a 202 bp fragment spanning the junction of the first repeat and its up-stream region (Ji et al. 2020); Additional file 6: Table S3), allowing the discrimination of resistant and susceptible alleles (susceptible alleles yield no product). Analysis was performed also on the Xa1-carrying near-isogenic line IRBB1 and the Xo1-carrying Carolina Gold Select rice variety as positive controls, and on Azucena, Nipponbare, IR24 and IR64 as negative controls (Additional file 4: Fig. S4). Both CT13432 and FKR47N yielded a product that co-migrated with those of the positive controls (Fig. 3A). No amplification was evident from the negative control varieties. We next tried to determine the number of leucine-rich repeats (LRRs) encoded by the CT13432 and FKR47N alleles by amplifying the LRR domain. As expected, IRBB1 and Carolina Gold yielded products of sizes consistent with the six and five LRRs of Xa1 and Xo1, respectively. CT13432 and FKR47N produced amplicons of sizes consistent with the presence of seven and six LRRs, respectively (Fig. 3B). Altogether, these results provide strong evidence that CT13432 and FKR47N varieties each carry a different allele of the Xa1 R gene that is active against African Xoo strains MAI1 and BAI3.

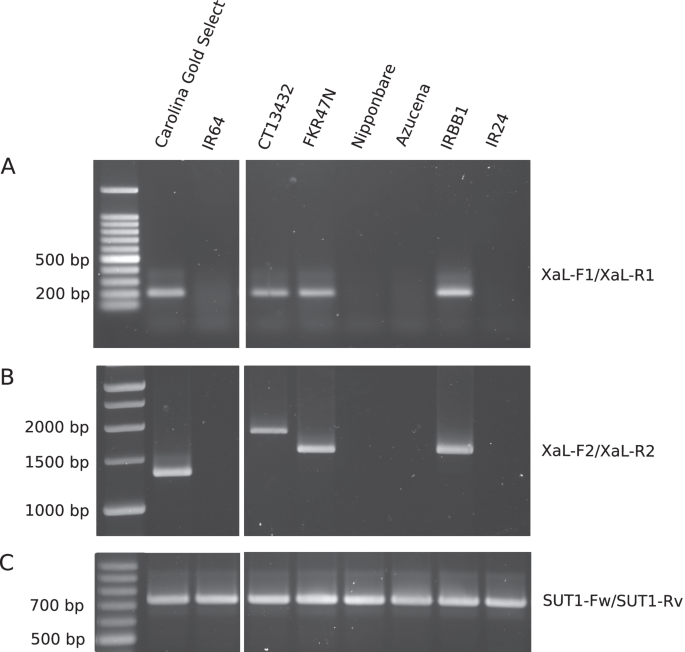

Fig. 3
figure 3

The rice varieties CT13432 and FKR47N carry distinct apparent alleles of Xa1. The genomic DNA of rice varieties Carolina Gold Select, IR64, CT13432, FKR47N, Nipponbare, Azucena, IRBB1 and IR24 were used as a template for PCR amplification of A the junction of the first repeat of 279 base pairs of Xa1 and its upstream region, B the whole repeat region of Xa1 and alleles, and C the housekeeping gene OsSUT1 used as a control. All the samples were run on the same gel

Suppression of the Xa1-Like Resistance in CT13432 Unmasks an Underlying TalI Activation Domain-Dependent Resistance

We hypothesized that the Xa1-like resistance in CT13432 and FKR47N explains the failure of the talI and talF knockouts in BAI3 to abolish avirulence of the mutants, respectively, on these varieties (Fig. 1A). To test this hypothesis directly, we first introduced a plasmid-borne copy of tal2h into BAI3 and inoculated to CT13432 and the susceptible variety Azucena. The presence of tal2h indeed suppressed the Xa1-like resistance to BAI3 in CT13432, resulting in moderate disease symptoms development (Fig. 4A), and higher bacterial titers in planta (Fig. 4B) as compared with a BAI3 empty vector control. We next tested whether the combination of tal2h-mediated Xa1-like suppression and talI inactivation would lead to even higher virulence on CT13432 by introducing tal2h (or the empty vector) into BAI3ΔtalI(ptal2h). No significant differences in lesion lengths or bacterial populations were observed between BAI3(ptal2h) and BAI3ΔtalI(ptal2h)(EV). However, expression of talIBAI3 in trans in BAI3ΔtalI(ptal2h) dramatically reduced lesion lengths and bacterial titer in planta, relative to the empty vector in BAI3ΔtalI(ptal2h). These results demonstrate that talIBAI3 avr activity in CT13432 can be detected when Xa1 is inactivated. We next evaluated if restoration of avirulence could also be obtained upon expression of talIMAI1 which is polymorphic at RVDs 4 and 9 (Tran et al. 2018). As with talIBAI3, expression of talIMAI1 leads to reduced lesion lengths and in planta bacterial amounts, indicating that both talI variants confer avirulence on CT13432 (Fig. 4). We next evaluated the requirement of the activation domain (AD) in the talI-specific resistance. BAI3ΔtalI(ptal2h) transformed with the deletion derivative construct ptalIMAI1ΔAD failed to trigger resistance in CT13432 while it remained fully virulent on the susceptible variety Azucena (Fig. 4A). Western-blot analysis verified that TalIMAI1 and TalIMAI1ΔAD accumulate at comparable levels (Additional file 5: Fig. S5). Altogether our results show that the TalI specifically elicits a form of resistance distinct from the Xa1-like resistance in CT13432 and that this elicitation relies on the activation domain of TalI, suggesting the presence of a TalI-activated E gene. Further analysis will be necessary to elucidate whether the same is true for talF-mediated resistance in FKR47N.

Fig. 4
figure 4

Suppression of Xa1-like resistance unmasks TalI avirulence activity in the rice variety CT13432. A Leaves of CT13432 and Azucena plants were clip-inoculated with the Xoo strain BAI3 carrying the pKEB31 empty vector (EV), the BAI3ΔtalI mutant carrying the pKEB31 empty vector (EV), the BAI3 strain expressing the tal2h truncTALE, and BAI3ΔtalI expressing tal2h and the pSKX1 empty vector (EV), or pSKX1 containing talIBAI3, talIMAI1 or talIMAI1ΔAD. Lesion lengths were measured at 15 dpi. Data are the mean of eight measurements. B Bacterial counts were taken 7 dpi of rice leaves of CT13432 and Azucena inoculated with the same panel of Xoo strains used in (A). Statistical tests in both experiments were carried out in R using the nonparametric Kruskal–Wallis and Dunn’s tests (α = 0.05). Values labeled with the same lower-case letter are not significantly different

Discussion

First identified in Japan in 1884, BLB has been long recognized as a major threat in many Asian countries, and therefore for decades at the heart of many research and resistance breeding programs (Liu et al. 2014). To date, a handful of avirulence genes have been cloned from Asian Xoo strains, all of which encode TAL effectors including avrXa7, avrXa10, avrXa23, and avrXa27 (Hopkins et al. 1992; Gu et al. 2005; Wang et al. 2014). In contrast, no avirulence gene has been identified in African Xoo strains, the first of which were isolated in the 1980s. However, as many as nine races of African strains, not found among Asian strains, have been reported so far (Gonzalez et al. 2007; Tekete et al. 2020), indicating that some effector genes of African Xoo strains act as avirulence factors in gene-for-gene interactions with some rice R genes. Comparison between African and Asian Xoo TALomes shows that no tal gene is conserved between these two Xoo lineages (Lang et al. 2019). Strains of both lineages induce the S genes OsSWEET14 and OsTFX1 through unrelated TALEs, highlighting cases of inter-lineage evolutionary convergence of virulence functions (Streubel et al. 2013; Tran et al. 2018). In contrast, none of the rice E genes induced by Asian Xoo is predicted to be targeted by any African Xoo TALE. Here, toward identifying sources of resistance effective against African Xoo strains, we assessed the putative avr activity of 12 previously cloned individual tal genes representing the TALome of two African Xoo strains (Tran et al. 2018), using a large set of rice accessions.

To accomplish this goal, we first took a gain-of-function approach using the virulent Asian Xoo strain PXO99A as a recipient to express cloned African tal genes. In a similar approach, we previously identified major virulence TALEs of African Xoo strains using the US strain Xo X11-5A as recipient (Tran et al. 2018). X11-5A lacks tal genes and is weakly virulent, allowing for gain-of-virulence screening (Ryba-White et al. 1995; Triplett et al. 2011). Nonetheless in a search for gain-of-avirulence, the use of a more virulent strain is required. By selecting the Asian strain PXO99A as recipient, we also minimized the risk of TALE functional redundancy. This strategy led to the identification of talI and talF respectively causing resistance in rice varieties CT13432 and FKR47N, as well as talD and talH, each triggering resistance on IR64.

In a complementary approach, a loss-of-function analysis was carried out by mutagenizing individual tal genes in the African Xoo strain BAI3. This analysis validated talD and talI as avirulence genes; a mutant for talH was not obtained. Because IR64 has been sequenced and recombinant populations are available (Fragoso et al. 2017), prospects for future identification of the gene(s) underlying the TalD-elicited resistance are good. Mutagenesis of talI or talF failed to cause a measurable loss of avirulence in the respective rice varieties CT13432 and FKR47N. However, talI avirulence activity was evident upon trans-expression of the truncTALE tal2h in BAI3ΔtalI, revealing that a resistance like that mediated by Xa1 in response to TALEs generally and suppressed by truncTALEs, is present in CT13432 and masking the TalI-specific resistance. By further taking advantage of this combined gain- and loss-of-function approach, we also determined that the TalI-specific resistance depends on the activation domain of the effector and thus likely involves an E gene.

While four TALE groups including TalG, TalE, TalD and TalC are strictly conserved between Xoo strains MAI1 and BAI3, two to six RVD variations were reported in the five other groups, modifying to some extent their DNA binding sequence specificities (Tran et al. 2018). Notably, three of the four candidates or validated avirulence TALEs identified in this study, TalI, TalF, and TalH all present RVD polymorphisms across Malian and Burkinabe strains, which could be the result of some ongoing selection pressure imposed by corresponding E or other resistance genes (Doucouré et al. 2018; Schandry et al. 2018). Surprisingly, the TalD group is much more conserved, highlighted by an absolute RVD conservation between BAI3, MAI1 and the Cameroonian strain CFBP1947 (Tran et al. 2018), and only one polymorphic RVD among nine Malian strains investigated (Doucouré et al. 2018). According to the EBE prediction tools Target Finder and Talvez (Doyle et al. 2012; Pérez-Quintero et al. 2013), 90% of the first 20 predicted targets of the two versions of TalD are conserved. Such a conservation among strains hints to an important role in virulence for TalD, but there are no data supporting this hypothesis so far. Concerning the TalI group, BAI3 and MAI1 alleles differ at two RVDs and share about 32% of their predicted targets, querying the Nipponbare genome. Since both variants equally elicit resistance in the rice variety CT13432, their polymorphism may confer an advantage in future identification of the putative corresponding E gene; the gene is likely to reside among the relatively smaller number of predicted targets in that genome that are shared by the two alleles.

Up to now 12 R genes against BLB have been cloned, of which 9 are triggered by TALEs (Jiang et al. 2020; Chen et al. 2021; Luo et al. 2021). This proportion not only highlights the crucial role of this effector family in the rice-Xoo pathosystem but also the relevance of using TALEs as probes to identify resistance sources and clone the underlying genes. This quest is facilitated by the ability to identify candidate targets of TALEs by combining EBE prediction and expression analysis, owing to the modular nature of TALE DNA interactions and their strong transcriptional upregulation of targets (Boch et al. 2014). In a proof-of-concept study pioneering this strategy for E gene identification, Strauss et al. (2012) identified the pepper Bs4C gene, which is specifically induced by the TALE AvrBs4 from X. euvesicatoria. More recently, a mix of map-based cloning and EBE predictions led to the isolation of the E gene Xa7 in rice, which is triggered by the Xoo TALE AvrXa7 (Chen et al. 2021; Luo et al. 2021). In our study, out of the 86 accessions phenotyped, 12 were found to be resistant to both African Xoo strains MAI1 and BAI3, including 7 accessions of O. sativa, 2 of O. glaberrima and 3 NERICAs. Moreover, 12 O. glaberrima, 3 O. sativa, 3 O. barthii and 2 NERICA accessions were discovered to be resistant specifically to the Malian strain MAI1.

Among the 12 accessions identified as resistant to Xoo African strains MAI1 and BAI3, 9 accessions, including CT13432 and FKR47N, showed a phenotype typical of Xa1 resistance (Additional file 6: Table S2; Additional file 4: Fig. S4). This is not surprising since Xa1 and its functional homologs exhibit broad-spectrum resistance against African Xoo specifically, owing to the lack of iTALEs in examined African Xoo strains (Ji et al. 2016; Read et al. 2016). The Xa1 allele that we discovered in the rice variety CT13432 appears to contain seven LRRs, like the allele originally identified as Xa45(t), which was cloned from the wild rice variety Oryza nivara-1 (Ji et al. 2020). Other alleles reported to date contain 4 (Xa14), 5 (Xa2 and Xo1), and 6 repeats (Xa1). Variety FKR47N contains an allele that appears to have 6 LRRs. FKR47N, also called NERICA 17, is the result of crossing O. glaberrima variety CG14 and O. sativa ssp. japonica variety WAB181-18, backcrossing to WAB181-18 as recurrent parent. Xa1 alleles have been reported in other NERICAs. Alleles in NERICAs 5 and 7, the recurrent parent of which is the O. sativa ssp. japonica rice variety WAB56-104, have five and six LRRs respectively. NERICAs 12 and 14, coming from the O. sativa ssp. japonica rice variety WAB56-50, each carry an allele with five LRRs (Ji et al. 2020). According to Ji et al. (2020), a search for Xa1 allelic members in the 3000 rice genomes revealed that approximately 15% contain the Xa1 signature sequence. A phenotypic screening for Xa1-like resistance in 87 rice accessions revealed its presence in 16 of them, including different rice species such as O. glaberrima, O. nivara and O. sativa (Ji et al. 2020). A complementary study on more than 500 O. sativa accessions revealed that Xa1 alleles were present in aus, indica, temperate and tropical japonica (Zhang et al. 2020). The frequency of Xa1 alleles among diverse rice varieties and the variability of LRRs number among Xa1 alleles observed in these studies and revealed further by our results, underscores the unanswered question of the origin of the gene and the drivers of its diversification.

BLB represents a serious threat to rice production in Africa. Varietal resistance is the best strategy to control BLB durably, but it requires sources of resistance effective against the local pathogen genotypes. So far, no African strain of Xoo with iTALE/truncTALE has been identified, which makes Xa1 and its alleles promising tools to control BLB in Africa. Although the durability of Xa1 in Africa is difficult to predict, the risk of emergence of strains of Xoo originating from Asia and their spread through the African continent seems high in the current context of intense global exchanges of rice germplasm and insufficient phytosanitary measures. Pyramiding of resistance genes against BLB is of great value to extend the durability and the spectrum of resistance within a rice variety (Oliva et al. 2019). CT13432 combines several rice blast resistance genes (Pi1, Pi2 and Pi33) (Tharreau et al. 2007; Utami et al. 2011), but here we found out that it also carries at least two, distinct types of resistance to BLB, an apparent Xa1 allele and a putative, TalI-dependent E gene, making it an excellent material for breeding to create improved varieties for Africa. What is more, we expect that CT13432 might also carry yet another blast resistance gene, Pi63, which resides at the same locus as Xo1 in Carolina Gold Select (Read et al. 2020b).

Conclusions

In this study, we identified 12 rice accessions exhibiting resistance against African strains of Xoo and described 4 TAL effectors from these strains that exhibit avirulence activity. Analysis of the mechanisms underlying the resistance of the rice variety CT13432 revealed the occurrence of two overlapping sources of resistance including an apparent allele of the broad-spectrum resistance gene Xa1 and an unidentified putative E gene that is activated by TalI. Combining transcriptomics and EBE prediction tools in the genome of CT13432 may allow discovery of this gene in the future. This approach would also be useful to decipher what genes in IR64 confer resistance against strains of Xoo with TalD.

Material and Methods

Bacterial Strains and Growth Conditions

Bacterial strains used in this study are listed in Additional file 6: Table S4. Escherichia coli was cultivated at 37 °C in liquid or solid (15 g agar per L) Luria–Bertani (LB) medium (10 g of tryptone, 5 g of yeast extract, and 5 g of NaCl per L of distilled water), and Xanthomonas oryzae pathovars at 28 °C in liquid or solid (16 g agar per L) peptone sucrose medium (10 g of peptone, 10 g of sucrose, and 1 g of glutamic acid per L of distilled water).

Plant Materials and Plant Inoculations

The rice accessions screened in this study are listed in Additional file 6: Table S1. Plants used were grown in a greenhouse under cycles of 12 h of light at 28 °C with 80% relative humidity (RH) and 12 h of dark at 25 °C with 70% RH. When used for bacterial quantification assays, plants were grown in a growth chamber at 28 °C and 80% RH (day and night). For lesion length assays, leaves of 5-week-old plants were inoculated by leaf-clipping with a bacterial suspension at an optical density at 600 nm (OD600) of 0.2. Lesion lengths were measured 15 days post inoculation (dpi) on at least eight leaves from individual plants per experiment. Leaves of 3-week-old plants were infiltrated with a needleless syringe and a bacterial suspension at an OD600 of 0.5. Symptoms were photographed at 5 dpi. For bacterial quantification assay, 5-week-old plants were inoculated by leaf-clipping and 10 cm distal leaf fragments of three leaves from three individual plants per condition were cut in half and ground in liquid nitrogen separately as reported previously (Yu et al. 2011).

Plasmid Transformation

Plasmids were introduced into E. coli cells by heat-shock transformation and into Xoo by electroporation or triparental mating (Figurski and Helinski 1979). Appropriate antibiotics for selection were added to growth media at the following final concentrations: rifampicin, 100 µg ml−1; gentamicin, 100 µg ml−1; tetracycline, 100 µg ml−1; kanamycin, 100 µg ml−1.

tal genes of the African Xoo strains MAI1 and BAI3 are cloned in pSKX1, which confers gentamicin resistance (Tran et al. 2018; Additional file 6: Table S4). The truncTALE tal2h is cloned in pKEB31, which confers tetracycline resistance (Read et al. 2016; Additional file 6: Table S4). The plasmids are compatible with each other.

Mutant Library Construction and Characterization

The BAI3∆tal mutants were generated upon electroporation of the wild-type strain BAI3 with the suicide plasmid pSM7 (Cernadas et al. 2014). Mutant strains were selected with kanamycin at 100 µg ml−1. The mutant library was characterized by Southern blot analysis. Extraction of Xoo genomic DNA (gDNA) was performed using the Wizard Genomic DNA Purification kit (Promega®). Four micrograms of gDNA were digested by BamHI-HF (New England Biolabs) at 37 °C overnight. The digested DNA was separated in a 1% agarose gel at 50 Volts for 72 h at 4 °C and transferred to a nylon membrane (Roche®) overnight. Hybridization was conducted according to the procedures described in the DIG High Prime DNA Labeling and Detection Starter kit II protocol (Roche®), using a 725-bp C-terminal TalCMAI1 amplicon as probe (Yu et al. 2011).

Construction of talI Activation Domain Mutant

The talIMAI1ΔAD construct was made by swapping the central repeat region of a talFMAI1ΔAD construct with that of talIMAI1. To create the talFMAI1ΔAD construct, a PCR product corresponding to a 520 bp fragment encoding the C-terminus of talFMAI1 was obtained with primers ∆AD_Fw and ∆AD_Rv (Additional file 6: Table S3), thereby allowing to introduce an inframe 167 bp deletion. This amplicon was introduced into pSKX1_talFMAI1 between the PvuI and HindIII restriction sites using T4 DNA ligase (Promega®) according to manufacturer’s recommendations, creating pSKX1_talFMAI1ΔAD. The talIMAI1 central repeat region was then swapped into pSKX1_talFMAI1ΔAD using StuI and AatII (NEB, New England Biolabs) to generate pSKX1_talIMAI1ΔAD. The plasmid was confirmed by Sanger sequencing.

Expression Analysis by Western Blotting

Xoo strains carrying the different combinations of TALE-encoding plasmid, truncTALE (tal2h) -encoding plasmid, and empty vectors (pSKX1 or pKEB31) were grown in liquid peptone sucrose medium supplemented with the corresponding antibiotics at 28 °C. Cells of 1 ml of a bacterial suspension at an OD600 of 0.4 were harvested. Proteins were extracted with the BugBuster ® Master Mix (Novagen), according to manufacturer’s recommendations. The total protein concentration of each sample was calculated by a Bradford assay following the Bio-Rad Protein Assay protocol (Bio-Rad, USA), and protein concentrations adjusted. TALEs and truncTALE expression was analyzed by sodium dodecyl sulfate polyacrylamide gel electrophoresis using a 4–15% polyacrylamide gel and immunoblotting using the anti-TALE polyclonal antibody produced by Read et al. (2016) followed by a horseradish peroxidase conjugated rabbit secondary antibody (Sigma-Aldrich). Detection was carried out using the Thermo Scientific™ Pierce™ ECL 2 Western Blotting Substrate kit and a Typhoon™ FLA 9500 (General Electric Healthcare Life Sciences, USA) for imaging.

PCR-Amplification of Putative Functional Xa1 Alleles

To identify rice accessions harboring a potentially functional Xa1 allele and to decipher the number of 93 aa repetitions, genomic DNA of rice accessions was extracted using an adaptation of the Murray and Thompson protocol (Murray and Thompson 1980) and was subjected to PCR using pairs of primers XaL-F1/XaL-R1 and XaL-F2/XaL-R2, respectively (Additional file 6: Table S3; Ji et al. 2020).

Availability of Data and Materials

The datasets supporting the conclusions of this article are provided within the article and its Additional files.

Abbreviations

AD:

Activation Domain

Avr:

Avirulence

BLB:

Bacterial Leaf Blight

EBE:

Effector Binding Element

E. coli :

Escherichia coli

E  gene:

Executor gene

HR:

Hypersensitive-Response

iTALE:

interfering Transcription Activator-Like Effector

LB medium:

Luria-Bertani medium

LRRs:

Leucine-Rich-Repeats

NILs:

Near Isogenic Lines

NLR:

Nucleotide-binding domain leucine-rich repeat containing receptor

NERICA:

NEw RICe for Africa

OD:

Optical Density

O. glaberrima / O. barthii / O. sativa :

Oryza glaberrima / Oryza barthii / Oryza sativa

PCR:

Polymerase Chain Reaction

RH:

Relative Humidity

RLK:

Receptor-Like Kinase

RVD:

Repeat-Variable Diresidue

R gene:

Resistance gene

S gene:

Susceptibility gene

SWEET:

Sugars Will Eventually be Exported Transporters

TAL:

Transcription Activator-Like

TALE:

Transcription Activator-Like Effector

truncTALE:

Truncated Transcription Activator-Like Effector

T3E:

Type-3 Effectors

T3SS:

Type-3 Secretion System

Xoc :

Xanthomonas oryzae pv. oryzicola

Xoo :

Xanthomonas oryzae pv. oryzae

References

Download references

Funding

This work was supported by the CRP-Rice (CGIAR Research Program) to MH and BS, and the Plant Genome Research Program of the National Science Foundation (Division of Integrative Organismal Systems IOS-1444511 to AJB).

Author information

Affiliations

Authors

Contributions

ML, BS, and MH designed the experiments. ML and MH conducted the experiments. ET participated in plant material growth and propagation. ML, AB, BS, and MH performed data analysis and wrote the manuscript. All authors read and approved the final manuscript.

Corresponding authors

Correspondence to Boris Szurek or Mathilde Hutin.

Ethics declarations

Ethics Approval and Consent to Participate

Not applicable.

Consent for Publication

Not applicable.

Competing interests

The authors declare that no competing interests exist.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information

Additional file 1: Fig. S1

. Western-blot of PXO99A Xoo transformant total protein extracts using an anti-TALE antibody. Protein extracts prepared from the wild-type Xoo strain PXO99A and the Xoo strain PXO99A carrying, on the vector pSKX1, each of the nine tal genes of the Malian strain MAI1 and their variants in the Burkinabe strain BAI3. Reference molecular weights are indicated at right. The expressed MAI1 and BAI3 TALE proteins are each indicated by a red dot. Bands of lower molecular weight not present in the wild-type PXO99A extract are degradation products of the heterologously expressed TALEs, commonly observed.

Additional file 2: Fig. S2

. Molecular characterization of a library of BAI3∆tal mutant strains. Genomic DNA of the wild-type Xoo strain BAI3 and derivative BAI3∆tal mutants were digested by BamHI-HF which cuts on either side of the central repeat region of tal genes and revealed by Southern blot using a 725-bp C-terminal talCMAI1 amplicon as probe (Yu et al. 2011). Individual mutants were obtained for each tal gene with the exception of talH. One double talG/talH mutant was analyzed instead. BAI3ΔtalB was obtained previously, also using the suicide plasmid pSM7 (Tran et al., 2018), and is therefore not included here. tal genes are indicated to the left and DNA sizes to the right. Red arrows indicate the tal gene(s) that were mutated.

Additional file 3: Fig. S3

. Phenotypic responses upon leaf-infiltration of CT13432 and FKR47N plants with BAI3∆talI and BAI3∆talF mutants. Leaves of rice varieties IR64, CT13432, FKR47N and Azucena were infiltrated with the wild type African Xoo strain BAI3 and the mutant derivatives BAI3ΔtalD, BAI3ΔtalI and BAI3ΔtalF. Inoculated leaves were photographed at 5 dpi.

Additional file 4: Fig. S4

. The Tal2h truncTALE reveals Xa1-like resistance against the Xoo strain BAI3 in several rice varieties. Leaves of rice accessions, including Carolina Gold Select which carries Xo1, and IRBB1 which carries Xa1, were infiltrated with Xoc strain BLS256 which naturally carries the tal2h truncTALE gene, the mutant strain BLS256Δtal2h, as well as with Xoo strain BAI3 carrying an empty vector (EV) or tal2h. The Asian Xoo strain PXO99A which harbors two truncTALEs, was used as an additional positive control. Leaves were photographed at 5 dpi.

Additional file 5: Fig. S5

. Western-blot analysis of Xoo total protein extracts using an anti-TALE antibody. Proteins extracts prepared from Xoo strain BAI3 carrying the empty vector pKEB31 (EV), BAI3ΔtalI carrying the empty vector pKEB31 (EV), BAI3 carrying the tal2h truncTALE gene, and BAI3ΔtalI with tal2h and the pSKX1 empty vector (EV), or pSKX1 containing talIBAI3 or talIMAI1 or talIMAI1ΔAD. BAI3 tal genes and tal2h are indicated to the left and right, respectively. Molecular weight is indicated.

Additional file 6

. Supplemental Tables
