Molecular Control of Redox Homoeostasis in Specifying the Cell Identity of Tapetal and Microsporocyte Cells in Rice

In flowering plants, male reproduction occurs within the male organ anther with a series of complex biological events including de novo specification of germinal cells and somatic cells, male meiosis, and pollen development and maturation. Particularly, unlike other tissue, anther lacks a meristem, therefore, both germinal and somatic cell types are derived from floral stem cells within anther lobes. Here, we review the molecular mechanism specifying the identity of somatic cells and reproductive microsporocytes by redox homoeostasis during rice anther development. Factors such as glutaredoxins (GRXs), TGA transcription factors, receptor-like protein kinase signaling pathway, and glutamyl-tRNA synthetase maintaining the redox status are discussed. We also conceive the conserved and divergent aspect of cell identity specification of anther cells in plants via changing redox status.

Reactive oxygen species (ROS) are produced in plants when molecular dioxygen (O₂) is applied as a terminal electron acceptor, generating molecules such as hydrogen peroxide (H₂O₂), superoxide anion (O₂-) and hydroperoxide radicals (OH^*). Most of these ROS molecules are by-products of aerobic metabolism in plants (Miller and Mittler, 2006).

In rice, ROS level is extremely low during anther cell specification stages, which is less than 200 pmol mg ^− 1, and the ROS level increases twice at stage 4 to stage 5 (Yang et al., 2018). 3,3′-diaminobenzidine (DAB) staining indicates the accumulation of H₂O₂ in middle layer and endothecium from stage 5 to stage 9 and decrease of ROS at stage 10 and stage 11 (Fig. 1) (Hu et al., 2011; Yang et al., 2016; Yi et al., 2016; Yang et al., 2018). The increase of ROS in anther cell wall layers may play a key role in initiating promoting cell degeneration of middle layer and tapetum from the meiosis (Hu et al., 2011; Yi et al., 2016). These results also suggest that the low hypoxia status is critical for early anther cell specification (Yang et al., 2018). Supportively, during anther cell specification, individual treatment of H₂O₂ and the ROS-removal reagent potassium iodide (KI) treatment in wild-type anthers induces cell proliferation and increases the number of Ar cells and Sp cells (Fig. 2 a, b), highlighting the importance of redox homeostasis during anther cell specification in rice (Yang et al., 2018).

GRXs and TGAs are important for anther development. a Wild-type anther with normal number of Sp cells at stage 4, b Wild-type anthers treated with H₂O₂ or KI with excess Sp cells at stage 4, c Phenotype of mil1 anther at stage 5, d Phenotype of ostga10 anther at stage 9, e Expression pattern of MIL1 in anther, f Expression pattern of OsTGA10 in anther. Purple color in c shows abnormal somatic cell layers; blue color in e and f shows the gradient of gene expression; grey color in e and f shows different cell layers without the expression of MIL1(e) or OsTGA10 (f)

Full size image

Consistent with the role of redox in specifying rice anther cell specification, the hypoxia status has been demonstrated in maize (Zea mays) (Kelliher and Walbot, 2012). In the airspace between the tassel and the innermost leaf in maize, O₂ concentration is around 1.2 to 1.4% during anther cell specification, and 5 days after that, the O₂ concentration reaches 5%. This result also highlights the transient hypoxia status during anther cell specification in maize, which is similar to that of rice (Kelliher and Walbot, 2012; Yang et al., 2018). The treatment of N₂ of anther cells increases the cell numbers of Ars, while this induction is absent when treated with O₂, indicating that low level of O₂ induces the cell specification of Ars (Kelliher and Walbot, 2012). Furthermore, the defects of Ar cell specification of msca1 (male sterile converted anther 1) with a mutation in a glutaredoxin (GRX) gene could be restored by reducing treatment (Sheridan et al., 1996, 1999; Kelliher and Walbot, 2012). These results suggest the importance of hypoxia status within growing anther tissue on stimulating the Ar cells development in maize (Kelliher and Walbot, 2012).

Although in Arabidopsis, the ROS level and redox status has not been measured during the anther development, the components controlling the redox status essential for male reproduction appeared to be conserved such as the the GRXs in Arabidopsis (Xing and Zachgo, 2010). Moreover, the mutation of an anther-expressed ROS synthetic gene RBOHE (Respiratory Burst Oxidase Homologue E) causes the defects of pollen development in Arabidopsis (Xie et al., 2014).

Glutaredoxins (GRXs) are small glutathione (GSH)-dependent oxidoreductases that catalyze the reversible reduction of protein disulfide bridges or protein-GSH mixed disulfide bonds, affecting various cellular events (Lemaire, 2004; Rouhier et al., 2004; Kelliher and Walbot, 2012; Zhang and Yang, 2014). Mutation in an anther-expressed glutaredoxin, MIL1 (MICROSPORELESS1) in rice, fails in the differentiation of inner SPC into middle layer and tapetal cell layer (Fig. 2c). MIL1 belongs to CC-type glutaredoxin, which usually interacts with TGA (TGACGTCA cis-element-binding protein) proteins. MIL1 interacts with TGA1 (Hong et al., 2012b). While the biological function of TGA1 has not been reported yet. In rice, anther-expressed OsGRX_I1 has a physical interaction with OsTGA10, mutation of which exhibits defects in tapetal PCD (Fig. 2d) (Yang et al., 2016; Chen et al., 2017). The interaction between glutaredoxins and TGA proteins may cause the transcriptional activity changes of TGA proteins caused by Cys residue modification by glutaredoxin which remains to be investigated. MIL1 expression is detectable in Ar cells from stage 2, extending to PPCs and Ar cells at stage 3 and SPCs as well as Sp cells at stage 4. At stage 5, MIL1 is highly accumulated in tapetum and weakly detected in Sp (Fig. 2e), similar to TGA1 (Hong et al., 2012b). However, no OsTGA10 transcripts are detectable at stage 2. OsTGA10 is detectable in PPC at stage 3 and the corresponding daughter cells endothecium and SPC at stage 4. At stage 5, OsTGA10 is highly expressed in middle layer and weakly expressed in tapetum. Till stage 6, OsTGA10 is specifically expressed in middle layer and has no expression during meiosis (Fig. 2f) (Yang et al., 2016). Overall, MIL1 and TGA1 expression pattern is slightly earlier and inner than that of OsTGA10. The differential expression of TGA genes may be associated with their verified function during anther development. Furthermore, TGA genes may have redundant function in specifying anther cells for the high expression pattern of OsTGA11 and OsTGA12 at premeiosis stages, partially overlapping with that of OsTGA10 (Yang et al., 2016). Together with the evidence that OsTGA10 is required for suppressing the induced expression of a PCD executor gene OsAP25 (Oryza sativa Aspartic Protease 25) by TIP2 (Niu et al., 2013; Chen et al., 2017), we hypothesize that TGA1-MIL1 and OsTGA10-OsGRX_I1 might play roles alternatively both spatially and temporarily, and the later might function as a link for anther cell specification and degeneration (Fig. 3a).

OsTDL1A-MSP1 pathway regulates anther development. a Model for protein interaction on tapetum development. b Expression pattern of OsTDL1A or MSP1 in anther. c ostdl1a and msp1 anthers with excess L2-d cells at stage 5. d ostdl1a and msp1 anthers with undetectable ROS at stage 5. Red color in a shows the gradients of hypoxia status; green color in a shows the gradients of ROS level; purple color in a shows no discussion about the redox status; white color in a and d shows undetectable level of ROS by DAB staining; yellow color in a shows germ cells; blue color in b shows the gradients of gene expression; grey color in b shows different cell layers without the expression of OsTDL1A or MSP1

Full size image

Evolutionarily, the function of GRXs on anther cell specification is conserved among rice, Arabidopsis thaliana and maize. The homologs of MIL1 include ROXY1 and ROXY2 in Arabidopsis (Xing and Zachgo, 2010), and MSCA1 (Male Sterile Converted Anther 1) in maize (Sheridan et al., 1996, 1999). roxy1 roxy2 and msca1 display defects in anther cell specification: adaxial lobes form roxy1 roxy2 mutant fail to form Sp cell at stage 3, while the abaxial lobes develop normally till stage 5, with irregular PMC at stage 6; msca1 mutant fails to form Ar cell at stage 3, indicating the conserved role of GRXs during anther development (Xing and Zachgo, 2010; Kelliher and Walbot, 2012; Yang et al., 2015). Furthermore, ROXY1 and ROXY2 interact with TGA9 and TGA10 during anther development, and tga9 tga10 displays anther cell developmental defects similar with roxy1 roxy2 (Murmu et al., 2010). MSCA1 interacts with TGA transcription factor FASCIATED EAR4 (FEA4) (Yang et al., 2015).

However, the MIL1-MSCA1-ROXY1/ROXY2 show divergent aspect during the anther development. The developmental defects of msca1 anthers are seen as early as abortion of the differentiation of Ar cells from L2-d cells (Kelliher and Walbot, 2012). While mil1 anthers have normal cell division and differentiation of Ar cells, forming the PPC and Sp cell as well as the initiation of the endothecium and epidermis at stage 5. However, the progenies of Sp cells of mil1 anthers develop into many smaller cells and fail to enter meiosis (Hong et al., 2012b). These results indicate that the maize GRX mutant shows earlier developmental defects than that of rice. In addition, unlike the defects of mil1 and msca1, roxy1 roxy2 and tga9 tga10 anthers display earlier abortion of adaxial lobes and later abortion of abaxial ones (Xing and Zachgo, 2010; Murmu et al., 2010). MSCA1 interacts with FEA4, controlling meristem size. Mutation in MSCA1, also named as abph2, displays large apical meristem, mimicking the phenotype of fea4 (Pautler et al., 2015; Yang et al., 2015). However, one of the counterparts of ROXY1/ROXY2, PAN (PERIANTHIA), a homolog of FEA4, is not required for meristem size control in Arabidopsis (Li et al., 2009). Instead, pan mutant exhibits a pentamemrous flower and roxy1 single mutant displays defects in petal initiation (Running, 1996; Li et al., 2009). The involvement of GRX-TGA counterparts in flower development and shoot apical meristem size control has not been reported in rice possibly due to that the divergent function of GRXs during evolution.

In rice anther, cell fate specification of germinal and somatic cells is also associated with cell surface-localized Leu-rich repeat receptor-like kinases (LRR-RLKs) and their putative ligands (Fig. 3a). OsTDL1A (TPD1-like 1A)/MIL2(MICRO-SPORELESS 2) encodes a small peptide with the expression in Ar cells at stage 3 and later radically in innermost somatic cell layer (Fig. 3b) (Hong et al., 2012a). MSP1(MULTIPLE SPOROCYTE 1) encodes a LRR-RLK expressed in the innermost somatic cell layer (Fig. 3b) (Nonomura et al., 2003). Both ostdl1a and msp1 exhibit excessive Sp cells and lack of middle layer and tapetal cell layer (Fig. 3c). ostdl1a msp1 double mutant displays similar phenotype with each single mutant (Yang et al., 2016). Furthermore, the 21-aa peptide of OsTDL1A is able to interact with MSP1, suggesting that OsTDL1A acts as a ligand of MSP1(Fig. 3a) (Nonomura et al., 2003; Hong et al., 2012a; Yang et al., 2016). Genetic and biochemical evidences show that OsTDL1A-MSP1 signaling specifies the early anther cell fate by stimulating the transition of parietal cells into the middle layer and tapetal cells, and suppressing the extra activity of generating microsporocytes in rice (Nonomura et al., 2003; Hong et al., 2012a; Yang et al., 2016). Genome-wide expression profiles also show the altered expression of genes in ostdl1a and msp1–4 are associated with redox modulation such as ROS-producing and ROS-scavenging enzymes and proteins, including putative peroxidases, cytochrome P450s, oxidoreductases, thioredoxins, and glutaredoxins (Yang et al., 2016). Consistent with the expression alteration of genes involved in redox homeostasis, the presence of hydrogen peroxide in the middle layer and expression signal of glutaredoxins OsGrx_I1 and MIL1 in anther cells are detectable in rice anthers at stage 5 after the differentiation of the four cell wall layers, but not in ostdl1a and msp1–4. Furthermore, the ROS level is not detectable in ostdl1a and msp1–4 anthers (Fig. 3d), highlighting the role of OsTDL1A-MSP1 signaling in specifying anther cell fate by directly or indirectly changing the redox status (Fig. 3a) (Yang et al., 2016). The OsTDL1A-MSP1 pathway is conserved in Arabidopsis and maize as reviewed by Zhang and Yang (2014), whether the counterparts of OsTDL1A-MSP1 play a role in regulating redox status during anther development remains to be elucidated.

Aminoacyl-tRNA synthetases (aaRSs) conjugate amino acid and their cognate tRNA, which is critical for protein synthesis and amino acid metabolism. aaRSs are widely distributed in the genome from all the species, including plants (Yamakawa and Hakata, 2010). OsERS1 (Oryza sativa Glutamyl-tRNA Synthetase) is a housekeeping gene, however, OsERS1 transcripts are detectable in cells of presumptive anther lobes at the four corners at stage 2, which is comparable with high hypoxia status in maize (Yang et al., 2018; Kelliher and Walbot, 2012). Later, the transcripts of OsERS1 accumulate in PPC and Ar cells at stage 3, followed by in SPC and Sp cells at stage 4, and in the innermost somatic cell layer from stage 5 to stage 8 (Fig. 4a) (Yang et al., 2018). osers1 anthers show over-proliferation and disorganization of L2-d cells, forming fused lobes and extra germ cells in early anthers (Fig. 4b). Biochemically, OsERS1 functions as a glutamyl-tRNA synthetase in ligating Glu with tRNA, regulating the amino acid metabolism and tricarboxylic acid cycle in anther. In osers1 anthers, most of Glu family amino acids and the related metabolites including oxaloacetate and malate in tricarboxylic acid cycle, are over-accumulated (Yang et al., 2018). Global metabolomics profiling shows that osers1 has the increased level of ROS produced by mitochondrial activities, and measurement also indicates hydrogen peroxide content in the osers1 mutant at stages 4 to 5 is ∼900 pmol mg^− 1, twice as that of wild-type anthers. Also, in the osers1 mutant, the amount of hydrogen peroxide precursor, superoxide radical, is increased slightly. Consistently, DAB staining shows that osers1 anthers display detectable H₂O₂ in anther primordium before stage 3 (Fig. 4c), and strong signals in anther cells at stages 4 to 5, which is earlier than that of the wild type (Yang et al., 2018). The application of 100 μM H₂O₂ and 1 mM potassium iodide (KI), the ROS-removal reagent cause the increased number of L2-d cells and Sp-like cells in wild-type anther, photocopying the defects of the osers1 mutant (Fig. 2 a, b). But osers1 anther treated with H₂O₂ and KI shows a decreased number of L2-d cells and Sp-like cells (Fig. 4 d-f) (Yang et al., 2018). Therefore, both the elevation of ROS by H₂O₂ injection and neutralization of ROS using KI disturb ROS homeostasis, which causes abnormal cell division, cell fate specification.

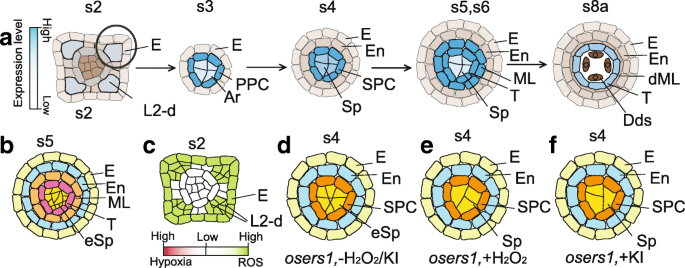

OsERS1 is required for redox regulation. a Expression pattern of OsERS1 in anther, b osers1 anther at stage 5 with excess Sp cells, c Higher ROS level in osers1 anthers at stage 2, d-f osers1 anthers at stage 4 treated with H₂O₂ or KI, d osers1 anther without treatment, e osers1 anther treated with H₂O₂, f osers1 anther treated with KI. Blue color in a shows the gradients of gene expression; grey color in a shows different cell layers without OsERS1 expression; green color in c shows the gradient of ROS level; white color in c shows no detectable redox status

Full size image

There are 45 aaRSs in Arabidopsis, however, only 21 aaRS mutants display developmental defects and chloroplast aaRS mutants exhibit an embryo defects, while mitochondrial aaRS mutants exhibit an ovule abortion phenotype with the exception of ova9 showing defects in female transmission (Berg et al., 2005). None of the aaRS has been reported for the anther development in Arabidopsis. It might be contributed by the functional redundancy of aaRSs or the functional divergence of amino acid homeostasis on anther development.

Most of these ROS molecules are toxic in plants under abiotic stresses (Miller and Mittler, 2006). ROS also serves as important signaling molecules affecting a diverse range of plant processes, such as promoting programmed cell death (PCD) (Lam et al., 2001; Scherz-Shouval et al., 2007). Plants have gained diverse protective systems such as ROS-scavenging enzymes including superoxide dismutase, catalase, and peroxidase (Apel and Hirt, 2004), and non-enzymatic mechanisms, to modulate ROS levels (Mittler et al., 2004). The so-called non-enzyme system contains low molecular mass antioxidants including ascorbate, carotenoids, glutathione, and metallothioneins (MTs), which can remove hydroxyl radicals and singlet oxygen (Gechev et al., 2006).

Consistent with the role of ROS in promoting cell death, a high level of ROS is detectable from stage 7 during the meiosis when the tapetal cell death is initiated (Li et al., 2006; Hu et al., 2011; Niu et al., 2013; Fu et al., 2014). Some ROS molecules, such as the superoxide anion radical and hydrogen peroxide are key regulators of plant cell death (Overmyer et al., 2003; Gechev and Hille, 2005; Gadjev et al., 2008; Hu et al., 2011). Metallothioneins (MTs) belongs to low molecular mass antioxidants, with the ability to remove hydroxyl radicals and singlet oxygen (Gechev et al., 2006). OsMT2b and OsMT-I-4b are able to scavenge superoxide and hydroxyl radicals (Wong et al., 2004; Hu et al., 2011). At stage 8 and stage 9 during anther development, OsMT2b interacts with DTC1 (Defective Tapetum Cell Death 1), a KELCH repeat-containing protein, keeping the scavenging less effective, as a result, ROS level is high in the tapetal cells. After stage 9, as the expression level of DTC1 decreases, the released OsMT2b thus reduces the ROS level (Fig. 5 a, b). Supportively, dtc1 mutant displays low level of ROS and defective in PCD initiation (Fig. 5c) (Yi et al., 2016). Meanwhile, OsMT-I-4b is highly induced by a MADS box transcription factor, OsMADS3, highly expressed at stage 9- stage 11(Fig. 5d), leading to increase the ROS scavenge efficiency at stage 10 and stage 11. osmads3 mutant displays higher level of ROS and abnormal tapetal PCD and pollen fertility (Fig. 5e) (Hu et al., 2011). These results indicate that the precise ROS level is of vital importance for tapetal PCD.

ROS scavengers and the regulatory network during tapetal PCD. a DTC1 and OsMADS3 control ROS level via regulating MT2b and MT-I-4b, b Expression pattern of DTC1 in anther, c Phenotype of dtc1 anther at stage 9, d Expression pattern of OsMADS3 in anther, e Phenotype of osmads3 anther at stage 10. Blue color in b and d shows the gradients of gene expression; grey color in b and d show s different cell layers without the expression of DTC1 (b) and OsMADS3 (d); green color in c and e shows the gradient of ROS level; white color in c and e shows undetectable level of ROS by DAB staining

Full size image

In addition, the redox regulator OsTGA10 interacts with two bHLH (basic Helix Loop Helix) transcription factor TIP2 (TDR Interacting Protein 2) and TDR (Tapetum Degeneration Retardation) (Li et al., 2006; Niu et al., 2013; Ji et al., 2013; Fu et al., 2014; Ko et al., 2014; Chen et al., 2017). The anther specific expressed bHLH transcription factors TIP2, TDR and EAT1 are tapetal PCD positive regulators functioning in a cascade manner. TIP2 interacts with TDR, and directly regulates the expression of EAT1 (Fu et al., 2014; Ko et al., 2014). In addition, TIP2 regulates the expression of TDR directly (Fu et al., 2014). TDR interacts with EAT1, and TDR is required for the induction of OsCP1 (Oryza sativa Cysteine Protease 1) (Li et al., 2006), while EAT1 is required for the induction of OsAP25 (Oryza sativa Aspartic Protease 25) and OsAP37 (Niu et al., 2013) (Fig. 3a). OsCP1, OsAP25 and OsAP37 are key executors of tapetal PCD in rice (Lee et al., 2004; Niu et al., 2013). In Arabidopsis, the homolog of TDR, AMS (ABORTED MICROSPORE), is a key regulator for tapetal PCD via regulating a series of PCD related genes (Xu et al., 2010; Xu et al., 2014), however, single mutants of TIP2 and EAT1 homologs, bHLH089, bHLH090, bHLH010 are fertile and bhlh089 bhlh090 bhlh010 triple mutant displays tapetal PCD defects (Niu et al., 2013; Ji et al., 2013; Zhu et al., 2015), indicating the functional redundancy for the bHLHs on tapetal PCD in Arabidopsis and the conservation of the anther expressed bHLH family on tapetal PCD between rice and Arabidopsis.

Plant male development is a coordinated process starting form an anther primordium, undergoing cell division and differentiation, meiosis, tapetal PCD and pollen development. Emerging evidence suggests the critical role of hypoxia status in specifying anther cell identity, subsequently the triggering signal of ROS as tapetal PCD to nourish microspore for producing mature pollen grains in rice, maize and Arabidopsis. During early anther development, the hypoxia status is finely modulated by genetic and metabolic components such as glutaredoxins and TGA factors which are directly or indirectly affected by OsTDL1A-MSP1 signaling pathway.

GRX and TGA counterparts as well as OsTDL1A-MSP1 signaling pathway have been identified to be conserved in different plants species, however, their expression pattern, possible combination of counterparts as well as the genetic function have variation among plants, highlighting the complexity of regulatory network of redox status during evolution. Surprisingly, OsERS1, a glutamyl-tRNA synthetase, is able to maintain proper somatic cell division and organization and limit the over proliferation of male germ cells in rice during early anther development by affecting amino acids hemostasis and redox status regulation. This pathway has not been characterized in other plants. After the anther specification is complete, ROS may trigger tapetal PCD and some transcription factors such as bHLHs, MADS-box proteins may regulate ROS scavengers to maintain redox homeostasis for normal development. As the advance of genomics, genome-editing technologies, more regulators controlling redox status will be elucidated which is critical for both fundamental biology and plant breeding by manipulating male fertility.

The accession numbers for genes mentioned are listed: AMS (AT2G16910), bHLH010 (AT2G31220), bHLH089 (AT1G06170), bHLH091 (AT2G31210), PAN (AT1G68640), RBOHE (AT1G19230), ROXY1 (AT3G02000), ROXY2 (AT5G14070), TGA9 (AT1G08320), TGA10 (AT5G06839), FEA4 (Zm00001d037317), MSCA1 (Zm00001d018802), MIL1 (Os07g0151100), DTC1 (Os07g0540366), EAT1 (Os04g0599300), MADS3 (Os01g0201700), MSP1 (Os01g0917500), OsAP25 (Os03g0186900), OsAP37 (Os04g0448500), OsCP1 (Os04g0670500), OsERS1 (Os10g0369000), OsGRX_I1 (Os01g0667900), OsMT2b (Os05g0111300), OsMT-I-4b (Os12g0571100), OsTDL1A (Os12g0152500), OsTGA1 (Os05g0443900), OsTGA10 (Os09g0489500), OsTGA11 (Os11g0152700), OsTGA12 (Os12g0152900), TIP2 (Os01g0293100), TDR (Os02g0120500).

Not applicable.

aaRS:

Aminoacyl-tRNA synthetases

Ar:

Archesporial cell

DAB:

3,3′-diaminobenzidine

Dds:

Dyads

dML:

Degenerated middle layer

dT:

Degenerated tapetum

E:

Epidermis

En:

Endothecium

GRX:

Glutaredoxin

L2-d:

L2-derived cell

LRR-RLK:

Leucine-rich repeat receptor-like kinases

ML:

Middle layer

MMC:

Microspore mother cell

Msp:

Microspore

MT:

Metallothionein

PCD:

Programmed cell death

PPC:

Primary parietal cell

Sp:

Sporogenous cell

SPC:

Secondary parietal cell

T:

Tapetum

Tds:

Tetrads
