The rice zebra3 (z3) mutation disrupts citrate distribution and produces transverse dark-green/green variegation in mature leaves
Rice volume 11, Article number: 1 (2018)
Rice zebra mutants are leaf variegation mutants that exhibit transverse sectors of green/yellow or green/white in developing or mature leaves. In most cases, leaf variegation is caused by defects in chloroplast biogenesis pathways, leading to an accumulation of reactive oxygen species in a transverse pattern in the leaves. Here, we examine a new type of leaf variegation mutant in rice, zebra3 (z3), which exhibits transverse dark-green/green sectors in mature leaves and lacks the typical yellow or white sectors.
Map-based cloning revealed that the Z3 locus encodes a putative citrate transporter that belongs to the citrate-metal hydrogen symport (CitMHS) family. CitMHS family members have been extensively studied in bacteria and function as secondary transporters that can transport metal-citrate complexes, but whether CitMHS family transporters exist in eukaryotes remains unknown. To investigate whether Z3 acts as a citrate transporter in rice, we measured citrate levels in wild-type leaves and in the dark-green and green sectors of the leaves of z3 mutants. The results showed that citrates accumulated to high levels in the dark-green sectors of z3 mutant leaves, but not in the green sectors as compared with the wild-type leaves.
These results suggest that leaf variegation in the z3 mutant is caused by an unbalanced accumulation of citrate in a transverse pattern in the leaves. Taking these results together, we propose that Z3 plays an important role in citrate transport and distribution during leaf development and is a possible candidate for a CitMHS family member in plants.
Citrate (citric acid) is a weak organic acid found in nature, and ubiquitously acts as an energy intermediate, solubilizing agent, carbon source, and chelator (Sarantinopoulos et al. 2003). The roles of citrate are mostly related to cellular metabolism. For instance, citrate acts as a metabolite in the Krebs cycle under aerobic conditions (Krebs and Johnson 1937), and as a source of acetyl-CoA for fatty acid synthesis (Fritsch and Beevers 1979; Matto and Modi 1970; Nelson and Rinne 1975). In plant tissues, citrate also supplies carbon skeletons for NH4+ assimilation via the glutamine synthetase (GS) and glutamate synthase (GOGAT) pathway (Chen and Gadal 1990; Agata 2008). In plants, citrate can enter into the glyoxylate cycle, allowing the plant to use two-carbon acetate as a carbon source via gluconeogenesis (Tanner and Beevers 1965).
Citrate performs other roles when transported outside the cell. Because citrate is a tricarboxylic acid with good chelating ability for cations, such as manganese, magnesium, iron, and calcium (Glusker 1980; Milewska 1988), it can chelate these metal ions and thus change their physicochemical properties. The roles of citrate in iron translocation and aluminum detoxification have been extensively studied in plants. For example, citrate is needed to solubilize inorganic iron for long-distance transport via the xylem because free ionic forms of iron are toxic and subject to precipitation in the slightly acidic xylem sap (Rellán-Álvarez et al. 2010; Green and Rogers 2004; Tiffin 1970). In many plant species, citrate is excreted into the rhizosphere, where it chelates aluminum, thereby excluding it from entering the plant (Fuente et al. 1997; Miyasaka et al. 1991; Magalhaes et al. 2007). In addition, under phosphorus-limiting conditions in Lupinus albus, Brassica napus, and the Proteaceae family of plants, the increased excretion of organic acids, particularly citrate, may enhance phosphorus uptake by displacing the phosphorus from insoluble complexes in the soil (Dinkelaker et al. 1989; Dinkelaker et al. 1995; Zhang et al. 1997; Hoffland et al. 1989).
Citrate transporters that are known to transport free citrate as a chelating agent have been extensively studied in plants (Liu et al. 2009; Zhou et al. 2013; Yokosho et al. 2009; Yokosho et al. 2011). One particular family of citrate transporter that transports free citrate is the multidrug and toxic compound extrusion (MATE) protein family. Many of these family members, such as OsFRDL1 in rice (Yokosho et al. 2009), FRD3 in Arabidopsis (Durrett et al. 2007; Roschzttardtz et al. 2011), and GmFRD3 and GmFRD3b in soybean (Rogers et al. 2009), function in the efficient translocation of iron by excreting citrate into the xylem. Other MATE family genes, such as OsFRDL4 in rice (Yokosho et al. 2011), AtMATE in Arabidopsis (Liu et al. 2009), and HvAACT1 in barley (Furukawa et al. 2007), play a role in secreting citrate into the rhizosphere to detoxify aluminums by chelating them.
Citrate transporters that recognize and/or transport metal-citrate complexes, such as iron-citrate complexes, have not been well studied in plants, whereas some have been identified in bacteria (Boorsma et al. 1996; Korithoski et al. 2005; Blancato et al. 2008; Lensbouer et al. 2008). One example is the citrate-metal hydrogen symport (CitMHS) family, which transports metal-citrate complexes in symport with a proton. This family of citrate transporters has evolved in some bacteria, such as Bacillus, Streptomyces, Klebsiella, and Neisseria. It is believed that these bacteria use metal–citrate complexes as a source of both carbon and metal, because metal–citrate complexes are predominantly accessible in their native environment, such as the rhizosphere (Dessureault-Rompré et al. 2008). It remains unknown if these CitMHS family transporters exist in eukaryotes.
Leaf variegation mutants have been reported in many species of higher plants (Li et al. 2010; Sakuraba et al. 2013; Martínez-Zapater 1993; Rédei 1967; Campitelli et al. 2008; Tsukaya et al. 2004). The leaves of these mutants have green and yellow (or white) sectors, and in most cases, this abnormal phenotype is caused by impaired chloroplast biogenesis in the off-colored cells (Aluru et al. 2006). While the green sectors of the leaves have morphologically normal plastids with the same levels of chlorophyll and carotenoids compared with wild-type leaves, the yellow (or white) sectors contain chloroplasts with defective thylakoid stacking and less photosynthetic pigments (Li et al. 2010; Han et al. 2012; Carol et al. 1999). In addition, leaf variegation can arise from excessive accumulation of reactive oxygen species (ROS), as is the case with zebra-necrosis (zn) mutants (Li et al. 2010) and Staygreen (SGR)-overexpressing plants in rice (Jiang et al. 2011), and yellow variegated2 (var2) mutants in Arabidopsis (Kato et al. 2009).
Here, we investigated a new type of rice leaf variegation mutant, zebra3 (z3), which has transverse dark-green/green stripes in the leaves with no yellow or white sectors. The dark green sectors of the z3 mutant leaves had significantly higher levels of photosynthetic pigments and proteins compared with wild-type leaves, and the green sectors had levels similar to the wild type. Positional cloning revealed that the Z3 gene encodes a protein predicted to be a CitMHS family citrate transporter, which have only been reported in bacteria thus far. Indeed, we found that the dark-green sectors accumulated more citrates than the green sectors, consistent with a putative role for Z3 in citrate transport. We discuss the possible function of Z3 as a candidate citrate transporter in eukaryotes.
Phenotypic characterization of the z3 mutant
The z3 mutant produced slightly lighter green leaf blades and had a slower growth rate compared to its parental japonica cultivar ‘Kinmaze’ during early vegetative growth in a natural paddy. These phenotypes of the z3 mutant disappeared gradually and no distinct differences in phenotype were observed at 80 days after sowing, although the height of the z3 mutant was slightly shorter than that of the wild type, possibly due to its slower growth at the early stages (data not shown). Thereafter, transverse dark-green and green sectors began to appear in the mature leaves of the z3 mutant (Fig. 1a and b). The leaf variegation became more obvious as the plants approached maturity and was most notable in the fully mature leaves during grain filling.
In addition to the leaf variegation, the z3 mutant showed a late-flowering phenotype in the paddy field under natural long-day (NLD) conditions (~14 h light/day in Suwon, Korea, 37°N latitude) (Additional file 1: figure S1a-b). To investigate whether a reduction in vegetative growth rate or prolonged plastochron (i.e. the time between one leaf initiation and the next) causes the late-flowering phenotype in the z3 mutant, we compared leaf emergence rates between the wild type and the z3 mutant under long-day conditions (14.5 h-light, 30 °C/9.5 h-dark, 24 °C) in the growth chambers. The wild type flowered around 110 days after sowing (DAS), whereas the z3 mutant flowered around 119 DAS. At heading, the total number of leaves on the main culm of the z3 mutant was less than the wild type (Additional file 1: figure S1c). This observation demonstrates that the leaf emergence rate of the z3 mutant is significantly lower than the wild type, indicating that the z3 mutation retards the vegetative growth rate or prolongs the plastochron.
Moreover, the z3 mutant simultaneously produced two distinct defective panicles on the same plant; one was a dull brown color and the other was an ivory color instead of the normal golden-yellow color in the wild type (Fig. 1c and d). Seed coat discoloration is an early indicator of poor quality seed, resulting in dull brown-colored grains (Bodalkar and Awadhiya 2014), which negatively affects grain yield, especially by decreasing the number of filled grains per panicle (or seed-setting rate) and 1000-grain weight (Phat et al. 2005). Furthermore, ivory-colored spikelets, which are generally caused by excessive transpiration during panicle growth, often result in low fertility in rice (Tsuda et al. 2000). To examine the relationship between the defective seed phenotypes and yield components in the z3 mutant, we evaluated several agronomic traits under NLD conditions: main panicle length, number of panicles per plant, number of spikelets per main panicle, seed setting rate, 500-grain weight, and grain yield per plant (Additional file 2: figure S2). All of the examined traits were inferior in the z3 mutant (Additional file 2: figure S2a-e), and the grain yield of the z3 mutant was significantly lower compared with the wild type (Additional file 2: figure S2f). These results indicated that seed discoloration in the z3 mutant negatively affects important yield traits in rice.

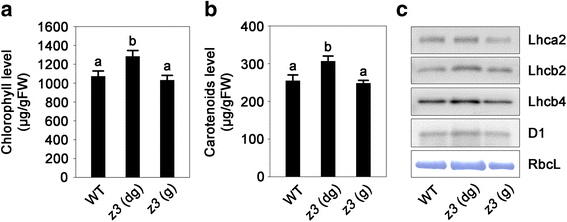

The levels of photosynthetic pigments and proteins are altered in the leaves of the z3 mutant
In typical leaf variegation mutants in rice, the relatively normal green sectors of the leaves are far lighter in color than the wild-type leaves. Consistent with the lighter color, typical leaf variegation mutants in rice also show substantial decreases in the concentrations of photosynthetic pigments and proteins, even in the green sectors of the leaves (Li et al. 2010; Han et al. 2012; Sakuraba et al. 2013). However, the relatively normal green colored sectors of the z3 mutant were very similar in color to the wild-type leaves (Fig. 1b). Moreover, the levels of chlorophyll and carotenoids were higher than the wild type in the dark-green sectors of the z3 mutant leaves, by approximately 19.6% and 20.4%, respectively, whereas their levels in the green sectors of the z3 mutant leaves were statistically indistinguishable from the wild-type leaves (Fig. 2a and b). The levels of photosynthetic proteins (Lhca2, Lhcb2, Lhcb4, D1, and RbcL) showed similar patterns to those of the photosynthetic pigments (Fig. 2c) in that the quantities of all tested proteins were increased in the dark-green sectors of the z3 mutant leaves, and the green sectors contained almost the same amount of photosynthetic proteins as the wild-type leaves (Fig. 2c). These results suggest that the z3 mutation affects the levels of photosynthetic pigments and proteins in mature leaves in a transverse pattern.
Map-based cloning of the z3 locus
The single recessive z3 mutation was previously mapped onto the classical genetic map of the short arm of chromosome 3 (Iwata et al. 1979). To identify the Z3 gene, we generated a mapping population of 1547 F2 plants from a cross between the z3 mutant (japonica) and Milyang23 (an indica/japonica hybrid). A total of 291 plants among the F2 progenies clearly demonstrated the z3 phenotype in the mature leaves and were used as the homozygous z3 mutant genotype for map-based cloning. The z3 locus was initially mapped to a 3.91-Mb region on the short arm of chromosome 3 using one sequence-tagged site (STS) and nine simple sequence repeat (SSR) markers (Fig. 3a). By fine mapping, the z3 locus was further mapped to a 78-kb interval (Fig. 3b). Twelve predicted genes were identified in this region from the Rice Functional Genomic Express (RiceGE) database (Fig. 3c). To identify the Z3 gene, we compared the sequence of the 78-kb candidate genomic region between the wild-type japonica cultivar ‘Nipponbare’ (NB) and the z3 mutant. Of the twelve candidate genes, eleven open reading frames (ORFs) were exactly the same between NB and the z3 mutant, and only one expressed a gene of unknown function (LOC_Os03g05390). This candidate gene contained a single base substitution from T to C in the third exon, leading to a missense mutation (serine to proline) at the 542th amino acid (Fig. 3d). This single-base substitution was further confirmed by dCAPS analysis (Fig. 3e).
To investigate the importance of a serine at the 542th amino acid (S542) for its role in protein function, we obtained a few protein sequences of predicted orthologs from higher plants using the NCBI-BLASTP program (https://blast.ncbi.nlm.nih.gov/Blast.cgi?PROGRAM=blastp&PAGE_TYPE=BlastSearch&LINK_LOC=blasthome) for amino acid alignment (Additional file 3: figure S3). This analysis revealed that the serine542 (S542) residue was highly conserved in higher plants including Arabidopsis thaliana, Zea mays, Hordeum vulgare, Glycine max, Sorghum bicolor, Solanum tuberosum, and Oryza brachyantha. This suggested that S542 is a critical residue in terms of the structure or function of the Z3 protein.
The Z3 gene consists of a 1674-bp open reading frame encoding 557 amino acids with a molecular weight of 60.25 kDa. Z3 has a predicted N-terminal secretory pathway signal peptide, based on analysis with TargetP (Emanuelsson et al. 2000) (Fig. 3f, open rectangle). In addition, Z3 contains nine transmembrane domains (TMDs) and is predicted to be a CitMHS family citrate transporter by the Rice Genome Annotation Project database (http:// rice.plantbiology.msu.edu/), as previously described (Kawahara et al. 2013) (Fig. 3f). These data suggest that Z3 is an integral membrane protein.

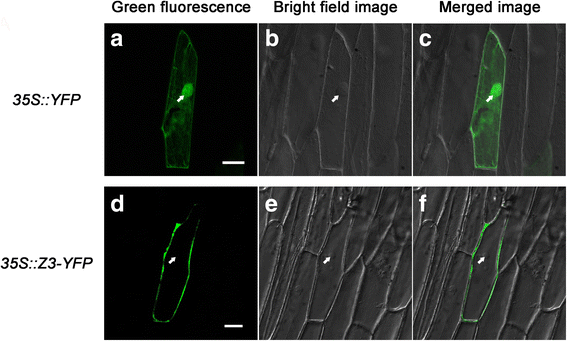

To determine the intracellular localization of Z3, a reporter gene encoding yellow fluorescent protein (YFP) was fused to the C-terminus of Z3, and the construct was introduced into onion epidermal cells using particle bombardment. The fluorescent signal of YFP alone, used as a control, was observed throughout the cells (Fig. 4a–c), whereas the signal of the Z3-YFP fusion protein was observed only at the plasma membrane (Fig. 4d–f). These results suggest that Z3 localizes in the plasma membrane.
Complementation of the z3 mutation by constitutive expression of Z3 in Rice
To confirm that the missense mutation in Z3 (S542) is responsible for pleiotropic phenotype of the z3 mutant, including leaf variegation, seed discoloration, and late flowering, we transformed the z3 mutants with the full-length cDNA of Z3 driven by the cauliflower mosaic virus 35S promoter (35S::Z3). We obtained six independent T0 transgenic plants and observed the phenotypes of T1 transgenic lines. To confirm the rice transformation, we performed PCR analysis using primers designed to amplify the Z3 transgene and confirmed all six independent T1 transgenic plants (Additional file 4: figure S4a). Overexpression of Z3 by the CaMV 35S promoter in the transgenic lines was validated by semi-quantitative RT-PCR (Additional file 4: figure S4b). The six complementation lines (35S:Z3/z3) grew normally at the early vegetative stage uren contrast to the inferior growth of the z3 mutant (data not shown), and flowered as early as the wild type (Fig. 5a), indicating that constitutive expression of Z3 complemented the late-flowering phenotype of the z3 mutants under NLD conditions in the field. Moreover, the leaf and grain phenotypes of these six complementation lines were indistinguishable from those of the wild-type plants (Fig. 5b–d), confirming that the leaf variegation and seed discoloration phenotypes of the z3 mutant results from the missense mutation in Z3 (S542).
To further validate the effects of the z3 mutation on the defective leaf and seed phenotypes, we obtained two independent T-DNA insertional alleles for the z3 mutation from the Salk Institute Genomic Analysis Laboratory (http://signal.salk.edu/cgi-bin/RiceGE) (Jeon et al. 2000). We designated these two independent alleles as z3–2 and z3–3, and the z3 allele identified by map-based cloning in this study as z3–1. For the z3–2 and z3–3 alleles, the T-DNA was inserted in the first exon of Z3, but in different regions (Additional file 5: figure S5a). We performed genotyping to confirm the T-DNA insertion in the Z3 gene, and obtained homozygous mutants for each allele (Additional file 5: figure S5f). The absence of the full-length transcript of Z3 in these two T-DNA lines was validated by semi-quantitative RT-PCR (Additional file 5: figure S5 g). The two independent z3–2 and z3–3 mutants began to produce leaf variegation at about 95 days after sowing, and transverse variegation of the leaf blades gradually became clearer thereafter, as in the z3–1 mutant (Additional file 5: figure S5b). Furthermore, they also flowered late (Additional file 5: figure S5e) and exhibited two types of panicles on the same plant; an ivory colored head and a panicle with dull brown-colored grain (Additional file 5: figure S5c-d). These observations further demonstrated that the loss-of-function z3 mutation is responsible for the pleiotropic phenotypes including leaf variegation, late flowering, and seed discoloration.
The Z3 gene is mainly expressed in the leaf blade and panicle branches at the heading stage
To examine the potential tissue specificity of Z3, we used qRT-PCR to characterize the spatial patterns of Z3 expression at the seedling and heading stages. In the 2-week-old seedling plants, the Z3 gene appeared to be expressed evenly in all tissues, including leaf blade, leaf sheath, and root (Fig. 6a). However, at the heading stage, Z3 was mainly expressed in leaf blades and panicle branches, although we could detect Z3 transcripts in all tissues, including flag leaf, second leaf blade, leaf sheath, culm, root, and spikelet (Fig. 6b).
Leaf variegation of the z3 mutant appears around three months after sowing, approximately at the panicle differentiation stage, in natural long-day conditions. This suggests that the Z3 protein has a functional role in the mature leaf mainly at the late vegetative stage. To test whether Z3 expression changes in the wild type when leaf variegation appears in the z3 mutant, we inspected the transcript levels of the Z3 gene in the leaf blade with qRT-PCR at different growth stages of the wild type grown in the field under natural long-day conditions at 20-day intervals. This showed that Z3 expression in the wild-type leaves was upregulated at three months after sowing, and continued to increase thereafter (Fig. 6c).
The leaf variegation in the z3 mutant may be caused by different levels of citrate in the dark-green and green sectors
Excessive accumulation of ROS in leaves can lead to leaf variegation and/or necrosis in some rice mutants such as in the preharvesting sprouting3 (phs3), faded green leaf (fgl), and zebra2 (z2), zebra-necrosis (zn) mutants, and the Staygreen (SGR)-overexpressing plants (Han et al. 2012; Li et al. 2010; Sakuraba et al. 2013; Jiang et al. 2011; Fang et al. 2008). Therefore, we examined the levels of two types of ROS molecules, hydrogen peroxide and superoxide anion radicals, in the leaves of the z3 mutant. Hydrogen peroxide and superoxide anion radicals were not detectable in the z3 mutant leaves (Additional file 6: figure S6). These results suggested that ROS are not involved in the formation of variegated leaves in the z3 mutant, unlike other leaf variegation mutants in rice.
Many leaf variegation mutants have defects in chloroplast development. For example, chloroplasts in the fgl mutant display defective thylakoid stacking and have several plastoglobules (Sakuraba et al. 2013), and chloroplasts in the yellow-green leaf 2 (ygl2) and the naturally occurring Baihuaidio 7 mutants exhibit fewer lamellar structures (Chen et al. 2013; Li et al. 2012). To determine whether the leaves in the z3 mutant show defects in chloroplast structure, we performed ultrastructural analysis of the chloroplasts in the leaves of the wild type and the z3 mutant. The chloroplasts in the z3 mutant leaves were indistinguishable from those of the wild type, with both exhibiting well-stacked grana thylakoids with no plastoglobules (Additional file 7: figure S7). Moreover, the green sectors of the z3 mutant leaves contain almost the same levels of photosynthetic pigments compared with the wild type. These results indicated that the z3 mutation has little effect on chloroplast development.
In the NCBI BLAST (https://blast.ncbi.nlm.nih.gov/Blast.cgi) and the Rice Genome Annotation Project databases (http:// rice.plantbiology.msu.edu/), the Z3 protein is predicted to be a CitMHS family citrate transporter (Fig. 3f). This suggests that Z3 might be involved in the distribution and/or translocation of citrate in rice. Therefore, we measured citrate concentrations in the leaves of the wild type and the z3 mutant using HPLC. The concentration of citrate in 90-day-old z3 mutant leaves (prior to visible leaf variegation) was similar to that of the wild type (Fig. 7a–b). However, citrates accumulated to high levels in the dark-green sectors of 117-day-old z3 mutant leaves, but not in the green sectors (Fig. 7c–d). Therefore, the citrate concentration in the leaves was not affected by the z3 mutation before leaf variegation was visible. These results suggest that Z3 might play a role in the distribution and/or translocation of citrate in leaves after the late vegetative stage, and thus the z3 mutant produces variegated leaves after 95 days after sowing, possibly by accumulating citrate to different extents in the dark-green and green parts of the leaves.
Here, we report a new type of leaf variegation mutant, zebra3 (z3), which has transverse dark-green/green sectors in mature leaves without yellow or white sectors. In most cases, the leaves of variegated mutants have green/yellow (or white) sectors, and this abnormal phenotype is caused by impaired chloroplast biogenesis in the yellow or white sectors. Thus, the yellow (or white) sectors of these mutant’s leaves often contain chloroplasts with defective thylakoid stacking, less photosynthetic pigments, and also accumulate excessive levels of ROS (Li et al. 2010; Han et al. 2012; Carol et al. 1999). However, the z3 mutant leaves did not show any of these defects. Even the slightly lighter green colored sectors in the z3 mutant leaves contained similar levels of photosynthetic pigments and proteins to the wild type (Fig. 2), and showed normal chloroplast structure with well-stacked grana thylakoids (Additional file 7: figure S7) when compared with the wild type. Moreover, the z3 mutant leaves did not accumulate excessive ROS as is common in other leaf variegation mutants (Additional file 6: Figure S6). These results suggest that leaf variegation of the z3 mutant is not associated with a defect in chloroplast biogenesis or an increase of ROS.
The z3 mutant is further different from other zebra mutants in that leaf variegation occurs at the late vegetative stage, around the panicle differentiation stage, strongly suggesting that Z3 has an important role after the late vegetative stage. Consistent with this, Z3 expression increased in mature leaves at this stage, and its transcript level increased further thereafter (Fig. 6c). These results may partially explain why leaf variegation of the z3 mutants is visible only at the late growth stages.
In addition, the z3 mutant produced pale-green leaves (data not shown) and had a slower growth rate at the seedling stage (Additional file 1: figure S1c), although the overall phenotype of the z3 mutant is normal compared with the wild type during vegetative growth. Even though Z3 mainly functions after the late vegetative stage, it also has a basal function in the early vegetative stages, since Z3 is expressed in all tested tissues, including leaf blade, leaf sheath, and root (Fig. 6a). Taken together, these results indicate that Z3 protein may be involved in the maintenance of chlorophyll biosynthesis and overall growth rate at the early vegetative stage.
Map-based cloning revealed that Z3 encodes a putative citrate transporter that belongs to the citrate-metal hydrogen symport (CitMHS) family. CitMHS family members transport metal–citrate complexes in symport with a proton, and have only been identified in bacteria thus far. Dessureault-Rompré et al. (2008) reported that bacteria acquire citrate and metal ions by importing metal-citrate complexes against the cellular electrochemical potential gradient by coupling import to the transport of a proton. In this scenario, citrate functions not only as an energy source but also as a chelating agent. In plants, citrate is mostly involved in cellular metabolism, such as the Krebs cycle, fatty acid synthesis, NH4+ assimilation, and the glyoxylate cycle (Sarantinopoulos et al. 2003; Krebs and Johnson 1937; Fritsch and Beevers 1979; Mattoo and Modi 1970; Nelson and Rinne 1975; Chen and Gadal 1990; Sienkiewicz-Porzucek et al. 2008; Tanner and Beevers 1965). Because the Z3 protein localizes to the plasma membrane (Fig. 4) and is predicted to be a CitMHS family member (Fig. 3), it may transport citrate among leaf cells. Furthermore, as the leaf blades of the z3 mutant accumulated citrate to different extents in the dark-green and green sectors (Fig. 7), it appears that Z3 can act as a citrate transporter between leaf cells, and thus may play an important role in the balanced distribution of citrates. However, when citrate is released and transported outside the cell, it can function as a chelator. Therefore, the citrates potentially transported by Z3 may act as chelators, rather than as intermediates, in cellular metabolism. In this respect, it can be speculated that the unusual leaf variegation phenotype in the z3 mutant is associated with metal ions which play a key role in chlorophyll biosynthesis. However, we cannot rule out the possibility that the leaf variegation in the z3 mutants is caused by the citrates by themselves.
Leaf variegation mutants can be classified into two types depending on the genotypes of the green sectors and yellow (or white) sectors. First, in some mutants, the green and the yellow (or white) sectors in the leaves have different genotypes. That is, the green sectors contain the wild-type alleles, while the yellow (or white) sectors contain only mutant alleles. In many cases, this type of leaf variegation results from transposable element activity. For example, dcl (defective chloroplasts and leaves) in tomato (Keddie et al. 1996), dag (differentiation and greening) in Antirrhinum (Chatterjee et al. 1996), and pyl-v (pale-yellow-leaf variegated) in rice (Tsugane et al. 2006) are well-studied mutable alleles of genes for chloroplast biogenesis. In the second type of leaf variegation, all cells in the mutant leaves have the same genotype. That is, both green and yellow (or white) sectors contain the same mutant alleles, but the phenotype is differentially expressed between subsets of the cells, leading to the generation of green and yellow/white sectors. Because the leaves of the z3 mutant have a uniform mutant genotype (data not shown), the leaf variegation of the z3 mutant belongs to the second type. However, the leaf variegation mechanism of this type remains poorly understood.
One outstanding question about the z3 phenotype is how mutation of a putative citrate transporter produces variegated leaves, although the all cells in the z3 mutant have the same mutant genotype. The z3 mutant leaves accumulated different levels of citrates in the dark-green and the green sectors (Fig. 7c-d), and this might be associated with the production of variegated leaves. As the Z3 protein is thought to transport citrates and the z3 mutant accumulates the citrates to high levels in the dark-green sectors of leaves, it is plausible that the Z3 is involved in dispersion of citrates in the leaves. In this scenario, there might be other citrate transporters which are involved in polar transport of citrates in leaves. Polar transport is a directional transport of functional molecules between cells, and plasma membrane transporters that localize in a polar manner are responsible for polar transport in most cases (Naramoto 2017). For example, AtPIN1, an auxin efflux carrier protein in Arabidopsis, localizes only at one side of the plasma membrane in cells, and transports auxin to convergence points in the epidermal tissues where the major veins are produced (Scarpella et al. 2006). Similarly, there might be other citrate transporters, possibly such as MATE family citrate transporters (Yokosho et al. 2009; Yokosho et al. 2011) or other CitMHS family citrate transporters, which transport citrates to convergence points in leaves in transverse patterns after the late vegetative stage. In this case, citrate transported transversely by these citrate transporters could be dispersed by Z3 to maintain a uniform distribution of citrate in the leaves of the wild type. Therefore, it could be speculated that due to the functional deficiency of Z3 protein, the uniform citrate distribution in leaves is disrupted, resulting in accumulation of citrate in transverse patterns. The formation of dark green sectors and different citrate concentrations in the sectors of z3 mutant leaves remains a key question for future study.
The z3 mutant exhibits a pleiotropic phenotype in addition to leaf variegation; the z3 mutants flowered late compared with the wild type (Additional file 1: figure S1a-b). Z3 was expressed throughout the tested tissues, even in early vegetative stages (Fig. 6a) and Z3 expression occurs throughout development (Fig. 6c), indicating that the Z3 protein has basal roles in all tissues. As the Z3 protein may transport metal-citrate complexes, we speculate that the z3 mutation might disrupt metal ion homeostasis, thus affecting overall growth rate. Consistent with our speculation, the z3 mutant produced slightly lighter green leaves at the seedling stage (data not shown), and showed inferior growth rates during vegetative growth in comparison with the wild type (Additional file 1: figure S1c). These results suggest that the late flowering of the z3 mutant is partially due to the retardation of growth resulting from unbalanced distribution of metal ions. However, based on our current data, we cannot rule out the possibility that the z3 mutation also causes a delayed floral transition.
The z3 mutant also showed a grain discoloration phenotype at the ripening stage under natural long-day conditions (Fig. 1c-d). Grain discoloration in rice is characterized by dull brown or black spots on the husk, and reduces grain quality (Navasero and Winslow 1987). In most cases, fungal or bacterial infections are responsible for grain discoloration (Ngala 1983), and deficiency of mineral nutrients, such as silicon, is involved in this symptom (Datnoff et al. 1991; Winslow 1992). In addition, Dobermann and Fairhurst (2000) reported that the lack of metal ions, such as potassium, could cause irregular brown necrotic spots on developing panicles in rice. As Z3 is highly expressed in panicle branches, similar to the expression levels in leaf blade (Fig. 6b), it is plausible that the Z3 protein also functions in translocating metal ions into grains. In this case, a functional deficiency of Z3 protein may disrupt the translocation of metal ions complexed with citrates into developing grains, and the resulting deficiency of metal ions, or possibly citrate itself, causes grain discoloration.
The zebra mutants in rice produce transverse sectors of green/yellow or green/white in developing or mature leaves. In most cases, this abnormal phenotype is caused by impaired chloroplast biogenesis or excessive accumulation of ROS in the yellow or white sectors. In contrast to these mutants, the zebra3 (z3) mutant has transverse dark-green/green stripes in the leaves with no yellow or white sectors. In addition, the z3 mutant flowers about 10 days later than the WT, and produces defective panicles. We found that he Z3 locus encodes a putative citrate transporter by map-based cloning and complementation test. Though the z3 mutation has little effect on chloroplast development, citrate levels were significantly higher in the dark-green sectors of the z3 mutant leaves than in the green sectors or the normal leaves of the wild type. These results indicate that leaf variegation in the z3 mutant is caused by an unbalanced distribution of citrate in a transverse pattern in leaf tissues. Taking all the results together, we propose that Z3 plays a role in the transport and distribution of citrates in leaves, and is a possible candidate for CitMHS family members in higher plants.
