Silencing of the Rice Gene LRR1 Compromises Rice Xa21 Transcript Accumulation and XA21-Mediated Immunity

  • Daniel F. Caddell1,
  • Chang-Jin Park1, 2,
  • Nicholas C. Thomas1, 3,
  • Patrick E. Canlas1 and
  • Pamela C. Ronald1Email author

Received: 16 February 2017

Accepted: 11 May 2017

Published: 22 May 2017



The rice immune receptor XA21 confers resistance to Xanthomonas oryzae pv. oryzae (Xoo), the causal agent of bacterial leaf blight. We previously demonstrated that an auxilin-like protein, XA21 BINDING PROTEIN 21 (XB21), positively regulates resistance to Xoo.


To further investigate the function of XB21, we performed a yeast two-hybrid screen. We identified 22 unique XB21 interacting proteins, including LEUCINE-RICH REPEAT PROTEIN 1 (LRR1), which we selected for further analysis. Silencing of LRR1 in the XA21 genetic background (XA21-LRR1Ri) compromises resistance to Xoo compared with control XA21 plants. XA21-LRR1Ri plants have reduced Xa21 transcript levels and reduced expression of genes that serve as markers of XA21-mediated activation. Overexpression of LRR1 is insufficient to alter resistance to Xoo in rice lines lacking XA21.


Taken together, our results indicate that LRR1 is required for wild-type Xa21 transcript expression and XA21-mediated immunity.


RiceImmunity Xanthomonas oryzae pv. oryzae XA21XB21LRR1Leucine rich repeat


Cell surface immune receptors, which often perceive conserved microbial signatures present outside host cells, represent a first line of defense against potential pathogens. Well characterized plant cell surface immune receptors include Arabidopsis FLAGELLIN SENSING 2 (FLS2), which recognizes a 22 amino acid epitope derived from bacterial flagellin (flg22) (Boller and Felix 2009), EF-TU RECEPTOR (EFR) which recognizes an 18 amino acid epitope derived from bacterial elongation factor-Tu (elf18) (Zipfel et al. 2006), and rice XA21, which recognizes a 21 amino acid tyrosine-sulfated epitope derived from the bacterial protein REQUIRED FOR ACTIVATION OF XA21-MEDIATED IMMUNITY X (RaxX; RaxX21-sY) (Pruitt et al. 2015). These immune receptors fall into the leucine-rich repeat receptor-like kinase class (LRR-RLK) consisting of an N-terminal signal peptide, predicted extracellular LRR domain, transmembrane domain and an intracellular kinase domain. Upon microbial recognition, the kinase domain is hypothesized to initiate a signaling cascade that leads to resistance against specific pathogens. These immune receptors require the presence of LRR-RLK co-receptors that are part of the SOMATIC EMBRYOGENESIS RECEPTOR KINASE (SERK) family. For example, FLS2-mediated immune response requires the BRI1-ASSOCIATED RECEPTOR KINASE (BAK1) (Chinchilla et al. 2007) and XA21-mediated immune response requires OsSERK2 (Chen et al. 2014).

Despite the importance of immune receptors to plant survival, few components that mediate the downstream signaling cascade have yet been characterized. One method that has been successful at identifying such proteins is the yeast two-hybrid system. We used this approach to generate an XA21 interactome (Seo et al. 2011). One of the isolated proteins was named XA21 BINDING PROTEIN 21 (XB21). XB21 encodes an auxilin-like protein that regulates resistance to Xoo and is predicted to function in clatharin-mediated endocytosis (Park et al. manuscript in preparation). To investigate the function of XB21, we performed a yeast two-hybrid screen utilizing XB21 as bait with a rice cDNA library. From this analysis, we identified LEUCINE RICH REPEAT PROTEIN 1 (LRR1). LRR1 shares 55% identity and 68% similarity with the extracellular domain of OsSERK2. To determine if LRR1 is required for XA21-mediated immunity, we assessed its function in rice plants in the presence and absence of XA21.

Transgenic rice plants expressing Xa21 that were silenced for LRR1 (XA21-LRR1Ri) displayed enhanced susceptibility to Xoo. XA21-LRR1Ri plants also have decreased expression of Xa21 transcripts. These results demonstrate that LRR1 is required for XA21 –mediated immune responses and for Xa21 transcription. These results also highlight the diverse roles played by LRR containing proteins in regulating plant responses against pathogens.


LRR1 was Identified Through a Yeast two-Hybrid Screen to Identify Components of XA21-Mediated Immunity

Because full-length XB21 displayed auto-activity in the yeast two-hybrid system, an N-terminal deleted XB21 (XB21ΔNT) was expressed in yeast and used as bait to screen a rice cDNA library pool derived from leaf mRNA of 7-week old rice plants containing Xa21 (Seo et al. 2011). This screen identified 22 unique rice gene IDs that we named XB21-INTERACTING PROTEINS (XB21IPs) (Table 1). We isolated two independent clones (clone 3 and 16) that encoded LRR1 (Os01g59440). To validate the interaction between XB21 and LRR1, His-XB21 was co-incubated with GST or GST-LRR1 that were purified from E. coli. His-XB21 was pulled down with GST-LRR1, but not GST, indicating that LRR1 and XB21 interact in vitro (Additional file 1: Figure S1). We then selected LRR1 for further characterization due to its similarity with OsSERK2 (Fig. 1), which is a required component of XA21-mediated immunity (Chen et al. 2014). LRR1 and OsSERK2 share 55% identity and 68% similarity over the region spanning the length of LRR1 (Kearse et al. 2012). LRR1 is predicted to encode a 213 amino acid protein containing an N-terminal signal peptide (Amino acids 1–21), N-terminal LRR capping domain (AA 24–63) (Kolade et al. 2006), and five consecutive leucine-rich repeats (AA 65–184) following the plant-specific LRR consensus sequence LxxLxxLxLxxNxLSGxIPxxLGx (McAndrew et al. 2014) (Fig. 1). LRR1 is predicted to have two N-glycosylation sites compared to six in the OsSERK2 ectodomain (Zhang et al. 2004). Unlike OsSERK2, LRR1 does not contain a transmembrane domain or intracellular domain.
Table 1

List of identified XB21 Interacting Proteins (XB21IPs)

Clone ID

MSU Annotationa

Locus ID


NAD dependent epimerase/dehydratase family protein






BRI1-associated kinase 1 precursor



NAD dependent epimerase/dehydratase family protein



Glutaminyl-tRNA synthetase



Beta-D-glucan exohydrolase-like protein



FHA domain containing protein



OsCML24 - Calmodulin-related calcium sensor protein



metallothionein-like protein



peptidyl-tRNA hydrolase



photosystem I reaction center subunit



phosphoesterase family protein









universal stress protein domain containing protein



BRI1-associated kinase 1 precursor



glutamine synthetase



ZIM domain containing protein



transmembrane protein 56



AAA-type ATPase family protein






ABC1 family domain containing protein



bZIP transcription factor domain containing protein



metallothionein-like protein



Ser/Thr receptor-like kinase


aMSU Isa1 Release 7 (

Fig. 1

LRR1 has sequence identity similar to the extracellular region OsSERK2. a Amino acid alignment of LRR1 (Os01g59440) and the consensus region of OsSERK2 (Os04g38480). Alignments were performed using Geneious R6.1.8 (Kearse et al. 2012). ‘X’ in the consensus sequence signifies a non-conserved amino acid. Dashes indicate gaps. b Alignment of LRR1 and OsSERK2 showing predicted structural motifs. SP: Secretion peptide (pink), NTLRR: N-terminal LRR capping domain (grey), LRR: Leucine rich repeat (blue), PG: Predicted glycosylation site (purple). Colors of the amino acid sequences indicate conservation. Black: conserved, grey: synonymous, white: nonsynonymous, dashes indicate gaps

Silencing of LRR1 in the Xa21 Genetic Background Enhances Susceptibility to Xoo

To investigate the role of LRR1 in XA21-mediated immunity, RNAi was used to study the effects of LRR1 silencing in vivo. Kitaake plants carrying Xa21 with its native promoter, XA21 23A-1-14 (referred to as XA21 rice plants in this paper) (Park et al. 2010), were transformed with the LRR1-RNAi (LRR1Ri) construct by Agrobacterium-mediated plant transformation. Five independent XA21-LRR1Ri T0 lines were inoculated with Xoo strain PXO99Az (PXO99). Independently transformed lines 1, 3, and 4 showed an enhanced susceptibility phenotype and were advanced to the next generation (T1) (Additional file 2: Figure S2). A fourth line, 13, which was not inoculated in the T0 generation, was also advanced to the T1 generation. Xoo inoculations were repeated in the T1 generation and enhanced susceptibility was observed in lines 1 and 4. Enhanced susceptibility was not statistically significant in transgenic plants of line 3, although the mean lesion length was longer (combined average of 5.6 ± 2.4 cm) compared to line 13 (4.0 ± 1.7 cm) and XA21 (4.1 ± 1.3 cm) (Additional file 3: Figure S3). In the T2 generation, 6-weeks old rice from lines 1–1, 1–5, 3–1, 3–8, 4–1, 4–3, 13–1, and 13–7 were inoculated with PXO99. Fourteen days after inoculation, XA21-LRR1Ri rice lines 1–1, 1–5, 3–1, 3–8, 4–1, 4–3 displayed enhanced susceptibility to PXO99 compared to Xa21, line 13–1, and 13–7. Kitaake plants were fully susceptible to PXO99 (Fig. 2b and Additional file 4: Figure S4). Silencing of LRR1 was confirmed in three independently transformed lines, 1–5-1, 3–8-6, and 4-1-2 (Fig. 2a), and three additional plants, 1-6-22, 3-2-22, and 4-3-25 (Additional file 5: Figure S5). However, line 13-6-1, which does not show the enhanced susceptibility phenotype did not have reduced expression of LRR1 (Fig. 2a). This result indicates that silencing of LRR1 impairs XA21-mediated immunity.
Fig. 2

Silencing of LRR1 in the XA21 genetic background enhances susceptibility to Xoo. a Relative expression level of LRR1 in four independent transgenic rice lines. Bars depict the average and standard deviation of LRR1 expression normalized to Kitaake of two technical replicates. Different letters indicate a significant difference in gene expression (P < 0.05, ANOVA, Tukey-HSD). This experiment was repeated three times with similar results. b Lesion length of T2 generation XA21-LRR1Ri plants 14 days after inoculation with PXO99. Bars indicate the average lesion length and standard deviation of ten to 15 combined plants that had one to six inoculated leaves each. Different letters indicate a significant difference in lesion length (P < 0.05, Kruskal-Wallis test, Dunn’s post-hoc test with Benjamini–Hochberg correction). Lesion length of individual T2 plants from this experiment are shown in Additional file 4: Figure S4. Experimental results were repeated three times, with similar results. c Two representative inoculated leaves from each line were photographed at the time of lesion scoring

XA21-LRR1Ri Lines Have Reduced Levels of Xa21 Transcripts

The expression level of Xa21 transcripts was assayed in XA21-LRR1Ri lines 1-5-1, 3-8-6, 4-1-2, and 13-6-1 (Fig. 3). XA21-LRR1Ri lines 1-5-1, 3-8-6, and 4-1-2, had significant reductions in Xa21 transcript accumulation. However, XA21-LRR1Ri line 13-6-1 does not reduce expression of LRR1 and did not have reduction in Xa21 transcripts (Fig. 3). A pairwise alignment of LRR1Ri and XA21 was performed. The shared nucleotide identity across the consensus region was 56.8% with no consecutive stretch longer than 8 nucleotides, suggesting that XA21 silencing was not caused by off-target silencing of the LRR1Ri construct (Additional file 6: Figure S6). In contrast, the expression of Os11g36180, the Kitaake XA21 homolog, did not have statistically significant reduction in expression in any tested XA21-LRR1Ri line compared to XA21 (Additional file 7: Figure S7). Additionally, we tested if LRR1 silencing affected other immune receptors or components of XA21-mediated immunity. Transcript abundance was not reduced in two other immune receptors, rice CHITIN ELICITOR RECEPTOR KINASE 1 (OsCERK1) and OsFLS2 (Additional file 7: Figure S7). Similarly, reduced expression was not observed in the XA21 signaling components OsSERK2, XB3, XB15, XB21, or XB24, indicating that LRR1Ri specifically reduced Xa21 transcript levels. To determine if silencing of OsSERK2 also reduces Xa21 transcript levels, we compared Xa21 expression between XA21 rice and a homozygous line expressing an OsSERK2 silencing construct (XA21-OsSERKRi) (Chen et al. 2014). No statistical difference in Xa21 expression was detected, indicating that silencing of OsSERK2 does not significantly reduce Xa21 transcript levels (Additional file 8: Figure S8).
Fig. 3

Xa21 expression is reduced in XA21-LRR1Ri rice lines. Relative expression of Xa21 in four independent transgenic rice lines. Bars depict the average and standard deviation of Xa21 expression normalized to Kitaake of two technical replicates. Different letters indicate a significant difference in gene expression (P < 0.05, ANOVA, Tukey-HSD). This experiment was repeated three times with similar results

To assess if Xa21 transcript reduction was specific to the LRR1Ri construct, two sibling LRR1 silenced lines from line 3 that had lesion lengths measured in the T0 and T1 generation were analyzed for Xa21 expression in the T2 generation. XA21-LRR1Ri line 3–2 is homozygous for the transgene. Sibling line, XA21-LRR1Ri 3–3, is a null-segregant lacking the LRR1Ri transgene. Reduction in Xa21 transcripts was specific to line 3–2, which contains the LRR1Ri construct, while line 3–3 did not display similarly reduced levels of Xa21 transcripts (Additional file 9: Figure S9). Taken together, these results indicate that Xa21 transcript reduction correlates with the LRR1 silencing and is not due to aberrant expression of Xa21 in the genetic background used for transformation.

XA21-LRR1Ri Plants Fail to Express XA21 Genetic Markers After RaxX21-sY Peptide Treatment

We previously demonstrated that treatment of XA21 leaves with sulfated RaxX21-sY peptides induces expression of specific genetic markers. In contrast, treatment of XA21 plants with non-sulfated RaxX21 peptides do not induce these marker genes (Pruitt et al. 2015). To determine if the XA21-LRR1Ri plants fail to respond to RaxX, rice leaves from LRR1 silencing lines were treated with RaxX21-sY peptides. Six hours after RaxX21-sY peptide application, the expression level of PR10b (Fig. 4a), Os10g28299 (Fig. 4b), or Os04g10010 (Fig. 4c) were assayed in Kitaake, XA21, and XA21-LRR1Ri lines. We observed that RaxX21-sY treatment of XA21 plants induced expression of these marker genes as previously reported (Pruitt et al. 2015). In contrast, RaxX21-sY peptide treatment failed to induce the expression of the three stress-related genes in the XA21-LRR1Ri lines. These results suggest that a reduced ability to initiate an XA21-mediated immune response contributes to the enhanced susceptibility observed in XA21-LRR1Ri plants.
Fig. 4

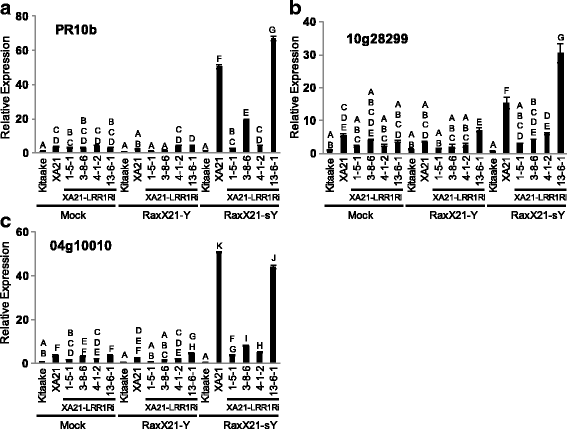

XA21-LRR1Ri rice plants are unresponsive to RaxX21-sY peptide treatment. Gene expression of PR10b (a), 10 g28299 (b), and 04 g10010 (c) 6 h after 500nM application of RaxX21, RaxX21-sY, or mock treatment in mature leaves of the four independent XA21-LRR1Ri rice lines. Bars depict the average and standard deviation of expression level normalized to Kitaake mock treatment of two technical replicates. Different letters indicate a significant difference in gene expression (P < 0.05, ANOVA, Tukey-HSD). Experiment was performed two times with similar results

Overexpression of LRR1 in the Kitaake Background Does not Confer Resistance to Xoo

Previously it was reported that overexpression of LRR1 did not enhance rice resistance to Xoo strain LN44 in the Japonica rice variety SN1033 (Zhou et al. 2009). Because we observed that LRR1 expression is required for XA21-mediated immunity, we examined if overexpression of LRR1 is sufficient to enhance resistance to PXO99 in the rice variety Kitaake, which lacks Xa21. The overexpression of LRR1 in the XA21 background was not tested because XA21 plants are already resistant to Xoo. We generated sixteen transgenic rice plants expressing LRR1 under the control of the maize ubiquitin promoter (LRR1ox) by Agrobacterium-mediated plant transformation. Fourteen of 16 transgenic lines contained the transgene as determined by PCR analysis. Kitaake, XA21, and ten T0 lines were inoculated with PXO99. Four of ten lines displayed significantly shorter lesion lengths than Kitaake (Additional file 10: Figure S10). Two additional T0 lines, LRR1ox-15 and LRR1ox-16, were inoculated at a later date and also displayed shorter lesions than Kitaake (Additional file 10: Figure S10). Four T0 Lines, LRR1ox-7, −10, −12, and −16 were advanced to the next generation. Inoculations were repeated in the T1 generation. LRR1ox lines 7, 10, 12, and 16 were all fully susceptible to Xoo (Additional file 11: Figure S11).

Overexpression of LRR1 in LRR1ox lines 7–10, 7–12, 10–2, 10–3, 12–1, 12–3, 16–1 and 16–2 was confirmed in the T2 generation by quantitative RT-PCR (Fig. 5a) and the plants were inoculated with PXO99. Lesion development was measured 14 days after inoculation and no significant difference in lesion development was found compared with the nontransgenic Kitaake control plants (Fig. 5b). The partial resistance phenotype of LRR1ox lines in the T0 generation was not observed in the T1 or T2 generation inoculations. Because T0 plants are regenerated from rice calli, we hypothesize that the shorter lesions are due to differences in the leaf developmental stage at the time of inoculation compared to Kitaake, which was germinated from seed. Together, these results indicate that overexpression of LRR1 in Kitaake is not sufficient to enhance resistance to Xoo, thus confirming the previous report by Zhou et al. 2009, but in a different genetic background.
Fig. 5

Kitaake rice overexpressing LRR1 are susceptible to Xoo. a Bars depict the average and standard deviation of LRR1 expression normalized to Kitaake of two technical replicates. Different letters indicate a significant difference in gene expression (P < 0.05, ANOVA, Tukey-HSD). This experiment was repeated three times with similar outcomes. b Lesion length of LRR1ox 14 days after inoculation with PXO99. Bars indicate the mean lesion length and standard deviation on four to nine plants that had two to nine inoculated leaves. Different letters indicate a significant difference in lesion length (P < 0.05, Kruskal-Wallis test, Dunn’s post-hoc test with Benjamini–Hochberg correction). This experiment was repeated 4 times with similar results. c Two representative inoculated leaves from each line were photographed at the time of lesion scoring


To elucidate the function of XA21 and the XA21 binding protein XB21, we characterized LRR1, which interacts with XB21. LRR1 is a leucine rich repeat containing protein with similarity to the LRR domain of OsSERK2 (Chen et al. 2014) (Fig. 1), which is a co-receptor for XA21. Silencing of LRR1 in the resistant XA21 genetic background conferred enhanced susceptibility to Xoo and reduced the expression of Xa21 (Fig. 2b). These results suggest that LRR1 is required for Xa21 transcription.

LRR1 Functions in Plant Immunity

Our results support previous studies demonstrating a role for LRR1 in plant immunity. For example, overexpression of rice LRR1 in Arabidopsis thaliana and Chinese cabbage is sufficient to confer enhanced resistance against the bacterial pathogens Pseudomonas syringae pv. tomato DC3000 (Pst DC3000) (Zhou et al. 2009; Zhou et al. 2010) and Pectobacterium carotovorum subsp. carotovorum (Park et al. 2012) respectively. In contrast to these results, we found overexpression of LRR1 in the Kitaake rice variety did not enhance resistance to Xoo (Fig. 5b). A similar result was reported by Zhou et al. 2009, who found that overexpression of LRR1 did not enhance resistance to Xoo strain LN44 in the rice variety SN1033 (Zhou et al. 2009). The LRR1 ortholog of pepper, CaLRR1, which is induced upon infection with Xanthomonas campestris pv. vesicatoria (Xcv) (Jung et al. 2004), did not enhance resistance to Pst DC3000 when overexpressed in Arabidopsis (Choi et al. 2012). However, overexpression enhanced callose deposition and reduced conidiospore production during Hyaloperonospora arabidopsidis infection (Choi et al. 2012). CaLRR1 silenced pepper plants have enhanced susceptibility to Xcv and reduced H2O2 production (Hwang et al. 2014). They also have reduced production of defense gene expression and total SA accumulation (Choi et al. 2012). Together, our study and previous reports demonstrate that the LRR1 family of proteins have diverse effects on plant immune responses.

The Function of LRR1 is Distinct from OsSERK2

OsSERK2 is required for OsBRI1-mediated development and regulating XA21, XA3 and OsFLS2-mediated immune responses (Chen et al. 2014). XA21 rice plants with reduced levels of OsSERK2 (XA21-OsSERK2Ri) have compromised resistance to Xoo (Chen et al. 2014). Despite the structural similarity between the LRR domains of LRR1 and the OsSERK2, it is likely that their functions are distinct. The intracellular domain of OsSERK2 is essential for the interaction between OsSERK2 and the intracellular domains of XA21, XA3, OsFLS2, and OsBRI1 (Chen et al. 2014). Direct interaction with these cell-surface receptors is thought to be critical for OsSERK2 functionality. Unlike OsSERK2, LRR1 lacks an intracellular domain. When XA21-LRR1Ri rice lines expressed LRR1Ri, we consistently detected a significant reduction in Xa21 transcript abundance (Fig. 3). Because LRR1Ri causes reduced Xa21 expression, we determined whether silencing OsSERK2 had a similar effect. However, XA21-OsSERK2Ri rice plants do not have reduced Xa21 transcript levels (Additional file 8: Figure S8). This suggests that the enhanced susceptibility conferred by LRR1Ri is mechanistically different than OsSERK2 silencing in rice plants.

LRR1 Interacts With OsHIR1

The results of our study suggest a new role of LRR1 in regulating the expression of a rice immune receptor. Previous studies demonstrated that LRR1 interacts with HYPERSENSITIVE INDUCED REACTION PROTEIN 1 (OsHIR1) in rice (Zhou et al. 2010; Zhou et al. 2009). While the role of OsHIR1 in rice immunity has not been extensively studied, proteomic and gene expression analysis of XA21 rice plants indicate that OsHIR1 expression increased after inoculation with Xoo. OsHIR1 is also thought to be post-translationally modified in XA21 plants challenged with Xoo (Chen et al. 2007), suggesting that OsHIR1 might function in XA21-mediated immunity.

The orthologous proteins CaLRR1 and CaHIR1 also interact in pepper (Jung and Hwang 2007). Overexpression of OsHIR1 (Zhou et al. 2010) or CaHIR1 (Jung and Hwang 2007) in Arabidopsis both promoted the formation of cell death lesions (Jung and Hwang 2007). The cell death symptom of CaHIR1 overexpressing plants was alleviated by simultaneously overexpressing CaLRR1 (Jung and Hwang 2007). CaHIR1 positively regulates RESISTANCE TO PSEUDOMONAS SYRINGAE PROTEIN 2 (RPS2)-mediated immunity to Xcv (Choi et al. 2013; Jung and Hwang 2007; Jung et al. 2004; Choi et al. 2011). During infection by Xcv, the virulence factor FILAMENTOUS HAEMAGGLUTININ ADHESIN 1 (Fha1) targets CaHIR1 where it modulates cell death and suppresses pepper PR gene expression (Choi et al. 2013). Under normal conditions, CaLRR1 and CaHIR1 both co-localize at the plasma membrane (Choi et al. 2011), while CaHIR1-Fha1 heterodimers were mostly found in endosomes during Xcv infection (Choi et al. 2013). These results suggest that the plasma membrane localization of CaHIR1 is important for the CaHIR1-mediated resistance.

LRR1 is Required for XA21 Expression

The transcriptional regulation of plant immune receptors is not well studied, and we do not know how LRR1 expression is linked to the transcription of Xa21. A recent report identified four receptor-like cytoplasmic kinases that also modulate proA-Xa21 expression in the Kitaake genetic background (Zhou et al. 2016). Future experiments are needed to understand whether LRR1 is regulating Xa21 through the same pathway or parallel pathways.

While we did not observe high complementarity between Xa21 and LRR1 (Additional file 6: Figure S6), we cannot rule out the possibility that the primary siRNA derived from processing of LRR1Ri or a transitive secondary siRNA produced upon cleavage of LRR1 have sufficient complementarily with Xa21 to trigger mRNA cleavage. However, it is known that the expression of plant immune receptors must be tightly regulated for optimal growth and overexpression of plant immune receptors can decrease plant fitness (Bergelson and Purrington 1996; Huot et al. 2014). For example, a 9% reduction in fitness was observed in Arabidopsis ecotype Bla-2 after the resistance gene RESISTANCE TO P. SYRINGAE PV MACULICOLA 1 (RPM1) was inserted (Tian et al. 2003).

Previous studies have reported that proteins involved in membrane trafficking including clatharin adapters, accessory proteins, and endosomal proteins facilitate the modification of gene expression (Pyrzynska et al. 2009). In rice, OsHIR1 and LRR1 are detected in endosomes and the plasma membrane (Zhou et al. 2009). LRR1 enhances the plasma membrane localization of OsHIR1 (Zhou et al. 2010). It is possible that XB21, which interacts with LRR1 in yeast, facilitates the transport of proteins such as OsHIR1 from the plasma membrane to endosomes. XB21 contains a C-terminal J domain. This class of protein has been associated with the uncoating of clatharin-coated vesicles, which occurs after endocytic vesicles bud off from the plasma membrane (Lemmon 2001; Kampinga and Craig 2010). These studies suggest that endosomal accumulation of OsHIR1 and other plasma membrane proteins may influence the expression of genes encoding receptors such as XA21.


Rice LRR1 and its pepper ortholog were previously reported to enhance resistance to bacterial pathogens in Arabidopsis and Chinese cabbage. In this study, we identified a new role of LRR1: transcriptional regulation of the rice immune receptor Xa21.


Plant Material and Growing Conditions

Rice plants (Oryza sativa L.) were germinated in water filled petri dishes at 28 °C and transferred to the greenhouse (~28–30 °C, 75–85% humidity) after 7 days. Rice plants were grown in 80/20 (sand/peat) soil mixture. Greenhouse grown rice plants were supplemented with artificial light from November to April to obtain 14 h days. Six-week old greenhouse grown plants were transferred to growth chambers for inoculation. Growth chambers for inoculation were set at 28 °C Day/26 °C Night, 85% humidity, 16 h days. Inoculations were performed a minimum of 3 days after transferring plants to reduce plant stress from transfer. For gene expression assays, rice plants were transferred to growth chambers (22 °C, 80% humidity, 16 h days) after 7 days and grown in hydroponics conditions using Hoagland solution changed twice weekly. Fully expanded leaves from 4- week old hydroponics grown plants were cut into 1.5 cm strips and floated overnight in Milli-Q H20 to reduce wounding. Mock, RaxX21-Y or RaxX21-sY peptide treatments were applied at a final concentration of 500nM for 6 h. Leaf fragments were flash frozen in liquid nitrogen and stored at −80 °C for further analysis.

Xoo Inoculations

Philippines race 6 strain of Xoo (PXO99Az) was plated on peptone sucrose agar plates for 3 days then suspended in Milli-Q H2O to a concentration of OD600 = 0.5. Fully expanded and healthy rice leaves were inoculated approximately 2 cm from the leaf tip using the scissors- clip method (Chern et al. 2005). Lesion lengths were measured 12 or 14 days after inoculation.

Plasmid Construction

Rice cDNA encoding full-length LRR1 (Os01g59440) was amplified from rice cDNA using the primers 5′- CACCATGGGGGCGGGGGCGCTGGG -3′ (LRP-FL-S) and 5′- CTAGCAGTTGGTGTCATATACAGC-3′ (LRP-FL-AS). PCR products were cloned into pENTR/D-TOPO vector (Invitrogen) using the instructions provided by the manufacturer. The proper sequence was confirmed by sequencing. The LRR1 overexpression construct was constructed by recombining the LRR1/pENTR/D-TOPO construct into the gateway-compatible Ubi-CAMBIA-1300 (Chern et al. 2005). For E. coli expression, XB21/pENTR/D-TOPO, which encodes full-length XB21 protein (Os12g36180), was amplified from rice cDNA using primers 5′-CACCATGGACGACTTCCAGGGCCTCCTGGCC-3′ and 5′-TTAGAAGAGTTCCTCTGAGTTGAATTTG-3′ (Park et al. manuscript in preparation). LRR1/pENTR/D-TOPO and XB21/pENTR/D-TOPO were recombined into pDEST15 and pDEST17 expression vectors respectively. The pGEX-1 vector (Chen et al. 2010) was used for expression of GST. For silencing of LRR1, the 357 bp fragment shared by three predicted isoforms of LRR1 was amplified from rice cDNA using the primers 5′-CACCTTGGGAATTTGAACTTATCTGGTC-3′ (LRP-RNAi-S) and 5′-AGTTGCTTAGGGGAATGTGCTC-3′ (LRP-RNAi-AS), and cloned into pENTR/D-TOPO vector to produce LRR1Ri/pENTR/D-TOPO. The LRR1Ri/pENTR/D-TOPO was recombined into the pANDA silencing vector (Miki and Shimamoto 2004) using gateway LR clonase (Invitrogen).

Rice Transformation

Kitaake rice plants and homozygous Kitaake plants carrying Xa21 with its native promoter, XA21 23A-1-14 (referred to as XA21 in this paper) (Park et al. 2010), were transformed as described previously (Chern et al. 2005) using Agrobacterium strain EHA105 to infect rice calli. Transformants carrying the transgenes were selected using hygromycin and later confirmed by PCR.

Yeast two-Hybrid

The N-terminal deleted XB21 (XB21NT) (Os12g36180) covering amino acids 433–926 was amplified from rice cDNA using the primers 5′-CACCATGTCAATAGATGAACTGGAAGATTTT-3′ (XB21-A-S) and 5′-TTAGAAGAGTTCCTCTGAGTTGAATTTG-3′ (XB21-FL-AS), cloned into the yeast two-hybrid bait vector pMC86, and transformed into yeast strain HF7c MATa. Transformation of target yeast (Y187) used cDNA obtained from a Hybrizap (Stratagene) yeast two-hybrid library derived from leaf MRNA of 7-week-old Indica rice cultivar IRBB21. Screening was performed as described previously (Seo et al. 2011).

Gene Expression Assays and Quantitative RT-PCR

RNA was extracted from rice plants using Spectrum Plant Total RNA Kit (Sigma) followed by DNase treatment performed using Turbo DNA-free DNase (Ambion). RNA integrity was confirmed by agarose gel electrophoresis (with 0.1% SDS). 2 μg of RNA was used as template for cDNA synthesis, which was performed using the High-Capacity cDNA Reverse Transcription Kit (Applied Biosystems). Quantitative RT-PCR using SsoFast EvaGreen Supermix (Bio-Rad) was performed on a CFX96 Real-Time system coupled to a C1000 Thermal Cycler (Bio-Rad) with the conditions: 95 °C for 10 s, 60 °C for 10 s, 40 cycles. Amplicon specificity was confirmed by checking the melting curve at the completion of 40 cycles. Expression of actin was used to normalize samples for analysis. Technical replication was performed by amplifying the same cDNA sample 2 or 3 times as described in the individual figure legends.

Statistical Analyses

The normal distribution of data was tested using the Shapiro-Wilk test. Normally distributed data was tested using a one-way analysis of variance (ANOVA) test. Statistically significant results were followed up with a Tukey’s honest significance (Tukey-HSD) post-hoc test using JMP v.13.1 software (SAS Institute Inc.). A Kruskal-Wallis nonparametric test was applied to data that violated normality assumptions. Statistically significant results were followed up with a Dunn post-hoc test with Benjamini–Hochberg correction (Ogle 2017) using R v.3.3.2 (Team 2016). Significance for all statistical tests was predetermined at p < 0.05.


A complete list of primers used in this study can be found in Additional file 12: Table S1.



Analysis of variance test










18 amino acid epitope of elongation factor-Tu




22 amino acid epitope of bacterial flagellin








LRR1 overexpression construct driven by the maize ubiquitin promoter


LRR1 RNAi silencing construct


leucine-rich repeat receptor-like kinase

Pst DC3000:

Pseudomonas syringae pv. tomato DC3000


Philippine Xoo strain PXO99Az




21 amino acid tyrosine sulfated epitope of RaxX








Tukey’s honest significance test




XA21 rice plants containing the LRR1Ri construct




XB21 interacting proteins


N-terminal deleted XB21


Xanthomonas campestris pv. vesicatoria


Xanthomonas oryzae pv. oryzae



We thank Xia Xu for her contribution to the yeast two-hybrid screen.


This work was supported by the National Institute of Health (NIH, GM55962) and the National Science Foundation (NSF, IOS-0817738). DC was supported by the Monsanto Beachell-Borlaug International Scholars Program.

Availability of data and materials

Not applicable.

Authors’ contributions

PC generated the transgenic rice plants. DC, CP, NT performed the experiments. DC, CP, PR wrote the manuscript. All authors discussed the research and approved the manuscript.

Competing interests

The authors declare that they have no competing interests.

Consent for publication

Not applicable.

Ethics approval and consent to participate

Not applicable.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (, which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.
