Open Access

Molecular and Bioinformatic Characterization of the Rice ROOT UV-B SENSITIVE Gene Family

Rice20169:55

https://doi.org/10.1186/s12284-016-0127-0

Received: 1 September 2016

Accepted: 1 October 2016

Published: 12 October 2016

Abstract

Background

ROOT UV-B SENSITIVE (RUS) genes exist in most eukaryotic organisms, and encode proteins that contain a DUF647 (domain of unknown function 647). Although the RUS genes are known to play essential roles in Arabidopsis seedling development, their precise functions are not well understood in other plants, including rice.

Findings

In this study, six OsRUS genes were cloned from rice root and leaf cDNA libraries. Our analysis showed that the sequence and open reading frame of cloned OsRUS3 cDNA differs from the predictions reported in the RAP-DB and RGAP databases. Public microarray, MPSS, and EST databases were used to analyze the expression profiles of the six OsRUS genes. Expression profiles for all OsRUS genes at different rice developmental stages were also analyzed by qRT-PCR. The signal peptide, GPI-anchor, transmembrane domain and subcellular localization of OsRUS proteins were predicted by various bioinformatics tools. Furthermore OsRUS1 was determined to be localized to the chloroplast by a protoplast experiment.

Conclusions

All the characterization of the OsRUS family generated from this study will provide a crucial foundation from which to further dissect how OsRUS genes function in rice development.

Keywords

DUF647Expression profile Oryza sativa ROOT UV-B SENSITIVE Subcellular localization

Findings

Identification and Cloning of OsRUS cDNA

RUS genes were first identified by Dr. He’s group in Arabidopsis (Tong et al. 2008; Leasure et al. 2009), and it was found that AtRUS1 and AtRUS2 play a role in very-low-fluence UVB response and VB6 homeostasis (Leasure et al. 2011). However, Dr. Estelle’s group discovered that the weak auxin response mutant wxr1 and wxr3 were caused by mutations in AtRUS2/WXR1 and AtRUS1/WXR3, respectively. Their results suggested a role for these two genes in the regulation of polar auxin transport (Ge et al. 2010; Yu et al. 2013). The inconsistencies between the results of these two research groups have not currently be resolved.

There are six AtRUS genes in the Arabidopsis genome, and they all contain a specific domain DUF647. There are six OsRUS genes annotated in the rice genome. OsRUS6 appears to have duplicated in the rice lineage to OsRUS6A and OsRUS6B, and there is no apparent ortholog for AtRUS4 (Leasure et al. 2009). The six OsRUSs are distributed on four rice chromosomes: OsRUS5 and OsRUS6A on chromosome 1; OsRUS1 and OsRUS 2 on chromosome 4; OsRUS3 on chromosome 3; and OsRUS6B on chromosome 5 (Fig. 1a). The cDNA library of rice was reverse-transcripted from total RNAs extracted from young seedlings of Zhonghua 11 (Additional file 1: Materials and methods). The primers for cloning the six OsRUS cDNAs were designed to amplify their cDNAs (Additional file 2: Table S1). All six OsRUS cDNAs were amplified (Fig. 1b), which means that they are all functional genes. The PCR products of the six OsRUS cDNAs were cloned and sequenced. Surprisingly the sequence we obtained for the OsRUS3 cDNA (Additional file 3: Figure S1) was different from the sequences downloaded from the RGAP and RAP-DB databases (Fig. 2b, d and f). All of the other OsRUS cDNA sequences were consistent with both databases. The DUF647 domain and transmembrane domains of OsRUS3 were found in the RGAP database, the RAP-DB database and our cloned OsRUS3 (Fig. 2c, e and g). A 56aa cTP was found in the OsRUS3 from RGAP database, but was neither predicted in the OsRUS3 from RAP-DB database nor found in our cloned OsRUS3 (Fig. 2c, e and g). Whether the three types of OsRUS3 cDNA represent alternative splicing of LOC_Os03g11500, or only our cloned cDNA is real, needs further study.
Fig. 1

Chromosomal locations of OsRUS genes and cloning of the six OsRUS cDNAs. a. Genomic locations of OsRUS genes on rice chromosomes; b. Amplification of the six OsRUS cDNAs

Fig. 2

The gene structure comparison of OsRUS3 generated from cloned sequence, RGAP and RAP-DB databases. a. OsRUS3 genomic DNA; b. OsRUS3 cDNA predicted in the RGAP database; c. OsRUS3 protein predicted in the RGAP database; d. OsRUS3 cDNA predicted in the RAP-DB database; e. OsRUS3 protein predicted in the RAP-DB database; f. Cloned OsRUS3 cDNA; g. OsRUS3 protein translated from cloned OsRUS3 cDNA. cTP was predicted by ChloroP v1.1; transmembrane domain was predicted by TMpred; DUF647 was predicted by SMART Domain

Expression Profiles of OsRUS Genes During Vegetative and Reproductive Development

The expression profiles of genes are highly important for dissecting the functions of the genes (Fang et al. 2016). Here the expression profiles of the six OsRUS genes were data-mined from microarray, EST and MPSS publicly available databases and generated by qRT-PCR approach, respectively.

The expression profiles of OsRUSs during rice development were extracted from database RiceXPro (http://ricexpro.dna.affrc.go.jp/) (Sato et al. 2011) (Fig. 3). According to this database, the expression level of OsRUS1 is much higher in roots and late embryos than in other organs. The expression levels of OsRUS2, OsRUS3, OsRUS6A and OsRUS6B during rice development are relatively high in all tissues examined, except for in leaf sheath at the reproductive stage and endosperm. The expression level of OsRUS5 in leaf is much higher than in other organs and stages. These results suggest that OsRUS2, OsRUS3, OsRUS6A and OsRUS6B function at similar development stages, while OsRUS1 and OsRUS5 function at different stages.
Fig. 3

The expression profiles of the six OsRUS genes during rice development, data extracted from RiceXPro (http://ricexpro.dna.affrc.go.jp/)

The expression profiles of the OsRUS genes were also extracted from the NCBI EST database (http://www.ncbi.nlm.nih.gov/nucest) (Additional file 4: Table S2). The expression of all six OsRUS genes can be detected in callus and rice leaf, but the expression level of OsRUS1, OsRUS3 and OsRUS5 is much lower than that of OsRUS2, OsRUS6A and OsRUS6B. OsRUS6B is not only the sole gene expressed in all of the tissues examined, but also the only OsRUS gene expressed in root and SAM, and its expression in SAM is much higher than in other tissues.

According to the information generated from the MPSS database, all six OsRUS genes express in callus, all OsRUS genes except for OsRUS2 express in 14d young rice leaves, and all OsRUS genes except for OsRUS1 express in NOS (Ovary and mature stigma) and NIP (90 days - Immature panicle). The expression of OsRUS1 was only detected in 14d young rice leaves and callus. OsRUS3 expresses in almost all development stages except for NGS (3 days - Germinating seed). OsRUS6A and OsRUS6B are highly expressed in all development stages examined. Salt induces the expression of OsRUS1 in 14d young rice roots and leaves. Cold greatly up-regulates the expression of OsRUS6A in 14d young rice leaves. Salt, drought and cold down-regulate the expression of OsRUS6B in 14d young rice roots, but highly up-regulate the expression of OsRUS6B in 14d young rice leaves (Additional file 5: Table S3).

In this paper, qRT-PCR approach was used to verify the expression profiles of the six OsRUSs at different rice development stages (Additional file 1: Materials and methods). By using the primers designed for qRT-PCR of six OsRUSs (Additional file 6: Table S4), the expression profiles of six OsRUSs at different development stages were generated by qRT-PCR (Fig. 4). From the qRT-PCR results, we observed that the six OsRUS genes were expressed in all tissues and stages examined. The expression levels of the six OsRUS genes in leaves were higher than in other tissues at all stages. Generally speaking, the expression levels of the six OsRUS genes were lower than the house-keeping gene OsACTIN1, except for OsRUS6A and OsRUS6B at seedling and flowering stages.

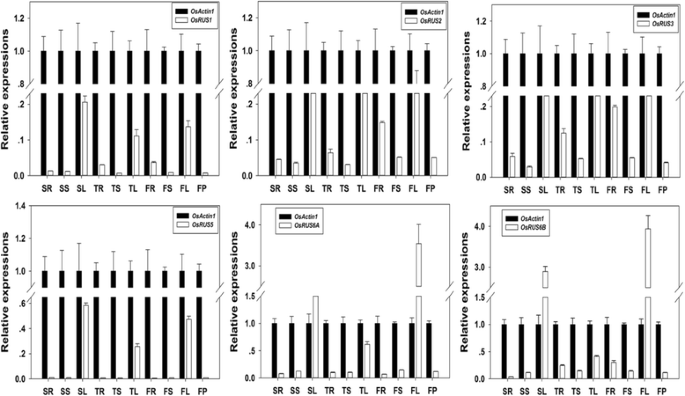

Fig. 4

Real-time PCR verification of the expression of OsRUS genes in tissues at vegetative and reproductive stages. SR, Root at seeding stage; SL, Leaf at seeding stage; SS, Stem at seeding stage; TR, Root at tillering stage; TL, Leaf at tillering stage; TS, Stem at tillering stage; FR, Root at flowering stage; FL, Leaf at flowering stage; FS, Stem at flowering stage; FP, Panicle at flowering stage

When the expression profiles of OsRUS genes from above three databases and our qRT-PCR experiment were analyzed together, it was found that some results were consistent, while some were not. For example, all six OsRUS genes were found to be expressed in all tissues examined in the RiceXPro database and our qRT-PCR experiments. However, only OsRUS6A and OsRUS6B were found to be expressed in all tissues in the MPSS database, and only OsRUS6B was found to be expressed in all tissues in the EST database. The expression level of OsRUS1 was relatively low in the three databases and the qRT-PCR results. OsRUS1 expression was only detected in the MPSS database in NYL (14 days Young leaves) and NCA (35 days Callus), and in the EST database it was detected only in callus, leaf, panicle and stem. In the EST database only expression of OsRUS6B was detected in roots, while in the MPSS database OsRUS2, OsRUS3, OsRUS6A and OsRUS6B were detected in roots. The reasons for this inconsistency are typically complicated, and may be due to cultivar, environment, tissue stage and/or method sensitivity (Ma et al. 2011).

Subcellular Localization of OsRUS Proteins

The post-translational modifications of a protein are highly important for its function (Guerra et al. 2015). Here the signal peptides (SPs) and GPI-anchor modification signals of the six OsRUSs were predicted by SignalP 4.0 (http://www.cbs.dtu.dk/services/SignalP/) and BigPI (http://mendel.imp.ac.at/gpi/plant_server.html), respectively. None of the OsRUSs was found to have an N-terminal secretion signal (SPs) or a GPI-anchor, indicating that these proteins neither target to the endoplasmic reticulum nor localize to the plasma membrane.

Transmembrane proteins often play important roles in signal transduction or metabolite transport across membranes. Transmembrane domains of OsRUS proteins were predicted using web-based transmembrane domain prediction programs (Additional file 7: Table S5). OsRUS1, OsRUS2, OsRUS3 and OsRUS5 have at least one transmembrane domain predicted by TopPred, TMpred, TMHMM, HMMTOP and SACS HMMTOP tools. OsRUS6A and OsRUS6B have one or three transmembrane domains predicted by TopPred, TMpred, HMMTOP and SACS HMMTOP, but no transmembrane domain predicted by TMHMM. According to the above predictions, OsRUS proteins are likely to be transmembrane proteins.

Determining the subcellular localization of a protein is important for understanding its function. There are many reliable bioinformatics tools available to predict protein subcellular localization. Here the subcellular localizations of OsRUSs were predicted by TargetP, Plant-mPloc, Yloc, ESLpred2, TargetLoc and MultiLoc2 (Table 1), respectively. OsRUS1 and OsRUS5 were predicted to localize to the chloroplast by all six programs used. Although the subcellular localizations of the other OsRUS proteins predicted by the above six programs were not consistent, the chloroplast was the primary predicted subcellular localization: OsRUS2.1 (2/6); OsRUS2.2(4/6); OsRUS3(2/6); OsRUS6A(4/6); OsRUS6B.1(3/6); and OsRUS6B.2 (3/6). The mitochondrion was the second predicted localization for some OsRUS proteins: OsRUS3(2/6): OsRUS6B.1(3/6); and OsRUS6B.2 (3/6).
Table 1

Subcellular localizations of OsRUSs predicted by bioinformatics tools



TargetP

Plant-mPLoc

Yloc

ESLpred2

TargetLoc

MultiLoc2

OsRUS1

Chloroplast

Chloroplast

Chloroplast

Chloroplast

Chloroplast

Chloroplast

OsRUS2.1

Other

Chloroplast

Cytoplasm

Chloroplast

Other

Cytoplasm

OsRUS2.2

Other

Chloroplast

Chloroplast

Chloroplast

Chloroplast

Cytoplasm

OsRUS3

Mitochondrion

Cell membrane

Chloroplast

Chloroplast

Mitochondrion

Secretary pathway

OsRUS5

Chloroplast

Chloroplast

Chloroplast

Chloroplast

Chloroplast

Chloroplast

OsRUS6A

Other

Chloroplast

Chloroplast

Chloroplast

Other

Chloroplast

OsRUS6B.1

Mitochondrion

Chloroplast

Chloroplast

Chloroplast

Mitochondrion

Mitochondrion

OsRUS6B.2

Mitochondrion

Chloroplast

Chloroplast

Chloroplast

Mitochondrion

Mitochondrion

Based on the subcellular localization, non-GPI-anchor modification, and transmembrane predictions, we postulated that OsRUS proteins highly possible localize to the chloroplast membrane.

In order to evaluate the above subcellular predictions for OsRUS proteins, a protoplast transient-expression approach was used to detect the subcellular localization of OsRUS1 (Additional file 1: Materials and methods). OsRUS1 was predicted to contain a 35aa cTP and be localized to the chloroplast. There is enough information present in the cTP for chloroplast protein sorting (Lee et al. 2008). A transient expression vector of OsRUS1(1-160aa)::GFP was constructed and transformed into rice leaf sheath protoplasts. OsRUS1(1-160aa)::GFP was clearly observed to be localized to the chloroplast membrane (Fig. 5b). To our best knowledge this is the first time that the localization of a RUS protein has been experimentally confirmed to be localized to the chloroplast membrane (Tong et al. 2008; Leasure et al. 2009; Ge et al. 2010; Yu et al. 2013).
Fig. 5

Subcellular localization of OsRUS1 in rice sheath protoplasts. a, GFP control. b, OsRUS1(1-160aa)::GFP. Individual and merged images of GFP and chlorophyll autofluorescence (Chl), and brightfield (Bright) images of protoplasts are shown. Scale bars = 5 μm

Conclusions

There are six OsRUS genes in the rice genome, distributed on four chromosomes. The cDNA sequences of five OsRUS genes are the same as the predictions of the RGAP and RAP-DB databases, while the cDNA sequence of OsRUS3 is not. Whether or not this new OsRUS3 cDNA represents a newly-identified alternative splicing variant has not been resolved. All six OsRUS proteins contain a specific DUF647 domain. The six OsRUS genes are expressed in tissues throughout rice development, and they all express more highly in leaves than in other organs. Some OsRUS genes have similar expression profiles during rice development. By using available bioinformatics tools, OsRUS proteins are predicted to lack both signal peptides and GPI-anchors, contain transmembrane domains, and be mainly localized to the chloroplast. Combining these predictions together, we postulate that most OsRUS proteins, if not all, localize to the chloroplast membrane. This postulation is supported by the OsRUS1 subcellular localization experiment using a rice protoplast transient-expression approach. All of the work in this paper will support the further dissection of the functions of OsRUS proteins during rice development.

Abbreviations

cTP:

Chloroplast transient peptide

DUF647:

Domain of unknown function 647

EST:

Expressed sequence tag

GFP:

Green fluorescent protein

GPI-anchor:

Glycosylphosphatidylinositol anchor

MPSS:

Massively parallel signature sequencing

NCBI:

The National Center for Biotechnology Information

RAP-DB:

The rice annotation project database

RGAP:

Rice genome annotation project

RUS

ROOT UV-B SENSITIVE

SAM:

Shoot apical meristem

SPs:

Signal peptides

TPM:

Transcripts per million

UVB:

Ultraviolet-B

wxr

weak auxin response

Declarations

Acknowledgments

We sincerely thank Dr. Leasure CD (San Francisco State University, USA) for his critical reading and editing of the manuscript. This project was sponsored by State Key Laboratory for Conservation and Utilization of Subtropical Agro-bioresources (OSKL201505) and National Natural Science Foundation of China (No. 30971709).

Authors’ Contributions

NY and YL performed the experiments. NY and XH performed the bioinformatics analysis. XP and XH designed the experiments and bioinformatics analysis. NY and XH wrote the manuscript. All authors read and approved the final manuscript.

Competing Interests

The authors declare that they have no competing interests.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Research Center of Plant Stress Biology, College of Life Sciences, South-China Agricultural University
(2)
Key Laboratory of Plant Functional Genomics and Biotechnology, Education Department of Guangdong Province, College of Life Sciences, South China Agricultural University

References

  1. Fang WB, Ding WW, Zhao XL, Zhang FF, Gao S, Li XJ, Xiao K (2016) Expression profile and function characterization of the MYB type transcription factor genes in wheat (Triticum aestivum L.) under phosphorus deprivation. Acta Physiol Plant 38:5. doi:10.1007/s11738-015-1997-2 View ArticleGoogle Scholar
  2. Ge L, Peer W, Robert S, Swarup R, Ye S, Prigge M, Cohen JD, Friml J, Murphy A, Tang D, Estelle M (2010) Arabidopsis ROOT UVB SENSITIVE2/WEAK AUXIN RESPONSE1 is required for polar auxin transport. Plant Cell 22:1749–1761View ArticlePubMedPubMed CentralGoogle Scholar
  3. Guerra D, Crosatti C, Khoshro HH, Mastrangelo AM, Mica E, Mazzucotelli E (2015) Post-transcriptional and post-translational regulations of drought and heat response in plants: a spider’s web of mechanisms. Front Plant Sci 6:57. doi:10.3389/fpls.2015.00057 View ArticlePubMedPubMed CentralGoogle Scholar
  4. Leasure CD, Tong HY, Yuen GG, Hou XW, Sun XF, He ZH (2009) ROOT UV-B SENSITIVE2 acts with ROOT UV-B SENSITIVE1 in a root ultraviolet B-sensing pathway. Plant Physiol 150:1902–1915View ArticlePubMedPubMed CentralGoogle Scholar
  5. Leasure CD, Tong HY, Hou XW, Shelton A, Minton M, Esquerra R, Roje S, Hellmann H, He ZH (2011) root uv-b sensitive mutants are suppressed by specific mutations in ASPARTATE AMINOTRANSFERASE2 and by exogenous vitamin B6. Mol Plant 4:759–770View ArticlePubMedPubMed CentralGoogle Scholar
  6. Lee DW, Kim JK, Lee S, Choi S, Kim S, Hwang I (2008) Arabidopsis nuclear-encoded plastid transit peptides contain multiple sequence subgroups with distinctive chloroplast-targeting sequence motifs. Plant Cell 20:1603–1622View ArticlePubMedPubMed CentralGoogle Scholar
  7. Ma HL, Zhao HM, Liu Z, Zhao J (2011) The phytocyanin gene family in rice (Oryza sativa L.): genome-wide identification, classification and transcriptional analysis. PLoS One 6:e25184View ArticlePubMedPubMed CentralGoogle Scholar
  8. Sato Y, Antonio B, Namiki N, Motoyama R, Sugimoto K, Takehisa H, Minami H, Kamatsuki K, Kusaba M, Hirochika H, Nagamura Y (2011) Field transcriptome revealed critical developmental and physiological transitions involved in the expression of growth potential in japonica rice. BMC Plant Biol 11:10View ArticlePubMedPubMed CentralGoogle Scholar
  9. Tong HY, Leasure CD, Hou XW, Yuen GG, Briggs W, He ZH (2008) Role of root UV-B sensing in Arabidopsis early seedling development. Proc Natl Acad Sci U S A 52:21039–21044View ArticleGoogle Scholar
  10. Yu H, Karampelias M, Robert S, Peer WA, Swarup R, Ye SQ, Ge L, Cohen J, Murphy A, Friml J, Estelle M (2013) ROOT ULTRAVIOLET B-SENSITIVE1/WEAK AUXIN RESPONSE3 is essential for polar auxin transport in Arabidopsis. Plant Physiol 162:965–976View ArticlePubMedPubMed CentralGoogle Scholar
