Molecular Breeding of Rice Restorer Lines and Hybrids for Brown Planthopper (BPH) Resistance Using the Bph14 and Bph15 Genes

Rice20169:53

https://doi.org/10.1186/s12284-016-0126-1

Received: 8 March 2016

Accepted: 24 September 2016

Published: 4 October 2016

Abstract

Background

The development of hybrid rice is a practical approach for increasing rice production. However, the brown planthopper (BPH), Nilaparvata lugens Stål, causes severe yield loss of rice (Oryza sativa L.) and can threaten food security. Therefore, breeding hybrid rice resistant to BPH is the most effective and economical strategy to maintain high and stable production. Fortunately, numerous BPH resistance genes have been identified, and abundant linkage markers are available for molecular marker-assisted selection (MAS) in breeding programs. Hence, we pyramided two BPH resistance genes, Bph14 and Bph15, into a susceptive CMS restorer line Huahui938 and its derived hybrids using MAS to improve the BPH resistance of hybrid rice.

Results

Three near-isogenic lines (NILs) with pyramided Bph14 and Bph15 were obtained by molecular marker-assisted backcross (MAB) and phenotypic selection. The genomic components of these NILs were detected using the whole-genome SNP (Single nucleotide polymorphism) array, RICE6K, suggesting that the recurrent parent genome (RPG) recovery of the NILs was 87.88, 87.70 and 86.62 %, respectively. BPH bioassays showed that the improved NILs and their derived hybrids carrying homozygous Bph14 and Bph15 were resistant to BPH. However, the hybrids with heterozygous Bph14 and Bph15 remained susceptible to BPH. The developed NILs showed no significant differences in major agronomic traits and rice qualities compared with the recurrent parent. Moreover, the improved hybrids derived from the NILs exhibited better agronomic performance and rice quality compared with the controls under natural field conditions.

Conclusions

This study demonstrates that it is essential to stack Bph14 and Bph15 into both the maternal and paternal parents for developing BPH-resistant hybrid rice varieties. The SNP array with abundant DNA markers is an efficient tool for analyzing the RPG recovery of progenies and can be used to monitor the donor segments in NILs, thus being extremely important for rice molecular breeding.

Keywords

Rice Brown Planthopper (BPH) Bph14 and Bph15 MAS Hybrid Rice

Background

Rice (Oryza Sativa L.) is one of the most important food sources for more than half of the world population. It is predicted that an additional 116 million tons of rice will be needed by 2035 to feed the growing population (Seck et al. 2012). However, the brown planthopper (BPH, Nilaparvata lugens Stål), which sucks the phloem sap of the rice leaf sheath and transmits viral diseases such as rice grassy stunt virus (RGSV), rice ragged stunt virus (RRSV) and rice wilted stunt virus (RWSV), often leads to severe yield losses in the agricultural industry (Fujita et al. 2013).

More than 90 % of the world’s rice is grown in Asian countries. China is the largest rice-producing country in the world, although the planting area is less than that in India. The total rice production in 2015 was about 208 million tons in China, which accounted for more than 20 % of the world’s total rice yield. Widely grown hybrid rice is one of the main factors contributing to the increase in rice yield in China since the 1970s. The IRRI estimates that planthoppers cause annual yield losses of 1 to 2 million tons of paddy rice in China (Fujita et al. 2013). The total planting area of rice infested by BPH in China exceeded 25 million hectares between 2005 and 2007 (Qiu et al. 2012). Rapid expansion of the planting area of hybrid rice is probably one of the main causes of the BPH crisis because most of the hybrid rice varieties released in China are susceptible to BPH (Hu et al. 2012). The area planted to hybrid rice has already increased by over 50 % in China, and the planted area of hybrid rice in India and other Asian countries such as Vietnam, Myanmar and Indonesia, has also increased in recent years (Horgan and Crisol 2013). Therefore, it is a very urgent task to develop hybrid rice cultivars with BPH resistance as soon as possible.

Fujita et al. (2013) reviewed the progress in the identification of BPH resistance genes. To date, 29 major BPH resistance genes/loci have been identified from cultivated, landrace and wild species of Oryza (Fujita et al. 2013; Wang et al. 2015). These are located on 8 of the 12 chromosomes in rice, whereas no BPH genes have been identified on chromosomes 1, 5, 7 and 8. Multiple BPH-resistance loci are closely positioned or overlap on the same chromosome regions, and four gene clusters have been designated as A, B, C and D (Fujita et al. 2013). The continuing validation of BPH-resistance loci offers possibilities for rice molecular breeding.

Compared with traditional chemical control, a host plant resistance breeding strategy is a more effective and environmentally friendly method to control BPH damage (Jairin et al. 2010; Sun et al. 2005). Molecular marker-assisted selection (MAS) is a highly efficient approach for plant-breeding scientists to select target genes both rapidly and precisely (Tanksley et al. 1989). It has been certified that pyramiding of resistance genes can provide stronger and more durable resistance for susceptible rice cultivars in contrast to single gene introgression. Myint et al. (2012) found that the BPH resistance level of Bph25 + Bph26-NILs was significantly higher than Bph25-NILs or Bph26-NILs. Qiu et al. (2012) found that the indica rice 9311 and japonica rice Nipponbare lines with pyramided Bph6 and Bph12 had obviously less damage compared to monogenic lines.

Bph14 and Bph15, separately located on chromosome 3 and 4 in B5 (a breeding line derived from O. officinalis), are two widely adopted genes in the BPH-resistance breeding practice (Huang et al. 2001; Li et al. 2006; Xia et al. 2010; Zhu et al. 2013a; Zhu et al. 2013b; Hu et al. 2012; Hu et al. 2015; Cai et al. 2015). Bph14 was the first cloned BPH resistance gene and encodes a coiled-coil, nucleotide-binding and leucine-rich repeat (CC-NB-LRR) protein (Du et al. 2009). Bph15 was previously mapped to a 47-kb region, but the latest research showed that the region containing Bph15 was nearly 580 kb between DNA marker g12140-2 and marker T12 in B5, which originated from the C genome of O. officinalis (Yang et al. 2004; Lv et al. 2014). A previous study found that the BPH-resistance effect of Bph15 was higher than that of Bph14. Moreover, both Bph14 and Bph15 exhibit partial dominance and have a pronounced dosage effect on the resistance to BPH in hybrids (Li et al. 2011; Hu et al. 2012).

Huahui938 is an elite rice restorer line of CMS selected by our laboratory in previous years. We developed several hybrids with high yield, good quality and resistance to blast using Huahui938 as a male parent. However, Huahui938 and its derived hybrids are susceptible to BPH. In the present study, we further improved the BPH-resistance of Huahui938 and its derived hybrids by pyramiding Bph14 and Bph15 using marker-assisted backcross selection (MAB) and whole-genome SNP array analysis, following the effective evaluation of pyramided genes conferring resistance to BPH in the improved NILs and the corresponding hybrids.

Results

Development of NILs with Bph14 and Bph15 Genes Using MAB

F1 progenies were obtained from the cross between Huahui938 (recurrent parent) and B5 (donor parent of Bph14 and Bph15). Based on PCR analysis, true F1 plants containing Bph14 and Bph15 were selected and backcrossed with Huahui938 to produce BC1F1. Among 30 BC1F1 plants, five containing heterozygous Bph14 and Bph15 loci were used for further backcrossing to produce BC2F1. Among 100 BC2F1 plants, two individuals containing Bph14 and Bph15 and with a phenotype similar to Huahui938 were used for subsequent backcrossing. Among 60 BC3F1 plants, 19 were identified as containing Bph14 and Bph15, and two plants (designed as HB13002-5 and HB13002-50) with identical agronomic performance to Huahui938 were self-crossed to produce BC3F2 seeds. Then, in two BC3F2 populations of 100 plants, eight plants containing homozygous Bph14 and Bph15 were selected to produce BC3F3 (Fig. 1a). Next, eight BC3F3 family lines were obtained and further confirmed by PCR analysis of the target loci, which suggested that both Bph14 and Bph15 were homozygous in all family lines (Fig. 1b). Finally, three lines with no phenotype segregation of agronomic performance, including number of days to heading, plant height, tiller number, plant type and panicle type, among individuals of the population were designed as HB13002-5-30-10, HB13002-5-31-24 and HB13002-50-9-7.

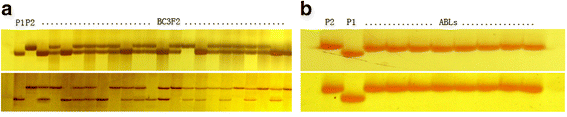

Fig. 1

PCR analysis of BC3F2 plants from the cross between Huahui938 and B5 (a) and resistance gene confirmation of ABLs in BC3F3 (b). a Upper panel: PCR analysis of Bph14 with marker 76-2; Lower panel: PCR analysis of Bph15 with marker MS5; b Upper panel: Bph14 gene confirmation with marker 76-2; Lower panel: Bph15 gene confirmation with marker InD4. P1: Huahui938; P2: B5; ABLs: advanced backcrossed breeding lines

The genetic backgrounds of the three selected near-isogenic lines (NILs) were assayed using the whole-genome SNP array RICE6K. A total of 550 SNP markers showed polymorphism between Huahui938 and B5. The recurrent parent genome (RPG) recoveries of HB13002-5-30-10, HB13002-5-31-24 and HB13002-50-9-7 were 87.88, 87.70 and 86.62 %, respectively. The haplotype maps also implied that the segments containing target loci were successfully transferred from the donor parent B5 into the selected NILs, and no heterozygous loci remained at the whole-genome scale of the three improved lines (Fig. 2). These results suggested that positive selection of target genes and continuous phenotypic selection can be used to achieve the genetic background of the recurrent parent with a recovery rate higher than 80 % and can also be used to rapidly establish the whole-genome homozygosity of the selected lines.
Fig. 2

Genetic background assay of the three selected NILs detected using the RICE6K array. a HB13002-5-30-10, b HB13002-5-31-24 and c HB13002-50-9-7. The black dots indicate the positions of two target genes, Bph14 on chromosome 3 and Bph15 on chromosome 4. The red lines indicate the SNP loci with homozygous genotypes where genomic fragments of the donor parent B5 were introgressed, the gray lines indicate the SNP loci with the same genotypes as the recurrent parent Huahui938, and the white boxes indicate non-polymorphism fragments between recurrent and donor parents

Resistance Reaction of the Selected NILs and Hybrids in Response to BPH

The resistance levels to BPH of the selected NILs and their derived hybrids, along with the controls, were evaluated at the seedling stage. The evaluation results showed that B5 and the CMS line Luohong4A with two homozygous resistance genes were resistant against BPH, with scores of 3.0 and 2.3, respectively. The three selected NILs, HB13002-5-30-10, HB13002-5-31-24 and HB13002-50-9-7, were also resistant against BPH, similar to the resistance controls, with scores of 2.3, 2.3 and 3.0, respectively. Huahui938, TN1, Quan9311A, Fengliangyou4 and Quan9311A/Huahui938, without resistance genes, were susceptible or highly susceptible to BPH, and their scores ranged from 7.7 to 9.0. Interestingly, the hybrids with homozygous Bph14 and Bph15 genes, i.e., Luohong4A/B5, Luohong4A/HB13002-5-30-10, Luohong4A/HB13002-5-31-24 and Luohong4A/HB13002-50-9-7, were resistant against BPH, and their BPH resistance scores were 2.3-3.0. However, the hybrids containing heterozygous Bph14 and Bph15 genes, i.e., Luohong4A/Huahui938, Quan9311A/B5, Quan9311A/HB13002-5-30-10, Quan9311A/HB13002-5-31-24 and Quan9311A/HB13002-50-9-7, were susceptible or highly susceptible to BPH, similar to the materials without BPH-resistant genes (Fig. 3a and b). Taken together, these results indicate that the protection of hybrid rice from damage caused by BPH requires the simultaneous genetic improvement of maternal and paternal parents with the use of Bph14 and Bph15.
Fig. 3

The evaluation results of BPH resistance of the selected NILs and their derived hybrids seven days after infestation. a The BPH resistance scores of the selected NILs, their derived hybrids, parents and controls. Lower scores indicate higher resistance to BPH. Data are the means of three replicates; A and B indicate ranking according to Duncan’s test at P < 0.01; a and b indicate ranking according to Duncan’s test at P < 0.05. 14/15 in parentheses: homozygous state of both Bph14 and Bph15, 14(H)/15(H): heterozygous state of both Bph14 and Bph15. b The performance (showing the damage degree) of HB13002-5-30-10 (a selected NIL) and its two derived hybrids, Huahui938 (recurrent parent) and its two derived hybrids, B5 (donor parent), Luohong4A, TN1 (susceptible control) and Fengliangyou4 (a popular hybrid)

The Performance of Agronomic Traits of the NILs and Their Hybrids

To test whether the other phenotypic traits of the selected NILs and their derived hybrids were identical to those of the recurrent parent and its derived hybrids under normal conditions, we examined eight agronomic traits and six rice quality traits of the selected NILs and hybrids planted at Wuhan without BPH damage (Table 1). Traits such as panicle length (PL), panicle number per plant (PN), number of grains per panicle (NGP), fertility of the spikelet (FER), 1000-grain weight (GW), grain yield per plant (GY), chalkiness degree (CD), amylose content (AC) and alkali spreading value (ASV) of the three selected NILs showed no significant difference compared with Huahui938. However, the number of days to heading (DTH) of HB13002-50-9-7 was 3 days longer than that of Huahui938, the PN of HB13002-50-9-7 was 2.8 lower than Huahui938 and the plant height (PH) of HB13002-30-10 was approximately 5.3 cm higher than that of Huahui938. Moreover, the head rice rate (HR) of the three selected NILs was higher than that of Huahui938, which is a desirable quality trait for rice improvement.
Table 1

The agronomic and rice quality traits of the three selected NILs and their derived hybrids

Entire

Agronomic traits

Traits of grain qualities

DTH (d)

PH (cm)

PL (cm)

PN

NGP

FER (%)

GW (g)

GY (g)

HR (%)

L/W

CK (%)

CD (%)

AC (%)

ASV

Huahui 938

92.0b

117.5c

27.1b

14.4b

137.2a

77.66a

24.6b

29.2 a

53.9c

2.87b

11.4bc

4.0b

10.2b

6.0a

HB13002-5-30-10

91.7b

122.8a

28.1ab

13.3bc

149.3a

81.07a

25.6b

30.0a

57.8b

3.03a

13.9b

4.2b

10.6ab

6.0a

HB13002-5-31-24

92.0b

118.6bc

27.3ab

13.4bc

137.8a

77.39a

24.9b

29.8a

59.0ab

2.90b

11.0bc

3.1b

10.2b

5.9a

HB13002-50-9-7

95.0a

120.3bc

28.3ab

11.6d

145.2a

82.04a

25.1b

28.3a

58.1b

2.90b

8.7c

3.5b

10.7ab

6.0a

B5

86.7c

113.8d

28.8a

16.5a

115.7b

81.05a

27.6a

29.4a

61.1a

2.77c

34.0a

10.5a

11.1a

2.0b

Luohong4A/Huahui938

84.0b

105.3bc

25.1ab

11.1b

180.8bc

79.93a

25.2bc

37.2a

61.4b

2.87a

53.7a

21.2a

20.9a

3.4bc

Luohong4A/HB13002-5-30-10

84.0b

106.4b

25.3ab

11.4b

171.7c

75.93a

25.6b

33.8b

65.1a

2.90a

31.5c

11.0c

19.2b

3.8b

Luohong4A/HB13002-5-31-24

83.3b

103.0c

25.3ab

11.5b

176.2bc

70.77bc

25.6b

33.7b

65.1a

2.90a

37.0bc

12.3bc

19.3b

3.1bc

Luohong4A/HB13002-50-9-7

84.7b

106.5b

25.5a

11.3b

186.6b

74.93ab

24.7c

35.3ab

65.8a

2.90a

29.4c

11.2bc

20.9a

3.7bc

Luohong4A/B5

80.1c

102.9c

24.7b

13.0a

154.0d

63.4c

26.9a

27.0c

65.6a

2.87a

45.8ab

13.8b

19.1b

2.7c

Fengliangyou4(CK)

88.0a

117.3a

24.9ab

9.6c

203.7a

81.62a

27.46a

35.2b

64.5a

2.77b

29.2c

8.3d

14.9c

5.9a

Quan9311A/Huahui938

88.7a

115.2a

27.3b

12.0a

181.1bc

82.89 ab

27.5b

38.6ab

64.3a

2.77a

18.0c

6.1b

13.2b

5.8a

Quan9311A/HB13002-5-30-10

88.7a

115.0a

27.9ab

11.6a

179.5bc

86.11a

28.4a

39.7ab

64.6a

2.73a

17.2c

6.0bc

13.3b

6.2a

Quan9311A/HB13002-5-31-24

88.7a

114.9a

28.2ab

10.7ab

188.9ab

84.61ab

27.3b

40.0ab

65.1a

2.80a

16.0c

6.0c

12.5c

6.1a

Quan9311A/HB13002-50-9-7

88.7a

114.9a

27.9ab

12.1a

182.1bc

84.11ab

27.9ab

43.3a

65.4a

2.80a

22.9b

6.2a

13.2b

6.0a

Quan9311A/B5

87.7b

110.5b

28.5a

11.2ab

172.3c

48.39c

28.2a

20.8c

64.1a

2.67b

7.5d

5.9d

11.7d

4.8b

Fengliangyou4(CK)

88.0b

117.3a

24.9c

9.6b

203.7a

81.62b

27.5b

35.2b

64.5a

2.77a

29.2a

6.1bc

14.9a

5.9a

DTH Number of days to heading, PH plant height, PL panicle length, PN panicle number per plant, NGP number of grains per panicle, FER fertility of the spikelet (%), GW weight of 1000 grains, GY grains yield per plant, HR head rice rate (%), L/W ratio of length to width, CK chalky grain rate, CD chalkiness degree, AC amylose content, ASV alkali spreading value. a, b, c, d Means followed by the same letter are not significant at the 5 % significance level by the least significant difference test (LSD = 0.05)

The evaluation results of the agronomic and rice quality traits of hybrids derived from the selected NILs showed that most of traits were identical to those of the hybrids derived from the recurrent parent, Huahui938 (Table 1). Among them, the GY of improved hybrid Luohong4A/HB13002-9-7 was not significantly different from that of the control Luohong4A/Huahui938. In addition, all three improved hybrids had better rice quality with a higher HR and significantly lower CK and CD compared with Luohong4A/Huahui938. Furthermore, most of the agronomic traits of the three improved Quan9311A/NILs were identical to the control Quan9311A/Huahui938 except that Quan9311A/ HB13002-30-10 had a higher GW. Additionally, all three hybrids derived from Quan9311A had a better rice quality with a significantly lower chalky grain rate (CK). Compared to Fengliangyou4, a popular and outstanding hybrid variety in agricultural production, the hybrid Luohong4A/HB13002-9-7 showed similar GY but shorter DTH and lower PH. Meanwhile, the hybrid Quan9311A/HB13002-9-7 had a significantly higher GY and lower CK compared with Fengliangyou4 (Table 1). The BPH-resistant NILs and hybrids, which were identical to the recurrent parent and its derived hybrids with respect to the agronomic and rice quality traits, are more strongly desired.

Discussions

BPH has been one of the important factors constraining rice yield. As the area of cultivated hybrid rice varieties gradually expands around the world, their resistance to BPH is attracting increasing attention by rice researchers (Hasan et al. 2015). Numerous BPH resistance genes have been introduced and pyramided into elite rice varieties, which has resulted in strongly improved capacity of rice to endure damage caused by BPH (Myint et al. 2012; Qiu et al. 2012; Wan et al. 2013; Suh et al. 2011). With the adaptation of BPH to resistant varieties and the evolution of a new biotype of BPH (Fujita et al. 2013), different BPH resistance genes still need to be pyramided into multiple elite hybrid rice varieties to overcome these problems. In the present study, through molecular-marker assisted backcross (MAB) breeding, we successfully transferred two BPH-resistance genes, Bph14 and Bph15, into an elite restorer line Huahui938 to obtain three improved lines, which showed enhanced resistance to BPH compared with the controls. When these NILs were crossed with the CMS line with the same BPH resistance genes, the hybrids (homozygous genotype with resistance loci) were resistant against BPH. Some derived hybrids had higher yield and more desirable rice qualities and agronomic performance compared with the controls. Therefore, it is possible to develop hybrid rice with high BPH resistance and excellent agronomic performance in the future and to solve the problem of hybrid rice being susceptible to BPH (Horgan and Crisol 2013).

The effect of BPH resistance genes would be influenced by various genetic backgrounds (Qiu et al. 2012; Jairin et al. 2010). Some previous studies demonstrated that hybrids with heterozygous Bph14 and Bph15 showed moderate resistance to BPH (Hu et al. 2012; Hu et al. 2013). However, our results indicated that the heterozygote of these two genes was susceptible to BPH in some hybrid backgrounds at the seedling stage. In fact, BPH resistance genes with a partial dominant effect would show moderate resistance or would be susceptible to BPH in a heterozygous state under different genetic backgrounds (Liu et al. 2016). Therefore, it is essential to simultaneously stack Bph14 and Bph15 into male and female parents to guarantee hybrids with certain and durable resistance to BPH.

With respect to rice genetic improvement, developing NILs is the optimal approach to obtain modified lines with desired traits. Molecular marker-assisted selection (MAS) is a very powerful tool to accelerate the progress of developing NILs with pyramided resistance genes and to maintain the desirable characteristics of the recurrent parent. Numerous NILs have been developed with enhanced disease resistance, such as blast resistance, sheath blight resistance, and bacterial leaf blight resistance, under different genetic backgrounds (Miah et al. 2015; Khanna et al. 2015; Chen et al. 2014; Suh et al. 2013; Balachiranjeevi et al. 2015).

In previous studies in which NILs were developed, hundreds of RFLP or SSR markers were usually used for recovering and detecting the genetic background. It is time-consuming and low-efficiency work to identify polymorphism markers between the donor and recipient parent (Chen et al. 2000; Suh et al. 2011; Ahmed et al. 2016). However, it is easy to identify sufficient polymorphism SNP markers for background analysis due to the high-density and extensive marker positioning in an SNP array. In a comparative study estimating the similarity between the recurrent parent and the developed NILs, Khanna et al. (2015) found that the percent similarity was overestimated by SSR markers, and the background analysis using an SNP array was almost 300 times more cost effective and provided a more precise estimation due to higher resolution.

In this study, the genetic background of the improved NILs was analyzed using the SNP array RICE6K, which contains 5,102 SNP and InDel markers. We detected 550 SNP markers showing polymorphisms between Huahui938 and B5 in an efficient amount of time. Jiang et al. (2015) examined the genetic background recovery of developed lines using the same RICE6K array and obtained accurate results. Mi et al. (2016) obtained a modified 9311 line carrying stacked genes f5-n and S5-n with an RPG recovery rate higher than 99 % using RICE6K, and a higher density SNP array in the BC5 generation and the agronomic performance of those NILs did not differ from the recurrent parent 9311. Thus, as the cost of genotyping using an SNP array decreases, it will be possible to use this powerful tool to develop NILs in all breeding schemes in the near future.

In the present study, the hybrid combination Luohong4A/HB13002-50-9-7 exhibited BPH resistance, high yield and good rice quality similar to that of Fengliangyou4. We affirm that this hybrid can be used for rice production in the BPH epidemic region in southern China. The yield of Quan9311A/HB13002-50-9-7 was the highest among the tested combinations even though it showed no resistance against BPH at the seedling stage. We believe this can be used as a high yield hybrid for production in areas where BPH does not occur.

Conclusions

In this study, we successfully transferred both Bph14 and Bph15 into the CMS rice restorer line, and three BPH-resistance NILs were obtained. The results showed that when both male and female parents contained the same BPH resistance genes, the hybrids were resistant against BPH. The combination Luohong4A/HB13002-50-9-7 obtained in this study had high yield, BPH resistance, superior rice quality and desirable agronomic performance, showing a remarkable commercial potential for hybrid rice production in BPH epidemic areas.

Methods

Rice Materials and Breeding Scheme

Huahui938, an elite indica CMS rice restorer line with good combined abilities of yield, good rice quality and high blast resistance but susceptible to BPH, was used as the recurrent parent. B5, a highly resistant line whose resistance genes Bph14 and Bph15 were obtained from wild rice (Oryza officinalis), was used as the donor parent (Huang et al. 2001). Taichung Native 1 (TN1), a line highly susceptible to BPH, was used as the negative control to evaluate BPH resistance. Two CMS lines, Quan9311A and Luohong4A, were used as the maternal parents to produce the hybrid rice. Quan9311A was developed by the Quanyin Seed Company, Hefei, China, and has good combined abilities of yield and high rice quality but is susceptible to BPH. Luohong4A, which was developed by Wuhan University, Wuhan, China, harbors homozygous Bph14 and Bph15 loci and is resistant to BPH (Zhu et al. 2013). In addition, Fengliangyou4, which was developed by the Fengle Seed Company, Anhui province, China, and is an existing check variety for the registration of new rice varieties in China, was used as the control for BPH resistance and agronomic performance evaluation of hybrid rice in this study. The overall breeding scheme consisted of a recurrent backcrossing procedure including one crossing, three generations of backcrossing and four generations of self-fertilization, combined with MAS in each generation (Fig. 4). A cross was made between the recurrent parent Huahui938 and the donor parent B5. In backcrossing generations from BC1F1 to BC3F1, selected individuals with a phenotype similar to Huahui938 and heterozygous Bph14 and Bph15 loci were backcrossed to Huahui938. Three near-isogenic lines (NILs) bearing both homozygous Bph14 and Bph15 loci were generated from the BC3F2 segregation population. Finally, the RICE6K array was used to verify the background of the improved lines.
Fig. 4

Procedure for the development of NILs with homozygous Bph14 and Bph15 loci in the genetic background of Huahui938

DNA Extraction, PCR, Markers and Genotyping

Total genomic DNA was extracted from fresh rice leaves using the modified CTAB method following Dellaporta et al. (1983). PCR reactions were carried out as described by Jiang et al. (2015). PCR reactions were performed using a MyCycler™ thermal cycler (BIO-RAD USA) with 20 μl reaction mixture that contained 20 ng genomic DNA, 10 mM Tris-HCl (pH 9.0), 50 mM KCl, 2.5 mM MgCl2, 2 mM dNTPs, 10 μM each of the forward and reverse primers, and 1 unit of Taq DNA polymerase. The PCR amplification program consisted of one cycle of denaturation at 95 °C for 5 min, followed by 35 cycles at 95 °C for 30 s, 56 °C for 30 s, 72 °C for 45 s, with a final extension at 72 °C for 7 min. The InDel marker 76-2 (primer sequences F: 5′-GCACATACAGAAATGGTGAA-3′, R: 5′-GGCAAGGGACATGTAGTAAC-3′) linked to Bph14 was used to select positive individual plants with respect to the Bph14 locus in each generation (Du et al. 2009). The SSR marker MS5 (primer sequences F: 5′- TTGTGGGTCCTCATCTCCTC-3′, R: 5′-TGACAACTTGTGCAAGATCAAA-3′) linked to Bph15 (Yang et al. 2004) and the InDel marker InD4 (primer sequences F: 5′-AGAATGCTAAAGATGACTGAA-3′, R: 5′-AACGGTATTGTTCTTGTCTAA-3′), which was more tightly linked to Bph15 (Lv et al. 2014), were used to select individual positive plants in each generation. The PCR products were analyzed using 4 % denaturing polyacrylamide gel electrophoresis. In addition, the whole-genome single nucleotide polymorphism (SNP) array RICE6K was used to analyze the genetic background similarity of the selected NILs with respect to the recurrent parent Huahui938. This SNP array was developed based on Infinium technology, which contains 5102 SNP and insertion-deletion (InDel) markers evenly distributed on the 12 chromosomes of rice with an average density of 12 SNPs per 1 Mb (Yu et al. 2014). For each improved line, total DNA was extracted from 20 plants leaves. Genetic background similarity analysis was performed at the Life Science and Technology Center, China National Seed Group Co., LTD (Wuhan, China), according to Infinium HD Assay Ultra Protocol (http://www.illumina.com/).

BPH Bioassay for the Selected NILs and Their Hybrids

The BPH resistance evaluations of the selected NILs and their hybrids were conducted in a net house. Huahui938, Quan9311A, Fengliangyou4 and TN1 were used as susceptible controls, while Luohong4A and the donor parent B5 were used as the BPH resistant controls. The BPH samples used in the test were collected from the field and were continuously reared on TN1 in the laboratory at Huazhong Agricultural University (HZAU), Wuhan, China. The bioassay was performed using a modified seedling bulk test following the SSST (Velusamy et al. 1986; Horgan 2009). Thirty pre-germinated seeds of each entry, including the improved lines and controls with three replications, were evenly sown in 7 × 7 × 8 cm plastic plates. All entries were randomly arranged in a large pool. When the seedlings reached the second leaf stage, they were thinned to 20 plants per plate. At the third-leaf stage, the seedlings were infested with 2nd-3rd-instar BPH nymphs at a rate of 8–10 insects per seedling, and the water was maintained at a depth of approximately 0.5 cm above the root until the evaluation was completed. All seedlings were patted once, 24 h after the infestation, to evenly redistribute the nymphs. When all TN1 plants died, the other plants were examined and the following scores were given: 0 (no damage), 1 (very slight damage), 3 (the first and second leaf of most plants were yellowing), 5 (yellowing, nearly half of the plants had wilted or were dead), 7 (more than half of the plants were dead and the rest were seriously dwarfed) and 9 (all plants were dead) according to the modified criteria based on the Standard Evaluation System for Rice (IRRI 2002). An average resistance score of 0.1–1.9 was designated as highly resistant (HR), 2.0–3.9 as resistant (R), 4.0–5.9 as moderately resistant (MR), 6.0–7.9 as susceptible (S), and 8.0–9.0 as highly susceptible (HS) (IRRI 2002).

Evaluation of Agronomic and Grain Quality Traits

To evaluate the agronomic and rice quality traits, Huahui938, B5, three improved NILs and their derived hybrids from Quan9311A and Luohong4A were planted in a randomized complete block design with three replications at Wuhan, China, in the summer of 2015 under natural field conditions. Each plot consisted of three rows with 10 plants per row at a planting density of 16 cm between plants within a row and 20 cm between rows. The agronomic and rice quality traits were measured according to the standard evaluation system for rice (IRRI 2002). Five mature plants in the middle row were harvested for measurements. The agronomic traits evaluated included number of days to heading (DTH), plant height (PH), panicle length (PL), panicle number (PN), number of grains per panicle (NGP), fertility of the spikelet (FER), grain yield (GY), and 1000-grain weight (GW). The harvested seeds were stored at room temperature for three months at 14 % moisture content. The following grain quality traits were tested: head rice rate (HR), ratio of grain length to width (L/W), chalky grain rate (CK), chalkiness degree (CD), amylose content (AC) and alkali spreading value (ASV).

Data analysis

The background recovery percentage (BRP) was calculated using the following formula: BRP (%) = (R + 1/2H) × 100/P. In this formula, R, H, and P indicate the number of SNP markers homozygous for Huahui938, the number of markers that remained heterozygous, and the total number of polymorphic markers between Huahui938 and B5, respectively. One-way ANVOA and least significant difference (LSD) tests were performed using the SAS statistical software package (version 9.0; SAS Institute, Cary, NC).

Abbreviations

AC:

Amylose content

ASV:

Alkali spreading value

BPH:

Brown planthopper

BRP:

Background recovery percentage

CD:

Chalkiness degree

CK:

Chalky grain rate

CMS:

Cytoplasmic male sterility

CTAB:

Hexadecyl trimethyl ammonium bromide

DTH:

Number of days to heading

FER:

Fertility of the spikelet

GW:

Grain weight

GY:

Grain yield

HR:

Head rice rate

Indel:

Insertion-deletion

IRRI:

International Rice Research Institute

L/W:

Ratio of grain length to width

LSD:

Least significant difference tests

MAB:

Molecular marker-assisted backcross

MAS:

Marker-assisted selection

NGP:

Number of grains per panicle

NILs:

Near-isogenic lines

PCR:

Polymerase chain reaction

PH:

Plant height

PL:

Panicle length

PN:

Panicle number

RGSV:

Rice grassy stunt virus

RPG:

Recurrent parent genome

RRSV:

Rice ragged stunt virus

RWSV:

Rice wilted stunt virus

SES:

Standard evaluation system

SNP:

Single nucleotide polymorphism

SSR:

Simple sequence repeat

SSST:

Standard Seedbox Screening Test

TGMS:

Thermo-sensitive genetic male-sterile lines
