Iron deficiency responses in rice roots

  • Takanori Kobayashi1, 2,
  • Reiko Nakanishi Itai3 and
  • Naoko K. Nishizawa2Email author
Rice20147:27

https://doi.org/10.1186/s12284-014-0027-0

Received: 1 March 2014

Accepted: 22 September 2014

Published: 7 October 2014

Abstract

Iron (Fe) is an essential element for most living organisms. To acquire sparingly soluble Fe from the rhizosphere, rice roots rely on two Fe acquisition pathways. The first of these pathways involves Fe(III) chelators specific to graminaceous plants, the mugineic acid family phytosiderophores, and the second involves absorption of Fe2+. Key components in this response include enzymes involved in the biosynthesis of deoxymugineic acid (OsNAS1, OsNAS2, OsNAAT1, and OsDMAS1), the deoxymugineic acid efflux transporter (TOM1), the Fe(III)-deoxymugineic acid transporter (OsYSL15), and Fe2+ transporters (OsIRT1, OsIRT2, and OsNRAMP1). In whole roots, these proteins are expressed in a coordinated manner with strong transcriptional induction in response to Fe deficiency. Radial transport of Fe to xylem and phloem is also mediated by the mugineic acid family phytosiderophores, as well as other chelators and their transporters, including Fe(II)-nicotianamine transporter (OsYSL2), phenolics efflux transporters (PEZ1 and PEZ2), and citrate efflux transporter (OsFRDL1). Among these, OsYSL2 is strongly induced under conditions of Fe deficiency. Both transcriptional induction and potential feedback repression mediate the expressional regulation of the genes involved in Fe uptake and translocation in response to Fe deficiency. The transcription factors IDEF1, IDEF2, and OsIRO2 are responsible for transcriptional induction, whereas the ubiquitin ligases OsHRZ1 and OsHRZ2, as well as the transcription factors OsIRO3 and OsbHLH133, are thought to mediate negative regulation. Furthermore, IDEF1 and OsHRZs bind Fe and other metals, and are therefore candidate Fe sensors. The interacting functions of these regulators are thought to fine tune the expression of proteins involved in Fe uptake and translocation.

Keywords

Gene regulation Iron deficiency response Mugineic acid family phytosiderophores Transcription factor Transporter

Review

Iron (Fe) is an essential element for most living organisms, including all animals and plants. However, despite its high abundance in the Earth's crust, Fe is only slightly soluble in the soil under aerobic conditions, especially in alkaline calcareous soils (Marschner [1995]). To prevent Fe deficiency, rice plants possess a dual mechanism in which ferric iron [Fe(III)] is taken up as a complex with iron-chelating compounds, and ferrous ion (Fe2+) is taken up directly (Takagi [1976]; Römheld and Marschner [1986]; Ishimaru et al. [2006]). Excessive Fe uptake is highly deleterious, as it catalyzes the generation of reactive oxygen species. Thus, to optimize Fe uptake, genes responsible for Fe uptake and translocation are transcriptionally induced in response to low Fe availability, and repressed when sufficient Fe has been absorbed. Recent advances in molecular biology and bioinformatics linked to rice genome sequence data have markedly advanced our understanding of Fe deficiency responses at the molecular level. In this review, we summarize rice root responses to Fe deficiency, which consist of Fe uptake from the rhizosphere, Fe translocation to the xylem and phloem, and their expressional modulation by positive and negative regulators.

In spite of these root responses, rice is highly susceptible to Fe deficiency (Mori et al. [1991]). Insufficient Fe causes the plant disease Fe chlorosis, which is characterized by yellowing of new leaves and severely impacts grain yield. Rice is also a characteristic crop which contains low concentration of Fe in polished seeds, thus is disadvantageous as a major Fe supply in human diet. Understanding of the molecular components of Fe uptake and translocation and their regulation has paved the way to develop crops that are tolerant to Fe deficiency, both to improve food and biomass production, as well as to develop Fe-rich crops for improved human nutrition (reviewed in Kobayashi and Nishizawa [2012]; Bashir et al. [2013]; Masuda et al. [2013]).

Iron uptake from the rhizosphere

Takagi ([1976]) was the first to describe natural Fe(III) chelators secreted from the roots of graminaceous plants, which were designated as mugineic acid family phytosiderophores (MAs). The biosynthesis and secretion of MAs are unique to graminaceous plants. Römheld and Marschner ([1986]) classified plant Fe uptake mechanisms into two basic strategies: iron absorption through reduction (Strategy I) in non-graminaceous plants and iron absorption through chelation (Strategy II) in graminaceous plants. Since then, the molecular components of both strategies have been identified (Kobayashi and Nishizawa [2012]; Rodríguez-Celma et al. [2013]; Fourcroy et al. [2014]; Schmid et al. [2014]). Rice, being a graminaceous species, utilizes Strategy II (Figure 1A), but also possesses a partial Strategy I system (Figure 1B) (Ishimaru et al. [2006]).

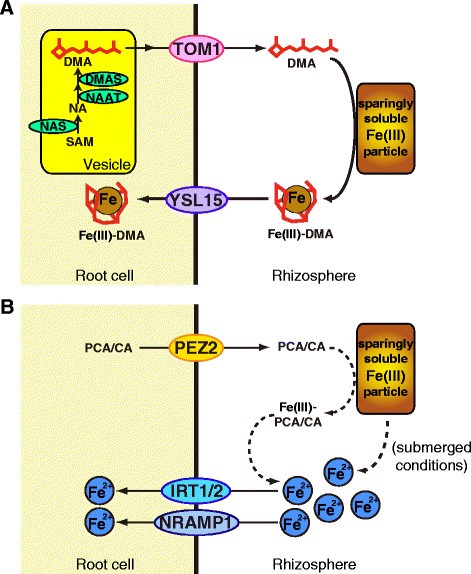

Figure 1

Fe acquisition systems in rice roots. A) Strategy II system. B) Partial Strategy I system. Ovals represent transporters and enzymes that play central roles in Fe uptake from the rhizosphere. All the indicated transporters and enzymes except PEZ2 are strongly induced in response to Fe deficiency. Broken lines indicate putative pathways. DMA, 2′-deoxymugineic acid, NA, nicotianamine, SAM, S-adenosyl-L-methionine; PCA, protocatechuic acid; CA, caffeic acid.

Among the nine types of MAs identified, young rice plants exclusively synthesize and secrete 2′-deoxymugineic acid (DMA) (Nakanishi et al. [2000]). All MAs share a conserved biosynthetic pathway from methionine to DMA (Mori and Nishizawa [1987]; Kawai et al. [1988]; Shojima et al. [1990]), which is mediated by nicotianamine synthase (NAS), nicotianamine aminotransferase (NAAT), and deoxymugineic acid synthase (DMAS) (Higuchi et al. [1999]; Takahashi et al. [1999]; Bashir et al. [2006]). In rice, the enzymes participating in this pathway include OsNAS1, OsNAS2, OsNAAT1, and OsDMAS1 (Table 1) (Higuchi et al. [2001]; Inoue et al. [2003], [2008]; Bashir et al. [2006]; Cheng et al. [2007]). Genes encoding enzymes involved in the methionine cycle are also transcriptionally induced to ensure a sufficient supply of methionine for DMA biosynthesis (Kobayashi et al. [2005]; Itai et al. [2013]).
Table 1

Rice genes responsible for Fe uptake and translocation, and their expression patterns under Fe deficiency



Fe deficiency response

Effects of regulators

Gene name

Function

Whole root

Microdissected

IDEF1

IDEF2

IRO2

HRZ1/2



24 h

7d

7d Ep

7d Co

7d VB

1d

2-7d

7d

6d

Cont.

7d

DMA biosynthesis for Fe(III)-DMA uptake/translocation

OsNAS1

Nicotianamine synthase

↑↑

↑↑

↑↑

(↓)c

↓↓

OsNAS2

Nicotianamine synthase

↑↑

↑↑

↑↑

↑↑

(↓)c

↓↓

OsNAS3

Nicotianamine synthase

↑↑

OsNAAT1

Nicotianamine aminotransferase

↑↑

↑↑

↑↑

↑↑

(↓)c

(↓)c

OsDMAS1

Deoxymugineic acid synthase

↑↑

↑↑

↑↑

↑↑

(↓)c

Transporters for Fe(III)-DMA uptake/translocation

TOM1

DMA efflux transporter

↑↑

↑↑

↑↑

↑↑

↑?d

(↓)c

(↓)

e

↓↓

OsYSL15

Fe(III)-DMA transporter

↑↑

↑↑

↑↑

↑↑

↓↓

OsYSL16

Fe(III)-DMA transportera

(↑)

(↓)

Methionine cycle for Fe(III)-DMA uptake/translocation

OsSAMS1

S -adenosyl-L-methionine synthetase

(↑)

OsSAMS2

S -adenosyl-L-methionine synthetase

(↑)

↑↑

(↑)

(↓)

MTN

Methylthioadenosine/S -adenosyl homocysteine nucleosidase

(↑)

↑↑

(↑)

OsMTK1

Methylthioribose kinase

b

↑↑

↑↑

(↓)

OsMTK2

Methylthioribose kinase

b

↑↑

↑↑

(↓)

OsIDI2

Methylthioribose-1-phosphate isomerase

↑↑

↑↑

DEP

Methylthioribulose-1-phosphate dehydratase-enolase-phosphatase

↑↑

↑↑

↑↑

(↑)

c

(↓)

OsIDI1/OsARD2

Acireductone dioxygenase

↑↑

↑↑

OsIDI1L/OsARD1

Acireductone dioxygenase

(↑)

(↓)

(↑)

(↓)

(↓)

OsIDI4

Aminotransferase catalyzing the synthesis of methionine?

↑↑

↑↑

↑↑

(↓)

OsAPT1

Adenine phosphoribosyltransferase

↑↑

↑↑

(↑)

(↓)

(↓)

PRPPS

Phosphoribosyl pyrophosphate synthetase

↑↑

↑↑

(↑)

c

(↓)

(↑)

(↓)

RPI

Ribose 5-phosphate isomerase

↑↑

↑↑

(↑)

FDH

Formate dehydrogenase

↑↑

↑↑

c

Transporters for ferrous Fe uptake/translocation

OsIRT1

Ferrous Fe transporter

↑↑

↑↑

↑↑

OsIRT2

Ferrous Fe transporter

↑↑

↑↑

↑↑

↑↑

n.d.

OsNRAMP1

Ferrous Fe transporter

↑↑

↑↑

↑↑

↑↑

OsNRAMP5

Ferrous Fe/manganese/cadmium transporter

(↓)

(↑)

(↑)

(↓)

(↓)

PEZ2

Phenolics efflux transporter

(↑)

(↓)

Transporters for Fe translocation

OsYSL2

Fe(II)/manganese(II)-NA transporter

↑↑

↑↑

↑↑

↑↑

(↑)

↑↑

e

↓↓

↓↓

ENA1

NA efflux transporter

↑↑

↑↑

(↑)

(↓)

(↓)

ENA2

NA efflux transporter

(↑)

(↑)

(↑)

n.d.

OsFRDL1

Citrate efflux transporter

(↑)

PEZ1

Phenolics efflux transporter

(↓)

(↓)

n.d.

Transporters for subcellular Fe sequestration

OsVIT1

Fe transporter into vacuole

OsVIT2

Fe transporter into vacuole

↓↓

↓↓

(↑)

MIT

Fe transporter into mitochondria

(↑)

n.d.

Gene regulation in response to Fe deficiency

IDEF1

Positive transcriptional regulator

(↓)

-

-

IDEF2

Positive transcriptional regulator

(↑)

-

OsIRO2

Positive transcriptional regulator

↑↑

↑↑

↑↑

↑↑

(↓)

-

OsIRO3

Transcriptional regulator (negative?)

↑↑

↑↑

↑↑

(↑)

(↓)

OsbHLH133

Negative transcriptional regulator

↑↑

n.d.

n.d.

n.d.

n.d.

n.d.

n.d.

n.d.

n.d.

n.d.

OsHRZ1

Negative regulator/ubiquitin ligase

↑↑

↑↑

(↑)

(↑)

n.d.

-

-

OsHRZ2

Negative regulator/ubiquitin ligase

↑↑

(↑)

-

-

OsHORZ1

Positive regulator?

(↑)

(↓)

IBP1.1

IDEF1 protector/trypsin inhibitor

(↑)

(↓)

↓↓

(↑)

IBP1.2

IDEF1 protector?/trypsin inhibitor

↓↓

OsRMC

Positive regulator?/receptor-like protein

(↓)c

(↑)

(↓)

(↓)

Functions indicated with a question mark have not been confirmed. Arrows indicate expressional responses: ↑↑, strongly upregulated; ↑, upregulated; (↑), weakly upregulated; →, no significant change; (↓), weakly downregulated; ↓, downregulated; ↓↓, strongly downregulated; n.d., not determined because of the lack of corresponding probe in the microarray. Arrows in boldface indicate expression confirmed by quantitative RT-PCR and/or Northern blotting experiments. The remaining expression data are based on microarray results as follows: Whole root 24 h, root under 24-h Fe deficiency (Itai et al. [2013]); Whole root 7d, root under 7-d Fe deficiency (Ogo et al. [2008]); Microdissected 7d Ep, 7d Co, and 7d VB, rice root segments (Ep, epidermis plus exodermis; Co, cortex; VB, vascular bundle) under 7-d Fe deficiency (Ogo et al. [2014]); IDEF1 1d and 2-7d, roots from an IDEF1 induction line vs. non-transformant under 1-d and 4-d Fe deficiency, respectively (Kobayashi et al. [2009]); IDEF2 7d, roots from an IDEF2 knockdown line vs. non-transformant under 7-d Fe deficiency (Ogo et al. [2008]); IRO2 6d, roots from an IRO2 knockdown line vs. non-transformant under 6-day Fe deficiency (Ogo et al. [2007]); HRZ1/2 Cont. and 7d, roots from OsHRZ1 and OsHRZ2 knockdown lines vs. non-transformant under Fe-sufficient control condition and 7-day Fe deficiency treatment, respectively (Kobayashi et al. [2013]).

aOsYSL16 is also proposed as a copper-NA transporter involved in internal copper distribution (Zheng et al. [2012]).

bThe probe used for Northern blotting analysis (Kobayashi et al. [2005]) may not have differentiated between OsMTK1 and OsMTK2.

cDownregulation was observed in the IDEF1 induction lines, but upregulation was not observed in the IDEF1 knockdown lines, suggesting that negative regulation by IDEF1 may be a secondary effect (Kobayashi et al. [2009]).

dDownregulation was observed in both the IDEF1 induction and knockdown lines. Positive regulation by IDEF1 may be more plausible, because downregulation in the knockdown lines was more dominant and may reflect more direct effects than overexpression lines.

eConfirmation by quantitative RT-PCR has been conducted using plants grown on calcareous soil (Ogo et al. [2011]), but not with hydroponically grown plants.

In barley, the secretion of MAs follows a diurnal pattern, with a sharp peak in the morning (Takagi et al. [1984]). MAs are thought to be synthesized in vesicles that can be observed within root cells; these vesicles are swollen in the early morning and shrink by the evening. These vesicles may therefore be putative sites of MAs biosynthesis and storage until secretion in the morning, and thus are designated MAs-vesicles (Nishizawa and Mori [1987]; Negishi et al. [2002]). Rice also shows diurnal fluctuations in MAs secretion and the presence of similar vesicles, although they are much less obvious than in barley roots (Nozoye et al. [2014]), presumably due to the much lower amounts of MAs synthesized in rice (Mori et al. [1991]; Kanazawa et al. [1994]). In Fe-deficient rice root cells, tagging with green fluorescent protein (GFP) revealed that OsNAS2 is localized to small vesicles, presumably the MAs-vesicles, and that these vesicles move dynamically within the cell (Nozoye et al. [2014]). Mutation of either the tyrosine or di-leucine motif conserved in all known NASs disrupts OsNAS2-GFP vesicle formation and movement, and abolishes normal NAS function (Nozoye et al. [2014]). The MAs are thought to be transported out of the MAs-vesicle to the cytosol near the periphery of root cells before subsequent secretion to the rhizosphere. In rice, TOM1 transporter mediates the DMA secretion through the plasma membrane (Nozoye et al. [2011]). Transcript level of TOM1, as well as genes involved in DMA biosynthesis such as OsNAS1, OsNAS2, and OsNAAT1, shows daily fluctuations (Nozoye et al. [2004], [2011]). This regulation, in addition to the formation and trafficking of MAs-vesicles, is thought to contribute to the observed pattern of DMA secretion in the morning.

The Fe(III)-DMA complex formed in the rhizosphere is then taken up into root cells via the OsYSL15 transporter (Figure 1A) (Inoue et al. [2009]; Lee et al. [2009]). Transcript abundance of OsYSL15 also shows daily fluctuation (Inoue et al. [2009]), possibly supporting efficient Fe uptake. Moreover, expression of all the above-mentioned enzymes and transporters for DMA-based Fe uptake is strongly up-regulated under conditions of Fe deficiency to meet the increased demand of Fe uptake (Table 1). OsYSL16 is another Fe(III)-DMA transporter that is expressed in the plasma membrane of root epidermis/exodermis (Kakei et al. [2012]; Lee et al. [2012]), and therefore may also mediate Fe(III)-DMA uptake from the rhizosphere. However, in contrast to the strong induction of OsYSL15, expression of the OsYSL16 gene is constitutive and only slightly induced under conditions of Fe deficiency, suggesting that Fe(III)-DMA uptake is predominantly mediated through OsYSL15.

In addition to Fe(III)-DMA uptake, rice also possesses the components of an Fe2+ uptake system (Figure 1B) (Ishimaru et al. [2006]). The epidermis and exodermis of rice roots express various Fe2+ transporters in the plasma membrane, including OsIRT1, OsIRT2, OsNRAMP1, and OsNRAMP5 (Ishimaru et al. [2006], [2012]; Takahashi et al. [2011]; Ogo et al. [2014]). Among these, OsIRT1 is thought to be the primary transporter involved in Fe2+ uptake (Ishimaru et al. [2006]). The transcript levels of the OsIRT1, OsIRT2, and OsNRAMP1, but not OsNRAMP5, are strongly upregulated under conditions of Fe deficiency (Table 1). OsNRAMP5 mediates the predominant pathway for manganese and cadmium uptake, but has relatively small contribution to Fe uptake under Fe-deficient conditions (Ishikawa et al. [2012]; Ishimaru et al. [2012]; Sasaki et al. [2012]).

In the Strategy I system utilized by non-graminaceous plants, Fe2+ uptake is coupled to ferric-chelate reductase activity on the root surface, which is strongly induced under conditions of Fe deficiency (Römheld and Marschner [1986]). However, rice roots show very low ferric-chelate reductase activity with no induction response to Fe deficiency (Ishimaru et al. [2006]), thus it lacks complete Strategy I system. This is likely because paddy rice has adapted to anaerobic conditions in which Fe2+ is abundant, making direct uptake without active ferric-chelate reduction sufficient for Fe acquisition.

Strategy I plants secrete protons and various phenolic compounds into the rhizosphere under conditions of low Fe availability; this serves to increase Fe solubility and maintain ferric-chelate reductase activity (Römheld and Marschner [1986]; Rodríguez-Celma et al. [2013]; Fourcroy et al. [2014]; Schmid et al. [2014]). Rice also possesses phenolics efflux transporters (PEZ1 and PEZ2) (Ishimaru et al. [2011]; Bashir et al. [2011a]), among which PEZ2 is expressed in the plasma membrane of root epidermis/exodermis and is thought to be responsible for the secretion of protocatechuic acid and caffeic acid into the rhizosphere (Bashir et al. [2011a]; Ogo et al. [2014]). These phenolic compounds possess chemical properties to chelate and reduce Fe in vitro (Yoshino and Murakami [1998]), which may contribute to Fe2+ uptake, although this effect may be limited as the PEZ2 transcript shows little induction under conditions of Fe deficiency (Table 1).

Translocation of iron to the shoots

Following uptake from the rhizosphere into the root epidermis/exodermis, Fe is transported toward the vascular bundle for translocation to the shoots via xylem and phloem. This radial transport system occurs through both symplasmic and apoplasmic pathways, but the latter pathway is impeded by two Casparian strips in the exodermis and endodermis (Enstone et al. [2002]). To avoid Fe toxicity and facilitate its transport, the greater portions of both ferric and ferrous cellular Fe are chelated. In rice, DMA, nicotianamine (NA), and citric acid are thought to be the dominant Fe chelators. Figure 2 depicts the Fe translocation in vascular cells and possible involvement of Fe chelators and transporters.
Figure 2

Fe translocation in vascular cells of rice roots. Molecules involved in xylem and phloem loading of Fe. Ovals represent transporters. Putative involvement of transporters and Fe-chelates in Fe translocation is indicated by question marks. Red arrows with broken lines indicate translocation of Fe-chelates.

Under Fe-deficient conditions, the enzymes and transporters responsible for Fe uptake are induced not only in the epidermis/exodermis, but also in the cortex and vascular bundle (Table 1) (Inoue et al. [2003], [2008], [2009]; Bashir et al. [2006]; Ishimaru et al. [2006]; Lee et al. [2009]; Nozoye et al. [2011]; Ogo et al. [2014]), where they are thought to be involved in Fe transport to shoot tissues. DMA has been detected in rice xylem and phloem sap (Mori et al. [1991]; Kakei et al. [2009]). Moreover, the Fe(III)-DMA complex has been identified as the primary chemical form of Fe in phloem sap (Nishiyama et al. [2012]). These findings indicate that DMA is responsible not only for Fe uptake from the rhizosphere, but also for internal Fe translocation. OsYSL15 and OsYSL16 are expressed in vascular bundles, where they are thought to transport Fe(III)-DMA for phloem Fe transport (Inoue et al. [2009]; Lee et al. [2009], [2012]; Kakei et al. [2012]).

NA is a precursor of DMA, and is biosynthesized by the NAS enzyme in all plant species analyzed to date, including non-graminaceous species (Shojima et al. [1989]; reviewed by Hell and Stephan [2003]; Curie et al. [2009]). NA functions as a potent chelator of Fe and other divalent metals, facilitating their translocation within the plant while suppressing their toxicity. In rice, NA is biosynthesized by three NAS enzymes (OsNAS1, OsNAS2, and OsNAS3). Both OsNAS1 and OsNAS2 expression are induced in whole roots in response to Fe deficiency, whereas OsNAS3 expression is weaker and detected mainly in the vascular bundle, suggesting a role in Fe translocation (Inoue et al. [2003]). The OsYSL2 transporter is responsible for Fe(II)-NA and manganese(II)-NA transport across the plasma membrane, and plays a crucial role in phloem-mediated Fe distribution (Koike et al. [2004]; Ishimaru et al. [2010]). The NA efflux transporters ENA1 and ENA2 (Nozoye et al. [2011]) are thought to be responsible for NA extrusion to the apoplast or intracellular compartments for redistribution of Fe. The expression of OsYSL2 and ENA1 are strongly induced under conditions of Fe deficiency (Table 1) (Koike et al. [2004]; Lee et al. [2009]; Ishimaru et al. [2010]; Nozoye et al. [2011]; Ogo et al. [2014]).

Citrate is an Fe(III) chelator and is thought to play a dominant role in xylem Fe transport in non-graminaceous plants (Rellán-Álvarez et al. [2010]). In rice, the OsFRDL1 transporter mediates citrate efflux into the xylem for efficient Fe translocation (Yokosho et al. [2009]). OsFRDL1 is specifically expressed in root pericycle cells, with no apparent induction under conditions of Fe deficiency (Table 1) (Inoue et al. [2004]; Yokosho et al. [2009]; Ogo et al. [2014]).

The recent identification of the plasma membrane-localized protocatechuic acid transporters PEZ1 and PEZ2 indicated that phenolics are also involved in Fe utilization within the rice plant (Ishimaru et al. [2011]; Bashir et al. [2011a]). PEZ1 is expressed specifically in the vascular bundle, while PEZ2 is expressed in the epidermis/exodermis, cortex, and vascular bundle (Ishimaru et al. [2011]; Bashir et al. [2011a]; Ogo et al. [2014]). Both PEZ1 and PEZ2 expression are only moderately induced under conditions of Fe deficiency in vascular bundles. Knockdown or knockout mutants of either PEZ1 or PEZ2 expression show decreased amounts of protocatechuic acid and caffeic acid, as well as decreased Fe concentrations, in xylem sap.

As xylem is an apoplasmic space, Fe must be effluxed out of the cell for xylem loading, after passing through the Casparian strip at the endodermis. The transporter responsible for this Fe efflux has yet to be identified in plants, although the ferroportin 1/iron-regulated 1 protein identified in Arabidopsis thaliana (AtFPN1/AtIREG1) is a likely candidate (Morrissey et al. [2009]) for the Fe2+ efflux transporter. The effluxed Fe would be rapidly chelated either as ferrous form or ferric form after chemical or enzymatic oxidization. On the other hand, Fe2+ transport into the cytosol might occur via OsIRT1, OsIRT2, or OsNRAMP1, because expression of these transporters are induced under Fe deficiency in the vascular bundle in addition to the epidermis/exodermis and cortex (Table 1) (Ishimaru et al. [2006]; Ogo et al. [2014]).

The subcellular transport of Fe is crucial for cellular function, and can also affect Fe translocation. As vacuoles constitute a large proportion of the total cellular space, vacuolar Fe transport is thought to substantially affect Fe flux. OsVIT1 and OsVIT2 are thought to transport Fe across the tonoplast into the vacuole in rice (Zhang et al. [2012]). The mitochondrial iron transporter (MIT) transports Fe into mitochondria, and disruption of this gene is lethal (Bashir et al. [2011b]). Although OsVIT1, OsVIT2, and MIT expression are repressed under conditions of Fe deficiency (Table 1) (Bashir et al. [2011b]; Zhang et al. [2012]), the contribution of these transporters to root Fe flux is not well understood.

Regulation of root iron responses

As reviewed above, the levels of expression of numerous rice genes involved in Fe uptake and translocation are strongly induced under conditions of Fe deficiency at the transcriptional level. Highly conserved temporal and spatial patterns of expression are observed, especially with regard to genes involved in DMA-based Fe uptake (Kobayashi et al. [2005]; Itai et al. [2013]; Ogo et al. [2014]). These Fe deficiency responses are mediated by several regulators, which are summarized in Figure 3.
Figure 3

Regulation of Fe deficiency responses in rice roots. Ovals indicate regulatory proteins. Boxes indicate proteins responsible for Fe uptake and translocation. All depicted proteins except IDEF1, IDEF2, and OsHORZ1 are transcriptionally induced in response to Fe deficiency. Broken lines indicate putative pathways. Line colors indicate the type of regulation: black lines, transcriptional regulation; pink lines, IDEF1 protein degradation and its inhibition; red lines, unknown mechanism of regulation occurring primarily under Fe sufficiency, which may involve protein ubiquitination by OsHRZs; blue lines, putative Fe sensing by IDEF1 and OsHRZs via direct binding of Fe and other metals; green line, putative Fe sensing by IDEF2 through an unknown mechanism.

IDEF1 and IDEF2 are transcription factors that specifically bind the Fe deficiency-responsive cis-acting elements IDE1 and IDE2, respectively (Kobayashi et al. [2007]; Ogo et al. [2008]). IDE1 and IDE2 have been identified from the barley Fe deficiency-inducible gene IDS2, but they are also able to function in various other species, including rice and non-graminaceous plants (Kobayashi et al. [2003], [2004]). IDEF1 and IDEF2 positively regulate the expression of subsets of Fe deficiency-induced genes with relatively little overlap (Kobayashi et al. [2007], [2009]; Ogo et al. [2008]). IDEF1 regulates most genes known to be involved in Fe(III)-DMA and Fe2+ uptake, as well as Fe translocation, especially during the early stages of Fe deficiency. IDEF2 regulates OsYSL2 and other Fe deficiency-inducible genes which might be involved in Fe translocation (Table 1, Figure 3). At later stages of Fe deficiency, IDEF1 shifts its pattern of regulation, with decreased impact on Fe uptake-related genes (Table 1) (Kobayashi et al. [2009]). Analysis of transgenic rice plants with induced or repressed expression of IDEF1 revealed a positive correlation between IDEF1 expression level and Fe deficiency tolerance during the early stages of Fe deficiency, but not after prolonged deficiency (Kobayashi et al. [2007], [2009], [2013]). IDEF2 knockdown results in aberrant Fe distribution between roots and shoots (Ogo et al. [2008]), whereas IDEF1 disruption does not appear to affect Fe distribution among plant organs (Kobayashi et al. [2007], [2013]). Notably, neither IDEF1 nor IDEF2 is induced by Fe deficiency (Kobayashi et al. [2007], [2009], [2010]; Ogo et al. [2008]; Itai et al. [2013]), suggesting their potential roles in sensing upstream signaling in the Fe deficiency response cascade (Figure 3). Two homologous Bowman–Birk trypsin inhibitors, designated IBP1.1 and IBP1.2, were found to interact with IDEF1 in yeast two-hybrid assay (Zhang et al. [2014]). Both IBP1.1 and IBP1.2 expression are induced by Fe deficiency and positively regulated by IDEF1 (Table 1) (Zhang et al. [2014]). Using a transient expression system in rice protoplast and an in vitro experiment, IBP1.1 was found to protect IDEF1 protein from degradation which was deduced to be mediated via the 26S proteasome pathway (Zhang et al. [2014]). These results suggest that IBP1.1 fine tunes IDEF1 protein expression for optimal function during Fe deficiency (Figure 3). Although it is not known whether IBP1.2 also inhibits IDEF1 degradation, IBP1.2 might also regulate IDEF1 function redundantly. Alternatively, IBP1.1 and IBP1.2 might participate in regulating IDEF1 function in different stages of Fe deficiency, because the Fe deficiency-induced expression of IBP1.1 and IBP1.2 shows different time-course properties; IBP1.1 expression is higher at day 1 of Fe deficiency compared with day 7, whereas IBP1.2 expression is higher at day 7 of Fe deficiency (Zhang et al. [2014]).

Three basic helix-loop-helix transcription factors, OsIRO2, OsIRO3 and OsbHLH133, are involved in Fe deficiency response in rice (Figure 3) (Ogo et al. [2006], [2007], [2011]; Zheng et al. [2010]; Wang et al. [2013]). These factors are transcriptionally induced under conditions of Fe deficiency; they have been found and characterized from the Fe deficiency-induced genes in microarray analyses (Ogo et al. [2006]; Zheng et al. [2010]; Wang et al. [2013]). OsIRO2 is a positive regulator of most genes known to be involved in Fe(III)-DMA uptake and translocation (Table 1, Figure 3) (Ogo et al. [2007], [2011]). Overexpression of OsIRO2 enhances DMA secretion (Ogo et al. [2007]) and confers substantial tolerance to low Fe availability in calcareous soil, significantly improving both plant biomass and seed yield (Ogo et al. [2011]). Expression of OsIRO2 itself is positively regulated by IDEF1, forming a transcriptional cascade enhancing the expression of genes involved in Fe(III)-DMA uptake and translocation (Figure 3) (Kobayashi et al. [2007], [2009]). In contrast, OsIRO3 and OsbHLH133 are thought to negatively regulate Fe deficiency responses (Zheng et al. [2010]; Wang et al. [2013]). OsIRO3 overexpression lines suggest that this factor negatively regulates the Fe deficiency-inducible genes OsIRO2, OsNAS1, OsNAS2, OsYSL15, OsIRT1, and OsNRAMP1 (Zheng et al. [2010]). However, OsIRO3 knockdown or knockout studies required to clarify the precise function of this protein have yet to be reported. Microarray results suggested that OsIRO3 expression may be positively regulated by IDEF1 (Table 1). OsbHLH133 negatively regulates Fe translocation from root to shoot (Wang et al. [2013]). OsbHLH133 knockout mutants show slightly higher expression of some Fe deficiency-inducible genes, including OsNAS1, OsNAS2, TOM1, OsYSL15, OsNRAMP1, and OsYSL2, mainly under Fe-sufficient conditions (Wang et al. [2013]).

DNA sequences specifically recognized by IDEF1, IDEF2, and OsIRO2 have been identified biochemically (Kobayashi et al. [2007]; Ogo et al. [2006], [2008]). Recent in silico prediction of cis-sequences over-represented in Fe deficiency-induced gene promoters revealed that the IDEF1-, IDEF2-, and OsIRO2-binding sequences are enriched within the 500-bp promoter regions of Fe deficiency-induced genes (Kakei et al. [2013]; Ogo et al. [2014]). The enrichment of IDEF1-binding sequences (the core sequence of which is CATGC) is particularly remarkable, strongly suggesting the importance of IDEF1 in the Fe deficiency response. The simulation also predicted enrichment of novel candidate cis-sequences, such as ACGTACGT (designated FAM1 for Fe deficiency-associated motif 1) and AGCTAGCT (designated DCEp1 for putative downstream core element 1), as well as common regulatory sequences, such as TATA-box and upstream TFIIB-recognition elements near the transcription start sites of Fe deficiency-inducible genes (Kakei et al. [2013]). Regulatory proteins interacting with these sequences may play important roles in Fe deficiency responses.

IDEF1 binds ferrous Fe and other divalent metals, such as zinc (Zn) and nichel, via its histidine-asparagine repeats and proline-rich regions (Kobayashi et al. [2012]). In rice, deletion of these metal-binding regions abolishes the ability of overexpressed IDEF1 to transactivate downstream genes during the early stages of Fe deficiency (Kobayashi et al. [2012]). These results suggest that IDEF1 may function as a sensor of Fe deficiency, in which the signal detection may be determined by the relative concentrations of Fe vs. other metals.

Recently, another kind of Fe-binding regulators, OsHRZ1 and OsHRZ2, have been identified (Kobayashi et al. [2013]) from the Fe deficiency-induced genes listed in previous microarray analysis (Ogo et al. [2006]). OsHRZ1 and OsHRZ2 share hemerythrin domains that bind Fe and Zn (Kobayashi et al. [2013]), suggesting that they are candidate Fe sensors. OsHRZ1 and OsHRZ2 also possess protein ubiquitination activity presumably mediated by RING Zn-finger domains, which are deduced to be involved in protein degradation or modification, even though the target proteins for ubiquitination have not been clarified (Kobayashi et al. [2013]). In addition, OsHRZ1 and OsHRZ2 also possess CHY and CTCHY Zn-finger domains that may mediate transcriptional or post-transcriptional gene regulation. Transgenic rice lines subjected to OsHRZ1 and OsHRZ2 knockdown show substantial tolerance to low Fe availability, and accumulate large amounts of Fe in shoots and seeds irrespective of Fe nutritional conditions. These knockdown lines also show enhanced expression of Fe deficiency-inducible genes involved in Fe uptake and/or utilization even under Fe-sufficient conditions, but this enhancement is much less obvious under prolonged Fe deficiency (Table 1) (Kobayashi et al. [2013]). These results indicate that OsHRZ1 and OsHRZ2 are negative regulators of various Fe deficiency-inducible genes mostly under Fe sufficiency (Figure 3). OsHRZ1 and OsHRZ2 may sense Fe signals via direct binding of Fe and Zn, and prevent excess Fe uptake under conditions of Fe sufficiency. Both OsHRZ1 and OsHRZ2 expression are induced under conditions of Fe deficiency and are positively regulated by IDEF1, forming a negative feedback loop of the IDEF1 pathway (Figure 3). In Arabidopsis, the OsHRZ homolog BRUTUS (BTS) interacts indirectly with the OsIRO3 homolog POPEYE (PYE) by binding another subset of basic helix-loop-helix transcription factors (Long et al. [2010]). BTS and PYE have been identified from Fe deficiency-induced genes in pericycle of Arabidopsis roots (Long et al. [2010]). BTS knockdown show enhanced tolerance to Fe deficiency, whereas PYE knockout results in susceptibility to Fe deficiency. PYE negatively regulates a subset of Fe translocation-related genes. Whether BTS is involved in this pathway has not been clarified (Long et al. [2010]).

In addition to OsHRZ1 and OsHRZ2, rice possesses another protein carrying a hemerythrin domain, designated OsHORZ1, which lacks other domains conserved in OsHRZs (Kobayashi et al. [2013]). OsHORZ1 knockdown show increased susceptibility to Fe deficiency and repression of Fe deficiency-inducible genes (Kobayashi et al. [2013]). Thus, OsHORZ1 appears to possess a function opposite to OsHRZs. This function may be attributed to domain characteristics of OsHORZ1 that may antagonize OsHRZ function (Figure 3). OsHORZ1 expression shows only slight induction in response to Fe deficiency (Table 1) (Kobayashi et al. [2013]).

In addition to specific regulatory interactions, the expression of Fe deficiency-inducible genes is also affected by various plant hormones, such as ethylene, auxin, gibberellin, jasmonic acid and abscisic acid. Ethylene precursor treatment enhances the expression of OsNAS1, OsNAS2, OsYSL15, and OsIRT1 under both Fe sufficiency and deficiency, and this enhancement may be mediated by the OsIRO2 pathway (Wu et al. [2011]). Knockout of a transcription factor involved in auxin response, OsARF12, also affects expression of some Fe deficiency-induced genes including OsIRT1 in roots (Qi et al. [2011]). Gibberellin and jasmonic acid induce OsIRO2 and IBP1 expression, respectively (Komatsu and Takasaki [2009]; Yoshii et al. [2010]). A jasmonic acid-induced receptor-like protein (OsRMC) that negatively regulates jasmonic acid-mediated root development (Jiang et al. [2007]) has recently been identified as a positive regulator of the Fe deficiency-inducible genes OsNAS1, OsNAS2, OsNAAT1, OsDMAS1, OsYSL15, OsIRT1, and OsIRO2 (Yang et al. [2013]). OsRMC expression is transcriptionally induced by jasmonic acid and during the early stages of Fe deficiency, but is repressed under prolonged Fe deficiency (Table 1) (Jiang et al. [2007]; Yang et al. [2013]). On the other hand, some IDEF1-induced genes activated in later stages of Fe deficiency are also regulated by abscisic acid (Kobayashi et al. [2009]). In fact, IDEF1 belongs to the ABI3 (B3) transcription factor family, involved in mediating the abscisic acid response (Kobayashi et al. [2007]).

In Strategy-I plants, systemic Fe signal derived from shoots is thought to determine whether Fe deficiency response in roots takes place (Giehl et al. [2009]; García et al. [2013]). This signal is proposed to be transmitted from shoot to root via phloem, locating upstream of the induction system of Fe deficiency-responsive gene expression mediated by auxin and ethylene (García et al. [2013]). Mechanism of this systemic regulation is less understood in rice, although the existence of similar regulation has been suggested (Enomoto et al. [2009]). Thus, the Fe deficiency response is a complicated process that reflects various input signals to maintain adequate amounts of available Fe for cellular activities.

Conclusions

Rice responds to low Fe availability by inducing enzymes, transporters, and regulators that participate in Fe uptake from the rhizosphere and Fe translocation within the plant body. Recent studies demonstrated that rice utilizes both classical DMA-based Fe uptake and direct Fe2+ uptake. Research has also elucidated the function of DMA in internal Fe translocation, in addition to its known role in Fe uptake. The differential spatial expression of genes responsible for Fe uptake and translocation in response to Fe deficiency is highly coordinated and is well correlated with their physiological functions. In addition to positive regulation of these genes at the transcriptional level, negative regulation at both the transcriptional and translational levels may also function in fine tuning the Fe deficiency response. Although the Fe-sensing mechanism remains unclear, further characterization of IDEF1 and OsHRZs may in fact consolidate their respective roles as Fe sensors. Despite these advances in our understanding, a potentially large proportion of the molecules involved in intercellular and subcellular Fe movement have not yet been identified. Further investigation into these issues will help to develop novel tools for producing Fe-efficient and Fe-fortified crops with increased versatility.

Authors' contributions

TK and RNI analyzed the microarray data. TK wrote the manuscript with critical revision by RNI and NKN. All of the authors read and approved the manuscript.

Declarations

Acknowledgments

This research was supported by the Japan Science and Technology Agency via grants awarded through the PRESTO program (to TK) and the ALCA program (to NKN). NKN also received a Grant-in-Aid from the Ministry of Education, Culture, Sports, Science, and Technology (#23248011).

Authors’ Affiliations

(1)
Japan Science and Technology Agency, PRESTO
(2)
Research Institute for Bioresources and Biotechnology, Ishikawa Prefectural University
(3)
Graduate School of Agricultural and Life Sciences, The University of Tokyo
