CRISPR-Cas System, a Possible “Savior” of Rice Threatened by Climate Change: An Updated Review

Abstract

Climate change has significantly affected agriculture production, particularly the rice crop that is consumed by almost half of the world’s population and contributes significantly to global food security. Rice is vulnerable to several abiotic and biotic stresses such as drought, heat, salinity, heavy metals, rice blast, and bacterial blight that cause huge yield losses in rice, thus threatening food security worldwide. In this regard, several plant breeding and biotechnological techniques have been used to raise such rice varieties that could tackle climate changes. Nowadays, gene editing (GE) technology has revolutionized crop improvement. Among GE technology, CRISPR/Cas (Clustered Regularly Interspaced Short Palindromic Repeats/CRISPR-associated protein) system has emerged as one of the most convenient, robust, cost-effective, and less labor-intensive system due to which it has got more popularity among plant researchers, especially rice breeders and geneticists. Since 2013 (the year of first application of CRISPR/Cas-based GE system in rice), several trait-specific climate-resilient rice lines have been developed using CRISPR/Cas-based GE tools. Earlier, several reports have been published confirming the successful application of GE tools for rice improvement. However, this review particularly aims to provide an updated and well-synthesized brief discussion based on the recent studies (from 2020 to present) on the applications of GE tools, particularly CRISPR-based systems for developing CRISPR rice to tackle the current alarming situation of climate change, worldwide. Moreover, potential limitations and technical bottlenecks in the development of CRISPR rice, and prospects are also discussed.

Introduction

Food security is being challenged by several factors including but not limited to climate change. It is one of the biggest challenges being faced by humanity not only in this era but can also probe the future generations, if not resolved. It is estimated that a huge chunk of world’s population does not have access to enough food for their survival for years, and about two million people are currently facing nutrient deficiency, leading to their stunted growth, as well (Ahmad et al. 2021a, b, c). In such a critical situation, rice (Oryza sativa L.), being one of the major food crops and a staple food of almost half of the world’s population, can play a pivotal role in global food security and can also be a key solution provider. However, about 90% of its cultivation is happening in Asian countries, which seems more vulnerable to changing climatic conditions. The japonica and indica sub-species of rice are dominant in the rice cultivation system, however, indica rice holds more share in rice market (Uyeh et al. 2021). It is estimated that the world’s population can rise to 8.5 billion by 2030, and about 25% increase in rice production would be required to meet the global food by then (Ahmad et al. 2021a, b, c). Whereas climate changes such as severe drought, heat, salinity, cold, deviation in precipitation pattern, increasing diseases and insect pest attacks are posing serious effects on both rice yield and its nutritional quality. For instance, it is projected that the temperature would rise by 8℃, the average drought index will be 129, which is 52.45 now, and the sea level could also rise by 2100 that may cause food havoc (Li et al. 2009). Moreover, every degree increase in temperature could increase 3% and 7% average precipitation and humidity, respectively, that would promote diseases and insect attacks on the crops (Rezvi et al. 2022). Consequently, the world may suffer with impaired food production system, huge yield losses, and ultimately global food insecurity.

Rice is highly sensitive to climate change as it requires optimum irrigation and a suitable temperature to grow normally. It is reported that 1℃ temperature increase could decrease paddy yield by up to 3.44%. While the same increase in precipitation could decrease 0.12% and 0.21% yield and crop harvest, respectively (Alam et al. 2011). So, as a matter of concern, it is reported that the Malaysian granary area’s temperature could increase from 0.3℃ to 0.5℃ along with increased precipitation from 133 to 200 mm (Firdaus et al. 2020). Ancha (2012) has also described that the Cambodian climate could face a 2.5℃ and 8.3% increase in temperature and rainfall, respectively, which would lead to humid environments in rainy seasons and lower humidity in dry seasons. Therefore, swiftly changing climatic scenario has become a central concern for the whole agricultural production system, especially rice, to ensure current and future global food security. Thus, being a major food crop, new climate smart rice cultivars should be developed that could withstand changing climatic conditions to feed the ever-growing human population and to end hunger, globally (Arunrat et al. 2020; Hussain and Ahmad 2022; Riaz et al. 2022).

In this regard, classical plant breeding has not only contributed in the past but also played a crucial role in current rice breeding programs for its improvement (Fiaz et al. 2021; Patel et al. 2020). Whereas the utilization of conventional plant breeding techniques (CPBTs) for crop improvements is limiting with the development of new plant breeding technologies (NPBTs), which are more efficient, robust, cheaper, and less time-consuming to produce promising results as compared to CPBTs. In addition, modern problems like rapid climate change, soil degradation, pollutant accumulation, and altered rainfall pattern also restrict the application of CPBTs due to their low efficiency and slow pace (Ahmad et al. 2021a, b, c). By keeping in view, the recent environmental challenges and high food demand, NPBTs especially gene editing (GE) could be an effective alternative to the CPBTs that can help to end hunger and ensure food security, globally (Ahmad et al. 2020, 2021a, b, c). Among different GE systems CRISPR-Cas (Clustered Regularly Interspaced Palindromic Repeats-CRISPR-associated Protein) system provides a robust, efficient, and economical mode of action that can alter the genetic makeup of crop plants without introducing foreign DNA, a major controversy in the acceptance of genetically modified organisms (GMOs) developed through transgenic breeding method (Ahmad et al. 2021a, b, c; Monsur et al. 2020). Additionally, the current availability of genome sequences and information of vast number of plant species has made it a more suitable tool to manipulate any specific gene/s for the creation of new desirable crop varieties.

Here, to give an updated picture of the application of CRISPR-Cas systems in rice from 2020 to Present (“Present” refers to March 2023), we have explored five different scholarly databases including Google Scholar (http://scholar.google.com), Pubmed (https://pubmed.ncbi.nlm.nih.gov/), Scopus (https://www.scopus.com/home.uri?zone=header&origin=), DOAJ (Directory of Open Access Journals) (https://doaj.org/) and Refseek (https://www.refseek.com/) and collected the relevant literature using web filters and various keywords i.e., rice, Oryza sativa L., gene editing, CRISPR, genome editing in rice, climate change, biotic resistance, and abiotic tolerance. Finally, fully screened, and curated data have been presented and discussed below in this article to highlight the potential of CRISPR-Cas based GE system in rice improvement (Fig. 1).

Fig. 1

Record of research focusing on the development of abiotic (A) and biotic (B) stress tolerant rice lines using CRISPR-Cas system between 2020 - To date

Although several reviews on GE in rice have been published previously (Fiaz et al. 2019; Khan et al. 2021; Mishra et al. 2018; Tabassum et al. 2021), but an up-to-date progress of rice GE was needed due to its high value and significant contribution to food security. Thus, this spatiotemporal mini review primarily aims to summarize the recent success stories and progress of CRISPR-based GE systems, especially CRISPR-Cas9, over the last three years in the creation of climate-smart rice lines. Moreover, regulatory aspects and future directions are also discussed in detail.

Can CRISPR Help to Breed New Climate-resilient Transgene-free Rice Varieties?

Nowadays, CRISPR-Cas based GE is more valued due to its robustness, accuracy, and applicability in crop plants, especially in rice. Compared to other GE techniques, CRISPR-Cas solely can play a significant role in the development of climate resilient rice lines by performing multiple tasks including but not limited to knock-out, knock-in, epigenetic changes and transcriptional regulation of different genes controlling various traits (Ahmad et al. 2021a, b, c). Further, CRISPR-Cas system based indels, homologous recombination based targeted sequence alteration, and base pair changes that could not be differentiated from natural mutation are spared from GMOs regulation in several countries (Turnbull et al. 2021). Consequently, CRISPR edited foreign DNA free rice lines will be used in rice breeding programs for developing new rice varieties that could be commercialized (Fig. 2). For instance, according to this spatiotemporal study, CRISPR-Cas based GE systems have been used in total 126 research projects since 2020 that have been conducted on the theme of development of climate resilient transgene-free rice lines or validation of the role of gene/s involved in any biotic or abiotic stress tolerance. Out of these published research, 74 and 52 research found related to abiotic and biotic stresses, respectively (Fig. 1). Hence these publications have been further explored and reviewed critically, below in this section, to confirm the promising role of CRISPR technology in developing abiotic (drought, heat, cold, herbicide, salinity, lodging, heavy metal, and others) and biotic stress (bacterial leaf blight, rice blast, sheath blight, and others) tolerant rice varieties.

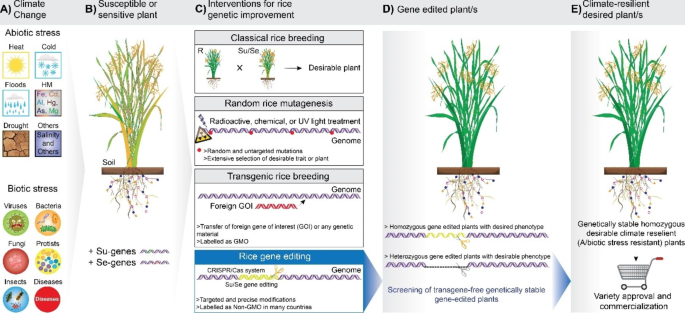

Fig. 2

Illustration of production of publicly acceptable transgene-free climate resilient rice varieties using gene editing tools. (A) Different biotic and abiotic stresses. (B) Diseased or under stress (A/biotic) plants having susceptibility (Su) and sensitivity (Se) genes. (C) Various crop improvement breeding interventions. (D) Gene-edited plant/s (T0) developed using GE tools e.g., CRISPR-Cas-based GE system. At this stage plant/s could have heterozygous or homozygous mutation, hence screening of homozygous plants is required. (E) Final genetically stable homozygous transgene-free desired rice plant/s that can be released commercially as a potential new variety or can be used in rice breeding programs

Re-wiring of Rice Genome via CRISPR for Developing Abiotic Stress Tolerance

Abiotic stresses, particularly drought, heat, cold, salinity, herbicide, and salinity cause substantial yield losses in rice by damaging its growth and developmental processes. It is the need of the hour to develop such rice varieties that could withstand rapidly changing abiotic environmental conditions. CRISPR-Cas systems have been proved as a promising tool in this regard (Table 1). Hence, this section covers its recent applications against abiotic stresses in rice.

Table 1 Summary of applications of CRISPR-Cas based gene editing systems against abiotic stresses in rice between 2020–2023

Drought

Drought stress is one of the major threats that limits crop productivity and can affect food security significantly (Zhang et al. 2023a, b). It is projected that about half of the global cultivated land would suffer from severe water scarcity by the end of 2050 (Kamanga et al. 2018; Mushtaq et al. 2018). To overcome the possible upcoming consequences, production of drought tolerant crop varieties, especially rice, is undeniable. In this regard, researchers have utilized the CRISPR-Cas based GE systems to knock out the undesirable sensitivity (Se) causing gene/s and have created new drought tolerant rice lines (Table 1).

For instance, 366 bp deletion in drought and salinity tolerant 1 gene through CRISPR-Cas9 enhanced water retention against dehydration stress followed by broader leaves production (Santosh Kumar et al. 2020). The phenotype of CRISPR-edited mutant plants showed tolerance against drought stress. Similarly, a CRISPR-Cas9 based null mutation in pyrabactin resistance-like (OsPYL9) gene resulted in higher cuticular leaf wax accumulation, lower transpiration rate, and increased grain weight along with drought tolerance (Usman et al. 2020). Chung et al. (2020) also identified 66 drought induced microRNAs and of these OsmiR535 and OsmiR818b were found to be drought responsive. The 5 bp- homozygous deletion in drought responsive OsmiR535 induced tolerance against PEG, dehydration, NaCl and abscisic acid (ABA) stresses (Yue et al. 2020). Likewise, the loss of function of OsABA8ox2 gene, an ABA 8,-hydroxylase encoding gene, generated via CRISPR-Cas9 system produced a long and narrow rooting system that is beneficial to acquire water under drought conditions (Zhang et al. 2020a, b). In addition, stomatal density largely affects water transpiration thus playing a critical role in drought stress. For instance, the CRISPR-Cas9 based stomata developmental defect 1 (osrsd1) mutants had decreased stomatal density that prevented water loss under dehydration stress. Consequently, mutant lines also exhibited altered expression of other stomatal related genes i.e., stomatal density and distribution 1 (OsSDD1), and showed tolerance against drought stress (Yu et al. 2020). Lu et al. (2020) identified two drought-sensitive genes (OsAAA-1 and OsAAA-2) through screening of the activation tagging population. Thus, CRISPR-Cas9 mediated disruption introduced pre-mature truncation of protein that resulted in increased grain yield under limited water availability. Moreover, disruption of epidermal patterning factor 10 (EPFL10) through CRISPR-Cas9 system caused lower stomatal density followed by improved water conservation compared to the wild (Karavolias et al. 2021). Similarly, CRISPR-Cas9 generated osmotic stress/ABA–activated protein kinases (sapk3-1 and sapk3-2) mutants displayed lower water loss and normal plant growth under drought conditions (Lou et al. 2023). Cuticular wax synthesis under drought stress inhibits water loss and its production could prevent the plant from severe damages. Under drought stress, both knockdown and knockout mutants of lov kelch repeat protein 2 (Oslkrp2) gene made 10% more cuticular wax along with increased leaf size, which resultant improve the level of tolerance of plants against drought conditions (Shim et al. 2023). In contrast to these studies, scientists have also identified some positive regulators (genes) of drought stress whose disruption has brought drought sensitivity. These genes include nitrate transporter 1/peptide transporter family (OsNPF8.1) (Diyang et al. 2023), and ideal plant architecture 1 (IPA1) genes (Chen et al. 2023a, b). Finally, it could be concluded that CRISPR-Cas mediated over-expression of these genes could contribute to produce drought tolerant rice lines. Similarly, numerous stress-related factors (TFs) have also been found to be positively associated with drought tolerance. For example, CRISPR-Cas9 mediated NAM, ATAF1/2, and CUC2 (OsNAC006) knock-out lines impaired morpho-physiological traits together with decreased antioxidants (catalase, peroxidase dismutase, and peroxidase) growth following drought stress (Wang et al. 2020a, b, c, d). Similarly, CRISPR-Cas 9 oriented disruption of OsWRKY76 (w76-1 and w76-2) TF has brought severe symptoms of wilting, electrolyte leakage, water loss, and chlorosis after treating with 20% PEG (Zhang et al. 2023a, b). Additionally, the rice genome also has 89 basic region/leucine zipper motif (bZIP) TFs that are involved in regulating numerous regulatory and stress related pathways. Two base pairs deletion in the first codon of OsbZIP72 TF led to the premature termination and phenotype of this mutation caused withering of seedlings against drought compared to over-expressed lines demonstrating better morphological appearance against drought (Baoxiang et al. 2021).

Heat

According to temperature stats recently published by FAO in May 2023, 1.4 °C was the average annual temperature change in the world in 2022 (FAO 2023). However, it is predicted that the average global temperature would increase up to 2℃ to 4℃ by the end of 21st century, and this increase in temperature could significantly affect crop productivity (Jagadish et al. 2015). The global mean temperature could rise to 3℃ by the mid twenty-first century (Field et al. 2012). Hence, it is becoming more alarming as it is reported that 1℃ increase in mean temperature could affect 6–7% grain yield of crop plants (Lesk et al. 2016). Considering the adverse effects of prolonged heat stress scientists have made multiple efforts using CRISPR-based GE system to produce heat resilient rice lines (Table 1).

For example, OsNAC006 TF is regulated by indole acetic acid, gibberellin, H₂O₂, ABA, cold, heat, PEG, and NaCl treatments. CRISPR-Cas9 mediated null mutants of OsNAC006 have displayed thermo-tolerance in rice plants followed by elevated H₂O₂, O^2- levels (Wang et al. 2020a, b, c, d). Similarly, CRISPR-Cas9 oriented disruption of NTL TF at two sites produced ntl3-1 and ntl3-2 mutants. The ntl3-1 produced truncated protein whereas ntl3-2 mutant exhibited a new C-terminus in addition to a truncated protein. Interestingly, regardless of post GE protein structure both mutants showed thermo-tolerance at 45℃ for 5 days with lower survival rate (Liu et al. 2020a, b, c). On the other hand, there are also some genes that are positively associated with heat tolerance whose expression is essential to ensure heat tolerance. For example, leucine rich repeat receptor kinase (LRK1) is positively correlated with leaf dark respiration and CRISPR-Cas9 based single bp mutation at the 508th nucleotide resulted in premature termination of protein by introducing the stop codon at the 180th amino acid sequence. Exposure of lrk1 mutants to 35℃ for 10 days reduced dark respiration along with retarded morphological growth (Qu et al. 2020). Likewise, three mutations consisting of 1-bp, 2-bp, and 4-bp deletion in the first exon of semi rolled leaf 10 (SRL10) gene through CRISPR-Cas9 generated three independent mutant lines that exhibited semi rolled leaf phenotype and compromised thermo-sensitivity (Zhang et al. 2023a, b). Consequently, the application of CRISPR-Cas9 system confirms that constitutive expression of these genes is needed to induce thermotolerance in rice.

Salinity

Salinity stress greatly affects the seedling and reproductive stages of rice plants by introducing osmotic, oxidative, and ion toxicity stresses. Interestingly, salt tolerant rice is a preferred grain crop to utilize the saline-alkali and coastal tidal lands, which has great utilization potential (Han et al. 2022). Numerous studies have been executed to find out and to characterize the salinity associated gene (s) through CRISPR-Cas mediated GE.

For instance, soil surface rooting 1 (OsqSOR1) is a homolog to deep rooting 1 (AtDRO1) gene that governs shallow root growth angle. One bp substitution in the 3rd exon of OsqSOR1 gene caused premature truncation and produced soil surface root which improves salinity tolerance (Kitomi et al. 2020). Likely, double mutants of extra-large GTP-binding protein (osxlg1/osxlg4) genes also increased root length that led to improved salinity tolerance (Biswal et al. 2022). Further, CRISPR-Cas9 oriented two mutations viz., -20 bp in M16 exon and − 1 bp in M18 exon of OsRR22 gave higher root and shoot weight and a greater number of fresh leaves against 0.8% NaCl treatment (Han et al. 2022). Heterotrimeric G proteins are involved in regulating the stress responses in plants. CRISPR-Cas9 based null mutations in G protein encoding genes (gs3, and dep1) induced salinity tolerance (Cui et al. 2020). Similarly, the paraquat tolerance 3 (OsPQT3) gene could switch off the stress mechanism through an off-switch mechanism and disruption of the first and second exons of OsPQT3 gene resulted in higher salt tolerance (150mM NaCl) together with improved germination (Alfatih et al. 2020). For salinity tolerance, balance between Na + and other salts is crucial in salinity tolerance and sensitivity. in this regard, Lian et al. (2020) have observed lower K + concentration and improved morphological growth in open stomata 2 (ossst) mutants against 150mM NaCl. Like genes, TFs could also perform compartmentation of Na + and K + to induce salt tolerance and a single bp deletion in OsbHLH024 TF improved oxidative stress tolerance by maintaining the balanced level of Ca2+, Zn2+, and Mg2 + minerals (Alam et al. 2022a, b, c). Moreover, steroid hormones also have their role in stress tolerance, but they are difficult to use in plant improvement due to their complex role. Dong et al. (2020) have disrupted SERK2, one of the steroid component genes that enhanced salinity tolerance. Similarly, ABA biosynthesis also has some roles in salinity tolerance and CRISPR-Cas9 based disruption of violaxanthin de-epoxidase (OsVDE) gene has brought salinity tolerance followed by increased ABA level higher survival rate, and stomatal closure (Wang et al. 2022a, b, c). Although gene disruption could contribute to stress tolerance, genotypic background largely affects the induction of stress tolerance. In this regard Prodhan et al. (2022) have disrupted the betaine aldehyde dehydrogenase (OsBadh2) gene with CRISPR-Cas9 simultaneously in Jiahua#1 (WT_JH) and Huaidao#5 (WT_HD) cultivars. Surprisingly mutation in OsBadh2 gene induced salinity tolerance in WT_HD lines only, indicating the significant effect of the genetic background to acquire the stress tolerance.

Conversely, positive regulators of salinity tolerance have also been reported whose disruption introduced such characteristics that have produced salt sensitive rice lines. For instance, disruption of Ca2 + sensor, calmodulin (OsCaM1) gene produced lower primary root, and weakened lateral root length with reduced root density confirming its sensitivity to salt stress (Yang et al. 2021). Likewise, CRISPR-Cas9 based mutagenesis in the first exon of glyoxalase (OsGLYi3) gene yielded saline hypersensitivity following elevated methylglyoxal, and glyoxalase I activity (Liu et al. 2022). Balance of Na + and K + in root zones greatly affects salinity tolerance in crop plants. Identically, knock-out lines of mitochondrial phosphate transporters (OsMPT3;1 and OsMPT3;2) genes exhibited compromised morphological growth and reduced Na + efflux and K + and Ca + influx as well (Huang et al. 2020a, b, c). Like genes, TF could also positively regulate the salinity tolerance. CRISPR-Cas9 oriented disruption of a trihelix (OsGTγ-2) TF produced salt hypersensitive phenotypes followed by imbalanced K + and Na + accumulation (Liu et al. 2020a, b, c). Likewise, CRISPR-Cas9 mediated editing of 3rd exon of BEAR1, a bHLH TF, produced salt sensitive phenotypes i.e., reduced plant height compared to control (Teng et al. 2022). Interestingly, knocked out mutants of bHLH044 TF also produced salt sensitive lines. However, this sensitivity was due to the elevated reactive oxygen species levels followed by higher lipid peroxidation and H₂O₂ levels (Alam et al. 2022a, b, c).

Cold

Rice is vulnerable to chilling stress and induction of chilling tolerance is pivotal to expanding its cultivation to northern areas characterized by much lower annual temperatures (Li et al. 2023). Chilling tolerance is a complex trait and is controlled by several quantitative trait loci such as COLD1, qCTS12/GSTZ2, CTB4a, and Ctb1 (Liu et al. 2018). Therefore, several attempts have been made to induce chilling tolerance or to investigate genes involved in chilling tolerance. Many tolerance causing genes have been reported in the past (Le et al. 2022; Romero and Gatica-Arias 2019), and latest are presented here (Table 1). Such as, CRISPR-Cas9 mediated disruption of a cold tolerance gene (OsMYB30), panicle length gene (OsPIN5b), and grain size gene (GS3) genes yielded cold tolerance along with improved yield. Additionally, two triple mutants comprised of ospin5b/gs3/osmyb30-25 and ospin5b/gs3/osmyb30-4 also exhibited improved cold tolerance together with enhanced grain yield (Zeng et al. 2020a, b). Likewise, exposure of CRISPR-Cas9 based osatp4 and ostcd3 mutants to lower temperature possessed improved cold tolerance coupled with decreased chlorophyll contents (Lin et al. 2020). Moreover, WRKY TFs are also associated with cold tolerance. For instance, CRISPR-Cas9 oriented disruption of OSWRKY63 TF introduced cold tolerance in rice (Li et al. 2021a, b). In contrast, like other stresses, positive regulators of cold stress have also been reported. Like, editing of the fifth exon of annexin (OsAnn5) gene caused cold sensitivity in rice seedlings (Que et al. 2020). Further, CRISPR-Cas9 based editing of OsWRKY76 TF produced cold sensitive rice lines (Zhang et al. 2022a, b). Though editing of positive regulators is not required but the application of CRISPR-Cas9 system helped in elucidating their confirm role in cold stress. Hence it proves that CRISPR-Cas9 system does not only help in developing new cold stress tolerant germplasm but also playing its critical role in functional analysis of the newly identified and cloned gene/s.

Herbicide

Weeds are another big challenge to rice and hinder its production significantly. Several efforts, including but not limited to the utilization of conventional, mechanical, and chemical approaches, have been made to cope with this problem so far. Nevertheless, these strategies have been proven expensive, less efficient, and/or hazardous to health and ecosystem (Chauhan 2013; Kuang et al. 2020; Wu et al. 2023). The development of herbicide tolerant genotypes using CRISPR-Cas systems are the need of the hour and could be one of the popular strategies to overcome the challenge of weeds to rice and to improve its production, globally. For that, extensive studies have been conducted in last three years to investigate the possible roles of several genes towards herbicide tolerance and their utilization in the development of herbicide tolerant rice lines through CRISPR-Cas systems (Table 1).

Acetolectase synthase (ALS) gene, an herbicide resistant gene catalyzes the first step of biosynthesis of branched amino acids that are the first target of Bispyribac sodium (BS) and other herbicides. Recently, conversion of tryptophan to leucine at 548th position of ALS gene improved BS tolerance in basmati rice (Zafar et al. 2023). Likewise, Liying et al. (2022) have also edited OsALS genes earlier and obtained three types of mutants viz., ALSS627N and 1884G-A, ALSS627N, and ALSS627N/G628E that were resistant to imidazole ethylinicotinic acid. Moreover, auxin hormones play a variety of roles in plants including embryogenesis, tissue elongation, and vascular differentiation. Dicot weeds are controlled by auxinic herbicides. CRISPR-Cas9 directed disruption of auxin signaling f-box (OsAFB4) auxin receptor induced tolerance against picloram and 2,4-dichlrophenoxyacetic acid (Guo et al. 2021). Moreover, single bp substitution has proved their crucial role in producing herbicide tolerant rice lines. Xu et al. (2021a, b, c, d) have developed prime-editing-library-mediated saturation mutagenesis to increase the substitution rate at the target site (s) and have identified 16 diverse mutations in OsACC1 corresponding to herbicide resistance. Additionally, paraquat herbicide resistance has also been achieved in CRISPR-Cas9 based triple mutants of OsPUT knock-out lines (Alfatih et al. 2020). Beside BS, glyphosate is a widely used herbicide, but it also affects the main crop. A single bp substitution of 96G to A in glyphosate resistant gene (EPSPS) induced herbicide tolerance (Jiang et al. 2022). Hence, in this case it can also be concluded that CRISPR-based base editors have not only improved the rice resistance against herbicides but also proved that it can generate mutants that could be mimicking natural mutants. Besides, unlike drought, salinity and heat stresses, positive regulators of herbicide tolerance have not been reported in the last three years.

Heavy Metal

Heavy metals are undesirable for plants and humans too as their exposure to the human body could damage organs even at lower concentration. Heavy metals are non-biodegradable, stable, and persistent that made them hazardous for human consumption. Cadmium (Cd) is one of the most threatening heavy metals for living organisms and its pollution in agricultural soil has continuously been increasing (Zhao et al. 2015). Cd is not only affecting rice yield and quality, but it is also a serious threat to human health as well. Cd interacts with metabolic processes and could cause various cancers and bone diseases in the human body (Clemens 2019). Although numerous studies have been conducted to find out the Cd associated genes but unfortunately, till now only a few genes have been found that can take part in Cd metabolism. Such as, null mutants of low cadmium (oslcd) gene accumulated less Cd in shoots under the influence of Cd-contaminated soil (Elkonin et al. 2023). Similarly, the knocked-out mutants of mir535 of brown rice accumulated 35% less Cd compared to the control under controlled stress of 2 µmol/L Cd (Yue et al. 2023). Moreover, Chang et al. (2022) have also got Cd tolerance with limited manganese accumulation by disrupting natural resistance associated macrophage protein (OsNramp5) gene with CRISPR-Cas9. Besides Cd, copper oxide nanoparticles (CuO NPs) are also creating toxication in rice plants and oscerk1 mutants had CuO NPs tolerance followed by the increased accumulation and regulation of H₂O₂ and antioxidant system respectively (Chen et al. 2023a, b). In addition to heavy metal contamination, pesticides residuals are another source of contaminated cultivated soils. Xu et al. (2023) have identified acetyltransferase (OsACE2) gene that has a primary role in catabolizing the oxyfluorfen pesticide residuals in soil. However, CRISPR-Cas9 based downregulation of this gene resulted in compromised morphological growth and higher oxyfluorfen accumulation suggesting its positive association with oxyfluorfen catabolization.

Others

Besides the prominent stresses, other minor stresses have also been addressed through CRISPR systems. These stresses include Fe homeostasis, lodging, effects of short and long-day span on heading, Pi (phosphorous) starvation, and K⁺ (potassium ion) uptake. For detail overview please refer to Table 1.

Re-wiring of Rice Genome via CRISPR System for Developing Resistance Against Biotic Stresses

Biotic stresses including diseases and insects cause up to 40% (and sometimes complete) yield losses in rice. Rice is attacked by many pathogens including bacterial, fungal, and viral, which cause several kinds of diseases in rice that eventually hamper or stop the growth and development processes in rice. Hence, developing pathogen and insect resistant rice varieties are quite important to achieve global food security. In this regard, the CRISPR-Cas system is contributing significantly to developing biotic stress resistant rice lines (Table 2). So, the contributions of CRISPR-Cas system are highlighted below in this section.

Table 2 Summary of last 3-year applications of CRISPR-Cas mediated gene editing systems against biotic stresses in rice

Rice Blast

Rice blast is a fungal disease caused by Magnaporthe oryzae; a hemi biotrophic fungus. It has been extensively studied due to its lethal damage to rice. Scientists have also developed a Patho-system of rice M. oryzae which has been used as a primary model to study plant-microbe interaction (Li et al. 2019). Using this model, scientists have conducted multiple studies in the last three years to produce rice blast resistant lines through CRISPR-Cas systems.

In this regard, Huang et al. (2020a, b, c) have edited the N terminal sequences of four Ferrona like receptor (FLR) genes that are involved in rice M. oryzae interaction. Double knocked out lines of FLR2 and FLR11 receptors depicted enhanced resistance, while single knocked out lines of FLR1 and FLR13 showed susceptibility indicating their negative and positive association respectively with blast resistance. Similarly, single mutant lines of FLR1 and single knock out lines of FLR2 receptor delayed the pathogen infection respectively. Differences in resistance/susceptibility could be due to the altered expression of other genes. Likewise, MILAzzo et al. (2022) have achieved blast resistance characterized by lower disease symptoms following the disruption of OsDjA2 and ethylene-responsive factor104 (ERF104) genes independently. Salicylic acid (SA) may have a crucial role in the plant immune system and its indirect association with blast resistance has also been reported. Downregulation of UGT74J1, a UDP-glucosyltransferase gene induced several PR-related genes along with improved blast resistance and higher SA accumulation. However, confirmation of this hypothesis needs further investigation whether blast resistance is due to the overexpression of PR-related genes or higher SA accumulation (Tezuka et al. 2021). Further, impairing avirulence activity of pathogen has also been proven to be fruitful to induce blast resistance. For example, CRISPR-Cas9 based ubiquitin-conjugating enzyme26 (osubc26) mutants depicted impaired avirulence activity by impairing proteasome through degradation of AvrPiz-t cells Liu et al. (2021a, b, c). Addition to gene disruption, CRISPR-Cas based gene knock-in approach has also been used to induce blast resistance in rice lines. Xu et al. (2020) have induced blight resistance by introducing exon #2 of Pi-ta gene (blast resistant gene) into pi-ta (susceptible gene) gene resulting in rice blast resistance.

In contrast, there are also such genes and TFs have been reported in the last three years whose expression is required to ensure the blast resistance. For example, CRISPR-Cas9 based null mutations of OsPib (Xie et al. 2022), ent-casbene synthase (Liang et al. 2021), peroxidase3 (OsPerox3) (Liu et al. 2021a, b, c), growth-regulating factor4 (OsGRF4) (Yudong et al. 2021), and partial resistance1 gene (OsPiPR1) (Liu et al. 2020a, b, c) genes have increased blast susceptibility. Similarly, some TFs particularly WRKY TF gene family have been found to be positively associated with blast resistance and disruption of WRKY45, OsWRKY93 and OsWRKY7 TFs caused more susceptibility (Li et al. 2021a, b; Tun et al. 2023). Finally, the expression of specific genes may conclude to ensure blast resistance.

Bacterial Blight

Bacterial blight of rice caused by Xanthomonas oryzae pv. Oryzae (Xoo), is a destructive rice disease that can reduce the rice grain yield by up to 75%. Xoo could activate the host susceptibility gene followed by seizing the host machinery through its endogenous transcription activator-like effectors (TALEs). Moreover, TALEs could bind to effector binding elements (EBE) to cause bacterial diseases that are present in the upstream regions of SWEET genes or other plant susceptible genes. Targeted mutation in the promoter of OsSWEET14 gene characterized with AvrXa7 deletion exhibited improved resistance against Xoo. Consistently Zeng et al. (2020a, b) have targeted the 1st and 3rd exons of Sugars Will Eventually be Exported Transporter14 (OsSWEET14) gene and have obtained resistance against the Asian and African races of Xoo (AXO1947). In addition to gene knock-out, scientists have also engineered other SWEET genes as well and Diana et al. (2022) have introduced indels with CRISPR-Cas9 in the promoter of susceptibility gene (OsSWEET13). However, phenotypic evaluation has yet to be performed. Like SWEET genes, pathogen’s disease inducing genes including Xa13, Xa1, and Xa23 have also been subjected to GE to explore their role towards rice blight resistance. It is worth noticing here that these two genes could contribute to broad spectrum resistance (BSR) as wellWei et al. (2021a, b) have reported BSR to blight by knocking of EBEAvrXa23 elements into the promoter regions of susceptible allele (xa23). Furthermore, altering EBEs of Xa13 gene’s promoters also resulted in blight resistance (Li et al. 2020a, b). Besides EBEs, UPT boxes are also of great importance in acquiring blight resistance. CRISPR-Cas12a mediated site-specific mutations in UPT box of Xa13 gene gave blight resistant phenotypes followed by disturbed TALEs binding sites (Yu et al. 2021). Hence, CRISPR-based GE tools can be some promising tools to combat bacterial blight and reduce yield losses being happening due to it.

Sheath Blight

Sheath blight is caused by Rhizoctonia solani and causes withering and lodging of the entire plant that could reduce grain yield by up to 50%. Identification of susceptibility genes is a prerequisite to induce disease resistance in crop plants. In this regard numerous efforts have been made to identify and to edit the disease responsive genes through CRISPR-Cas system in last three years. In contrast to other studies, most genes are positively associated with sheath blight resistance. For example, employing of CRISPR-Cas9 system on Protein phosphate (OsPP2A1) gene yielded five mutants; pp2a-1-1 had 1 and 2 bp insertions in 1st exon, and pp2a-2 had 1 bp deletion in 11th exon. Moreover, pp2a-3, and pp2a-4, had 1 bp insertion and 2 bp insertion in their 1st and 2nd exon respectively, whereas pp2a-5 contained 1pb deletion in the 1st exon too. Interestingly, all these mutants depicted hypersensitivity to sheath blight disease compared to control (Lin et al. 2021). Similarly, Jung and colleagues have found that NH4⁺ uptake is positively associated with sheath blight disease as osamt1 lines (an ammonium transporter) exhibited hypersensitivity against R. solani isolates (Jung et al. 2023).

Others

Rice genome editing has also been attempted to induce other biotic stress resilience as well including microbial organisms, brown plant hopper (Zhang et al. 2022a, b), rice tungro virus (Kumam et al. 2022), rice black streaked dwarf virus (Wang et al. 2021a, b, c, d; Wang et al. 2022a; Wang et al. 2022b; Wang et al. 2022c), southern rice black streaked dwarf virus (Lu et al. 2021; Wang et al. 2022a, b, c) and yellow mottle virus (Arra et al. 2023). In addition to these, some genes have also shown resistance to multiple pathogens or diseases (Table 2). Hence, all these applications show that CRISPR-based GE tool has great potential to develop climate-smart rice varieties that can help us to achieve food security, globally.

Challenges, Opportunities, and Future Perspective

Several GE tools, including restriction enzymes, zinc finger nucleases, Transcription activator-like effector nucleases, CRISPR-Cas systems, and transposases have been used for creating a better rice for a long time. However, there is no doubt that among these, CRISPR-Cas based GE systems (especially CRISPR-Cas9 system) have been the most adopted GE tool due to its higher accuracy, robustness, ability to modify the target sequence, and applicability to maximum number of crop plants without any restrictions. Several improvements have been observed in rice DNA and RNA editing using CRISPR-Cas systems since its first application in rice in 2013. The world has witnessed the successful application of different versions of CRISPR-Cas system, prominently CRISPR-Cas9/-Cas12/-Cas13, DNA/RNA base editors, and prime editors, in developing new desirable rice lines (Aqib et al. 2022; Malzahn et al. 2019; Tang et al. 2018; Zhang et al. 2021a, b). Besides its huge potential over others, CRISPR-Cas systems also have some limitations and challenges, including but not limited to off-target effects, bigger size of Cas proteins, limited protospacer adjacent motif (PAM) sites as they are important to determine the target site (e.g., in case of Cas protein “NGG“ is the PAM site), efficiency and accuracy of targeting the desired DNA/RNA fragment, and/or production of transgene free CRISPR-edited mutants (Ahmad et al. 2020). To overcome these limitations, many efforts have been made and many more are needed.

For example, multiple alternative PAM sites (including NAG, NGA, NNGG, NNG, NAA etc.) have been identified to improve the efficiency of the system. The wild-type Cas9 protein can efficiently identify the NGG and NAG PAM sites in rice. Moreover, according to Meng et al. (2023) using NGA alone or in combination with NAG could enhance editing efficiency. In contrast, it is reported that despite of first recognition of NAG PAM by SpyCas9, NGG has shown strong affinity for SpyCas9 protein (Kleinstiver et al. 2015). Hence, the identification of new orthologs of Cas9 nuclease or engineering of available Cas9 are needed that could identify and show strong affinity with new and efficient PAM sites in the genome. Otherwise, the identification of the target/s in the genome for gene disruption using CRISPR-Cas systems could be PAM independent (Collias and Beisel 2021). Moreover, the identification of new variants of Cas9 nuclease can also solve the problem of the transformation of bigger size SpyCas9 nuclease into plants e.g., a smaller Cas9s nuclease has recently been engineered and used effectively in therapeutics as an alternative (Schmidt et al. 2021).

Off-target effects are another growing challenge that should be addressed. Off-targets could be of two types especially in case of base editors: (1) Cas protein dependent, or (2) Cas protein independent. Hence, both types are crucial and need ultimate solution. Nowadays, several in silico, in vitro, in vitro in cellulo, and in cellulo based methods are available for identifying genome-wide CRISPR-Cas off-target sites (Tao et al. 2023). Recent advancements in genomics and next-generation sequencing (NGS) would certainly help to minimize the off-targeting and to identify the CRISPR edited plants without off-target mutations. Recently, Amit et al. (2021) have also developed a model based on NGS data to reduce the off targets. Moreover, the development of base editing, prime editing and CRISPR-Cpf1 type systems have made CRISPR-based GE technology more reliable due to their minimal off-target activities. Collectively, it can be predicted that off-target effects can be further reduced from minimal to even zero level.

Besides off-targets, tissue culture is one of the key steps involved in delivering CRISPR/Cas system reagents into target plant. Optimization of tissue culture for each targeted crop and various economically important tree species (which are difficult to propagate and/or near to their extinction) is a major bottleneck on their way to improvement using CRISPR-Cas based GE technology. In this regard, quite a few successes and advancements have been observed in recent days. Fortunately, researchers have recently combined grafting and mobile CRISPR to avoid the laborious and time-consuming tissue culture technique and delivered the CRISPR/Cas9 reagents as RNA from transgenic roots (rootstock) to distal parts of unmodified grafted scion, where it is translated into proteins to induce heritable mutagenesis at desired loci (Yang et al. 2023). This technique has been critically reviewed by (Zaman et al. 2023), and it is demonstrated that it has tremendous potential to produce transgene-free and genetically stable plants not only in field and vegetable crops, but also fruits and other economical trees. Similarly, Cao et al. (2023) have also developed an extremely simple cut–dip–budding (CDB) tissue culture free delivery system, which uses Agrobacterium rhizogene to inoculate explants and does not need sterile conditions. It has been demonstrated that CDB is a useful tool to achieve the heritable transformation of plant species in multiple plant families. In addition, several in planta transformation attempts have been made to perform tissue culture free GE (Hamada et al. 2018; Liu et al. 2021a, b, c) .

In various countries, genetically modified plants that have traces of any foreign DNA are not legal for commercial cultivation. Similarly, whether CRISPR-edited plants should be considered as GMO and pass through the GMO regulatory process or should not be labeled as GMO and pass-on to the next level of field trials and commercialization straight away, is still a question and part of legislative discussions in many countries including European Union (UN). In this regard, some countries have already finished or near to finish their legislative framework and decided the fate of GE crops. Positively, UK has recently joined the countries (i.e., Argentina, Australia, Brazil, Canada, Chile, China, Colombia, India, Israel, Japan, and USA) that have allowed GE tools for crops’ improvements and exempted the CRISPR-edited plants from GMO’s legislations because they possess mutations or genetic changes as similar as they can happen in conventional breeding or natural populations (Caccamo 2023; Schmidt et al. 2020) (Fig. 3).

Fig. 3

An up-to-date global status of regulation of gene editing or gene-edited plants

Additionally, regarding the biosafety concerns, the Ministry of Agriculture and Rural Affairs of China has also recently approved the safety of GE soybean and issued a certificate to the developers for next five years starting from April 2023 (Mallapaty 2022). However, such biosafety approvals should be granted to rice varieties as well to achieve food security globally. In contrast, the GE crops are regulated as GMO in EU and New Zealand. However, Agriculture Ministers from the European Union (EU) have met for the first time to discuss the EU recent proposal on new genomic techniques (NGT), including GE. According to the reports, several EU countries supported proposed suggestions regarding GE technology, as compared to very few who showed their concerns over potential risks. The draft proposal to deregulate NGT, especially GE, was released in early July. While certain traceability requirements would remain in place for all GE crops, the draft foresees that NGT-based plants, which also means GE-plants, that are indistinguishable from ones obtained by conventional breeding should be treated like their conventional counterparts (Union 2023a, b). Likewise, other countries in the world are either working on the proposal and the legislations i.e., Kingdom of Saudi Arabia, Pakistan etc., or still having discussions about the new genomics and precision breeding technologies.

Unlike GMOs, CRISPR-edited plants do not carry any foreign DNA and manipulate the existing gene/s, and it has been proven by many studies (Gu et al. 2021; Li et al. 2020a, b; Yang et al. 2023; Yu et al. 2021). Particularly, CRISPR-edited transgene-free rice plants have been generated and screened through several approaches including genetic segregation, foreign DNA free delivery method or transient expression of CRISPR-Cas systems. Genetic segregation may not affect the plant’s genetic makeup, but it certainly eliminates the vector backbone/selectable marker gene by crossing with wild plants. However, outcrossing itself is a tedious and time-consuming task that could be substituted in future due to some recent developments in CRISPR systems for developing transgene-free plants. For example, grafting and mobile CRISPR by Yang et al. (2023), CDB by Cao et al. (2023) and CRISPR Combo to knock out and fine tune the gene expression simultaneously by Pan et al., (2022) are the versatile breakthroughs that will potentially pave the way towards their smooth application in rice as well as other crops speed and precision breeding programs.

In conclusion, rice is being consumed as a staple food in half of the world’s countries highlighting the necessity of rice improvement to withstand rapidly changing global climate. Classical plant breeding techniques, along with mutation and transgenic technologies, are struggling hard to meet the global food requirements but cannot be due to their certain limitations and slower pace of action. The rice breeding programs need to be aided through new speed and precision breeding technologies such as CRISPR-Cas based GE systems. Despite of certain limitations, problems and challenges being faced in CRISPR-Cas based GE system, its applications and achievements highlighted in this review show that it has a great potential to revolutionize not only the rice improvement breeding programs but also the future of whole agricultural system to end hunger worldwide. In future, this technology may support the researchers to develop tolerance against multiple abiotic and biotic stresses (both within and between different environmental stresses) simultaneously to save time and resources. In this regard some proof-of-concepts exist in which tolerance or resistance against two or more stresses have been achieved (Tables 1 and 2, and Fig. 4). Here, to conclude our discussion, we hypothesize that development and characterization of CRISPR-edited plants against various stresses at the same time has huge potential that can transform and speed up the future breeding programs (Fig. 4). Additionally, based on the progress and developments being made in CRISPR-Cas systems coupled with rice, we also speculate that they could be one of the key players in bringing the next green revolution.

Fig. 4

Illustration of proof-of-concept of development of climate-resilient rice lines by manipulating single, double, or multiple genes at the same time and future possibilities. (A) Network of abiotic stresses, (B) Network of biotic stresses, (C) Combined tolerance between abiotic and biotic stresses, (D) CRISPR-edited rice line possessing tolerance against multiple stresses at the same time. Solid lines represent the proof-of-concepts of development of tolerance or resistance against multiple stresses at the same time, whereas doted lines show future directions and potential areas in rice gene editing to be explored. BLB, bacterial leaf blight; RBSDV, rice black streak dwarf virus; SRBSDV, southern rice black streak dwarf virus
